Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MBC150-1T24GAC/DC CONVERTER 24V 110W |
17 |
|
![]() Datasheet |
MBC150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
![]() |
1011395GRN-45-3001 OVP |
50 |
|
![]() Datasheet |
GRN-45 (45W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) |
![]() |
1011265CHGRN-45-3001 CH |
50 |
|
![]() Datasheet |
GRN-45 (45W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) |
![]() |
1011266CHGRN-45-3002 CH |
50 |
|
![]() Datasheet |
GRN-45 (45W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) |
![]() |

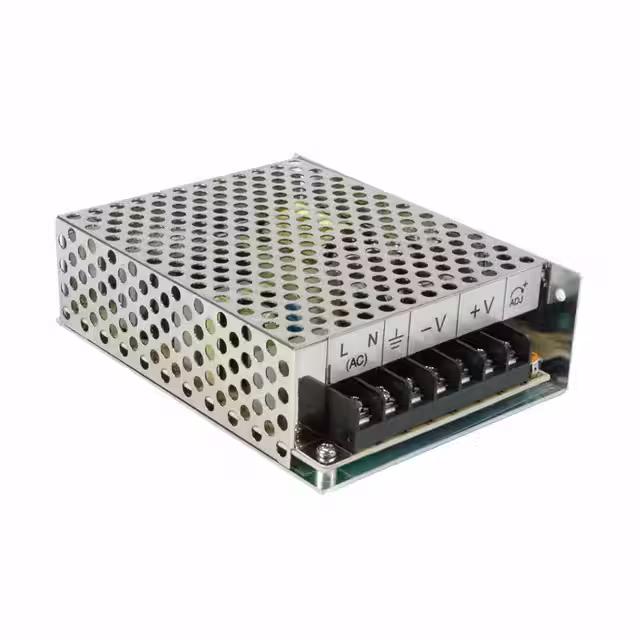

VGS-100-15AC/DC CONVERTER 15V 100W |
0 |
|
![]() Datasheet |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) |
![]() |
TPI 150-148A-JAC/DC CONVERTER 48V 150W |
27 |
|
![]() Datasheet |
TPI 150A (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) |
![]() |
LM600-12B24AC/DC CONVERTER 24V 600W |
323 |
|
![]() Datasheet |
LM600-12Bxx (600W) | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 373 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -30°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) |
![]() |
GLM50-24GAC/DC CONVERTER 24V 50W |
84 |
|
![]() Datasheet |
GLM50 (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | Medical | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) |
![]() |
GLC40BGAC/DC CONVERTER 5.1V +/-15V 40W |
0 |
|
![]() Datasheet |
GLC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.1V | 15V | -15V | - | - | - | 3 A | 2 A | 400 mA | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.96" L x 2.96" W x 1.20" H (126.0mm x 75.2mm x 30.5mm) |
![]() |
1010380CHSRP-40A-4002 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 3.3V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010379CHSRP-40A-4001 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010384CHSRP-40A-4006 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1.5 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010383CHSRP-40A-4005 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1.5 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010381CHSRP-40A-4003 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010455CHSRP-40A-4007 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 3.3V | 5V | -24V | -51.6V | - | - | 3.1 A | 1.25 A | 270 mA | 250 mA | - | - | 36W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010382CHSRP-40A-4004 CH |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010385CHCOSRP-40A-3001 CHCO |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Enclosed | 3 | 100 ~ 240 VAC | 5V | 12V | -12V | - | - | - | 5 A | 2 A | 700 mA | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010465CHCOSRP-40A-3003 CHCO |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Enclosed | 3 | 100 ~ 240 VAC | 24V | - | 15V | -15V | - | - | 1.5 A | 700 mA | 700 mA | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010524CHCOSRP-40A-3004 CHCO |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Enclosed | 3 | 100 ~ 240 VAC | 14.5V | -14.5V | 5V | - | - | - | 1.5 A | 1.5 A | 1 A | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
![]() |
1010386CHCOSRP-40A-3002 CHCO |
50 |
|
![]() Datasheet |
SRP-40A (40W) | Box | Active | Enclosed | 3 | 100 ~ 240 VAC | 5V | 15V | -15V | - | - | - | 5 A | 2 A | 700 mA | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) |
