Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LDA100W-5AC/DC CONVERTER 5V 100W |
4,900 |
|
![]() Datasheet |
LDA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) |
![]() |
LDA10F-12AC/DC CONVERTER 12V 11W |
4,193 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-12-GAC/DC CONVERTER 12V 11W |
4,262 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-12-GYAC/DC CONVERTER 12V 11W |
3,734 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-12-YAC/DC CONVERTER 12V 11W |
3,882 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-15AC/DC CONVERTER 15V 11W |
3,208 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-15-SNAC/DC CONVERTER 15V 11W |
2,394 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-15-SNYAC/DC CONVERTER 15V 11W |
3,349 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | 11W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-24AC/DC CONVERTER 24V 12W |
4,563 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-24-CAC/DC CONVERTER 24V 12W |
4,766 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-24-CYAC/DC CONVERTER 24V 12W |
2,139 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-24-SNAC/DC CONVERTER 24V 12W |
3,401 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-24-SNYAC/DC CONVERTER 24V 12W |
2,586 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-24-YAC/DC CONVERTER 24V 12W |
3,729 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 12W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-3-SNAC/DC CONVERTER 3V 6W |
2,885 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 3V | - | - | - | - | - | 2 A | - | - | - | - | - | 6W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |

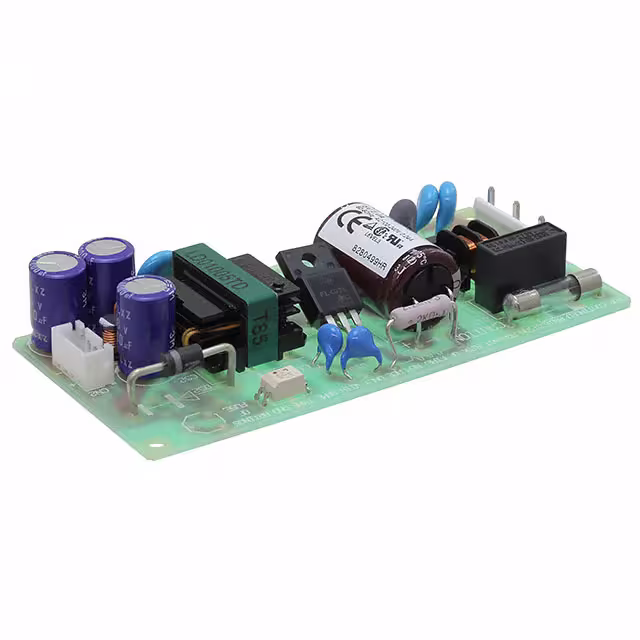

LDA10F-5AC/DC CONVERTER 5V 10W |
4,241 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-5-CYAC/DC CONVERTER 5V 10W |
4,549 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
![]() |
LDA10F-5-SNCAC/DC CONVERTER 5V 10W |
2,021 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-5-SNCYAC/DC CONVERTER 5V 10W |
3,459 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
![]() |
LDA10F-5-VAC/DC CONVERTER 5V 10W |
3,232 |
|
![]() Datasheet |
LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
