| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Capacitance | Tolerance | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Surface Mount Land Size | Polarization | Ratings | Voltage - Rated | Part Applications | Ripple Current @ Low Frequency | Height - Seated (Max) | Ripple Current @ High Frequency | Mounting Style | Size / Dimension | Impedance | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CGS123T250X5CCAP ALUM 12000UF 250V SCREW CHAS Cornell Dubilier Knowles |
4,825 |
|
Datasheet |
CGS | Bulk | Active | 12000 µF | -10%, +50% | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 250 V | General Purpose | 14.6 A @ 120 Hz | 5.125" (130.18mm) | 21.9 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|
CGH103T250X4LCAP ALUM 10000UF 250V SCREW CHAS Cornell Dubilier Knowles |
4,889 |
|
Datasheet |
CGH | Bulk | Active | 10000 µF | -10%, +50% | 20.4mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 250 V | General Purpose | 13 A @ 120 Hz | 4.625" (117.48mm) | 15.99 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|
|
CGS103T250X4LCAP ALUM 10000UF 250V SCREW CHAS Cornell Dubilier Knowles |
4,325 |
|
Datasheet |
CGS | Bulk | Active | 10000 µF | -10%, +50% | 20mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 250 V | General Purpose | 13 A @ 120 Hz | 4.625" (117.48mm) | 19.5 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|
|
CGS404U025X5CCAP ALUM 400000UF 25V SCREW CHAS Cornell Dubilier Knowles |
3,573 |
|
Datasheet |
CGS | Bulk | Active | 400000 µF | -10%, +75% | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 25 V | General Purpose | 31.6 A @ 120 Hz | 5.125" (130.18mm) | 41.08 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|

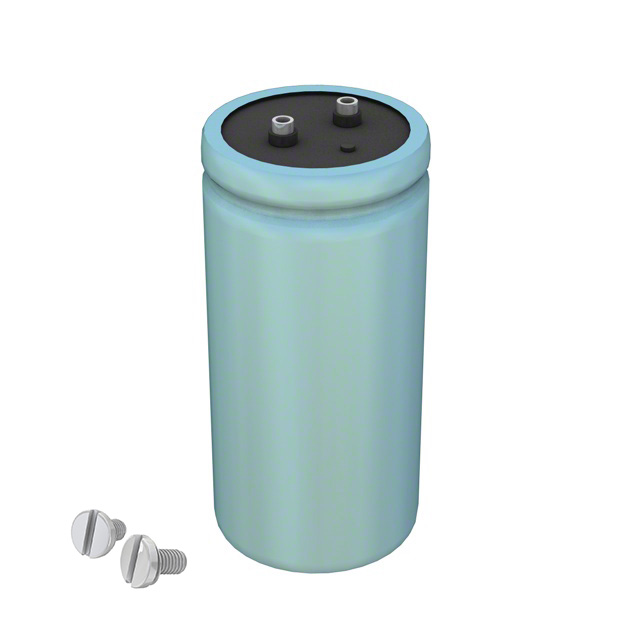

CGH242T500W5CCAP ALUM 2400UF 500V SCREW CHAS Cornell Dubilier Knowles |
3,251 |
|
Datasheet |
CGH | Bulk | Active | 2400 µF | -10%, +50% | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 500 V | General Purpose | 5.3 A @ 120 Hz | 5.125" (130.18mm) | - | Chassis Mount | 2.500" Dia (63.50mm) | - | - | |
|
|
CGS644UFX5L3PDCAP ALUM 640000UF 16V SCREW CHAS Cornell Dubilier Knowles |
3,539 |
|
Datasheet |
CGS | Bulk | Active | 640000 µF | -10%, +75% | 2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 16 V | General Purpose | 30 A @ 120 Hz | 5.625" (142.88mm) | 39 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|
|
CGS242T500W5LCAP ALUM 2400UF 500V SCREW CHAS Cornell Dubilier Knowles |
2,940 |
|
Datasheet |
CGS | Bulk | Active | 2400 µF | -10%, +50% | 44mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 500 V | General Purpose | 9 A @ 120 Hz | 5.625" (142.88mm) | 13.5 A @ 10 kHz | Chassis Mount | 2.500" Dia (63.50mm) | - | - | |
|
|
CGS632T350X5LCAP ALUM 6300UF 350V SCREW CHAS Cornell Dubilier Knowles |
4,784 |
|
Datasheet |
CGS | Bulk | Active | 6300 µF | -10%, +50% | 25mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | Polar | - | 350 V | General Purpose | 12.7 A @ 120 Hz | 5.625" (142.88mm) | 19.05 A @ 10 kHz | Chassis Mount | 3.000" Dia (76.20mm) | - | - | |
|
|
MLS442M040EK0CCAP ALUM 4400UF 20% 40V FLTPCK Cornell Dubilier Knowles |
3,049 |
|
Datasheet |
MLS | Bulk | Active | 4400 µF | ±20% | 97mOhm | 10000 Hrs @ 85°C | -55°C ~ 125°C | - | - | - | 40 V | General Purpose | - | 0.500" (12.70mm) | - | Through Hole | 1.500" L x 1.750" W (38.10mm x 44.45mm) | - | 1.000" (25.40mm) | |
|
|
MLS331M200EK0CCAP ALUM 330UF 20% 200V FLTPCK Cornell Dubilier Knowles |
3,658 |
|
Datasheet |
MLS | Bulk | Active | 330 µF | ±20% | 426mOhm | 10000 Hrs @ 85°C | -55°C ~ 125°C | - | - | - | 200 V | General Purpose | - | 0.500" (12.70mm) | - | Through Hole | 1.500" L x 1.750" W (38.10mm x 44.45mm) | - | 1.000" (25.40mm) |
