Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1V151MDN1CAP ALUM POLY 150UF 20% 35V TH Nichicon |
2,015 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 150 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RS80E331MDNASQJTCAP ALUM POLY 330UF 20% 2.5V TH Nichicon |
2,343 |
|
Datasheet |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
PCR1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD Nichicon |
3,872 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 10 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 800 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

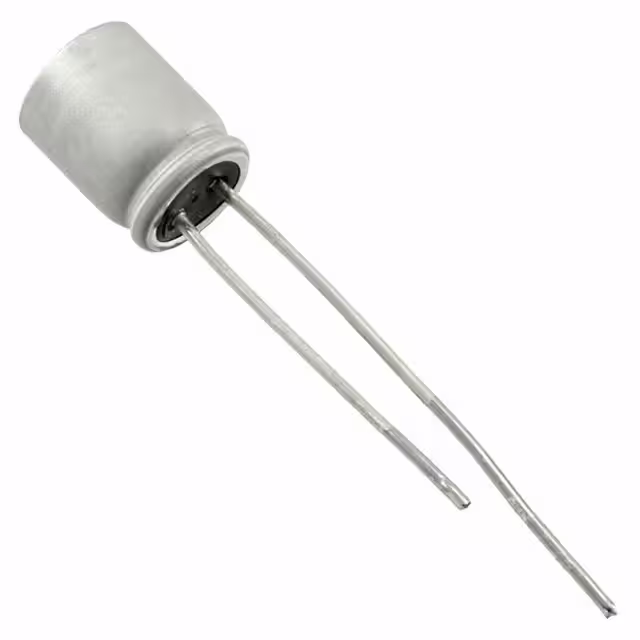

PLF0E561MCO8TDCAP ALUM POLY 560UF 20% 2.5V TH Nichicon |
4,330 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLS1A471MDO1CAP ALUM POLY 470UF 20% 10V TH Nichicon |
3,813 |
|
Datasheet |
PLS | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCL1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD Nichicon |
4,779 |
|
Datasheet |
PCL | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RL80E561MDNASQKXCAP ALUM POLY 560UF 20% 2.5V TH Nichicon |
4,497 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 6mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RSB0G331MCN1GSCAP ALUM POLY 330UF 20% 4V SMD Nichicon |
3,783 |
|
Datasheet |
FPCAP, RSB | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
PLG1A561MCOCAP ALUM POLY 1,500UF 20% 6.3V S Nichicon |
4,804 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PLF0G821MDO1CAP ALUM POLY 820UF 20% 4V TH Nichicon |
17 |
|
Datasheet |
PLF | Bulk | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
