Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

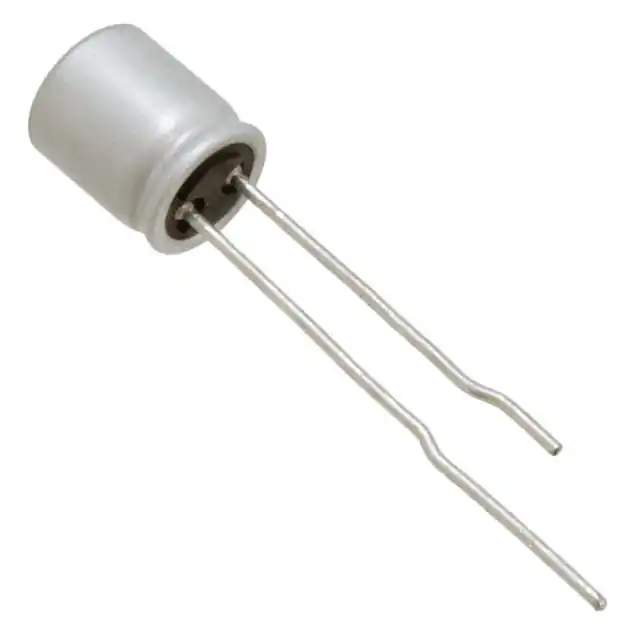

RL81C101MDN1KXCAP ALUM POLY 100UF 20% 16V TH Nichicon |
1,921 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RNS1D101MDN1CAP ALUM POLY 100UF 20% 20V TH Nichicon |
1,285 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RNU1C101MDSASQCAP ALUM POLY 100UF 20% 16V TH Nichicon |
3,005 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RSA0E471MCN1GSCAP ALUM POLY 470UF 20% 2.5V SMD Nichicon |
2,917 |
|
Datasheet |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
GYA1J100MCQ1GSCAP ALUM HYBRID 10UF 20% 63V SMD Nichicon |
6,954 |
|
Datasheet |
GYA | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF0J331MCL1GSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
1,867 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLF1A680MDL4CAP ALUM POLY 68UF 20% 10V TH Nichicon |
798 |
|
Datasheet |
PLF | Bulk | Active | Polymer | 68 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
GYB1H220MCQ1GSCAP ALUM HYBRID 22UF 20% 50V SMD Nichicon |
365 |
|
Datasheet |
GYB | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 165 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RR70J102MDN1CAP ALUM POLY 1000UF 20% 6.3V TH Nichicon |
303 |
|
Datasheet |
FPCAP, RR7 | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RS80J681MCN1CAP ALUM POLY 680UF 20% 6.3V TH Nichicon |
3,094 |
|
Datasheet |
FPCAP, RS8 | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 470 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
