Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCS1A271MCL1GSCAP ALUM POLY 270UF 20% 10V SMD |
4,695 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCG1C470MCL1GSCAP ALUM POLY 47UF 20% 16V SMD |
3,237 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
GYE1V331MCQ1GSCAP ALUMHYB 330UF 20% 35V SMD |
3,103 |
|
Datasheet |
GYE | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXA6R3ARA151MH70GCAP ALUM POLY 150UF 20% 6.3V SMD |
3,803 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.02 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SVPK470MCAP ALUM POLY 470UF 20% 20V SMD |
4,708 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 20 V | 14mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 78 mA @ 120 Hz | 1.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
6SVP470MXCAP ALUM POLY 470UF 20% 6.3V SMD |
4,128 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
ECASD41A107M040KA0CAP ALUM POLY 100UF 20% 10V SMD |
4,515 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Last Time Buy | Polymer | 100 µF | ±20% | 10 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A785MW477M1VLAS015CAP ALUMHYB 470UF 20% 35V SMD |
2,192 |
|
Datasheet |
A785 | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 1.04 A @ 100 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXB800ARA220MHA0GCAP ALUM HYBRID 22UF 20% 80V SMD |
25 |
|
Datasheet |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-CX0J121RCAP ALUM POLY 120UF 20% 6.3V SMD |
4,416 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCJ1A221MCL1GSCAP ALUM POLY 220UF 20% 10V SMD |
7 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ1A471MCL1GSCAP ALUM POLY 470UF 20% 10V SMD |
4,502 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNU1H470MDN1PHCAP ALUM POLY 47UF 20% 50V TH |
1 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
10SVP330MCAP ALUM POLY 330UF 20% 10V SMD |
4,264 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 197.5 mA @ 120 Hz | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875046319001CAP ALUM POLY 470UF 20% 2.5V SMD |
2 |
|
Datasheet |
WCAP-PHSE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A767KS106M2ALAE045CAP ALUM POLY 10UF 20% 100V SMD |
2,811 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 100 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZT1V151PCAP ALUMHYB 150UF 20% 35V SMD |
2,266 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZS1H151PCAP ALUMHYB 150UF 20% 50V SMD |
14 |
|
Datasheet |
ZS | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 480 mA @ 100 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE160ARA221MJ80GCAP ALUM POLY 220UF 20% 16V SMD |
3,898 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

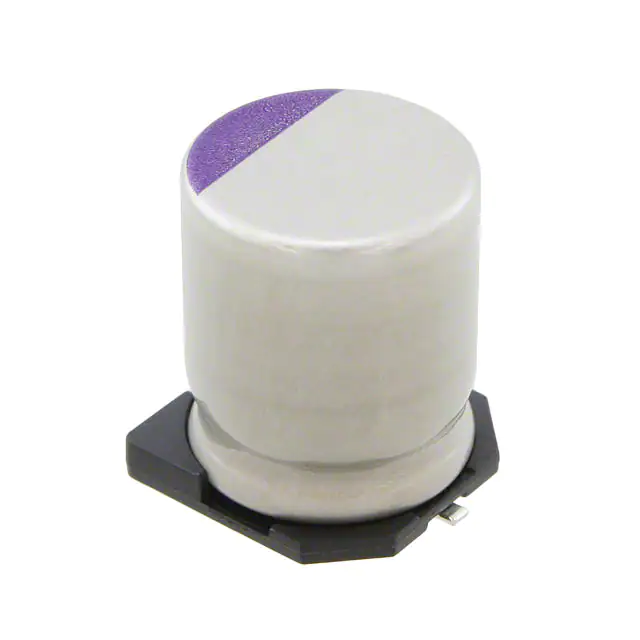

16SVPE470MCAP ALUM POLY 470UF 20% 16V SMD |
4,689 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
