Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25PKV330M8X10.5CAP ALUMHYB 330UF 20% 25V SMD |
20,408 |
|
Datasheet |
PKV | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA200ARA470MH70GCAP ALUM POLY 47UF 20% 20V SMD |
696 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

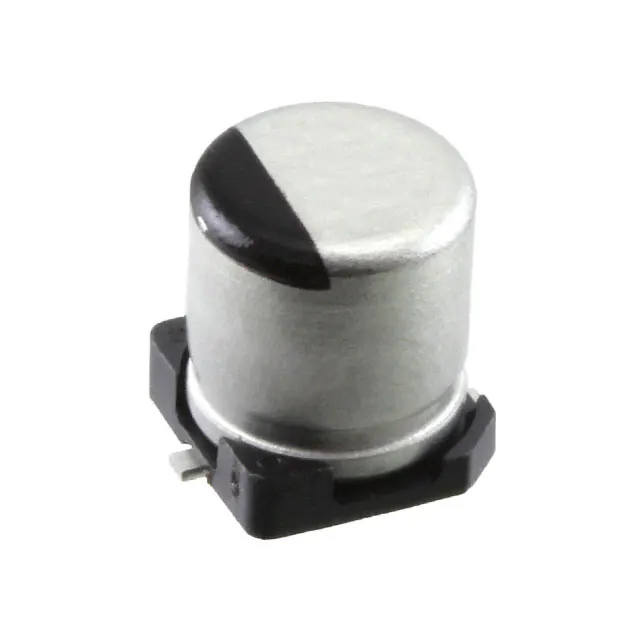

EEH-ZK1V330RCAP ALUM HYBRID 33UF 20% 35V SMD |
426 |
|
Datasheet |
ZK | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 35 V | 100mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 112.5 mA @ 100 Hz | 750 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
EEF-SX0D561E4CAP ALUM POLY 560UF 20% 2V SMD |
13,360 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A759KS476M1JAAE068CAP ALUM POLY 47UF 20% 63V TH |
3,313 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 47 µF | ±20% | 63 V | 68mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 81.5 mA @ 120 Hz | 1.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|

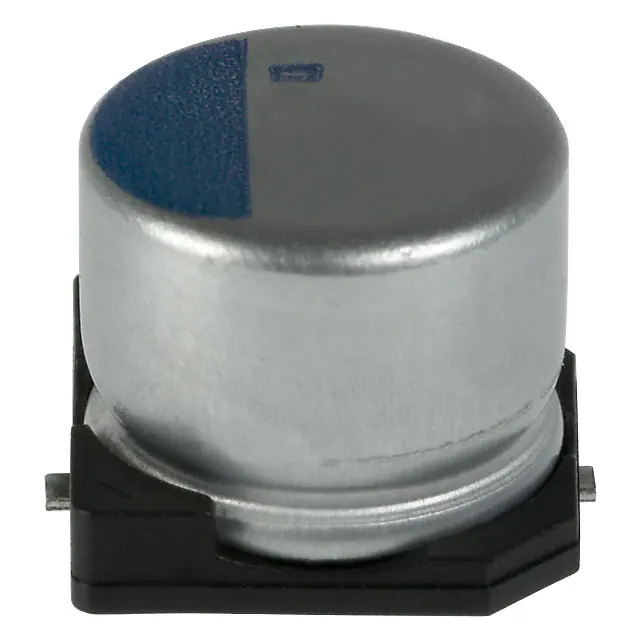

APXA100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD |
1,234 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A759KS156M2AAAE052CAP ALUM POLY 15UF 20% 100V TH |
5,071 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 15 µF | ±20% | 100 V | 52mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 92.5 mA @ 120 Hz | 1.85 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
35PSV150M8X10.5CAP ALUMHYB 150UF 20% 35V SMD |
2,855 |
|
Datasheet |
PSV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A784MW567M1VLAS013CAP ALUMHYB 560UF 20% 35V SMD |
2,603 |
|
Datasheet |
A784 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 13mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 1.56 A @ 100 Hz | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

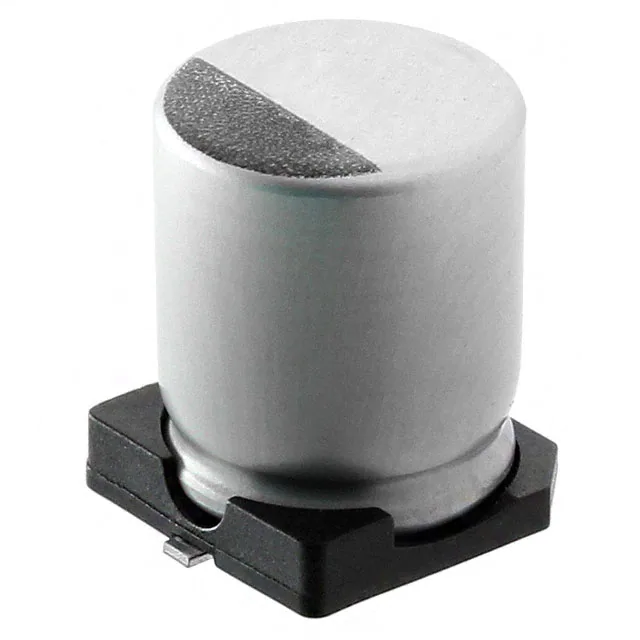

HHXA500ARA470MHA0GCAP ALUM HYBRID 47UF 20% 50V SMD |
1,443 |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA6R3ARA221MH70GCAP ALUM POLY 220UF 20% 6.3V SMD |
491 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.02 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-HX0E471R9CAP ALUM POLY 470UF 20% 2.5V SMD |
13,464 |
|
Datasheet |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
63PJV47M8X10.5CAP ALUM HYBRID 47UF 20% 63V SMD |
2,069 |
|
Datasheet |
PJV | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 75 mA @ 100 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXE4R0ARA151ME61GCAP ALUM POLY 150UF 20% 4V SMD |
1,944 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
EEH-ZC1V151PCAP ALUMHYB 150UF 20% 35V SMD |
1,797 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

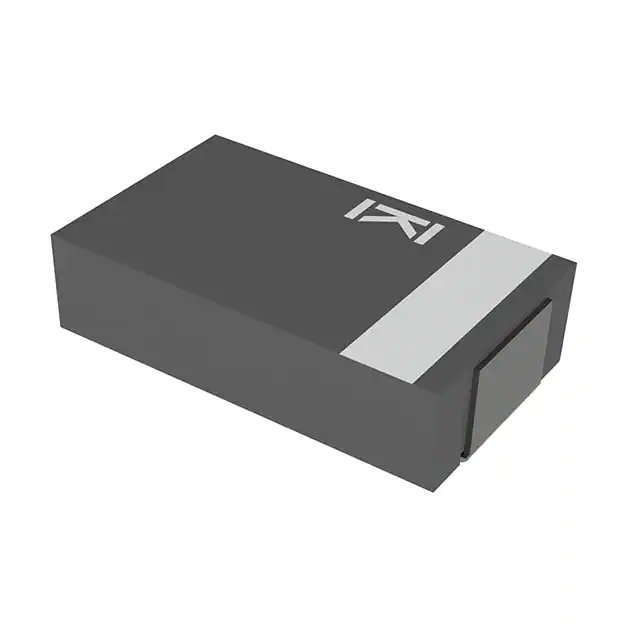

A720V477M2R5APE003CAP ALUM POLY 470UF 20% 2.5V SMD |
1,505 |
|
Datasheet |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 11.69 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
EEH-ZK1E331UPCAP ALUMHYB 330UF 20% 25V SMD |
1,201 |
|
Datasheet |
ZKU | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Series-(THT-Tape-And-Box)-Photo-Taped-Size-F.jpg)
|

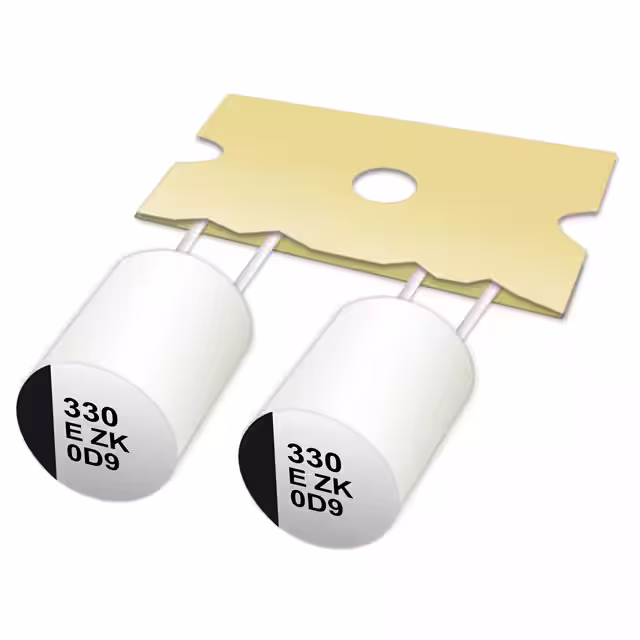

EEH-AZKV221UBCAP ALUM HYBRID 220UF 20% 35V TH |
3,929 |
|
Datasheet |
ZKU | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
GYB1H101MCW1GSCAP ALUMHYB 100UF 20% 50V SMD |
3,561 |
|
Datasheet |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
ECASD40J227M010KA0CAP ALUM POLY 220UF 20% 6.3V SMD |
2,562 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
