Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X157M010ATE012CAP ALUM POLY 150UF 20% 10V SMD |
2,150 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 12mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCH1D331MCL1GSCAP ALUM POLY 330UF 20% 20V SMD |
2,918 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 20 V | 23mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.335" (8.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218097258E3CAP ALUM POLY 1200UF 20% 2.5V |
3,139 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 2.5 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.45 A @ 100 kHz | 13 mOhms | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097308E3CAP ALUM POLY 820UF 20% 6.3V SMD |
4,940 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.3 A @ 100 kHz | 14 mOhms | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097405E3CAP ALUM POLY 470UF 20% 10V SMD |
4,279 |
|
Datasheet |
180 CPS | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | 19 mOhms | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
A700X567M002ATE005CAP ALUM POLY 560UF 20% 2V SMD |
4,579 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 5mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

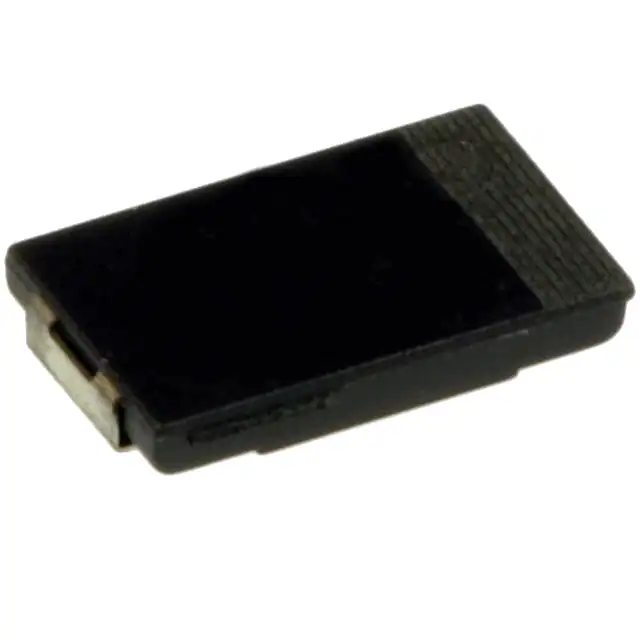

EEF-FD0J330RCAP ALUM POLY 33UF 20% 6.3V SMD |
2,053 |
|
Datasheet |
SP-Cap FD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-FD0D680RCAP ALUM POLY 68UF 20% 2V SMD |
3,535 |
|
Datasheet |
SP-Cap FD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 2 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-FD0E560RCAP ALUM POLY 56UF 20% 2.5V SMD |
3,511 |
|
Datasheet |
SP-Cap FD | Tape & Reel (TR) | Obsolete | Polymer | 56 µF | ±20% | 2.5 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCF1D390MCL1GSCAP ALUM POLY 39UF 20% 20V SMD |
4,954 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
4SLE68MCAP ALUM POLY 68UF 20% 4V SMD |
3,231 |
|
Datasheet |
PC-CON, SLE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218497106E3CAP ALUM POLY 33UF 20% 50V SMD |
2,298 |
|
- |
184 CPNS | Box | Active | Polymer | 33 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-UD0E221RCAP ALUM POLY 220UF 20% 2.5V SMD |
2,796 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-HD0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
2,088 |
|
Datasheet |
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HD0G121RCAP ALUM POLY 120UF 20% 4V SMD |
3,052 |
|
Datasheet |
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 4 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HD0D221RCAP ALUM POLY 220UF 20% 2V SMD |
3,994 |
|
Datasheet |
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD61A686M015K00CAP ALUM POLY 68UF 20% 10V SMD |
2,813 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 10 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870025375008CAP ALUM POLY 560UF 20% 16V TH |
3,083 |
|
Datasheet |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
MAL218697502E3CAP ALUM POLY 100UF 20% 16V SMD |
4,977 |
|
Datasheet |
186 CPNT | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
UGV1E471MNN0811UCAP ALUM POLY 470UF 20% 25V TH |
4,636 |
|
Datasheet |
UGV | Active | Polymer | 470 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
