Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC792C-1A-C1-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V Picker Components |
3,299 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
PC792C-1A-C-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V Picker Components |
3,047 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC792E-1C-C-12C-RN-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
3,342 |
|
Datasheet |
- | Box | Active | Non Latching | 150.9 mA | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 12VDC | 7 ms | 5 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|

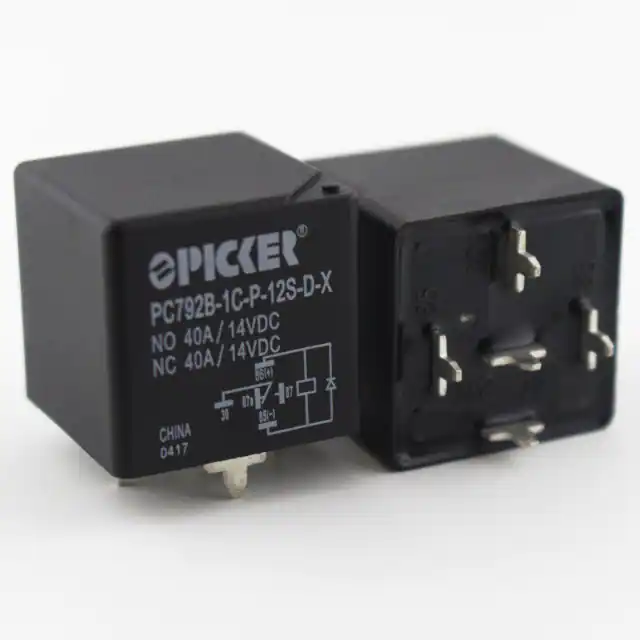

PC792B-1C-P-12S-D-XRELAY AUTOMOTIVE SPDT 40A 12V Picker Components |
4,104 |
|
Datasheet |
- | Bag | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 12VDC | 7 ms | 2 ms | Diode, Sealed - Fully | -40°C ~ 125°C | Through Hole | PC Pin |
|
PC795-1A-C2-12C-RN-XRELAY AUTOMOTIVE SPST 80A 12V Picker Components |
2,974 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
PC793-1A-P-12S-XRELAY AUTOMOTIVE SPST 70A 12V Picker Components |
3,241 |
|
Datasheet |
- | Tray | Active | Non Latching | 133 mA | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 125°C | Through Hole | PC Pin |
|
PC793-1A-C1-12S-N-XRELAY AUTOMOTIVE SPST 70A 12V Picker Components |
2,690 |
|
Datasheet |
- | Tray | Active | Non Latching | 133 mA | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
PC793-1A-C-12S1-RN-XRELAY AUTOMOTIVE SPST 70A 12V Picker Components |
3,952 |
|
Datasheet |
- | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Resistor, Sealed - Flux Protection | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC793-1A-C2-12S-RN-XRELAY AUTOMOTIVE SPST 70A 12V Picker Components |
2,863 |
|
Datasheet |
- | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
PC795-1C-C2-24S-N-XRELAY AUTOMOTIVE SPDT 40A 24V Picker Components |
2,943 |
|
Datasheet |
- | Bag | Active | Non Latching | 75 mA | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 24VDC | 7 ms | 2 ms | Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
