Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1904124-3RELAY AUTOMOTIVE SPDT 30A 12V TE Connectivity AMP Connectors |
1,593 |
|
Datasheet |
Micro Relay A | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 30 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 12VDC | - | - | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - Multiple Sizes |
|

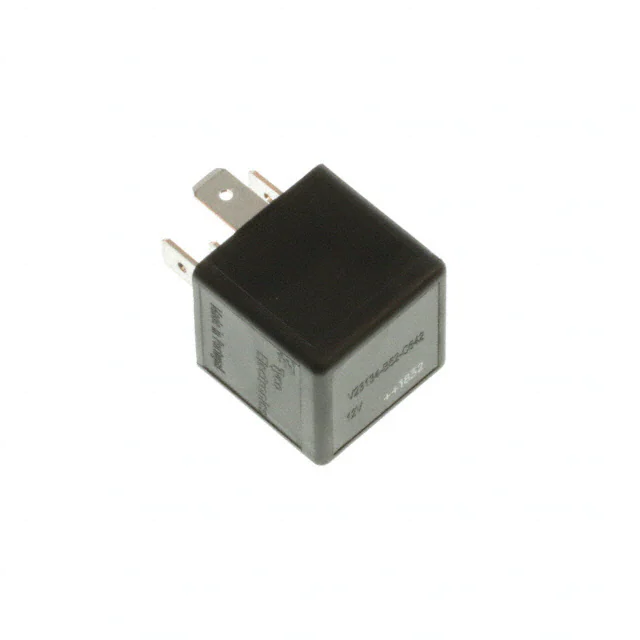

7-1393302-5RELAY GEN PURPOSE SPST 40A 12V TE Connectivity AMP Connectors |
617 |
|
Datasheet |
- | Bulk | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 12VDC | 7 ms | 2 ms | - | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|

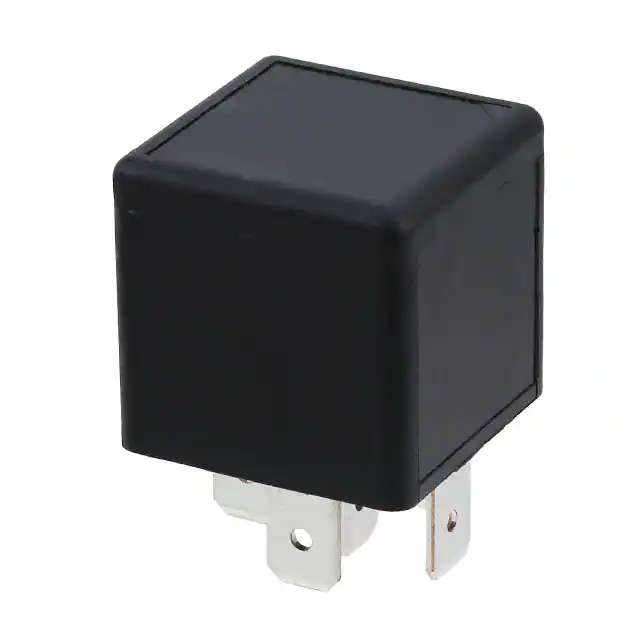

2-1393302-2RELAY AUTOMOTIVE SPDT 60A 12V TE Connectivity AMP Connectors |
2,140 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 12VDC | 7 ms | 2 ms | - | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
5-1393302-2RELAY GEN PURPOSE SPDT 20A 24V TE Connectivity AMP Connectors |
314 |
|
Datasheet |
- | Bulk | Active | Non Latching | 74.1 mA | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 24VDC | 7 ms | 2 ms | - | -40°C ~ 125°C | Through Hole | PC Pin |
|
6-1393302-3RELAY AUTOMOTIVE SPDT 60A 24V TE Connectivity AMP Connectors |
283 |
|
Datasheet |
F4 | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 24VDC | 7 ms | 2 ms | - | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|

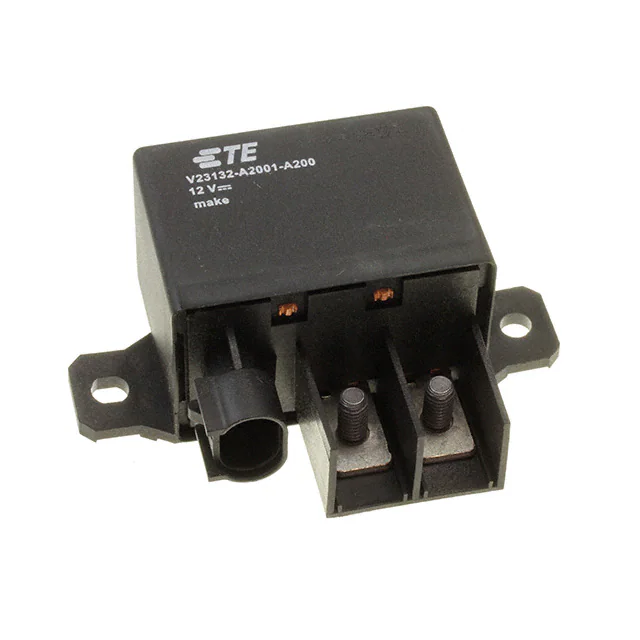

1393315-2RELAY AUTO SPST-NO 130A 12V TE Connectivity AMP Connectors |
354 |
|
Datasheet |
HCR 150 | Bulk | Active | Non Latching | - | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 12VDC | 25 ms | 8 ms | - | -40°C ~ 125°C | Chassis Mount | Screw Terminal |
|
1393315-9RELAY AUTO SPST-NO-DM 130A 24V TE Connectivity AMP Connectors |
139 |
|
Datasheet |
HCR 150 | Bulk | Active | Non Latching | - | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 24VDC | 25 ms | 8 ms | - | -40°C ~ 125°C | Chassis Mount | Screw Terminal |
|
1-1393315-1V23132B2002B200=HCR TE Connectivity AMP Connectors |
51 |
|
Datasheet |
High Current Relay 150 | Box | Active | Non Latching | 170.2 mA | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 24VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | -40°C ~ 125°C | Chassis Mount | Screw Terminal |
|
1-1393277-4RELAY AUTOMOTIVE SPST 45A 12V TE Connectivity AMP Connectors |
4,726 |
|
Datasheet |
V23076 | Bulk | Active | Non Latching | 133 mA | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 12VDC | 5 ms | 3 ms | Sealed - Fully | -40°C ~ 85°C | Through Hole | PC Pin |
|

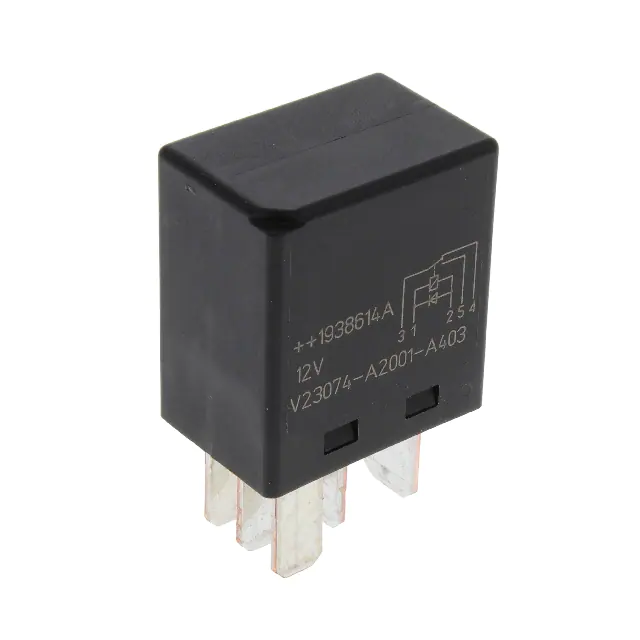

6-1419137-4RELAY GEN PURPOSE SPDT 25A 12V TE Connectivity AMP Connectors |
431 |
|
Datasheet |
- | Bulk | Active | Non Latching | 100.8 mA | SPDT (1 Form C) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 12VDC | 6 ms | 3 ms | Diode | -40°C ~ 125°C | Socketable | Plug In |
