Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2S1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
212 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
320 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11CSQ48VDC1.2RELAY AUTOMOTIVE SPDT 30A 48V CIT Relay and Switch |
242 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

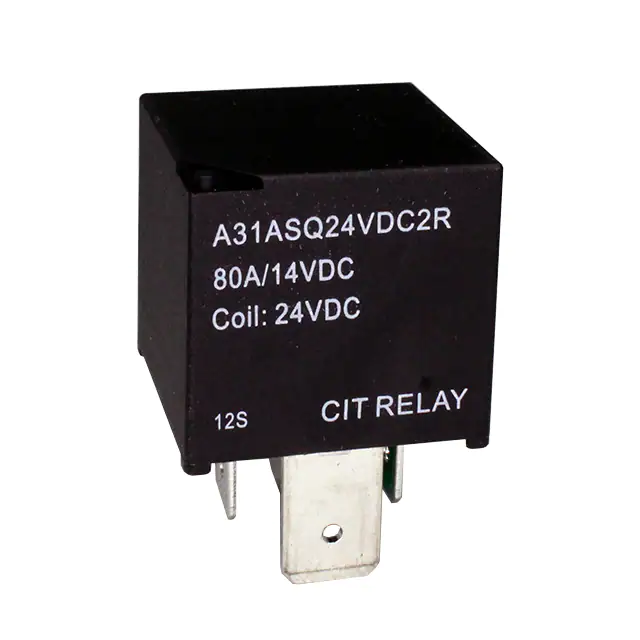

A31ASQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V CIT Relay and Switch |
283 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1ASQ6VDC1.6RRELAY AUTOMOTIVE SPST 40A 6V CIT Relay and Switch |
141 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6RRELAY AUTOMOTIVE SPST 40A 48V CIT Relay and Switch |
115 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1ASQ6VDC1.6DRELAY AUTOMOTIVE SPST 40A 6V CIT Relay and Switch |
119 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

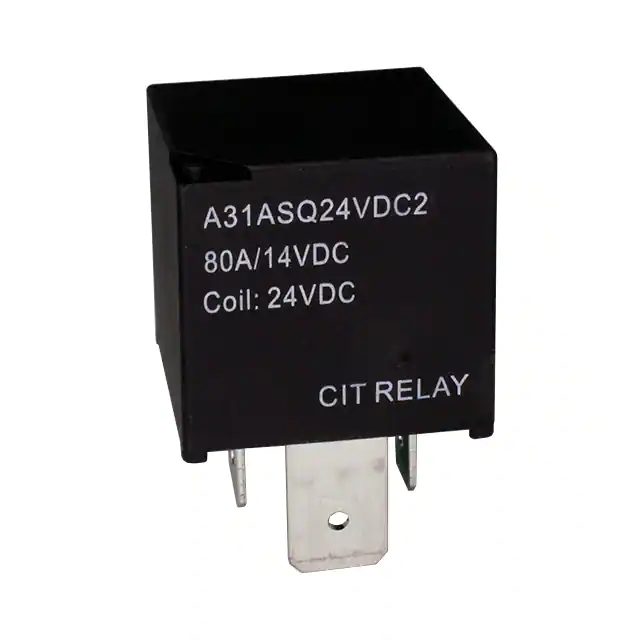

A31ASQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V CIT Relay and Switch |
329 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 40A 48V CIT Relay and Switch |
381 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2S1CSQ6VDC1.6RRELAY AUTOMOTIVE SPDT 40A 6V CIT Relay and Switch |
227 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
