Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
8 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | Sealed - Fully | -40°C ~ 125°C | Socketable | Quick Connect - Multiple Sizes |
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V CIT Relay and Switch |
21 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 48VDC | 7 ms | 5 ms | Diode, Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|

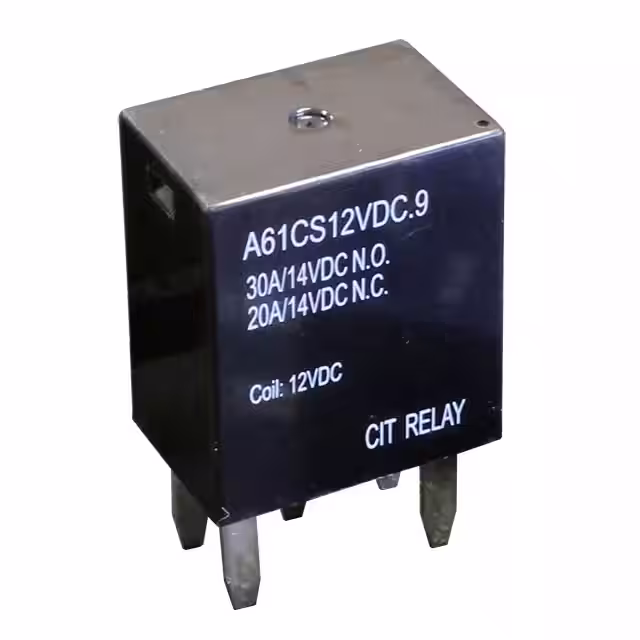

A61CS12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
4,881 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 5 ms | 2 ms | Sealed - Fully | -40°C ~ 85°C | Through Hole | PC Pin |
|

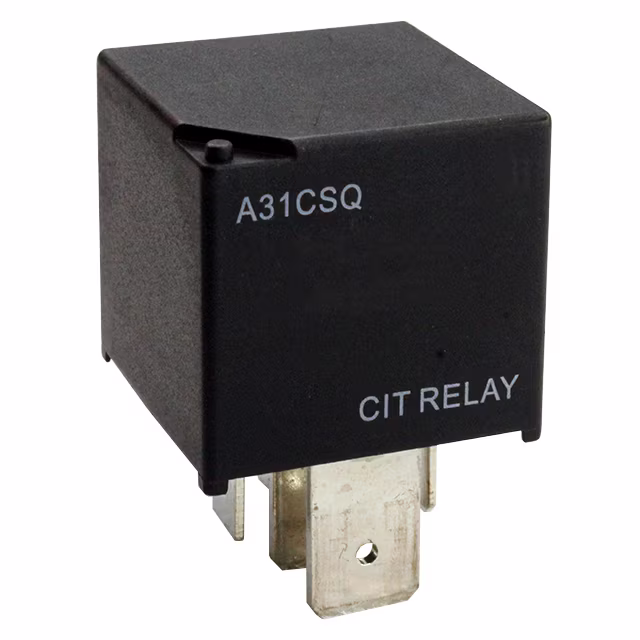

A31CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V CIT Relay and Switch |
4,050 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | - | -40°C ~ 125°C | Socketable | Quick Connect - Multiple Sizes |
|
|
A2S1CSQ48VDC1.9RRELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
15 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 39.6 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 48VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|

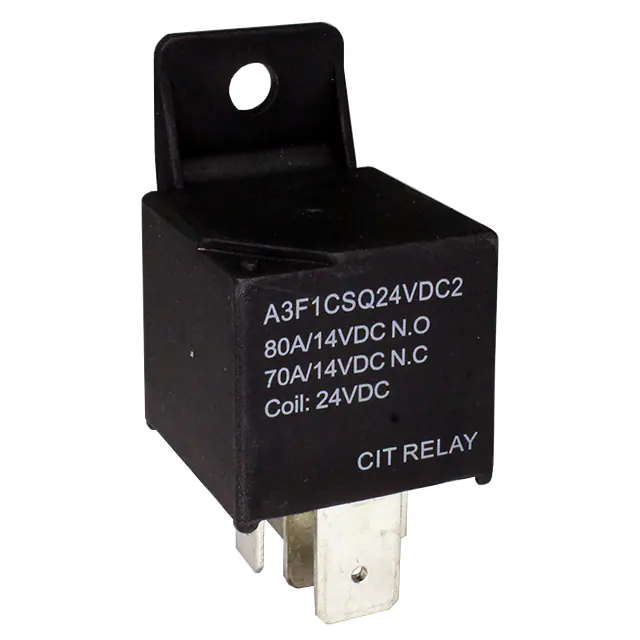

A3F1CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V CIT Relay and Switch |
3,885 |
|
Datasheet |
A3F | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
A3K1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
3,606 |
|
Datasheet |
A3K | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | -40°C ~ 125°C | Through Hole | PC Pin |
|
A2H1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
4,374 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
A2H1ASP12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
3,052 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 125°C | Through Hole | PC Pin |
|
A2HF1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
3,137 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
