Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ989-2C-12DSERELAY AUTOMOTIVE DPDT 25A 12V |
2,141 |
|
Datasheet |
AZ989 | Box | Active | Non Latching | 53.3 mA | DPDT (2 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 12VDC | 3 ms | 1.5 ms | Sealed - Epoxy | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
AZ989-2C-12DERELAY AUTOMOTIVE DPDT 25A 12V |
3,604 |
|
Datasheet |
AZ989 | Box | Active | Non Latching | 66.7 mA | DPDT (2 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 1 VDC | 12VDC | 3 ms | 1.5 ms | Sealed - Epoxy | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
A2M1CSP12VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
3,593 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | Sealed - Fully | -40°C ~ 125°C | Chassis Mount | PC Pin |
|
PC792C-1A-C1-12C-N-XRELAY AUTOMOTIVE SPST 50A 12V |
2,156 |
|
Datasheet |
- | Box | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | - | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
A3M1UCQ24VDC1RRELAY AUTOMOTIVE SPST 25A 24V |
4,000 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
|
A3M1UCQ24VDC1DRELAY AUTOMOTIVE SPST 25A 24V |
2,532 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | Diode | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
A3F1CCQ12VDC1RELAY AUTOMOTIVE SPDT 60A 12V |
4,663 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | - | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
|
A3F1CCQ12VDC1RRELAY AUTOMOTIVE SPDT 60A 12V |
4,717 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
|
A3F1CCQ12VDC1DRELAY AUTOMOTIVE SPDT 60A 12V |
4,593 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | Diode | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
PC792E-1C-C-12S-DN-XRELAY AUTOMOTIVE SPDT 50A 12V |
3,816 |
|
Datasheet |
- | Box | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 12VDC | 7 ms | 5 ms | Diode, Sealed - Fully | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC792C-1A-C1-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V |
3,299 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - 0.250" (6.3mm) |
|
PC792C-1A-C-12C-RN-XRELAY AUTOMOTIVE SPST 50A 12V |
3,047 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
PC792E-1C-C-12C-RN-XRELAY AUTOMOTIVE SPDT 50A 12V |
3,342 |
|
Datasheet |
- | Box | Active | Non Latching | 150.9 mA | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 12VDC | 7 ms | 5 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
|
A3M1CCQ12VDC1RELAY AUTOMOTIVE SPDT 60A 12V |
2,565 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | - | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|

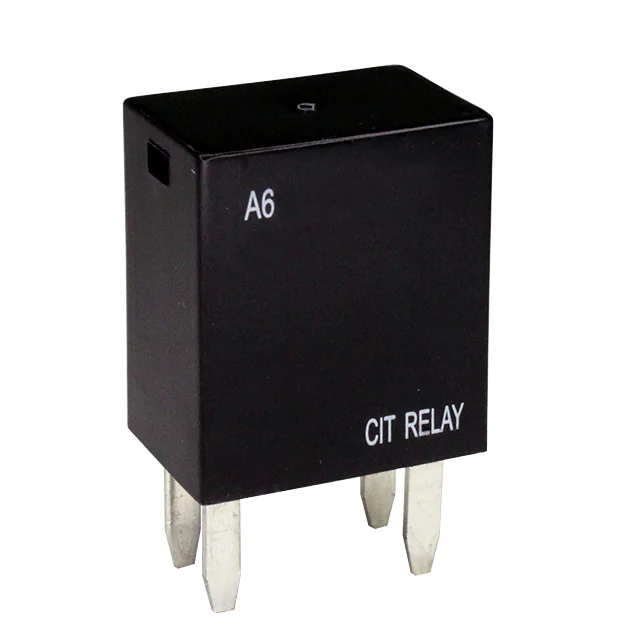

A61CC12VDC1.3DRELAY AUTOMOTIVE SPDT 30A 12V |
3,802 |
|
Datasheet |
A6 | Tray | Active | Non Latching | 110.1 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 5 ms | 2 ms | Diode | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
A3F1CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V |
3,314 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | - | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
|
G8G-17SR DC12AUTO MOTIVE PCB RELAY, DC 12V |
3,164 |
|
Datasheet |
G8G | Tube | Active | Non Latching | 53.3 mA | SPDT (1 Form C) | 35 A | 14VDC - Nom | 5.5 VDC | 0.5 VDC | 12VDC | 10 ms | 5 ms | Sealed - Flux Protection | -40°C ~ 125°C | Socketable | Plug In |
|
|
AZ9711-1A-12DETRELAY AUTOMOTIVE SPST 45A 12V |
3,880 |
|
Datasheet |
AZ9711 | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 45 A | 150VDC - Max | 6.8 VDC | 0.7 VDC | 12VDC | 5 ms | 3 ms | Sealed - Epoxy | -40°C ~ 125°C | Through Hole | PC Pin |
|
|
A3F1ACQ24VDC1RELAY AUTOMOTIVE SPST 60A 24V |
4,906 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 24VDC | 7 ms | 5 ms | - | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
|
|
A3M1CCQ12VDC1RRELAY AUTOMOTIVE SPDT 60A 12V |
4,887 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 12VDC | 7 ms | 5 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Quick Connect - Multiple Sizes |
