Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

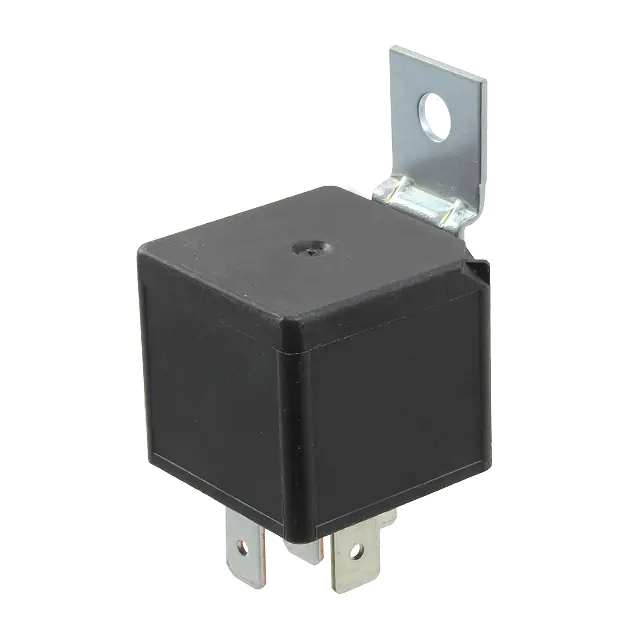

1-1393302-0RELAY GEN PURPOSE SPDT 40A 12V |
4,529 |
|
Datasheet |
VF4 | Bulk | Obsolete | Non Latching | 133 mA | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 12VDC | 7 ms | 2 ms | Resistor | -40°C ~ 125°C | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) |
|
5-1414782-7RELAY AUTO SPST-NO 40A 12V |
2,573 |
|
Datasheet |
V23201 | Bulk | Discontinued at Digi-Key | Non Latching | 68 mA | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 12VDC | 3 ms | 1.5 ms | Sealed - Fully | -40°C ~ 105°C | Through Hole | PC Pin |
|
VFMA-11F41-S01VFMA-11F41-S01=VFMA |
3,279 |
|
Datasheet |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | 12VDC | - | - | Resistor | -40°C ~ 125°C | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) |
|
3-1393278-7RELAY AUTOMOTIVE SPDT 45A 24V |
3,677 |
|
Datasheet |
V23133 | Bulk | Obsolete | Non Latching | 66 mA | SPDT (1 Form C) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 24VDC | 5 ms | 3 ms | - | -40°C ~ 105°C | Through Hole | PC Pin |
|

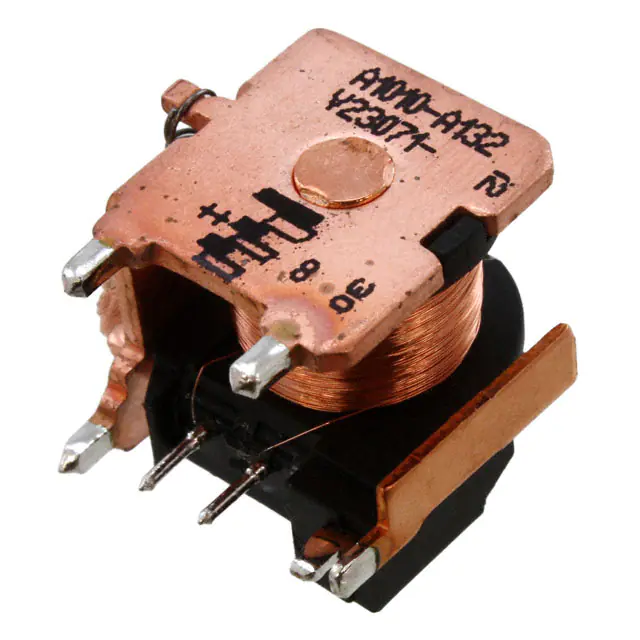

1393276-7RELAY AUTO SPST-NO 70A 24V |
3,546 |
|
Datasheet |
V23071 | Bulk | Obsolete | Non Latching | 103 mA | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.1 VDC | 2.4 VDC | 24VDC | 4 ms | 3 ms | - | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
1904001-5AUTOMOTIVE RELAYS |
4,700 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
02040612ZRELAY AUTOMOTIVE SPDT 15A 24V |
4,859 |
|
- |
MICRO | Bulk | Active | Non Latching | - | SPDT (1 Form C) | 15 A | 24VDC - Nom | - | - | 24VDC | - | - | Diode | - | Socketable | Plug In |
|
6-1414920-0RELAY AUTO SPDT 30A 12V |
2,197 |
|
Datasheet |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | SPDT (1 Form C) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 12VDC | 3 ms | 1.5 ms | - | -40°C ~ 105°C | Through Hole | PC Pin |
|
|
CA1BD-12V-N-5CA RELAY |
3,409 |
|
Datasheet |
CA | Bulk | Obsolete | Non Latching | 150 mA | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 12VDC | 10 ms | 10 ms | Diode | -30°C ~ 80°C | Chassis Mount | Plug In |
|

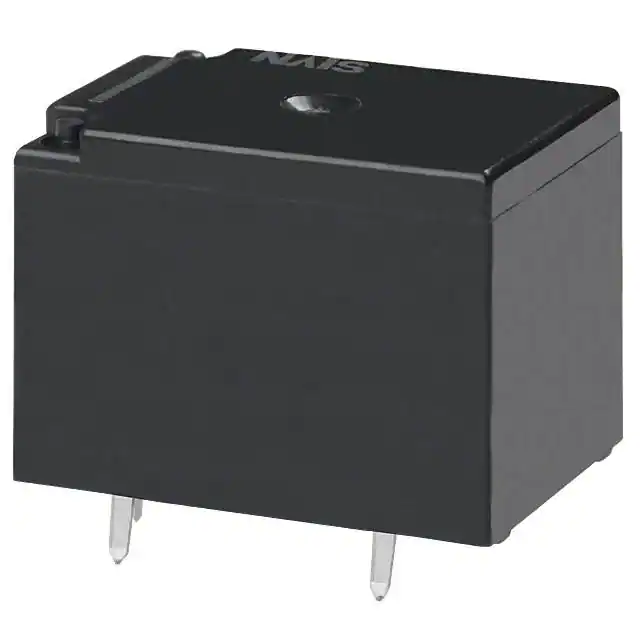

JSM1F-12V-4AUTOMOTIVE POWER RELAY |
2,452 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | SPDT (1 Form C) | 10 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 12VDC | 10 ms | 10 ms | Sealed - Flux Protection | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
JSM1F-12V-5JS-M RELAY 12V DC COIL HIGH CAPA |
3,034 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | SPDT (1 Form C) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 12VDC | 10 ms | 10 ms | Sealed - Flux Protection | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
CB1AH-D-12VCB RELAY 1 FORM A 12V |
2,813 |
|
Datasheet |
CB | Bulk | Obsolete | Non Latching | 150 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 12VDC | 15 ms | - | Diode, Sealed - Fully | -40°C ~ 85°C | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
G8N-1U-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
2,965 |
|
Datasheet |
G8N-1 | Tray | Obsolete | Non Latching | 92.3 mA | SPDT (1 Form C) | 30 A | 16VDC - Max | 5.5 VDC | 0.8 VDC | 12VDC | 10 ms | 10 ms | - | -40°C ~ 85°C | Through Hole | PC Pin |
|
G8NW-2L-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
4,385 |
|
Datasheet |
G8NW-2 | Tray | Obsolete | Non Latching | 53.3 mA | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 12VDC | 10 ms | 10 ms | - | -40°C ~ 105°C | Through Hole | PC Pin |
|
|
G8PE1A4ZDC12SIRELAY AUTOMOTIVE PLUGIN |
2,027 |
|
- |
G8PE | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8TA1CE1FDC12VRELAY AUTOMOTIVE PLUGIN |
3,984 |
|
- |
G8TA | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8HE-1A7T-R1-DC12RELAY MINI ISO AUTO |
2,836 |
|
- |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 12VDC | 20 ms | 20 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In |
|
|
G8HE-1A7T-R2-DC12RELAY MINI ISO AUTO |
3,232 |
|
- |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 12VDC | 20 ms | 20 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In |
|
|
G8HE-1C7T-R1-DC12RELAY MINI ISO AUTO |
2,650 |
|
- |
G8HE | Bulk | Obsolete | Non Latching | 141 mA | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 12VDC | 20 ms | 20 ms | Resistor | -40°C ~ 125°C | Socketable | Plug In |
|
|
G8HL-1A4P DC12 SKRELAY AUTO |
4,557 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 90 mA | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 7 VDC | 0.7 VDC | 12VDC | 10 ms | 10 ms | - | -40°C ~ 100°C | Through Hole | PC Pin |
