Current Sense Transformers

制造商	Series	Packaging	Product Status	Frequency Range	Type	Current Rating (Amps)	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
ABB Control ABC Taiwan Electronics Corp. Advantech Corporation Allied Components International Amgis, LLC Automation Components, Inc. Banner Engineering Corporation Bourns Inc. Carlo Gavazzi Inc. Central Technologies CR Magnetics Inc. Dwyer Instruments Eaton - Bussmann Electrical Division Eaton - Electronics Division ELECTROHMS EPCOS - TDK Electronics Galco Industrial Electronics GE General Purpose Control Hammond Manufacturing ICP DAS USA INC iNRCORE, LLC ITG Electronics, Inc. KEMET Littelfuse Inc. MikroElektronika Murata Electronics Murata Power Solutions Inc. Phoenix Contact Pulse Electronics Red Lion Controls Rishabh Instruments Schneider Electric Seeed Selec Controls USA Inc. Siemens Signal Transformer Simpson Electric Socomec SparkFun Electronics Tamura TDK Corporation Triad Magnetics Verivolt LLC WAGO Corporation Weidmuller Würth Elektronik Zettler Magnetics	* - 0556xx, Kaschke 5300 5400 5500 5600 7200 AC Accu-CT® ACST-200 ACX AK AKR AP ART AS ASM ATO AX AZ B78417 B78419 B82801A B82801B B82801C BWA C-CT C/CT CBCT CCT CCX CR170 CR2 CR2550 CR2DA CR3100 CR45 CR5 CR5A CR6A CR7 CR7A CR8300 CR8400 CRZ CS CS-SP CSE CSE187 CST CT CTA CTCSF CTD-1X CTD-2X CTD-3X CTD-4X CTG DMS ECST ECSTA ELCT FIS FIS 1X5 GCSVC MID-CST MR MR/C Omega 10 Omega 30 P820X P822X PA0368NL PA1005.XXXNL PA1005QNL PACT PAS6322.XXXNLT PB002XNL PCS PE-68XXXNL PH PH9494.XXXNLT PH9500.XXXNL PH9505.XXXNL PM2165.XXXNL PM820X PMS6322.XXXNLT PMS9505 RA RT SCCT SCS SCT013 Sidewinder®, PA32XXNL SPCT T10135 TCS THT TOP TT TWCT VST WE-CST WE-CSTLF XZM ZSCT	- Bag Box Bulk Case Retail Package Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Not For New Designs Obsolete Preliminary	- 0Hz ~ 50kHz 100kHz 10Hz ~ 400Hz 10Hz ~ 5kHz 10kHz ~ 200kHz 10kHz ~ 300kHz 16Hz ~ 1kHz 1kHz ~ 100kHz 1MHz 200kHz Max 200kHz ~ 3MHz 200kHz ~ 500kHz 20Hz ~ 1kHz 20Hz ~ 200kHz 20Hz ~ 30kHz 20Hz ~ 3kHz 20Hz ~ 5kHz 20kHz 20kHz ~ 100kHz 20kHz ~ 1MHz 20kHz ~ 200kHz 20kHz ~ 50kHz 250kHz Min 25Hz ~ 400Hz 2Hz ~ 50kHz 400Hz 40Hz ~ 1kHz 40Hz ~ 20kHz 40Hz ~ 400Hz 45Hz ~ 65Hz 47Hz ~ 400Hz 48Hz ~ 62Hz 50/60Hz 500kHz Max 50Hz 50Hz ~ 1kHz 50Hz ~ 200Hz 50Hz ~ 2kHz 50Hz ~ 400Hz 50Hz ~ 60Hz 50kHz ~ 1MHz 50kHz ~ 250kHz 50kHz ~ 500kHz 50kHz ~ 60kHz 5kHz ~ 25kHz 5kHz ~ 50kHz 60Hz	- Invasive Non-Invasive (Solid Core) Non-Invasive (Split Core)	- 1 A 1 kA 1.25 kA 1.5 kA 1.6 kA 10 A 100 A 100 mA 1000 A 110 A 120 A 1200 A 125 A 1250 A 15 A 150 A 1500 A 16 A 160 A 1600 A 18 A 2 A 2.5 kA 20 A 200 A 200 mA 2000 A 21 A 25 A 250 A 2500 A 3 A 3 kA 30 A 300 A 32 A 34 A 35 A 350 A 350 mA 36 A 37 A 38 A 4 A 4 kA 40 A 400 A 4000 A 45 A 5 A 5 kA 50 A 500 A 500 mA 6 A 60 A 600 A 63 A 64 A 7 A 7.5 A 70 A 75 A 750 A 750 mA 80 A 800 A 9 A 90 A	- 0.73 mH 1 H 1.1 mH 1.125 H 1.14 mH 1.28 mH 1.33 mH 1.36 mH 1.4 mH 1.5 mH 1.68 mH 1.7 mH 1.75 mH 1.8 H 1.8 mH 1.84 mH 1.86 mH 1.9 H 1.97 H 10 mH 10.4 mH 100 mH 102 H 105 H 108 H 11 mH 110 H 116 H 118 mH 12.4 mH 12.6 mH 120 H 13.3 mH 130 mH 132 µH 135 mH 14 mH 14.8 mH 155 mH 17.5 mH 18 mH 180 mH 180 µH 187.5 H 19 mH 19.2 mH 190 µH 2 mH 2.1 H 2.12 mH 2.2 mH 2.38 H 2.4 H 2.5 mH 2.7 mH 2.74 mH 2.99 mH 2.993 mH 20 mH 205 µH 216 mH 22 mH 22.4 mH 220 µH 223 H 224 mH 224 µH 238 H 24 mH 24.4 mH 24.6 H 25 mH 250 mH 258 µH 295 µH 3 H 3 mH 3.06 mH 3.1 H 3.1 mH 3.3 mH 3.33 H 3.5 mH 3.8 H 3.8 mH 30 H 300 mH 320 mH 320 µH 33 µH 333 µH 34 mH 340 µH 343 µH 35 H 350 µH 384 mH 4 mH 4.16 mH 4.5 mH 4.6 H 4.7 mH 400 µH 42.2 mH 420 mH 470 mH 5 mH 5.44 mH 5.6 mH 5.63 mH 500 mH 500 µH 504 µH 53 µH 540 mH 55 mH 550 µH 56 mH 566 µH 59.2 mH 6 mH 6.5 H 6.7 mH 60 mH 600 mH 63 H 630 µH 652 µH 67.5 H 7 mH 700 mH 72 mH 720 µH 730 mH 730 µH 74 µH 76 mH 760 µH 770 µH 8 H 8 mH 8.25 mH 8.5 mH 8.7 mH 80 mH 80 µH 81 mH 820 µH 864 mH 880 µH 89.7 mH 896 µH 9 H 9 mH 94.5 mH 96 mH 980 mH 980 µH	- 10.8VµS 1000VµS 100VµS 101.6VµS 1070VµS 10VµS 12.7kVµS 1240Vµs 124VµS 127VµS 13.5VµS 1430VµS 148Vµs 15.9kVµS 1500VµS 152.4VµS 15VµS 16.2VµS 173VµS 1750VµS 175VµS 177.8VµS 1785VµS 180VµS 1860Vµs 18VµS 2000VµS 200VµS 203.2VµS 20VµS 21.6VµS 2140VµS 22.5VµS 240VµS 2480Vµs 248Vµs 254VµS 25VµS 27VµS 30VµS 31.5VµS 317.5VµS 32.4VµS 350VµS 3570VµS 35VµS 360VµS 37.8VµS 372Vµs 3750VµS 381VµS 4000VµS 43.2VµS 45VµS 496Vµs 49Vµs 50.8VµS 500VµS 508VµS 50VµS 54VµS 56.2VµS 6.4kVµS 6000VµS 67.5VµS 68VµS 700VµS 715VµS 74Vµs 7500VµS 76.2VµS 900VµS 9500VµS 99Vµs 9VµS	- 1.414CT:1 1.50:100 1.50:150 1.50:200 1.50:50 1.65 1000:1 1000:5 100:1 100:1:1 100:5 100CT:1:1 1200:5 120:1 125:1 125:5 1500:1 1500:5 150:1 150:5 15:1 1800:1 1:100 1:1000 1:1000:4 1:1000:5 1:100CT 1:120 1:125 1:150 1:1500 1:166 1:180 1:1800 1:1:100 1:1:200 1:1:50 1:20 1:200 1:2000 1:2000:5 1:200CT 1:2500 1:30 1:300 1:3000 1:300CT 1:3100 1:40 1:400 1:50 1:500 1:500CT 1:60 1:600 1:7 1:70 1:750 1:750CT 1:80 2000:1 2000:5 200:1 200:1:1 200:5 20:1 2500:1 2500:5 250:5 25:5 3000:1 3000:5 300:1 300:5 30:1 3500:5 400:5 40:1 500:1 500:5 50:1 50:1:1 50:5 600:1 600:5 60:1 60:5 70:1 750:1 750:5 75:5 80:1 80:5 Rogowski Coil	- 1000:1 1000:5 100:1 100:1.50 100:5 100CT:1 10:1 1200:5 120:1 1250:5 125:1 125:5 12:1 1500:1 1500:5 150:1 150:1.50 150:5 15:1 1600:1 1600:5 160:5 16:1 1:100 1:1000 1:200 1:2000 1:2500 1:300 1:50 1:500 2000:1 2000:5 200:1 200:1.50 200:200:1 200:5 200CT:1 20:1 240:1 2500:1 2500:5 250:5 25:1 25:5 3000:1 3000:5 300:1 300:5 300CT:1 30:0.05 30:1 30:15 30:5 3500:5 4000:5 400:1 400:5 40:1 40:5 5000:5 500:1 500:5 50:1 50:1.50 50:1:1 50:5 50CT:1 5:0.05 5:1 6000:5 600:1 600:5 60:1 60:5 700:1 70:1 750:1 750:5 75:5 800:5 80:1 80:5	- 0.08mOhm Primary, 1.05Ohm Secondary Max 0.08mOhm Primary, 12.5Ohm Secondary Max 0.08mOhm Primary, 2.5Ohm Secondary Max 0.08mOhm Primary, 50Ohm Secondary Max 0.08mOhm Primary, 900 mOhm Secondary Max 0.18mOhm Primary, 12.5Ohm Secondary Max 0.18mOhm Primary, 2.5Ohm Secondary Max 0.18mOhm Primary, 50Ohm Secondary Max 0.27mOhm Primary, 16.2Ohm Secondary 0.28mOhm 0.28mOhm Primary, 1.9Ohm Secondary 0.28mOhm Primary, 130mOhm Secondary 0.28mOhm Primary, 1Ohm Secondary 0.28mOhm Primary, 2.2Ohm Secondary 0.28mOhm Primary, 2.9Ohm Secondary 0.28mOhm Primary, 202mOhm Secondary 0.28mOhm Primary, 21.2Ohm Secondary 0.28mOhm Primary, 305mOhm Secondary 0.28mOhm Primary, 33mOhm Secondary 0.28mOhm Primary, 367mOhm Secondary 0.28mOhm Primary, 400mOhm Secondary 0.28mOhm Primary, 50.1Ohm Secondary 0.28mOhm Primary, 66Ohm Secondary Max 0.28mOhm Primary, 805mOhm Secondary 0.28mOhm Primary, 82Ohm Secondary Max 0.28mOhm Primary, 87.64Ohm Secondary 0.28mOhm Primary, 93mOhm Secondary 0.35mOhm Primary, 10Ohm Secondary 0.35mOhm Primary, 14Ohm Secondary 0.35mOhm Primary, 3.3Ohm Secondary 0.35mOhm Primary, 3Ohm Secondary 0.35mOhm Primary, 5.7Ohm Secondary 0.35mOhm Primary, 600mOhm Secondary 0.35mOhm Primary, 660mOhm Secondary 0.35mOhm Primary, 8.2Ohm Secondary 0.3mOhm Primary, 21mOhm Secondary 0.3mOhm Primary, 86mOhm Secondary 0.42mOhm Primary, 1.4Ohm Secondary 0.42mOhm Primary, 2.9Ohm Secondary 0.42mOhm Primary, 700mOhm Secondary 0.5mOhm Primary, 1.5Ohm Secondary 0.5mOhm Primary, 1.5Ohm Secondary Max 0.5mOhm Primary, 12Ohm Secondary Max 0.5mOhm Primary, 2.1Ohm Secondary 0.5mOhm Primary, 2.1Ohm Secondary Max 0.5mOhm Primary, 2.6Ohm Secondary Max 0.5mOhm Primary, 240mOhm Secondary Max 0.5mOhm Primary, 3.1Ohm Secondary 0.5mOhm Primary, 3.1Ohm Secondary Max 0.5mOhm Primary, 4.2Ohm Secondary Max 0.5mOhm Primary, 4Ohm Secondary 0.5mOhm Primary, 4Ohm Secondary Max 0.5mOhm Primary, 600mOhm Secondary Max 0.5mOhm Primary, 6Ohm Secondary Max 0.5mOhm Primary, 7.4Ohm Secondary 0.5mOhm Primary, 9Ohm Secondary Max 0.6mOhm 0.6mOhm Primary, 33.24Ohm Secondary 0.75mOhm Primary Max, 1.5Ohm Secondary Max 0.75mOhm Primary, 1.14Ohm Secondary 0.75mOhm Primary, 1.14Ohm Secondary Max 0.75mOhm Primary, 1.5Ohm Secondary 0.75mOhm Primary, 1.5Ohm Secondary Max 0.75mOhm Primary, 17Ohm Secondary Max 0.75mOhm Primary, 2.25Ohm Secondary 0.75mOhm Primary, 2.5Ohm Secondary 0.75mOhm Primary, 2.5Ohm Secondary Max 0.75mOhm Primary, 4.75Ohm Secondary 0.75mOhm Primary, 4.75Ohm Secondary Max 0.75mOhm Primary, 5.5Ohm Secondary 0.75mOhm Primary, 5.5Ohm Secondary Max 0.75mOhm Primary, 550mOhm Secondary 0.75mOhm Primary, 550mOhm Secondary Max 0.75mOhm Primary, 6.5Ohm Secondary 0.75mOhm Primary, 6.5Ohm Secondary Max 0.75mOhm Primary, 6Ohm Secondary Max 0.75mOhm Primary, 7.7Ohm Secondary Max 0.75mOhm Primary, 870mOhm Secondary 0.75mOhm Primary, 870mOhm Secondary Max 0.7mOhm Primary, 10Ohm Secondary 0.7mOhm Primary, 2.25Ohm Secondary 0.8mOhm Primary, 1.14Ohm Secondary 0.8mOhm Primary, 1.5Ohm Secondary 0.8mOhm Primary, 1.98Ohm Secondary 0.8mOhm Primary, 4.75Ohm Secondary 0.8mOhm Primary, 400mOhm Secondary 0.8mOhm Primary, 5.5Ohm Secondary 0.8mOhm Primary, 6.5Ohm Secondary 0.8mOhm Primary, 870mOhm Secondary 1.14Ohm Secondary 1.15mOhm Primary, 3.9Ohm Secondary 1.15mOhm Primary, 380mOhm Secondary 1.15mOhm Primary, 930mOhm Secondary 1.1Ohm Secondary 1.3Ohm 1.3Ohm Max 1.4Ohm 1.4Ohm Primary, 1.7mOhm Secondary 1.4Ohm Secondary 1.4Ohm Secondary Max 1.55Ohm Max 1.5mOhm Primary, 10.68Ohm Secondary Max 1.5mOhm Primary, 2.76Ohm Secondary Max 1.5mOhm Primary, 22.3Ohm Secondary Max 1.5mOhm Primary, 420mOhm Secondary Max 1.5mOhm Primary, 5.04Ohm Secondary Max 1.5Ohm Secondary 1.75Ohm Secondary 1.87mOhm Primary, 2.81mOhm Secondary 1.8Ohm 1.9mOhm Primary, 2.1Ohm Secondary 1.9mOhm Primary, 2.9Ohm Secondary 1.9mOhm Primary, 5.3Ohm Secondary 1.9mOhm Primary, 5Ohm Secondary 100Ohm 100Ohm Primary, 1.4Ohm Secondary 103Ohm 105Ohm 106Ohm 109Ohm 10Ohm Max 10Ohm Secondary 112Ohm 114Ohm 115Ohm 11Ohm 11Ohm Secondary 12.4Ohm Max 12.5Ohm 12.5Ohm Max 120Ohm Max 125mOhm Primary, 23Ohm Secondary 126Ohm 13.5Ohm 134Ohm 135Ohm 14.2Ohm 140Ohm 15.8Ohm Primary, 1.7mOhm Secondary 150Ohm 155Ohm 157Ohm 15Ohm Primary, 700mOhm Secondary 16.5Ohm 160Ohm 160Ohm Max 16Ohm 16Ohm Max 170Ohm 177Ohm 187Ohm 18Ohm Primary 19.5mOhm Primary, 23Ohm Secondary 190Ohm 1mOhm Primary, 1.15Ohm Secondary Max 1mOhm Primary, 1.45Ohm Secondary Max 1mOhm Primary, 1.85Ohm Secondary Max 1mOhm Primary, 180mOhm Secondary Max 1mOhm Primary, 1Ohm Secondary Max 1mOhm Primary, 2.25Ohm Secondary Max 1mOhm Primary, 265mOhm Secondary Max 1mOhm Primary, 4.06Ohm Secondary Max 1mOhm Primary, 560mOhm Secondary Max 1mOhm Primary, 705mOhm Secondary Max 1mOhm Primary, 850mOhm Secondary Max 2.25Ohm Max 2.2mOhm Primary, 1.4Ohm Secondary 2.3mOhm Primary Max, 4.2Ohm Secondary Max 2.3mOhm Primary, 3.6Ohm Secondary 2.3mOhm Primary, 350mOhm Secondary 2.3mOhm Primary, 850mOhm Secondary 2.5mOhm Primary, 13Ohm Secondary 2.5mOhm Primary, 2.2Ohm Secondary 2.5mOhm Primary, 21Ohm Secondary 2.5mOhm Primary, 320mOhm Secondary 2.5mOhm Primary, 4.6Ohm Secondary 2.5mOhm Primary, 8.7Ohm Secondary 2.5mOhm Primary, 800mOhm Secondary 2.8mOhm Primary, 1.4Ohm Secondary 2.8mOhm Primary, 2.9Ohm Secondary 2.8Ohm Primary, 1.7mOhm Secondary 200Ohm Primary, 4.5Ohm Secondary 21.3Ohm 21.5Ohm Max 218Ohm 21Ohm 22Ohm 235Ohm Max 24Ohm 250mOhm Max 25Ohm 25Ohm Secondary 280mOhm 285Ohm 2mOhm Primary, 23Ohm Secondary 2Ohm 2Ohm Max 3.3Ohm 3.4Ohm 3.5Ohm Max 3.75Ohm Max 3.9mOhm Primary, 1.3Ohm Secondary Max 3.9mOhm Primary, 1Ohm Secondary Max 3.9mOhm Primary, 210mOhm Secondary Max 3.9mOhm Primary, 2Ohm Secondary Max 3.9mOhm Primary, 320mOhm Secondary Max 3.9mOhm Primary, 5.2Ohm Secondary Max 3.9mOhm Primary, 500mOhm Secondary Max 3.9mOhm Primary, 6.5Ohm Secondary Max 3.9mOhm Primary, 650mOhm Secondary Max 3.9mOhm Primary, 810mOhm Secondary Max 3.9mOhm Primary, 8Ohm Secondary Max 300Ohm Primary, 11Ohm Secondary 30Ohm 32Ohm 33.5Ohm 330Ohm Max 340mOhm Max 352Ohm 35Ohm 35Ohm Primary 38Ohm 390Ohm 3mOhm Primary, 1.62Ohm Secondary Max 3mOhm Primary, 1.6Ohm Secondary 3mOhm Primary, 1.6Ohm Secondary Max 3mOhm Primary, 13Ohm Secondary 3mOhm Primary, 13Ohm Secondary Max 3mOhm Primary, 2.1Ohm Secondary Max 3mOhm Primary, 2.5Ohm Secondary 3mOhm Primary, 2.5Ohm Secondary Max 3mOhm Primary, 21Ohm Secondary 3mOhm Primary, 21Ohm Secondary Max 3mOhm Primary, 3.6Ohm Secondary 3mOhm Primary, 3.6Ohm Secondary Max 3mOhm Primary, 350mOhm Secondary 3mOhm Primary, 350mOhm Secondary Max 3mOhm Primary, 4.6Ohm Secondary 3mOhm Primary, 4.6Ohm Secondary Max 3mOhm Primary, 800mOhm Secondary 3mOhm Primary, 800mOhm Secondary Max 3mOhm Primary, 9.5Ohm Secondary 3mOhm Primary, 9.5Ohm Secondary Max 3Ohm Primary, 1.6Ohm Secondary Max 3Ohm Primary, 13Ohm Secondary Max 3Ohm Primary, 2.5Ohm Secondary Max 3Ohm Primary, 21Ohm Secondary Max 3Ohm Primary, 3.6Ohm Secondary Max 3Ohm Primary, 350mOhm Secondary Max 3Ohm Primary, 4.6Ohm Secondary Max 3Ohm Primary, 800mOhm Secondary Max 3Ohm Primary, 9.5Ohm Secondary Max 4.1Ohm 4.5Ohm 4.5Ohm Max 4.5Ohm Secondary 4.5Ohm Secondary Max 4.75Ohm Secondary 40Ohm 41.7Ohm 41.8Ohm 41Ohm 42Ohm Max 44Ohm 45.5Ohm 46Ohm 470Ohm 48Ohm 49.3Ohm 492Ohm 49Ohm 4mOhm Primary, 1.2Ohm Secondary 4mOhm Primary, 1.6Ohm Secondary 4mOhm Primary, 1.9Ohm Secondary 4mOhm Primary, 900mOhm Secondary 5.5Ohm Secondary 5.73mOhm Primary, 8.59mOhm Secondary 5.73Ohm Primary, 8.59Ohm Secondary 5.7Ohm 50.9Ohm 500mOhm 500mOhm Max 500µOhm Primary, 1.5Ohm Secondary (Max) 500µOhm Primary, 12Ohm Secondary (Max) 500µOhm Primary, 2.1Ohm Secondary (Max) 500µOhm Primary, 2.6Ohm Secondary (Max) 500µOhm Primary, 3.1Ohm Secondary (Max) 500µOhm Primary, 4.2Ohm Secondary (Max) 500µOhm Primary, 4Ohm Secondary (Max) 500µOhm Primary, 9Ohm Secondary (Max) 50Ohm 50Ohm Primary, 700mOhm Secondary 510Ohm Primary, 11Ohm Secondary 515mOhm 51Ohm 52.4Ohm 52Ohm 53.5Ohm 54Ohm 54Ohm Max 550mOhm Max 550mOhm Secondary 55Ohm 55Ohm Secondary 56Ohm Primary, 1.4Ohm Secondary 57Ohm 57Ohm Secondary 580mOhm Max 58Ohm 5Ohm Max 600mOhm 600mOhm Max 600Ohm 60Ohm 62Ohm 63Ohm 650mOhm Secondary Max 65mOhm Secondary Max 66Ohm Max 6mOhm 6mOhm Primary, 1.14Ohm Secondary 6mOhm Primary, 1.4Ohm Secondary 6mOhm Primary, 1.5Ohm Secondary 6mOhm Primary, 1.75Ohm Secondary 6mOhm Primary, 2.25Ohm Secondary 6mOhm Primary, 2.2Ohm Secondary 6mOhm Primary, 200mOhm Secondary 6mOhm Primary, 240mOhm Secondary 6mOhm Primary, 4.75Ohm Secondary 6mOhm Primary, 480mOhm Secondary 6mOhm Primary, 5.5Ohm Secondary 6mOhm Primary, 5.5Ohm Secondary Max 6mOhm Primary, 5.9Ohm Secondary 6mOhm Primary, 550mOhm Secondary 6mOhm Primary, 6.5Ohm Secondary 6mOhm Primary, 7.7Ohm Secondary 6mOhm Primary, 870mOhm Secondary 6mOhm Primary, 900mOhm Secondary 700mOhm Primary, 1.14Ohm Secondary Max 700mOhm Primary, 1.7mOhm Secondary 700mOhm Primary, 1.85Ohm Secondary Max 700mOhm Primary, 11.5Ohm Secondary Max 700mOhm Primary, 2.3Ohm Secondary Max 700mOhm Primary, 4.75Ohm Secondary Max 700mOhm Primary, 400mOhm Secondary Max 700mOhm Primary, 5.5Ohm Secondary Max 700mOhm Primary, 870mOhm Secondary Max 700mOhm Secondary 700mOhm Secondary Max 70Ohm Max 71.5Ohm 72Ohm Primary 73Ohm 74Ohm 750mOhm 7mOhm Primary, 1.14Ohm Secondary Max 7mOhm Primary, 1.1Ohm Secondary 7mOhm Primary, 1.5Ohm Secondary Max 7mOhm Primary, 1.75Ohm Secondary 7mOhm Primary, 1.98Ohm Secondary Max 7mOhm Primary, 17.5Ohm Secondary 7mOhm Primary, 2.2Ohm Secondary 7mOhm Primary, 3.2Ohm Secondary 7mOhm Primary, 34Ohm Secondary 7mOhm Primary, 4.5Ohm Secondary 7mOhm Primary, 4.75Ohm Secondary Max 7mOhm Primary, 400mOhm Secondary Max 7mOhm Primary, 5.5Ohm Secondary Max 7mOhm Primary, 5.6Ohm Secondary 7mOhm Primary, 500mOhm Secondary 7mOhm Primary, 550mOhm Secondary 7mOhm Primary, 6.6Ohm Secondary 7mOhm Primary, 7.5Ohm Secondary 7mOhm Primary, 7Ohm Secondary Max 7mOhm Primary, 850mOhm Secondary 7mOhm Primary, 870mOhm Secondary Max 8.5Ohm Secondary 800mOhm 80Ohm 81Ohm 870mOhm Secondary 88Ohm 9.4Ohm 90Ohm 94.5Ohm 95Ohm	- AEC-Q200	- Chassis Mount DIN Rail DIN Rail, Panel Free Hanging (In-Line) Panel Mount Surface Mount Through Hole	- 0.078" L x 0.050" W (35.30mm x 22.90mm) 0.122" L x 0.252" W (3.10mm x 6.40mm) 0.138" L x 0.185" W (3.50mm x 4.70mm) 0.185" L x 0.138" W (4.70mm x 3.50mm) 0.185" L x 0.144" W (4.70mm x 3.65mm) 0.185" L x 0.183" W (4.70mm x 4.65mm) 0.189" L x 0.144" W (4.80mm x 3.65mm) 0.245" L x 0.235" W (6.22mm x 5.97mm) 0.265" L x 0.265" W (6.73mm x 6.73mm) 0.272" L x 0.303" W (6.90mm x 7.70mm) 0.276" L x 0.331" W (7.00mm x 8.40mm) 0.280" L x 0.320" W (7.11mm x 8.13mm) 0.283" L x 0.205" W (7.20mm x 5.20mm) 0.283" L x 0.327" W (7.20mm x 8.30mm) 0.284" L x 0.330" W (7.21mm x 8.38mm) 0.285" L x 0.352" W (7.25mm x 8.25mm) 0.303" L x 0.272" W (7.70mm x 6.90mm) 0.325" L x 0.325" W (8.25mm x 8.25mm) 0.330" L x 0.284" W (8.38mm x 7.21mm) 0.330" L x 0.315" W (8.38mm x 8.00mm) 0.354" L x 0.425" W (9.00mm x 10.80mm) 0.417" L x 0.480" W (10.60mm x 12.20mm) 0.476" L x 0.425" W (12.10mm x 10.80mm) 0.495" L x 0.490" W (12.57mm x 12.45mm) 0.496" L x 0.575" W (12.60mm x 14.60mm) 0.500" L x 0.280" W (12.70mm x 7.11mm) 0.504" L x 0.382" W (12.80mm x 9.70mm) 0.504" L x 0.480" W (12.80mm x 12.20mm) 0.504" L x 0.535" W (12.80mm x 13.60mm) 0.512" L x 0.413" W (13.00mm x 10.50mm) 0.512" L x 0.433" W (13.00mm x 11.00mm) 0.515" Dia (13.08mm) 0.550" L x 0.380" W (13.97mm x 9.65mm) 0.560" L x 0.530" W (14.22mm x 13.46mm) 0.565" L x 0.750" W (14.35mm x 19.05mm) 0.570" L x 0.524" W (14.48mm x 13.30mm) 0.570" L x 0.795" W (14.48mm x 20.20mm) 0.571" L x 0.772" W (14.50mm x 19.60mm) 0.575" L x 0.496" W (14.60mm x 12.60mm) 0.591" L x 0.784" W (15.00mm x 19.91mm) 0.661" L x 0.350" W (16.79mm x 8.89mm) 0.661" L x 0.354" W (16.80mm x 9.00mm) 0.669" L x 0.591" W (17.00mm x 15.00mm) 0.670" L x 0.375" W (17.02mm x 9.53mm) 0.670" L x 0.390" W (17.01mm x 9.90mm) 0.670" L x 0.390" W (17.02mm x 9.91mm) 0.675" L x 0.375" W (17.15mm x 9.53mm) 0.677" L x 0.375" W (17.20mm x 9.53mm) 0.689" L x 0.689" W (17.50mm x 17.50mm) 0.690" L x 0.385" W (17.53mm x 9.78mm) 0.693" L x 0.591" W (17.60mm x 15.00mm) 0.701" L x 0.504" W (17.80mm x 12.80mm) 0.701" L x 0.669" W (17.80mm x 17.00mm) 0.701" L x 0.902" W (17.80mm x 22.90mm) 0.709" L x 0.280" W (18.00mm x 7.10mm) 0.709" L x 0.394" W (18.00mm x 10.00mm) 0.748" Dia (19.00mm) 0.748" L x 0.394" W (19.00mm x 10.00mm) 0.748" L x 0.433" W (19.00mm x 11.00mm) 0.748" L x 0.689" W (19.00mm x 17.50mm) 0.750" L x 0.565" W (19.05mm x 14.35mm) 0.760" L x 1.039" W (19.30mm x 26.40mm) 0.764" L x 0.323" W (19.40mm x 8.20mm) 0.776" L x 0.689" W (19.70mm x 17.50mm) 0.784" L x 0.570" W (19.91mm x 14.48mm) 0.807" L x 0.690" W (20.50mm x 17.53mm) 0.810" L x 0.580" W (20.57mm x 14.73mm) 0.846" L x 0.945" W (21.50mm x 24.00mm) 0.858" L x 0.760" W (21.80mm x 19.30mm) 0.860" L x 0.720" W (21.84mm x 18.29mm) 0.860" L x 0.850" W (21.84mm x 21.59mm) 0.875" L x 0.875" W (22.23mm x 22.23mm) 0.880" L x 0.690" W (22.35mm x 17.53mm) 0.882" L x 0.760" W (22.40mm x 19.30mm) 0.900" L x 0.700" W (22.86mm x 17.78mm) 0.906" L x 0.433" W (23.00mm x 11.00mm) 0.906" L x 0.610" W (23.00mm x 15.50mm) 0.906" L x 0.752" W (23.00mm x 19.10mm) 0.906" L x 0.906" W (23.00mm x 23.00mm) 0.925" L x 0.433" W (23.50mm x 11.00mm) 0.925" L x 0.453" W (23.50mm x 11.50mm) 0.925" L x 0.472" W (23.50mm x 12.00mm) 0.937" L x 0.438" W (23.80mm x 11.12mm) 0.949" L x 0.461" W (24.10mm x 11.70mm) 0.965" L x 0.484" W (24.50mm x 12.30mm) 0.965" L x 0.488" W (24.50mm x 12.40mm) 0.972" L x 0.858" W (24.70mm x 21.80mm) 0.990" L x 0.440" W (25.15mm x 11.18mm) 1.004" L x 1.043" W (25.50mm x 26.50mm) 1.024" L x 0.670" W (26.00mm x 17.00mm) 1.024" L x 0.945" W (26.00mm x 24.00mm) 1.024" L x 1.004" W (26.00mm x 25.50mm) 1.030" L x 1.080" W (26.16mm x 27.43mm) 1.039" L x 0.949" W (26.40mm x 24.10mm) 1.039" L x 1.004" W (26.40mm x 25.50mm) 1.050" Dia (26.67mm) 1.063" L x 0.492" W (27.00mm x 12.50mm) 1.063" L x 0.709" W (27.00mm x 18.00mm) 1.063" L x 0.906" W (27.00mm x 23.00mm) 1.075" L x 0.400" W (27.31mm x 10.16mm) 1.083" L x 0.748" W (27.51mm x 19.00mm) 1.083" L x 0.941" W (27.50mm x 23.90mm) 1.094" L x 0.866" W (27.80mm x 22.00mm) 1.102" Dia (28.00mm) 1.102" L x 0.563" W (28.00mm x 14.30mm) 1.122" L x 0.571" W (28.50mm x 14.50mm) 1.126" L x 0.728" W (28.60mm x 18.50mm) 1.130" Dia (28.70mm) 1.134" L x 0.764" W (28.80mm x 19.40mm) 1.160" L x 0.922" W (29.46mm x 23.42mm) 1.161" L x 1.024" W (29.50mm x 26.00mm) 1.181" L x 0.559" W (30.00mm x 14.20mm) 1.181" L x 0.563" W (30.00mm x 14.30mm) 1.181" L x 0.689" W (30.00mm x 17.50mm) 1.189" L x 0.563" W (30.20mm x 14.30mm) 1.201" L x 0.563" W (30.50mm x 14.30mm) 1.201" L x 0.591" W (30.50mm x 15.00mm) 1.201" L x 1.083" W (30.50mm x 27.50mm) 1.201" L x 1.102" W (30.50mm x 28.00mm) 1.205" L x 1.189" W (30.60mm x 30.20mm) 1.220" L x 0.551" W (31.00mm x 14.00mm) 1.220" L x 1.102" W (31.00mm x 28.00mm) 1.236" L x 1.220" W (31.40mm x 31.00mm) 1.252" L x 1.024" W (31.80mm x 26.00mm) 1.258" L x 1.201" W (31.95mm x 30.50mm) 1.260" L x 0.618" W (32.00mm x 15.70mm) 1.260" L x 0.807" W (32.00mm x 20.50mm) 1.260" L x 1.220" W (32.00mm x 31.00mm) 1.275" Dia (32.38mm) 1.280" L x 0.709" W (32.50mm x 18.00mm) 1.280" L x 0.925" W (32.50mm x 23.50mm) 1.280" L x 1.201" W (32.50mm x 30.50mm) 1.280" L x 1.280" W (32.50mm x 32.50mm) 1.287" L x 0.642" W (32.70mm x 16.30mm) 1.295" L x 0.673" W (32.90mm x 17.10mm) 1.295" L x 1.201" W (32.90mm x 30.50mm) 1.319" L x 1.240" W (33.50mm x 31.50mm) 1.319" L x 1.260" W (33.50mm x 32.00mm) 1.327" L x 0.744" W (33.70mm x 18.90mm) 1.331" L x 0.520" W (33.80mm x 13.20mm) 1.331" L x 0.665" W (33.80mm x 16.90mm) 1.339" L x 0.551" W (34.00mm x 14.00mm) 1.339" L x 0.591" W (34.00mm x 15.00mm) 1.354" L x 1.079" W (34.40mm x 27.40mm) 1.358" L x 1.260" W (34.50mm x 32.00mm) 1.374" L x 0.563" W (34.90mm x 14.30mm) 1.378" L x 0.591" W (35.00mm x 15.00mm) 1.378" L x 1.280" W (35.00mm x 32.50mm) 1.409" L x 0.677" W (35.80mm x 17.20mm) 1.417" L x 1.181" W (36.00mm x 30.00mm) 1.437" L x 1.913" W (36.50mm x 48.60mm) 1.445" L x 0.906" W (36.70mm x 23.00mm) 1.449" L x 0.685" W (36.80mm x 17.40mm) 1.453" L x 0.756" W (36.90mm x 19.20mm) 1.469" L x 0.665" W (37.30mm x 16.90mm) 1.476" L x 0.551" W (37.50mm x 14.00mm) 1.500" L x 0.626" W (38.10mm x 15.90mm) 1.500" L x 0.697" W (38.10mm x 17.70mm) 1.535" L x 0.689" W (39.00mm x 17.50mm) 1.560" Dia (39.60mm) 1.574" L x 1.122" W (40.50mm x 28.50mm) 1.575" L x 0.394" W (40.00mm x 10.00mm) 1.575" L x 2.480" W (40.00mm x 63.00mm) 1.606" L x 1.307" W (40.80mm x 33.20mm) 1.669" L x 1.587" W (42.40mm x 40.30mm) 1.700" L x 1.450" W (43.18mm x 36.83mm) 1.732" L x 1.181" W (44.00mm x 30.00mm) 1.732" L x 1.535" W (44.00mm x 39.00mm) 1.752" L x 0.563" W (44.50mm x 14.30mm) 1.811" L x 1.732" W (46.00mm x 44.00mm) 1.890" L x 1.417" W (48.00mm x 36.00mm) 1.906" L x 1.398" W (48.40mm x 35.50mm) 1.909" L x 1.555" W (48.50mm x 39.50mm) 1.969" L x 1.693" W (50.00mm x 43.00mm) 1.969" L x 1.969" W (50.00mm x 50.00mm) 10.236" L x 8.268" W (260.00mm x 210.00mm) 10.551" L x 2.165" W (268.00mm x 55.00mm) 14.843" L x 2.559" W (377.00mm x 65.00mm) 2.000" L x 0.700" W (50.80mm x 17.78mm) 2.008" L x 0.630" W (51.00mm x 16.00mm) 2.008" L x 1.890" W (51.00mm x 48.00mm) 2.047" L x 0.630" W (52.00mm x 16.00mm) 2.063" L x 1.100" W (52.40mm x 27.94mm) 2.067" L x 1.339" W (52.50mm x 34.00mm) 2.165" L x 2.047" W (55.00mm x 52.00mm) 2.189" L x 0.811" W (55.60mm x 20.60mm) 2.205" L x 1.326" W (56.01mm x 33.69mm) 2.205" L x 1.327" W (56.00mm x 33.70mm) 2.205" L x 1.969" W (56.00mm x 50.00mm) 2.240" L x 2.098" W (56.90mm x 53.30mm) 2.244" L x 0.787" W (57.00mm x 20.00mm) 2.252" L x 1.929" W (57.20mm x 49.00mm) 2.264" L x 1.516" W (57.50mm x 38.50mm) 2.276" L x 1.220" W (57.80mm x 31.00mm) 2.283" L x 2.283" W (58.00mm x 58.00mm) 2.283" L x 8.701" W (58.00mm x 221.00mm) 2.320" L x 1.900" W (58.93mm x 48.26mm) 2.323" L x 1.929" W (59.00mm x 49.00mm) 2.362" L x 0.650" W (60.00mm x 16.50mm) 2.362" L x 1.181" W (60.00mm x 30.00mm) 2.362" L x 1.260" W (60.00mm x 32.00mm) 2.362" L x 1.378" W (60.00mm x 35.00mm) 2.362" L x 1.890" W (60.00mm x 48.00mm) 2.362" L x 2.047" W (60.00mm x 52.00mm) 2.378" L x 0.902" W (60.40mm x 22.90mm) 2.402" L x 2.000" W (61.00mm x 50.80mm) 2.441" L x 1.811" W (62.00mm x 46.00mm) 2.461" Dia (62.50mm) 2.468" Dia (62.70mm) 2.470" Dia (62.74mm) 2.480" L x 2.205" W (63.00mm x 56.00mm) 2.520" L x 2.067" W (64.00mm x 52.50mm) 2.559" L x 2.559" W (65.00mm x 65.00mm) 2.569" L x 1.654" W (65.25mm x 42.00mm) 2.606" L x 2.598" W (66.20mm x 66.00mm) 2.650" L x 1.638" W (67.30mm x 41.60mm) 2.650" L x 1.638" W (67.31mm x 41.61mm) 2.677" L x 1.638" W (68.00mm x 41.61mm) 2.681" L x 2.000" W (68.10mm x 44.50mm) 2.700" Dia (68.60mm) 2.701" Dia (68.60mm) 2.717" L x 2.638" W (69.01mm x 67.01mm) 2.720" L x 2.190" W (69.09mm x 55.63mm) 2.730" L x 2.190" W (69.34mm x 55.63mm) 2.750" L x 2.190" W (69.85mm x 55.63mm) 2.756" L x 1.181" W (70.00mm x 30.00mm) 2.756" L x 1.378" W (70.00mm x 35.00mm) 2.756" L x 2.047" W (70.00mm x 52.00mm) 2.772" L x 0.886" W (70.40mm x 22.50mm) 2.820" L x 2.190" W (71.63mm x 55.63mm) 2.874" L x 0.866" W (73.00mm x 22.00mm) 2.888" L x 2.860" W (73.36mm x 72.64mm) 3.031" L x 2.480" W (77.00mm x 63.00mm) 3.071" L x 0.909" W (78.00mm x 23.10mm) 3.150" L x 2.756" W (80.00mm x 70.00mm) 3.150" L x 2.795" W (80.01mm x 70.99mm) 3.228" L x 1.181" W (82.00mm x 30.00mm) 3.228" L x 3.228" W (82.00mm x 82.00mm) 3.268" L x 3.366" W (83.00mm x 85.50mm) 3.346" L x 0.984" W (85.00mm x 25.00mm) 3.346" L x 1.181" W (85.00mm x 30.00mm) 3.346" L x 1.378" W (85.00mm x 35.00mm) 3.346" L x 2.047" W (85.00mm x 52.00mm) 3.450" L x 2.500" W (87.63mm x 63.50mm) 3.450" L x 2.510" W (87.63mm x 63.75mm) 3.450" L x 2.520" W (87.63mm x 64.00mm) 3.470" L x 2.520" W (88.14mm x 64.00mm) 3.470" L x 3.800" W (88.14mm x 96.52mm) 3.500" Dia (88.90mm) 3.500" L x 0.933" W (88.90mm x 23.70mm) 3.500" L x 2.181" W (88.90mm x 55.40mm) 3.543" L x 2.331" W (89.99mm x 59.21mm) 3.543" L x 2.480" W (90.00mm x 63.00mm) 3.560" Dia (90.40mm) 3.560" Dia (90.42mm) 3.661" L x 2.283" W (93.00mm x 58.00mm) 3.740" L x 0.787" W (95.00mm x 20.00mm) 3.740" L x 1.181" W (95.00mm x 30.00mm) 3.740" L x 1.378" W (95.00mm x 35.00mm) 3.740" L x 2.047" W (95.00mm x 52.00mm) 3.750" Dia (95.25mm) 3.750" L x 1.750" W (95.25mm x 44.45mm) 3.780" L x 2.150" W (96.00mm x 54.60mm) 3.780" L x 3.530" W (96.01mm x 89.66mm) 3.858" L x 2.843" W (97.99mm x 72.21mm) 3.858" L x 3.425" W (98.00mm x 87.00mm) 3.870" L x 2.520" W (98.30mm x 64.00mm) 3.875" Dia (98.43mm) 3.900" L x 2.510" W (99.06mm x 63.75mm) 3.909" L x 2.520" W (99.30mm x 64.00mm) 3.937" L x 3.543" W (100.00mm x 90.00mm) 3.976" L x 2.047" W (101.00mm x 52.00mm) 4.000" Dia (101.60mm) 4.050" L x 2.510" W (102.87mm x 63.75mm) 4.050" L x 2.520" W (102.87mm x 64.00mm) 4.079" Dia (103.60mm) 4.094" L x 1.181" W (104.00mm x 30.00mm) 4.094" L x 4.055" W (104.00mm x 103.00mm) 4.134" L x 1.181" W (105.00mm x 30.00mm) 4.134" L x 3.740" W (105.00mm x 95.00mm) 4.209" L x 2.150" W (106.90mm x 54.60mm) 4.250" L x 2.500" W (107.95mm x 63.50mm) 4.250" L x 2.520" W (107.95mm x 64.00mm) 4.370" L x 1.240" W (111.00mm x 31.50mm) 4.370" L x 4.370" W (111.00mm x 111.00mm) 4.488" L x 1.583" W (114.00mm x 40.20mm) 4.500" L x 1.252" W (114.30mm x 31.80mm) 4.700" Dia (119.38mm) 4.724" L x 1.142" W (120.00mm x 29.00mm) 4.724" L x 2.047" W (120.00mm x 52.00mm) 4.744" L x 0.244" W (120.50mm x 6.20mm) 4.750" L x 1.750" W (120.65mm x 44.45mm) 4.921" L x 2.283" W (125.00mm x 58.00mm) 5.000" L x 1.181" W (127.00mm x 30.00mm) 5.079" L x 1.181" W (129.00mm x 30.00mm) 5.118" L x 1.378" W (130.00mm x 35.00mm) 5.118" L x 2.047" W (130.00mm x 52.00mm) 5.315" L x 1.457" W (135.00mm x 37.01mm) 5.335" L x 1.417" W (135.50mm x 36.00mm) 5.512" Dia x 17.717" W (140.00mm x 450.00mm) 5.512" L x 2.047" W (140.00mm x 52.00mm) 5.512" L x 8.465" W (140.00mm x 215.00mm) 5.709" L x 1.378" W (145.00mm x 35.00mm) 5.725" L x 5.421" W (145.42mm x 137.69mm) 5.827" L x 2.980" W (148.00mm x 75.70mm) 5.866" L x 4.803" W (149.00mm x 122.00mm) 6.000" L x 1.750" W (152.40mm x 44.45mm) 6.063" L x 5.669" W (154.00mm x 144.00mm) 6.102" L x 2.283" W (154.99mm x 57.99mm) 6.102" L x 2.283" W (155.00mm x 58.00mm) 6.496" L x 6.102" W (165.00mm x 155.00mm) 6.500" Dia (165.10mm) 6.728" L x 1.280" W (170.90mm x 32.50mm) 7.000" L x 1.750" W (177.80mm x 44.45mm) 7.130" L x 2.220" W (181.10mm x 56.39mm) 7.480" Dia x 23.622" W (190.00mm x 600.00mm) 7.677" L x 3.110" W (195.00mm x 79.00mm) 8.000" L x 1.750" W (203.20mm x 44.45mm) 8.268" L x 1.457" W (210.01mm x 37.01mm) 9.252" L x 7.283" W (235.00mm x 185.00mm)	- 0.029" (0.73mm) 0.110" (2.80mm) 0.118" (3.00mm) 0.120" (3.05mm) 0.124" (3.15mm) 0.134" (3.40mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.190" (4.83mm) 0.200" (5.08mm) 0.205" (5.20mm) 0.209" (5.31mm) 0.210" (5.33mm) 0.213" (5.40mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.235" (5.97mm) 0.264" (6.70mm) 0.280" (7.10mm) 0.280" (7.11mm) 0.283" (7.20mm) 0.295" (7.50mm) 0.307" (7.80mm) 0.311" (7.90mm) 0.323" (8.20mm) 0.325" (8.26mm) 0.327" (8.30mm) 0.335" (8.50mm) 0.346" (8.80mm) 0.362" (9.20mm) 0.37" (9.39mm) 0.374" (9.50mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.413" (10.50mm) 0.425" (10.80mm) 0.433" (11.00mm) 0.435" (11.05mm) 0.453" (11.50mm) 0.461" (11.70mm) 0.472" (12.00mm) 0.492" (12.50mm) 0.494" (22.40mm) 0.531" (13.50mm) 0.532" (13.50mm) 0.550" (13.97mm) 0.559" (14.20mm) 0.567" (14.40mm) 0.580" (14.73mm) 0.610" (15.50mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.640" (16.25mm) 0.650" (16.51mm) 0.669" (17.00mm) 0.677" (17.20mm) 0.689" (17.50mm) 0.700" (17.78mm) 0.701" (17.80mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.720" (18.29mm) 0.744" (18.91mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.768" (19.50mm) 0.787" (20.00mm) 0.791" (20.10mm) 0.795" (20.16mm) 0.795" (20.19mm) 0.795" (20.20mm) 0.800" (20.32mm) 0.803" (20.40mm) 0.827" (21.00mm) 0.827" (37.50mm) 0.866" (22.00mm) 0.882" (22.40mm) 0.915" (23.24mm) 0.933" (23.70mm) 0.937" (23.80mm) 0.965" (24.50mm) 0.976" (24.80mm) 0.984" (25.00mm) 0.992" (25.20mm) 0.994" (25.25mm) 1.000" (25.40mm) 1.039" (26.40mm) 1.051" (26.70mm) 1.098" (27.90mm) 1.100" (27.94mm) 1.102" (28.00mm) 1.114" (28.30mm) 1.142" (29.00mm) 1.161" (29.50mm) 1.181" (30.00mm) 1.189" (30.20mm) 1.200" (30.48mm) 1.201" (30.50mm) 1.220" (31.00mm) 1.225" (31.12mm) 1.240" (31.50mm) 1.250" (31.75mm) 1.260" (32.00mm) 1.280" (32.50mm) 1.327" (33.70mm) 1.339" (34.00mm) 1.366" (34.70mm) 1.374" (34.90mm) 1.378" (35.00mm) 1.398" (35.50mm) 1.402" (35.60mm) 1.413" (35.90mm) 1.457" (37.00mm) 1.472" (37.40mm) 1.488" (37.80mm) 1.500" (38.10mm) 1.535" (39.00mm) 1.539" (39.10mm) 1.571" (39.90mm) 1.575" (40.00mm) 1.634" (41.50mm) 1.654" (42.00mm) 1.688" (42.86mm) 1.693" (43.00mm) 1.700" (43.18mm) 1.705" (43.30mm) 1.752" (44.50mm) 1.772" (45.00mm) 1.791" (45.50mm) 1.819" (46.20mm) 1.823" (46.30mm) 1.831" (46.51mm) 1.870" (47.50mm) 1.909" (48.50mm) 1.929" (49.00mm) 1.984" (50.40mm) 10.020" (254.50mm) 10.630" (270.00mm) 14.961" (380.00mm) 2.047" (52.00mm) 2.126" (54.00mm) 2.130" (54.10mm) 2.150" (54.61mm) 2.161" (54.90mm) 2.181" (55.40mm) 2.189" (55.60mm) 2.205" (56.00mm) 2.209" (56.10mm) 2.402" (61.00mm) 2.452" (62.28mm) 2.480" (62.99mm) 2.539" (64.49mm) 2.539" (64.50mm) 2.567" (65.20mm) 2.598" (66.00mm) 2.600" (66.04mm) 2.638" (67.00mm) 2.657" (67.50mm) 2.669" (67.80mm) 2.677" (68.00mm) 2.681" (68.10mm) 2.740" (69.60mm) 2.750" (69.85mm) 2.780" (70.60mm) 2.835" (72.00mm) 2.874" (73.00mm) 2.880" (73.15mm) 2.900" (73.66mm) 2.913" (74.00mm) 2.920" (74.17mm) 2.953" (75.00mm) 2.980" (75.69mm) 3.000" (76.20mm) 3.030" (76.96mm) 3.040" (77.22mm) 3.060" (77.72mm) 3.070" (77.98mm) 3.150" (80.00mm) 3.154" (80.11mm) 3.169" (80.50mm) 3.173" (80.60mm) 3.185" (80.90mm) 3.220" (81.79mm) 3.250" (82.55mm) 3.283" (83.40mm) 3.300" (83.82mm) 3.307" (84.00mm) 3.346" (85.00mm) 3.386" (86.00mm) 3.406" (86.51mm) 3.543" (90.00mm) 3.589" (91.15mm) 3.657" (92.90mm) 3.661" (93.00mm) 3.701" (94.00mm) 3.780" (96.00mm) 3.795" (96.39mm) 3.819" (97.00mm) 3.937" (100.00mm) 4.144" (105.25mm) 4.173" (106.00mm) 4.209" (106.90mm) 4.250" (107.95mm) 4.252" (108.00mm) 4.291" (109.00mm) 4.311" (109.50mm) 4.350" (110.50mm) 4.488" (114.00mm) 4.500" (114.30mm) 4.522" (114.85mm) 4.606" (116.99mm) 4.638" (117.81mm) 4.740" (120.40mm) 4.748" (120.60mm) 4.764" (121.00mm) 4.850" (123.19mm) 4.921" (125.00mm) 5.020" (127.50mm) 5.059" (128.50mm) 5.157" (131.00mm) 5.177" (131.50mm) 5.197" (132.00mm) 5.250" (133.35mm) 5.276" (134.01mm) 5.280" (134.12mm) 5.302" (134.66mm) 5.805" (147.45mm) 5.807" (147.49mm) 5.830" (148.08mm) 6.102" (155.00mm) 6.142" (156.00mm) 6.220" (158.00mm) 6.250" (158.75mm) 6.319" (160.50mm) 6.654" (169.00mm) 7.244" (184.00mm) 7.250" (184.15mm) 7.539" (191.49mm) 7.795" (197.99mm) 7.801" (198.15mm) 7.953" (202.00mm) 8.780" (223.00mm) 9.567" (243.00mm)	- Gull Wing J Lead PC Pin Quick Connect Stud Terminal Block Wire Leads Wire Leads 1.5m Wire Leads 3m Wire Leads with Connector

全部重置

应用所有

结果:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Frequency Range	Type	Current Rating (Amps)	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
PCS040-EF1313KS CURRENT SENSE TRANSF 40A 13300UH Bourns Inc.	3,307	-	RFQ	Datasheet	PCS	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	13.3 mH	317.5VµS	1:125	125:1	1mOhm Primary, 1.85Ohm Secondary Max	-	Surface Mount	-	0.413" (10.50mm)	Gull Wing
PCS040-EF1302KS CURRENT SENSE TRANSF 40A 2120UH Bourns Inc.	3,742	-	RFQ	Datasheet	PCS	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	2.12 mH	127VµS	1:50	50:1	1mOhm Primary, 705mOhm Secondary Max	-	Surface Mount	-	0.413" (10.50mm)	Gull Wing
PCS040-EF13760S CURRENT SENSE TRANSF 40A 760UH Bourns Inc.	3,786	-	RFQ	Datasheet	PCS	Tape & Reel (TR)	Active	1MHz	Invasive	40 A	760 µH	76.2VµS	1:30	30:1	1mOhm Primary, 265mOhm Secondary Max	-	Surface Mount	-	0.413" (10.50mm)	Gull Wing

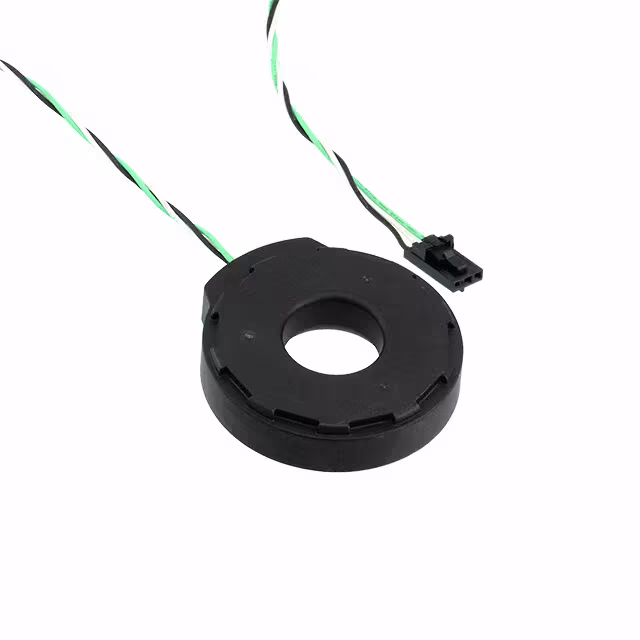

PA3838NL CURR SENSE XFMR 1KA ROGOWSKI Pulse Electronics	2,703	-	RFQ	-	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-

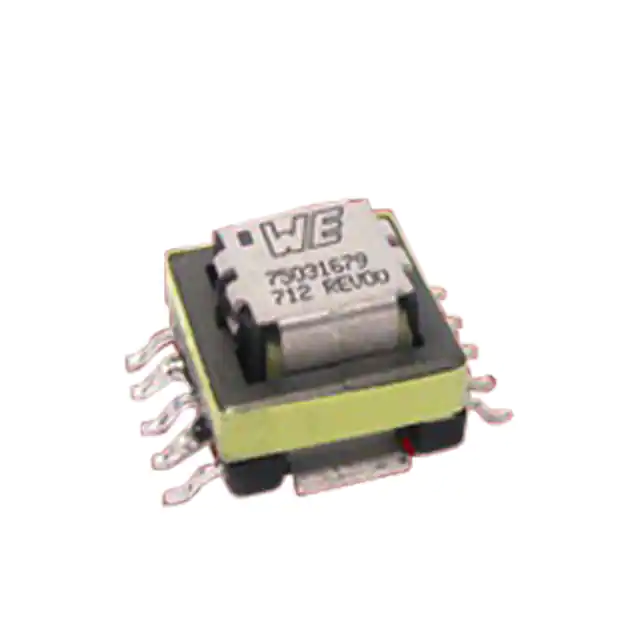

750316793 CURR SENSE XFMR 1:50 40A SMD Würth Elektronik	3,159	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	50kHz ~ 500kHz	Invasive	40 A	1.4 mH	-	1:50	-	280mOhm	-	Surface Mount	0.570" L x 0.795" W (14.48mm x 20.20mm)	0.413" (10.50mm)	Gull Wing
750316794 CURR SENSE XFMR 1:100 40A SMD Würth Elektronik	2,685	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	50kHz ~ 500kHz	Invasive	40 A	5.6 mH	-	1:100	-	280mOhm	-	Surface Mount	0.570" L x 0.795" W (14.48mm x 20.20mm)	0.413" (10.50mm)	Gull Wing
750316795 CURR SENSE XFMR 1:150 40A SMD Würth Elektronik	4,950	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	50kHz ~ 500kHz	Invasive	40 A	12.6 mH	-	1:150	-	280mOhm	-	Surface Mount	0.570" L x 0.795" W (14.48mm x 20.20mm)	0.413" (10.50mm)	Gull Wing
AS-115 CURR SENSE XFMR 1:750CT 30A T/H Amgis, LLC	2,692	-	RFQ	Datasheet	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	1.68 mH	3750VµS	1:750CT	-	21.5Ohm Max	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
T60404E4626X002 4626X002 VACUUMSCHMELZE	2,610	-	RFQ	-	-	Box	Active	-	Non-Invasive (Solid Core)	100 A	102 H	-	2500:1	2500:1	41.7Ohm	-	Free Hanging (In-Line)	1.339" L x 0.591" W (34.00mm x 15.00mm)	1.378" (35.00mm)	Wire Leads
T60404S4658X051 4658X051 VACUUMSCHMELZE	2,978	-	RFQ	-	-	Box	Active	-	Non-Invasive (Solid Core)	100 A	63 H	-	1:2000	2000:1	51Ohm	-	Through Hole	1.063" L x 0.492" W (27.00mm x 12.50mm)	1.161" (29.50mm)	PC Pin
AS-401 CURR SENSE XFMR 2A 1:100 VRT Amgis, LLC	2,058	-	RFQ	Datasheet	AS	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.906" L x 0.610" W (23.00mm x 15.50mm)	0.984" (25.00mm)	-
ECST1V0805-1030-R CURR SENSE XFMR 30:1 10A SMD Eaton - Electronics Division	2,356	-	RFQ	Datasheet	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	180 µH	-	30:1	-	700mOhm Primary, 870mOhm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing

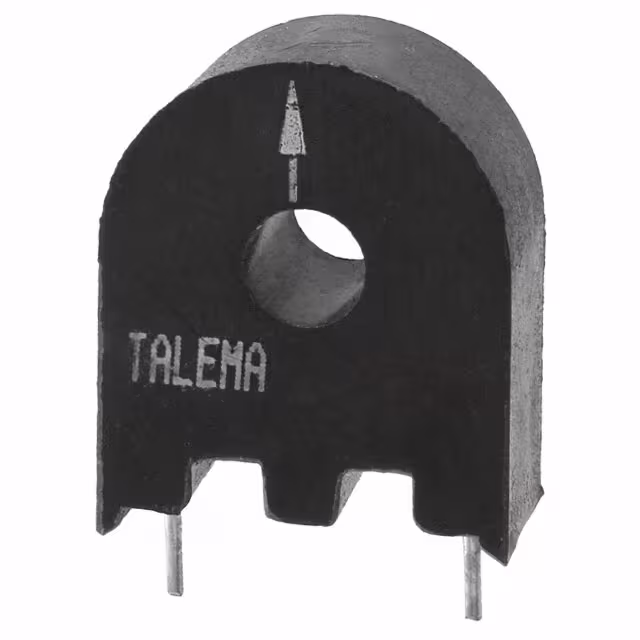

AX-1500 CURR SENSE XFMR 15A T/H Talema Group LLC	3,607	-	RFQ	Datasheet	AX	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1500:1	-	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
T60404E4624X131 4624X131 VACUUMSCHMELZE	2,966	-	RFQ	-	-	Box	Active	50Hz	Non-Invasive (Solid Core)	60 A	3.8 H	-	2500:1	2500:1	71.5Ohm	-	Free Hanging (In-Line)	1.287" L x 0.642" W (32.70mm x 16.30mm)	1.366" (34.70mm)	Wire Leads
T60404E4624X531 4624X531 VACUUMSCHMELZE	2,008	-	RFQ	-	-	Box	Active	-	Non-Invasive (Solid Core)	60 A	3.8 H	-	1:2500	2500:1	-	-	Through Hole	1.260" L x 0.618" W (32.00mm x 15.70mm)	1.280" (32.50mm)	PC Pin

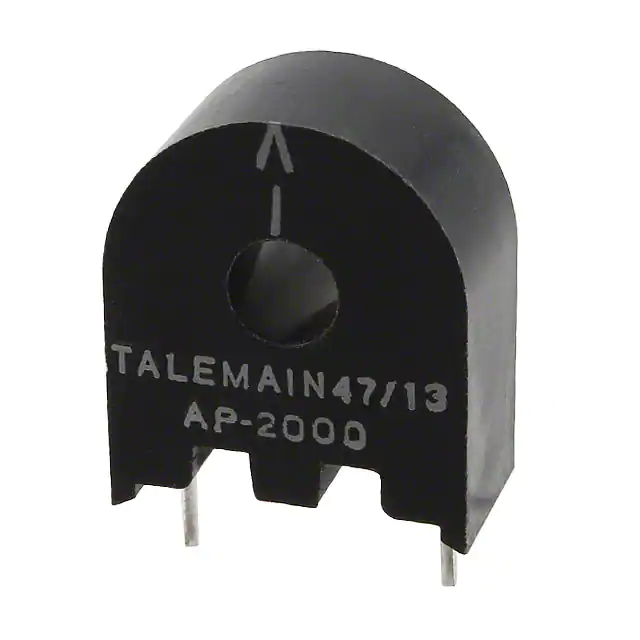

AP-2000 CURR SENSE XFMR 15A T/H Talema Group LLC	2,142	-	RFQ	Datasheet	AP	Tray	Active	-	Non-Invasive (Solid Core)	15 A	-	-	-	2000:1	235Ohm Max	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
T60404E4626X531 4626X531 VACUUMSCHMELZE	2,690	-	RFQ	-	-	Box	Active	-	Non-Invasive (Solid Core)	100 A	3.1 H	-	1:2500	2500:1	50Ohm	-	Through Hole	1.469" L x 0.665" W (37.30mm x 16.90mm)	1.457" (37.00mm)	PC Pin
ECST1V0805-1060-R CURR SENSE XFMR 60:1 10A SMD Eaton - Electronics Division	2,023	-	RFQ	Datasheet	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	730 µH	-	60:1	-	700mOhm Primary, 2.3Ohm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECST1V0805-1070-R CURR SENSE XFMR 70:1 10A SMD Eaton - Electronics Division	3,048	-	RFQ	Datasheet	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	980 µH	-	70:1	-	700mOhm Primary, 4.75Ohm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECST1V0805-1040-R CURR SENSE XFMR 40:1 10A SMD Eaton - Electronics Division	4,167	-	RFQ	Datasheet	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	320 µH	-	40:1	-	700mOhm Primary, 1.14Ohm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing

Total 2059 Record«Prev 1... 53 54 55 565758 59 60...103 Next»
