DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Voltage - Input (Min) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Size / Dimension | Voltage - Output 3 | Voltage - Output 4 | Voltage - Input (Max) | Current - Output (Max) | Power (Watts) | Mounting Style | Voltage - Isolation | Approval Agency | Operating Temperature | Part Applications | Efficiency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VYC30W-Q24-S5-TDC/DC CONVERTER 5V 30W |
3,877 |
|
Datasheet |
VYC30W-T (30W) | Box | Obsolete | Enclosed | 9V | 1 | 5V | - | 2.66" L x 2.17" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | - | - | 36V | 6A | 30W | Chassis Mount | - | - | -40°C ~ 85°C | - | 87% | - |
|
|
VYC30W-Q24-D15-TDC/DC CONVERTER +/-15V 30W |
3,555 |
|
Datasheet |
VYC30W-T (30W) | Box | Obsolete | Enclosed | 9V | 2 | 15V | -15V | 2.66" L x 2.17" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | - | - | 36V | 1A, 1A | 30W | Chassis Mount | - | - | -40°C ~ 85°C | - | 87% | - |
|
|

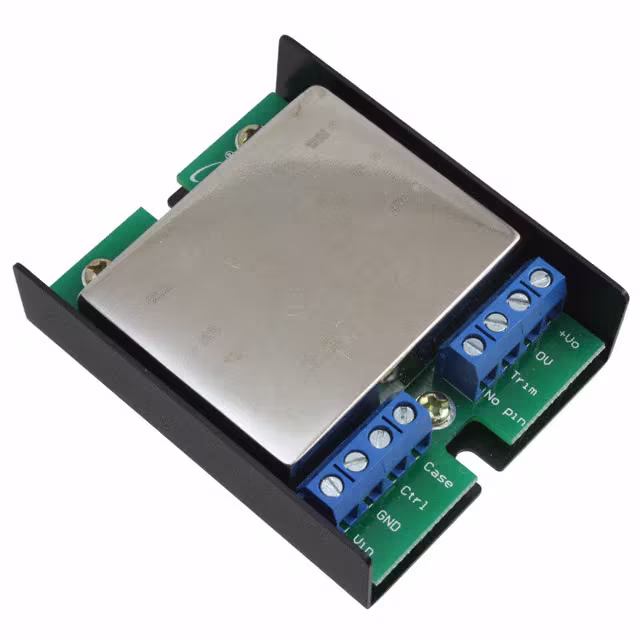

VYC30W-Q48-S12-TDC/DC CONVERTER 12V 30W |
4,147 |
|
Datasheet |
VYC30W-T (30W) | Box | Obsolete | Enclosed | 18V | 1 | 12V | - | 2.66" L x 2.17" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | - | - | 75V | 2.5A | 30W | Chassis Mount | - | - | -40°C ~ 85°C | - | 88% | - |
|
SFD1200-12BGDC/DC CONVERTER 12V 1200W |
2,067 |
|
Datasheet |
SFD1200 (1200W) | Bulk | Obsolete | Front End | -40V | 1 | 12V | - | 11.93" L x 3.07" W x 1.59" H (302.9mm x 78.0mm x 40.3mm) | - | - | -70V | 99.2A | 1200W | Rack Mount | - | CE, CSA, EN, TUV, UL | 0°C ~ 50°C | ITE (Commercial) | 91% | - |
|
|
CK1301-7RDC/DC CONVERTER 12V 150W |
4,896 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 28V | 1 | 12V | - | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 140V | 12A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 82% | - |
|
D1U3CS-D-850-12-HC4CDC/DC CONVERTER 12V 850W |
4,276 |
|
Datasheet |
D1U3CS-D-850 (850W) | Bulk | Obsolete | Front End | -40V | 1 | 12V | - | 11.00" L x 3.20" W x 1.57" H (279.4mm x 81.3mm x 39.9mm) | - | - | -72V | 69.1A | 850W | Rack Mount | - | CB, cCSAus, CE, TUV | -10°C ~ 50°C | ITE (Commercial) | 87% | - |
|

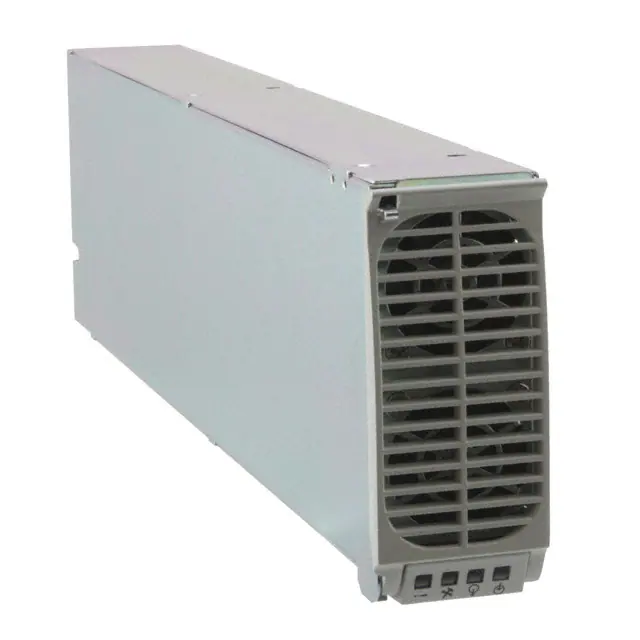

CP2000DC54PEZDC/DC CONVERTER 54V 2000W |
4,693 |
|
Datasheet |
Compact Power Line (2000W) | Bulk | Obsolete | Front End | -40V | 1 | 54V | - | 13.85" L x 4.00" W x 1.63" H (351.2mm x 101.6mm x 41.4mm) | - | - | -72V | 37A | 2000W | Rack Mount | - | CSA | -5°C ~ 45°C | ITE (Commercial) | 90% | - |
|
DP1601-9RDC/DC CONVERTER 24V 192W |
2,637 |
|
Datasheet |
Melcher P (90 ~ 192W) | - | Active | Enclosed, Conformal Coated | 40V | 1 | 24V | - | 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm) | - | - | 100.8V | 8A | 192W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -40°C ~ 71°C | ITE (Commercial), Railway | 88.5% | - |
|
|
DP1001-9RKDC/DC CONVERTER 5.1V 183W |
3,105 |
|
Datasheet |
Melcher P (90 ~ 192W) | - | Active | Enclosed, Conformal Coated | 40V | 1 | 5.1V | - | 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm) | - | - | 100.8V | 35.9A | 183W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -40°C ~ 71°C | ITE (Commercial), Railway | 88% | - |
|
|
DP2660-9RDC/DC CONVERTER 2X24V 192W |
2,617 |
|
Datasheet |
Melcher P (90 ~ 192W) | - | Active | Enclosed, Conformal Coated | 40V | 2 | 24V | 24V | 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm) | - | - | 100.8V | 4A, 4A | 192W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -40°C ~ 71°C | ITE (Commercial), Railway | 88.5% | - |
|
|
DP3020-9RDC/DC CONVERTER 5.1V 2X12V 187W |
4,770 |
|
Datasheet |
Melcher P (90 ~ 192W) | - | Active | Enclosed, Conformal Coated | 40V | 3 | 5.1V | 12V | 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm) | 12V | - | 100.8V | 17.8A, 8A, 8A | 187W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -40°C ~ 71°C | ITE (Commercial), Railway | 87.5% | - |
|
|
DM3040-7DC/DC CONVERTER 5.1V 2X15V 50W |
4,997 |
|
Datasheet |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 3 | 5.1V | 15V | 6.63" L x 4.38" W x 1.52" H (168.5mm x 111.2mm x 38.7mm) | 15V | - | 220V | 5A, 600mA, 600mA | 50W | Chassis Mount | - | cCSAus, CE, TUV | -25°C ~ 71°C | ITE (Commercial), Railway | 76% | - |
|
|
DP4660-9RDC/DC CONVERTER 4X24V 192W |
2,674 |
|
Datasheet |
Melcher P (90 ~ 192W) | - | Active | Enclosed, Conformal Coated | 40V | 4 | 24V | 24V | 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm) | 24V | 24V | 100.8V | 4A, 4A, 4A, 4A | 192W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -40°C ~ 71°C | ITE (Commercial), Railway | 88.5% | - |
|
|
DK2540-7RDC/DC CONVERTER 2X15V 150W |
2,379 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 2 | 15V | 15V | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 220V | 5A, 5A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 83% | - |
|
|
DK1301-7RDC/DC CONVERTER 12V 150W |
4,875 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 1 | 12V | - | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 220V | 12A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 83% | - |
|
|
DK1501-7RDC/DC CONVERTER 15V 150W |
3,237 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 1 | 15V | - | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 220V | 10A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 85% | - |
|
|
DK1601-7RDC/DC CONVERTER 24V 150W |
2,558 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 1 | 24V | - | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 220V | 6A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 86% | - |
|
|
DK2320-7RDC/DC CONVERTER 2X12V 150W |
4,083 |
|
Datasheet |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 2 | 12V | 12V | 6.73" L x 4.37" W x 3.15" H (171.0mm x 111.0mm x 80.0mm) | - | - | 220V | 6A, 6A | 150W | Chassis Mount | - | CE, CSA, EN, IEC, TUV, UL | -25°C ~ 71°C | ITE (Commercial), Railway | 81% | - |
|
|
DM3020-7DC/DC CONVERTER 5.1V 2X12V 50W |
4,738 |
|
Datasheet |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 3 | 5.1V | 12V | 6.63" L x 4.38" W x 1.52" H (168.5mm x 111.2mm x 38.7mm) | 12V | - | 220V | 5A, 700mA, 700mA | 50W | Chassis Mount | - | cCSAus, CE, TUV | -25°C ~ 71°C | ITE (Commercial), Railway | 77% | - |
|
|
DM1601-7RDC/DC CONVERTER 24V 50W |
3,440 |
|
Datasheet |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 44V | 1 | 24V | - | 6.63" L x 4.38" W x 1.52" H (168.5mm x 111.2mm x 38.7mm) | - | - | 220V | 2A | 50W | Chassis Mount | - | cCSAus, CE, TUV | -25°C ~ 71°C | ITE (Commercial), Railway | 83% | - |
