Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Type | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Operating Temperature | Voltage - Isolation | Common Mode Transient Immunity (Min) | Isolated Power | Data Rate | Propagation Delay tpLH / tpHL (Max) | Qualification | Pulse Width Distortion (Max) | Mounting Style | Grade | Rise / Fall Time (Typ) | Voltage - Supply | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM2565EBRNZ-RL73.75KV ISOPWR & ISORS485 25MBPS |
3,267 |
|
Datasheet |
iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | 4 | 1/3 | Unidirectional | -40°C ~ 105°C | 3000Vrms | 250kV/µs | Yes | 25Mbps | 25ns, 25ns | - | - | Surface Mount | - | 4.5ns, 4.5ns | 3V ~ 5.5V | 28-SOIC-W-FP |
|
|
ADUM6421ABRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
801 |
|
Datasheet |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | 4 | 3/1 | Unidirectional | -40°C ~ 125°C | 5000Vrms | 75kV/µs | Yes | 100Mbps | 17ns, 17ns | - | 5ns | Surface Mount | - | 2.5ns, 2.5ns | 1.7V ~ 5.5V | 28-SOIC-W-FP |
|
|
ADUM6421ABRNZ5-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC |
153 |
|
Datasheet |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | 4 | 3/1 | Unidirectional | -40°C ~ 125°C | 5000Vrms | 75kV/µs | Yes | 100Mbps | 17ns, 17ns | - | 5ns | Surface Mount | - | 2.5ns, 2.5ns | 1.7V ~ 5.5V | 28-SOIC-W-FP |
|
ADUM5400ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,326 |
|
- |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | 4 | 4/0 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 4.5V ~ 5.5V | 16-SOIC |
|
|
ADUM5402ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,176 |
|
- |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | 4 | 2/2 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 3V ~ 5.5V | 16-SOIC |
|
|
ADUM5402ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
555 |
|
- |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | 4 | 2/2 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 3V ~ 5.5V | 16-SOIC |
|
|
ADUM5404ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
69 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | 4 | 0/4 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 3V ~ 5.5V | 16-SOIC |
|
ADUM4160BRIZDGT ISOL 5000VRMS 2CH USB 16SOIC |
3,033 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | USB | 1 | 1/1 | Bidirectional | -40°C ~ 105°C | 5000Vrms | 25kV/µs | No | 12Mbps | 70ns, 70ns | - | - | Surface Mount | - | 20ns, 20ns (Max) | 3.1V ~ 5.5V | 16-SOIC-IC |
|
|
ADUM4160BRIZ-RLDGT ISOL 5000VRMS 2CH USB 16SOIC |
2,288 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | USB | 1 | 1/1 | Bidirectional | -40°C ~ 105°C | 5000Vrms | 25kV/µs | No | 12Mbps | 70ns, 70ns | - | - | Surface Mount | - | 20ns, 20ns (Max) | 3.1V ~ 5.5V | 16-SOIC-IC |
|
|
ADUM4160BRWZDGT ISOL 5000VRMS 2CH USB 16SOIC |
1,712 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | USB | 1 | 1/1 | Bidirectional | -40°C ~ 105°C | 5000Vrms | 25kV/µs | No | 12Mbps | 70ns, 70ns | - | - | Surface Mount | - | 20ns, 20ns (Max) | 3.1V ~ 5.5V | 16-SOIC |
.jpg)
|

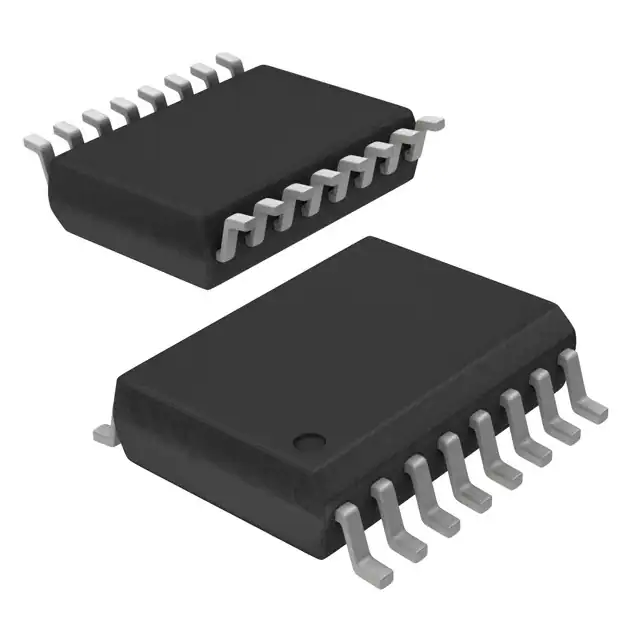

IL 485EDGT ISO 2.5KV RS422/RS485 16SOIC |
6,535 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | 3 | 2/1 | Unidirectional | -40°C ~ 100°C | 2500Vrms | 20kV/µs | No | 35Mbps | 32ns, 32ns | - | - | Surface Mount | - | 8ns, 8ns | 3V ~ 5.5V, 4.5V ~ 5.5V | 16-SOIC |
|
|
IL 422EDGT ISO 2.5KV RS422/RS485 16SOIC |
5,484 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | 3 | 2/1 | Unidirectional | -40°C ~ 100°C | 2500Vrms | 20kV/µs | No | 25Mbps | 32ns, 32ns | - | - | Surface Mount | - | 8ns, 8ns | 3V ~ 5.5V, 4.5V ~ 5.5V | 16-SOIC |
|
ADM2587EBRWZ-REEL7DGT ISO 2.5KV RS422/RS485 20SOIC |
4,824 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | 2 | 1/1 | Unidirectional | -40°C ~ 85°C | 2500Vrms | 25kV/µs | Yes | 500kbps | - | - | - | Surface Mount | - | 1.1µs, 1.1µs (Max) | 3.3V, 5V | 20-SOIC |
|
ADM2587EBRWZDGT ISO 2.5KV RS422/RS485 20SOIC |
1,343 |
|
Datasheet |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | 2 | 1/1 | Unidirectional | -40°C ~ 85°C | 2500Vrms | 25kV/µs | Yes | 500kbps | - | - | - | Surface Mount | - | 1.1µs, 1.1µs (Max) | 3.3V, 5V | 20-SOIC |
|
|
ADUM5401ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,170 |
|
- |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | 4 | 3/1 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 3V ~ 5.5V | 16-SOIC |
|
|
ADUM5401ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
946 |
|
- |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | 4 | 3/1 | Unidirectional | -40°C ~ 105°C | 2500Vrms | 25kV/µs | Yes | 1Mbps | 100ns, 100ns | - | 40ns | Surface Mount | - | 2.5ns, 2.5ns | 3V ~ 5.5V | 16-SOIC |
|
ADN4650BRSZ-RL7DGT ISO 3750VRMS 2CH LVDS 20SSOP |
1,895 |
|
Datasheet |
iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | 2 | 2/0 | Unidirectional | -40°C ~ 125°C | 3750Vrms | 25kV/µs | No | 600Mbps | 4.5ns, 4.5ns | - | - | Surface Mount | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | 20-SSOP |
|
|
IL 485WEDGT ISO 2.5KV RS422/RS485 16SOIC |
456 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | 4 | 2/2 | Unidirectional | -40°C ~ 100°C | 2500Vrms | 20kV/µs | No | 35Mbps | 32ns, 32ns | - | - | Surface Mount | - | 8ns, 8ns | 4.5V ~ 5.5V | 16-SOIC |
|
|
ADM2865EBRNZ-RL75.7KV ISOPWR & ISORS485 25MBPS H |
675 |
|
Datasheet |
ADM2865E | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | 4 | 1/3 | Unidirectional | -40°C ~ 105°C | 5700Vrms | 250kV/µs | Yes | 25Mbps | 25ns, 25ns | - | - | Surface Mount | - | 4.5ns, 4.5ns | 3V ~ 5.5V | 28-SOIC-W-FP |
|
|
ADM2865EBRNZ5.7KV ISOPWR & ISORS485 25MBPS H |
138 |
|
Datasheet |
ADM2865E | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | 4 | 1/3 | Unidirectional | -40°C ~ 105°C | 5700Vrms | 250kV/µs | Yes | 25Mbps | 25ns, 25ns | - | - | Surface Mount | - | 4.5ns, 4.5ns | 3V ~ 5.5V | 28-SOIC-W-FP |
