Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL 716T-3EDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,671 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
LTM2882CY-5DGT ISO 2500VRMS 4CH RS232 32BGA |
2,555 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Obsolete | Capacitive Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | 60ns, 60ns | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|
ADN4655BRWZ-RL7DGT ISO 5000VRMS 2CH LVDS 20SOIC |
2,762 |
|
Datasheet |
iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1.25Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
HCPL-900J-500EDGTL ISO 2500VRMS 4CH GP 16SO |
4,148 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SO W |
|
HCPL-9031-500EDGTL ISO 2500VRMS 2CH GP 8SO |
4,453 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
HCPL-9031-300EDGTL ISO 2500VRMS 2CH GP 8SO |
4,819 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
ISO7820LLDWWRDGTL ISO 5700VRMS 2CH GP 16SOIC |
2,735 |
|
Datasheet |
- | 16-SOIC (0.551", 14.00mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 25ns, 25ns | 4.5ns | - | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|

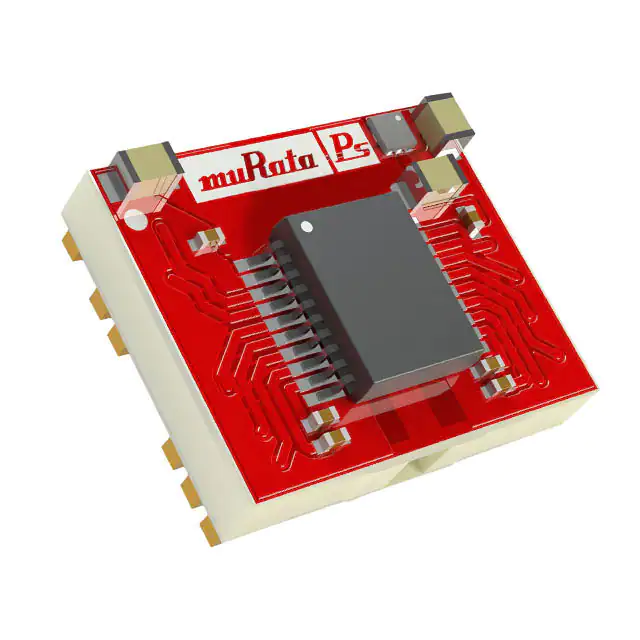

NMTTLD6S5MC-R7DGTL ISOL 1500VAC 2CH GEN PURP |
3,219 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1500VAC | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | - | 4.5V ~ 5.5V | - | - | -40°C ~ 95°C | - | - |
|

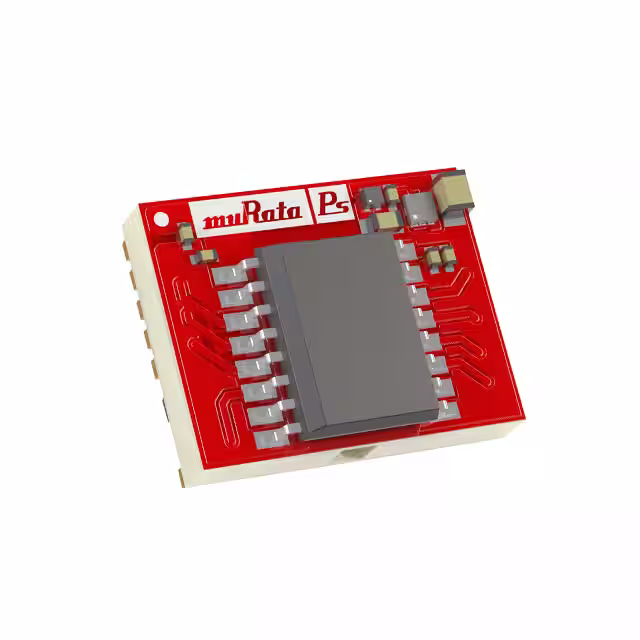

NM485D6S5MC-R13DGTL ISOL 3000VAC 2CH RS485 |
2,889 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|
ADN4621BRSZ-RLDUAL CHAN 2.5GBPS 1+1 LVDS ISOLA |
2,791 |
|
Datasheet |
iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 35kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|
|
ADN4620BRSZ-RLDUAL CHAN 2.5GBPS 2+0 LVDS ISOLA |
3,289 |
|
Datasheet |
iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 2/0 | Unidirectional | 3750Vrms | 35kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
.jpg)
|
IL 422DGT ISO 2.5KV RS422/RS485 16SOIC |
3,069 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 20kV/µs | 25Mbps | 32ns, 32ns | - | 8ns, 8ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
IL 485DGT ISO 2.5KV RS422/RS485 16SOIC |
3,478 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 20kV/µs | 35Mbps | 32ns, 32ns | - | 8ns, 8ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
IL 485WDGT ISO 2.5KV RS422/RS485 16SOIC |
3,185 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 4 | 2/2 | Unidirectional | 2500Vrms | 20kV/µs | 35Mbps | 32ns, 32ns | - | 8ns, 8ns | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
NM485D6S5MC-R7DGTL ISOL 3000VAC 2CH RS485 |
3,492 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Magnetic Coupling | RS485 | Yes | 2 | 1/1 | Bidirectional | 3000VAC | - | 500kbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | - | - |
|

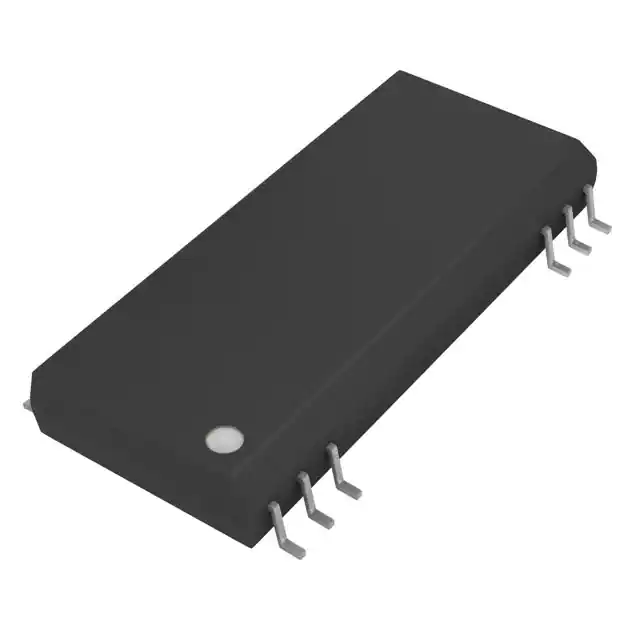

ISO150AU/1KDGTL ISO 1.5KV GEN PURP 12SOP |
2,903 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width), 8 Leads | Tape & Reel (TR) | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/2 | Bidirectional | 1500Vrms | 1.6kV/µs (Typ) | 80MBd | 40ns, 40ns | 6ns | 9ns, 9ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
ADN4620BRIZ-RLDUAL CHAN 2.5GBPS 2+0 LVDS ISOLA |
2,041 |
|
Datasheet |
- | 16-SOIC (0.630", 16.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 2/0 | Unidirectional | 3750Vrms | 35kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
|
|
ADN4621BRIZ-RLDUAL CHAN 2.5GBPS 1+1 LVDS ISOLA |
2,498 |
|
Datasheet |
- | 16-SOIC (0.630", 16.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 35kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC-IC |
|
|
ADN4624BCPZ-RLQUAD 2.5GBPS 4+0 LVDS ISOLATOR |
4,365 |
|
Datasheet |
- | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 4 | 4/0 | Unidirectional | 5700Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V | - | - | -40°C ~ 125°C | Surface Mount | 32-LFCSP (5x5) |
|
|
ADN4622BCPZ-RLQUAD 2.5GBPS 2+2 LVDS ISOLATOR |
3,332 |
|
- |
- | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | Yes | 4 | 2/2 | Bidirectional | 5700Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 32-LFCSP (5x5) |
