Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL 710S-1EDGTL ISO 2500VRMS 1CH GP 8MSOP NVE Corp/Isolation Products |
474 |
|
Datasheet |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-MSOP |
.jpg)
|
IL 3522VEDGTL ISO 6KV RS422/RS485 16SOIC NVE Corp/Isolation Products |
8,609 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 6000Vrms | 30kV/µs | 40Mbps | 35ns, 35ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 715VEDGTL ISO 6000VRMS 4CH GP 16SOIC NVE Corp/Isolation Products |
282 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 6000Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
IL 611A-3EDGTL ISO 2500VRMS 2CH GP 8SOIC NVE Corp/Isolation Products |
870 |
|
Datasheet |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 10Mbps | 75ns, 25ns | - | 10µs, 10µs (Max) | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
IL 612-3EDGTL ISO 2500VRMS 2CH GP 8SOIC NVE Corp/Isolation Products |
473 |
|
Datasheet |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|

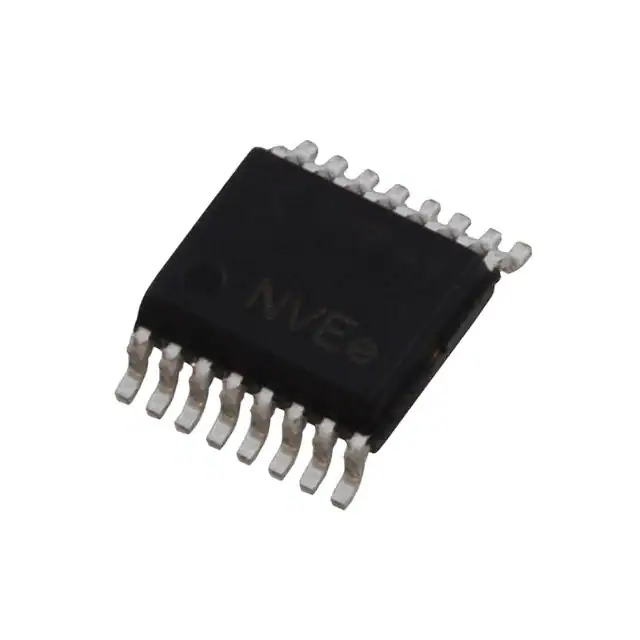

IL 717-1EDGTL ISO 2500VRMS 4CH GP 16QSOP NVE Corp/Isolation Products |
814 |
|
Datasheet |
IsoLoop® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-QSOP |
|
IL 711-2EDGTL ISO 2500VRMS 2CH GP 8DIP NVE Corp/Isolation Products |
166 |
|
Datasheet |
IsoLoop® | 8-DIP (0.300", 7.62mm) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-PDIP |
|
|
IL 712-2EDGTL ISO 2500VRMS 2CH GP 8DIP NVE Corp/Isolation Products |
1,160 |
|
Datasheet |
IsoLoop® | 8-DIP (0.300", 7.62mm) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-PDIP |
|
IL 3585VEDGTL ISO 6KV RS422/RS485 16SOIC NVE Corp/Isolation Products |
580 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 6000Vrms | 30kV/µs | 40Mbps | 35ns, 35ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 3085-1EDGT ISO 2.5KV RS422/RS485 16QSOP NVE Corp/Isolation Products |
943 |
|
Datasheet |
IsoLoop® | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 4Mbps | 150ns, 150ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-QSOP |
