DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6E-9101-NSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E-N | Tray | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

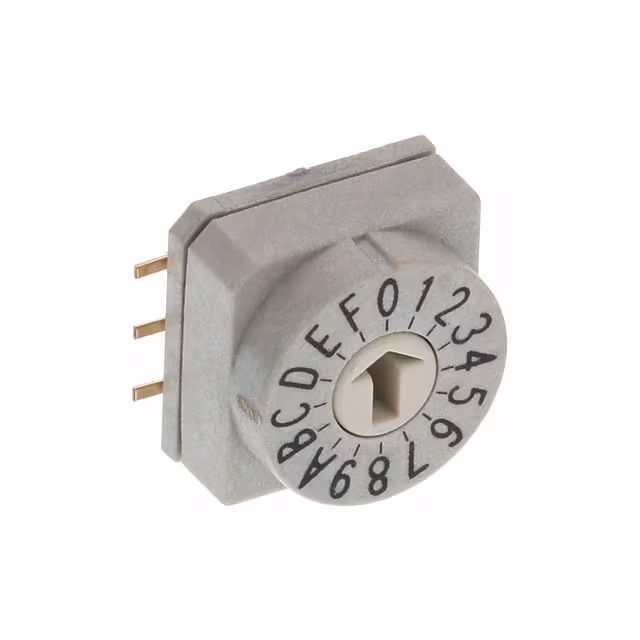

CRE16RRDM0SSWITCH ROTARY DIP HEX 0.15A 42V |
327 |
|
Datasheet |
CRE | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

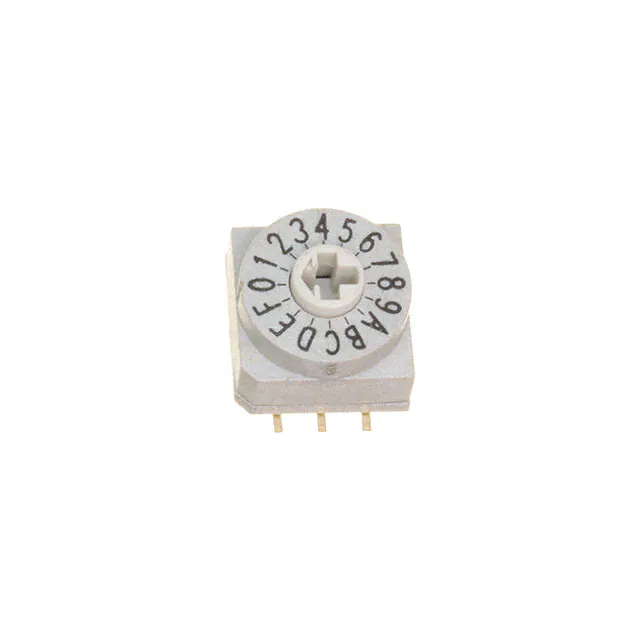

CRE16RRDP1SSWITCH ROTARY DIP HEX 0.15A 42V |
64 |
|
Datasheet |
CRE | Bulk | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.307" (7.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
90B07STSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
90B | Bulk | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
2-1571999-9SWITCH PIANO DIP SPST 0.025A 24V |
657 |
|
Datasheet |
ADP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
78RB09TSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Bulk | Active | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

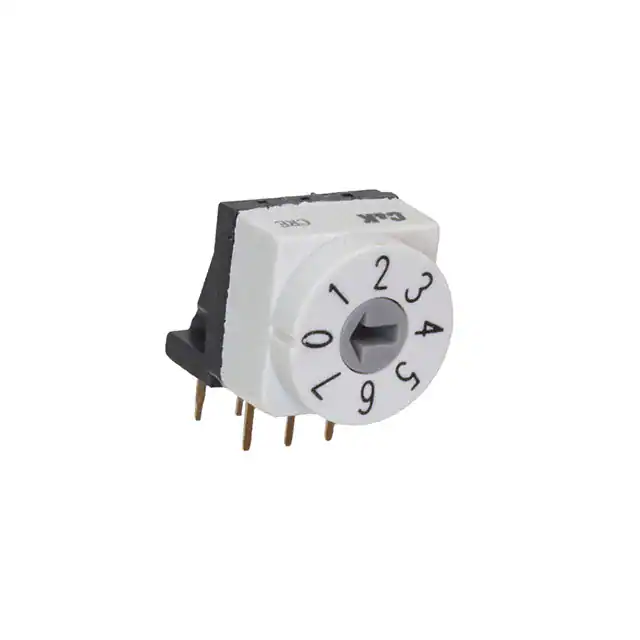

CRE08RRDM0ASWITCH ROTARY DIP BCD 0.15A 42V |
12 |
|
Datasheet |
CRE | Bulk | Active | BCD | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
CRE04COTM0ASW ROTARY DIP BCD COMP 0.15A 42V |
0 |
|
Datasheet |
CRE | Bulk | Active | BCD Complement | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
JS0404FP4SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
JS | Bulk | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
DRD16CRASW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
DRD | Bulk | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
90B10TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
90B | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78G02STSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | 3PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1-1571983-4SWITCH SLIDE DIP SPST 0.025A 24V |
653 |
|
Datasheet |
GDH | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
CRE08ROTM0ASWITCH ROTARY DIP BCD 0.15A 42V |
38 |
|
Datasheet |
CRE | Bulk | Active | BCD | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

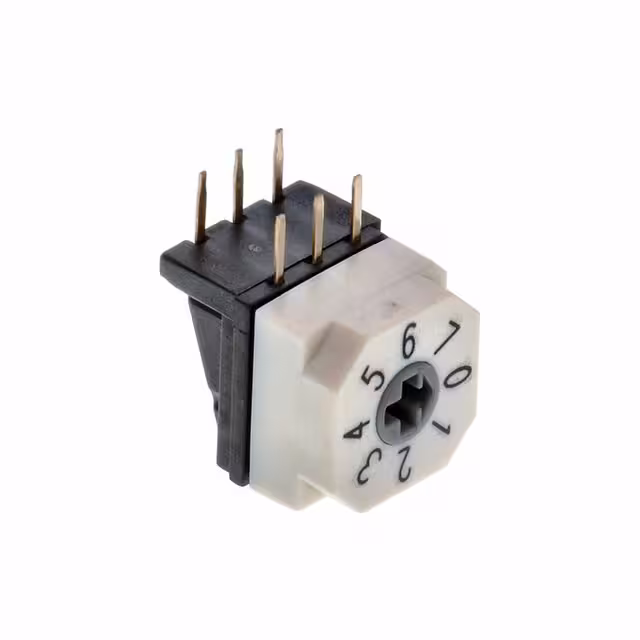

CRE08ROTM1ASWITCH ROTARY DIP BCD 0.15A 42V |
7 |
|
Datasheet |
CRE | Bulk | Active | BCD | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
78F01SRATSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
Datasheet |
78 | Bulk | Active | DPST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78G03TSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Datasheet |
78 | Bulk | Active | 3PST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76PRB04STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bulk | Active | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

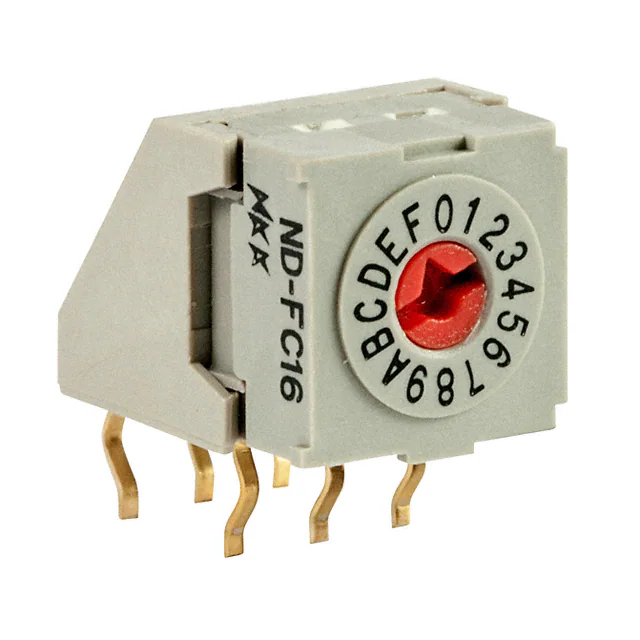

NDFC16HSW ROTARY DIP HEX COMP 0.1A 5V |
3,606 |
|
Datasheet |
ND | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
|
76PRB05STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bulk | Active | SPST | 5 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
