DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6RV-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
50 |
|
Datasheet |
A6RV | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | - | - | 25mA | 0.390" (9.90mm) | Through Hole, Right Angle | -25°C ~ 80°C | PC Pin | Sealed | 0.100" (2.54mm), Full | No |
|
78B04SRATSWITCH SLIDE DIP SPST 0.15A 30V |
81 |
|
Datasheet |
78 | Tube | Active | SPST | 4 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
A6E-9104-NSWITCH SLIDE DIP SPST 0.025A 24V |
50 |
|
Datasheet |
A6E-N | Tray | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.277" (7.05mm) | Through Hole | -20°C ~ 70°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
A6KS-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
88 |
|
Datasheet |
A6KS | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | - | Gold | 25mA | 0.236" (6.00mm) | Surface Mount | -30°C ~ 80°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|
78K02TSWITCH SLIDE DIP DPDT 0.15A 30V |
14 |
|
Datasheet |
78 | Bulk | Active | DPDT | 2 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
P60A703SWITCH ROTARY DIP HEX 0.15A 24V |
50 |
|
Datasheet |
P60A | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 150mA | 0.236" (6.00mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
P36106SW ROTARY DIP HEX COMP 0.1A 24V |
92 |
|
Datasheet |
P36 | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 100mA | 0.143" (3.63mm) | Through Hole | -50°C ~ 125°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|

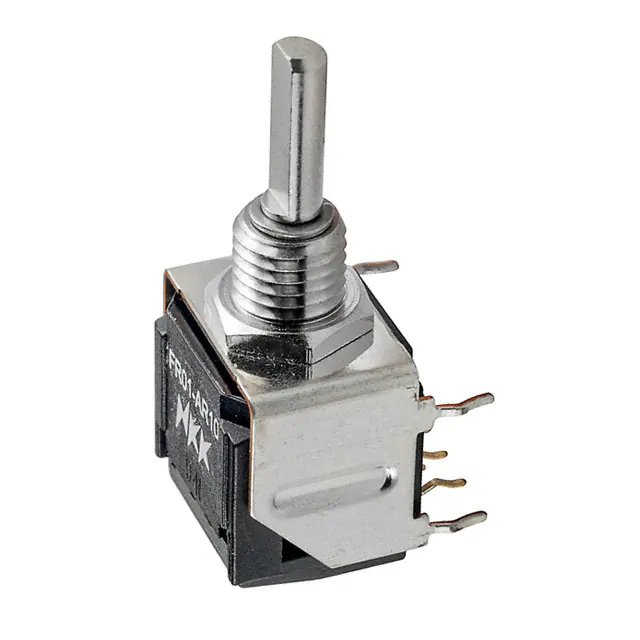

FR01AR10HB-SSWITCH ROTARY DIP BCD 0.1A 5V |
33 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.433" (11.00mm) | Panel Mount, Right Angle | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
FR01AR10HBSWITCH ROTARY DIP BCD 0.1A 5V |
26 |
|
Datasheet |
FR01 | Bulk | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.433" (11.00mm) | Panel Mount, Right Angle | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
A6KV-164RSSWITCH ROTARY DIP HEX 0.025A 24V |
52 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | - | Gold | 25mA | 0.303" (7.70mm) | Through Hole, Right Angle | -30°C ~ 80°C | PC Pin | - | 0.050" (1.27mm), Half | No |
|
FR01AR10PB-SSWITCH ROTARY DIP BCD 0.1A 5V |
31 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 1.104" (28.05mm) | Panel Mount | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
FR01AC10PB-SSW ROTARY DIP BCD COMP 0.1A 5V |
25 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 1.104" (28.05mm) | Panel Mount | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
A6HR-0104SWITCH PIANO DIP SPST 0.025A 24V |
47 |
|
Datasheet |
A6HR | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | - | Gold | 25mA | 0.165" (4.20mm) | Surface Mount, Right Angle | -30°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|
KR03RSWITCH SLIDE DIP SPST 0.025A 24V |
560 |
|
Datasheet |
KR | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KJ02RTTSWITCH SLIDE DIP SPST 0.025A 24V |
548 |
|
Datasheet |
KJ | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.140" (3.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
KR05RSWITCH SLIDE DIP SPST 0.025A 24V |
455 |
|
Datasheet |
KR | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KP06RSWITCH PIANO DIP SPST 0.025A 24V |
476 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.374" (9.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KR06ESWITCH SLIDE DIP SPST 0.025A 24V |
248 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
KR06RSWITCH SLIDE DIP SPST 0.025A 24V |
228 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
KG07ESWITCH SLIDE DIP SPST 0.025A 24V |
523 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.258" (6.55mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
