DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HBJ07PTSWITCH SLIDE DIP SPST 0.025A 24V |
2,738 |
|
Datasheet |
90HB | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.220" (5.59mm) | Surface Mount | -40°C ~ 85°C | J Lead | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
78B06RATSWITCH SLIDE DIP SPST 0.15A 30V |
16 |
|
Datasheet |
78 | Tube | Active | SPST | 6 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
94HCB08RATSWITCH ROTARY DIP OCTAL 0.1A 50V |
21 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.400" (10.16mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Sealed | 0.100" (2.54mm), Full | Yes |
|
A6K-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
3,041 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 25mA | 0.118" (3.00mm) | Through Hole | -30°C ~ 80°C | PC Pin | - | 0.050" (1.27mm), Half | No |
|
P36S102SW ROTARY DIP BCD COMP 0.1A 24V |
6 |
|
- |
P36S | Tube | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 100mA | 0.152" (3.85mm) | Surface Mount | -30°C ~ 90°C | Gull Wing | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|
A6A-10RFSWITCH ROTARY DIP BCD 0.1A 28V |
5 |
|
Datasheet |
A6A | Tray | Active | BCD | 10 | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 100mA | 0.244" (6.20mm) | Through Hole | -10°C ~ 70°C | PC Pin | IP64 - Dust Tight, Water Resistant | 0.100" (2.54mm), Full | Yes |
|
78HJ04GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
20 |
|
Datasheet |
78H | Tube | Active | SPDT | 4 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.327" (8.30mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
A6KSV-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
4,994 |
|
Datasheet |
A6KS | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | - | Gold | 25mA | 0.293" (7.45mm) | Surface Mount, Right Angle | -30°C ~ 80°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|

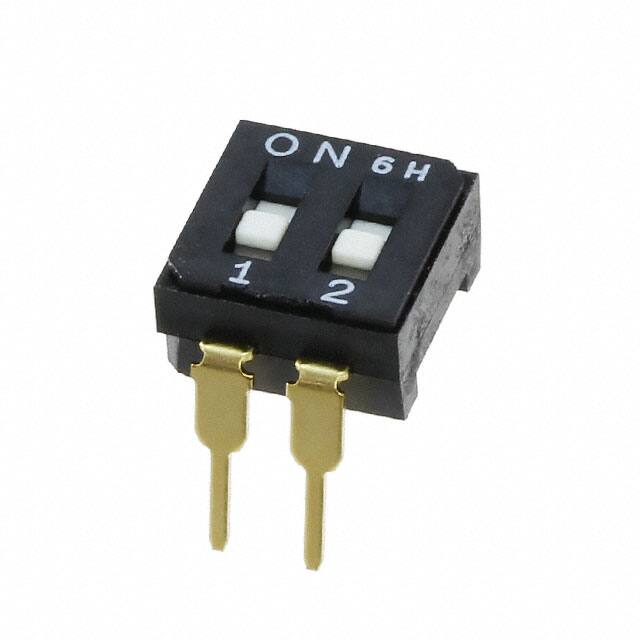

CFS-0201MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,842 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.177" (4.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

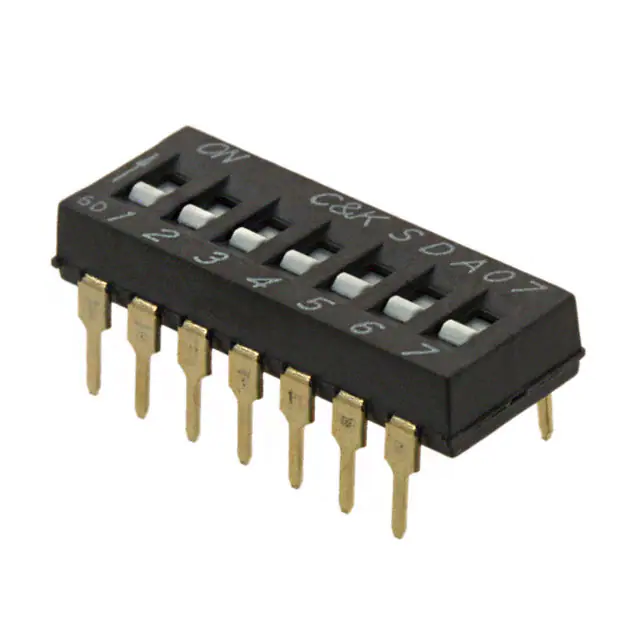

SDA07H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
9 |
|
Datasheet |
SDA | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.183" (4.65mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

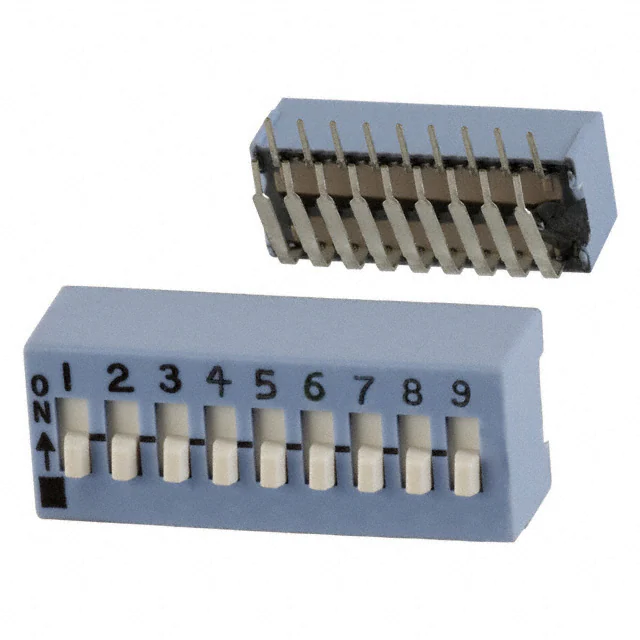

206-9RASTSWITCH SLIDE DIP SPST 0.05A 24V |
4,229 |
|
Datasheet |
206RA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
A6TN-5101SWITCH SLIDE DIP SPST 0.025A 24V |
20 |
|
Datasheet |
A6TN | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 25mA | 0.189" (4.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KT10EHSWITCH SLIDE DIP SPST 0.025A 24V |
1 |
|
Datasheet |
KT | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.165" (4.20mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

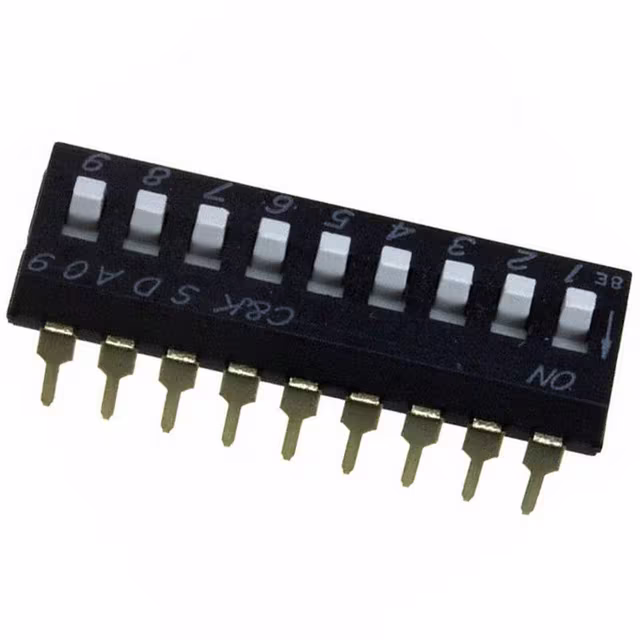

SDA09H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
4,618 |
|
Datasheet |
SDA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.228" (5.80mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

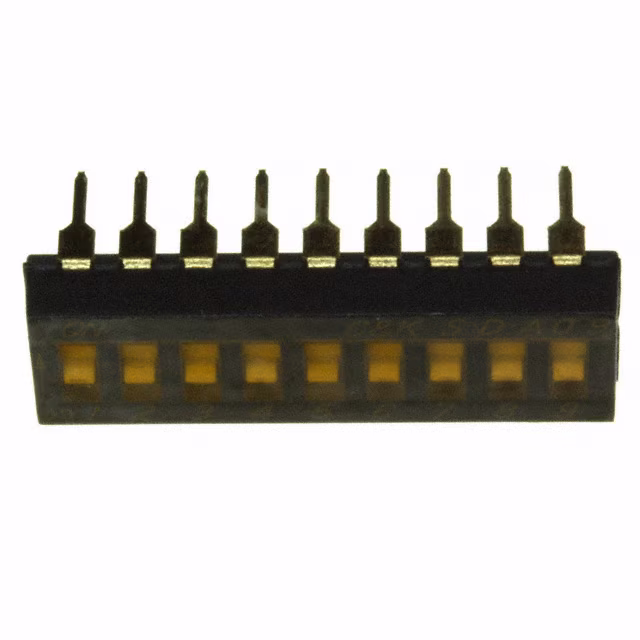

SDA09H0BSWITCH SLIDE DIP SPST 0.025A 24V |
2,401 |
|
Datasheet |
SDA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.183" (4.65mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|

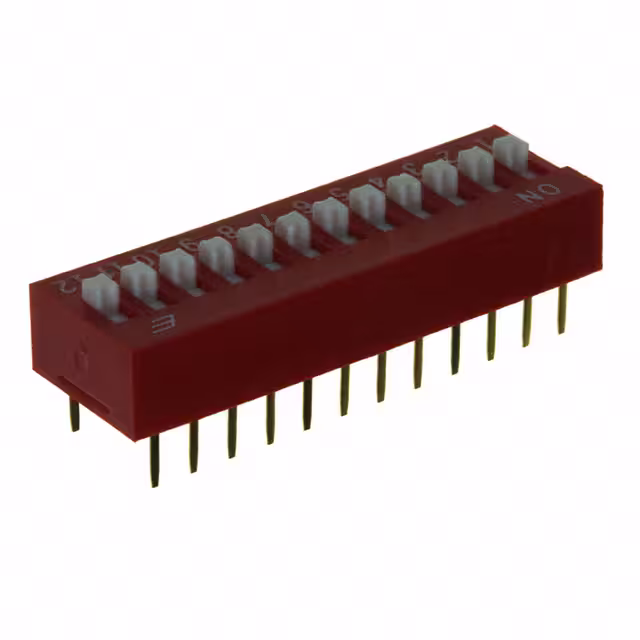

KAS1112ESWITCH SLIDE DIP SPST 0.025A 24V |
18 |
|
Datasheet |
KAS | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.275" (6.99mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
CFS-0502MBSWITCH SLIDE DIP SPST 0.1A 6V |
2,154 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 100mA | 0.169" (4.30mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

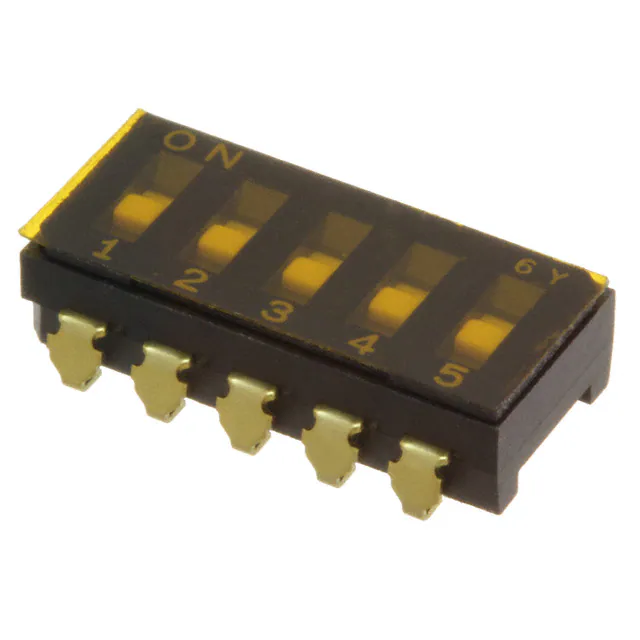

CFS-0500MASWITCH SLIDE DIP SPST 0.1A 6V |
4,569 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.154" (3.90mm) | Surface Mount | -40°C ~ 85°C | J Lead | Tape Seal | 0.100" (2.54mm), Full | Yes |
|

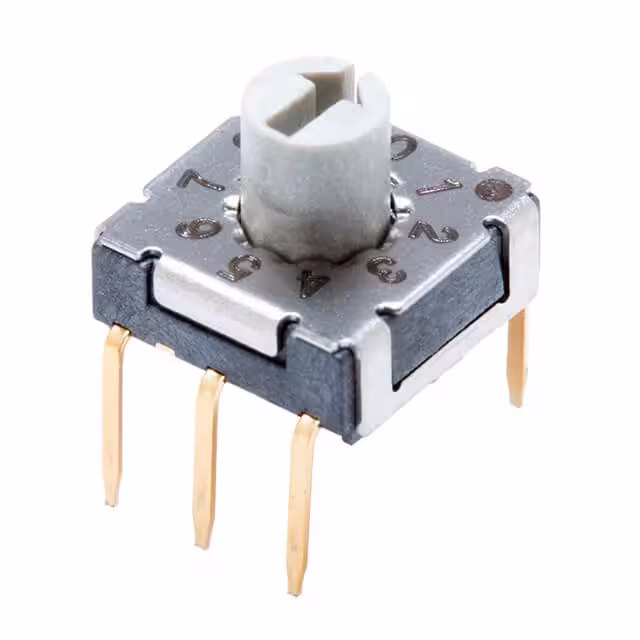

RDS-10S-7229-R-DSWITCH ROTARY DIP BCD 0.1A 50V |
2,378 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.232" (5.90mm) | Through Hole | -40°C ~ 85°C | PC Pin | IP67 - Dust Tight, Waterproof | 0.100" (2.54mm), Full | No |
|
A6TN-9101SWITCH SLIDE DIP SPST 0.025A 24V |
12 |
|
Datasheet |
A6TN | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 25mA | 0.189" (4.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
