DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

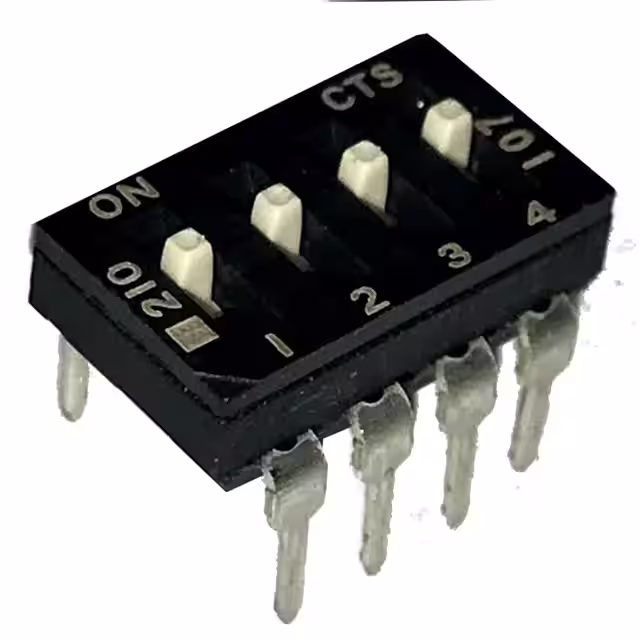

210-4ESDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-4LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

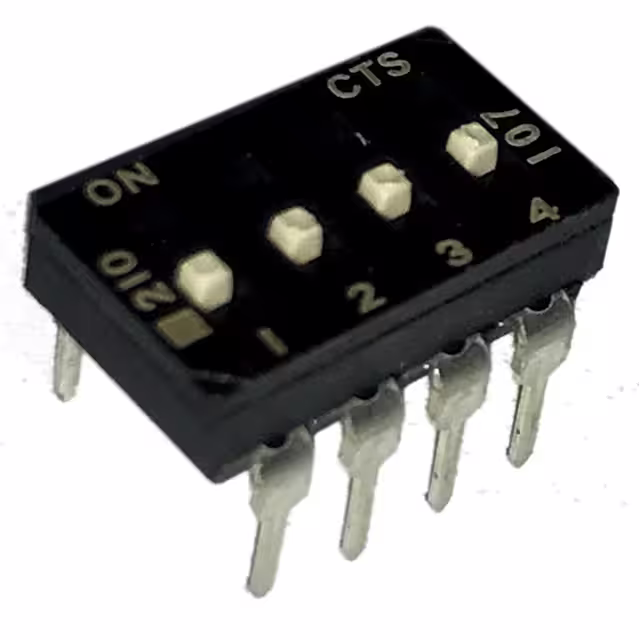

210-4MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

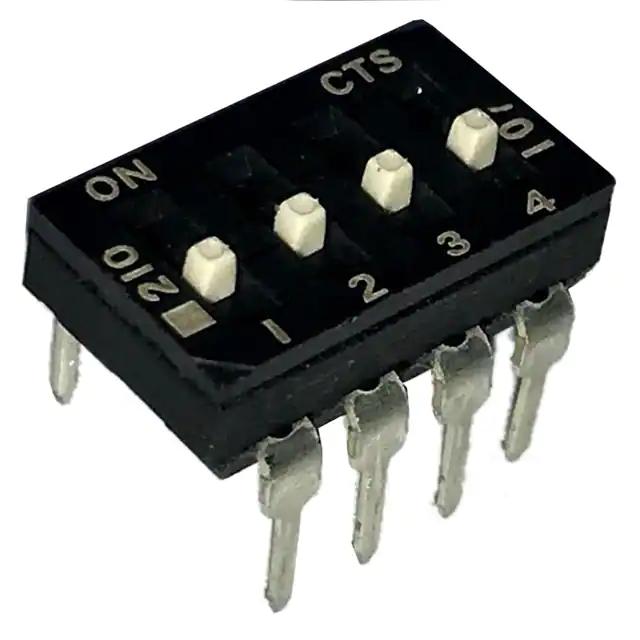

210-4ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KG01RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KG | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
QFPF08RDDIP SWITCHES / SIP SWITCHES |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DS04-254-1-01BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
209-2ESSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2ESDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2ESFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2LPSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2MSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2MSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-2MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KAG01TGGRSWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
Datasheet |
KAG | Tape & Reel (TR) | Active | SPDT | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
KAG01LGGRSwitches |
0 |
|
Datasheet |
KAG | Bulk | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 105°C |
