DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
4,878 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.180" (4.57mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
209-10LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,751 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.180" (4.57mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
209-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,124 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.180" (4.57mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
209-10LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,367 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.180" (4.57mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
209-10MSDSWITCH SLIDE DIP SPST 0.1A 20V |
3,463 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.190" (4.83mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
209-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,213 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.190" (4.83mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
209-10MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,680 |
|
Datasheet |
209 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.190" (4.83mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
KJ04EXTSWITCH SLIDE DIP SPST 0.025A 24V |
2,756 |
|
Datasheet |
KJ | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KG08ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,742 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.258" (6.55mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
193-4MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,443 |
|
Datasheet |
193 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | - | Gold | 50mA | 0.359" (9.12mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
DS04-254-2-07BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
4,991 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.167" (4.25mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KAS1104RSWITCH SLIDE DIP SPST 0.025A 24V |
3,622 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.236" (6.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KAS1103RSWITCH SLIDE DIP SPST 0.025A 24V |
4,140 |
|
Datasheet |
KAS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.236" (6.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

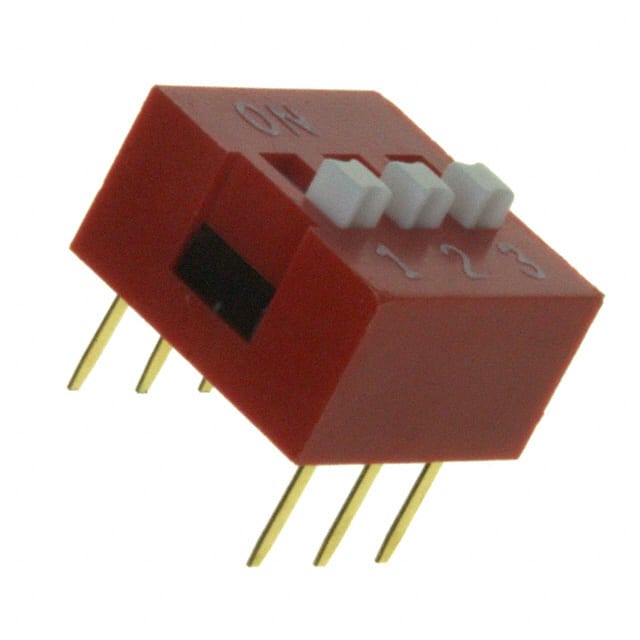

KAS1103ESWITCH SLIDE DIP SPST 0.025A 24V |
4,833 |
|
Datasheet |
KAS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.275" (6.99mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
193-3MSRSWITCH PIANO DIP SPST 0.05A 24V |
3,742 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Piano | Raised | - | Gold | 50mA | 0.359" (9.12mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
193-3MSRNSWITCH PIANO DIP SPST 0.05A 24V |
2,213 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Piano | Raised | - | Gold | 50mA | 0.359" (9.12mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
KT08RTHSWITCH SLIDE DIP SPST 0.025A 24V |
3,842 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.144" (3.65mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KT08ETHSWITCH SLIDE DIP SPST 0.025A 24V |
4,570 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.167" (4.25mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

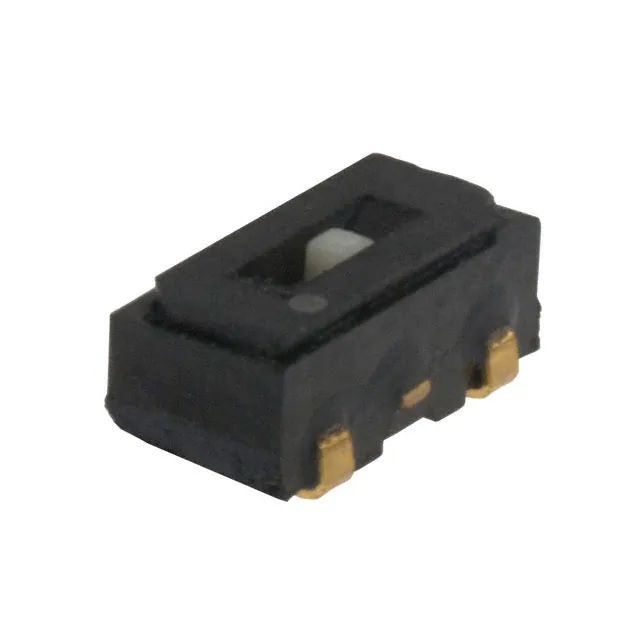

CAS-120TA1SWITCH SLIDE SPDT 100MA 6V |
3,322 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | Copper Alloy | Gold | 100mA | - | Surface Mount | -40°C ~ 85°C | J Lead | - | - | - |
|

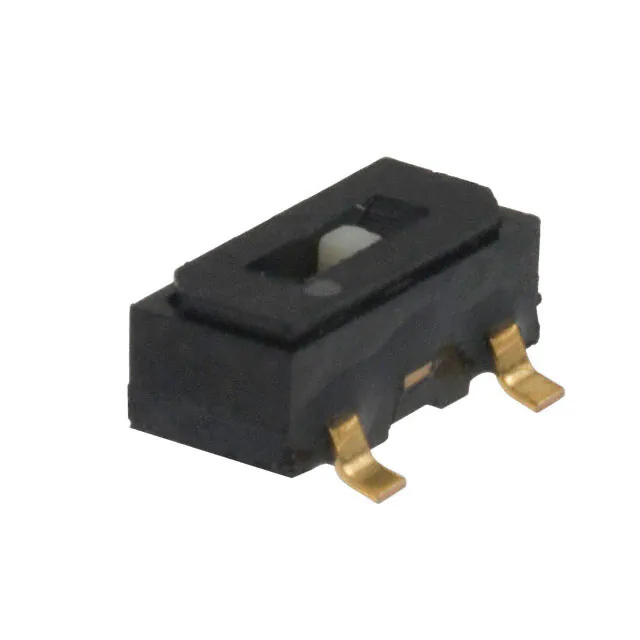

CAS-120TB1SWITCH SLIDE SPDT 100MA 6V |
3,900 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | Copper Alloy | Gold | 100mA | - | Surface Mount | -40°C ~ 85°C | Gull Wing | - | - | - |
