DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-12MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,014 |
|
Datasheet |
209 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.190" (4.83mm) | Through Hole | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
KAE05SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,050 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 25mA | 0.148" (3.75mm) | Surface Mount | -20°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
204-8SRSWITCH SLIDE DIP SPST 0.05A 24V |
4,205 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.01mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

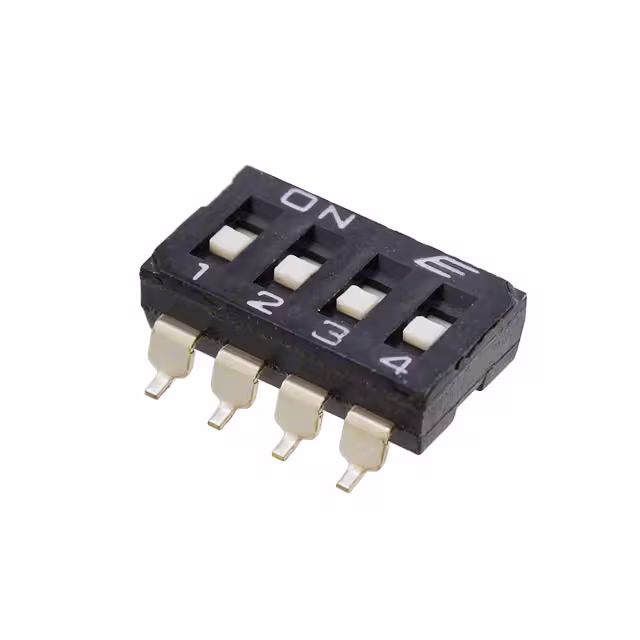

KAE04SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,877 |
|
Datasheet |
KAE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 25mA | 0.148" (3.75mm) | Surface Mount | -20°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KAE04LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,768 |
|
Datasheet |
KAE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | Copper | Gold | 25mA | 0.169" (4.30mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KAE04LHGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,208 |
|
Datasheet |
KAE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | Copper | Gold | 25mA | 0.169" (4.30mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KAE04SHGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,736 |
|
Datasheet |
KAE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 25mA | 0.142" (3.60mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
206-7RASSWITCH SLIDE DIP SPST 0.05A 24V |
3,054 |
|
Datasheet |
206RA | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
206-9RASWITCH SLIDE DIP SPST 0.05A 24V |
2,063 |
|
Datasheet |
206RA | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
193-5MSRSWITCH PIANO DIP SPST 0.05A 24V |
2,154 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Piano | Raised | - | Gold | 50mA | 0.359" (9.12mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
193-5MSRNSWITCH PIANO DIP SPST 0.05A 24V |
2,584 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Piano | Raised | - | Gold | 50mA | 0.359" (9.12mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
206-213STSWITCH SLIDE DIP DPST 0.05A 24V |
4,458 |
|
Datasheet |
206 | Tube | Active | DPST | 3 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-9LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,534 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.200" (5.08mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-9LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,297 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.200" (5.08mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-9MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
4,886 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-9MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,537 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
ADF05TSWITCH SLIDE DIP SPST 0.025A 24V |
4,026 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.189" (4.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
ADF05STSWITCH SLIDE DIP SPST 0.025A 24V |
4,520 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.177" (4.50mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
204-212STRSWITCH SLIDE DIP DPST 0.05A 24V |
2,521 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | DPST | 2 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.00mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
218-6LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,046 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.106" (2.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
