DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-215RASSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
204-216STSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
NDS06VDIP SWITCH ND STANDARD |
0 |
|
Datasheet |
NDS | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DM06TRDIP SWITCH DM LOW PROFILE |
0 |
|
Datasheet |
DM | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
206-312RASWITCH SLIDE DIP 3PST 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | 3PST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
194-12MSTSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
ADP02SASWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-124RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-122LPSTSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
NDI06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NDI | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
1814424-2SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADF | Tape & Box (TB) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
KR12ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KR12RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
206-126SWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
KAN1104RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
KAN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
204-122STRSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAS2105ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAS | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|

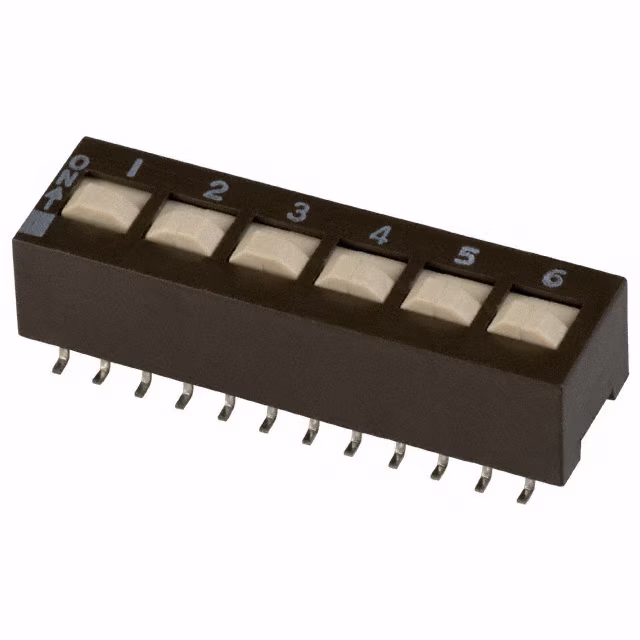

206-216STSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
KAE10TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAE12LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.176" (4.47mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
