DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

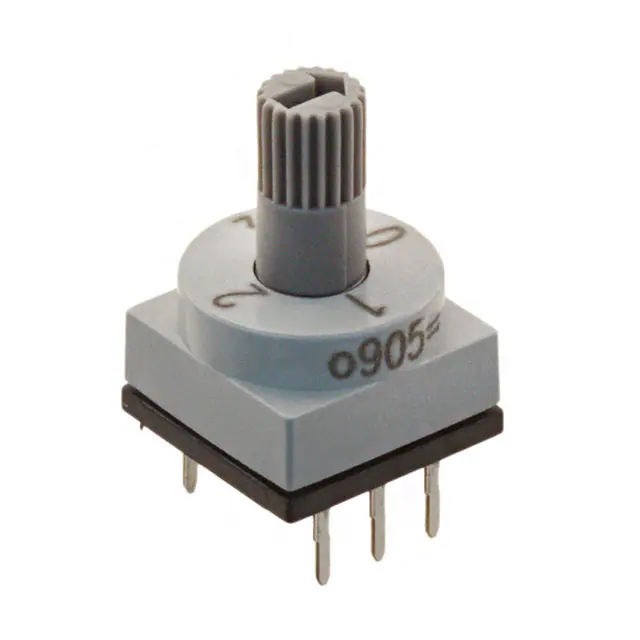

PT65321SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
49 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 150mA | 0.543" (13.80mm) | Through Hole | -20°C ~ 70°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|

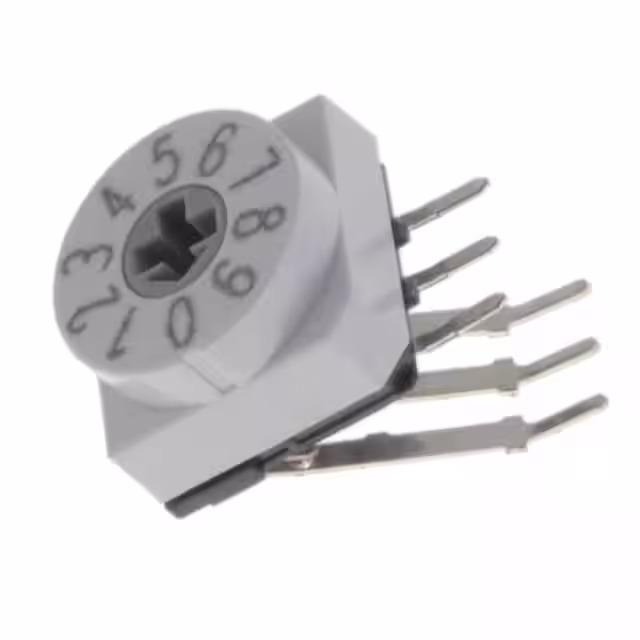

PT65701L508SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
50 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -20°C ~ 70°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|
PT65302L254SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
4,753 |
|
Datasheet |
PT65 | Bulk | Active | BCD Complement | 10 | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -20°C ~ 70°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|
|
P60A503SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
3,808 |
|
- |
P60A | Bulk | Active | Hexadecimal | 16 | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 150mA | 0.409" (10.39mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
PT65525SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
2,310 |
|
Datasheet |
PT65 | Bulk | Active | BCD | 6 | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 150mA | 0.469" (11.90mm) | Through Hole | -20°C ~ 70°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|
|
PT65303L508SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
2,787 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -20°C ~ 70°C | PC Pin | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|

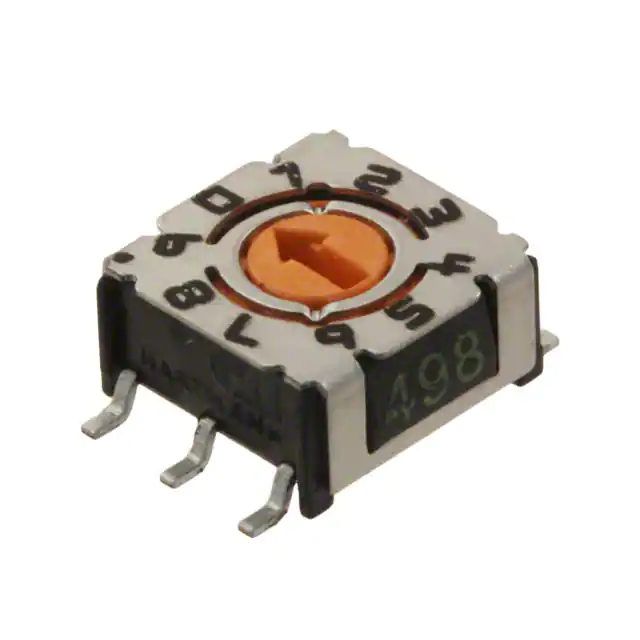

P36S102SW ROTARY DIP BCD COMP 0.1A 24V APEM Inc. |
6 |
|
- |
P36S | Tube | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 100mA | 0.152" (3.85mm) | Surface Mount | -30°C ~ 90°C | Gull Wing | Sealed - Flux Protection | 0.100" (2.54mm), Full | Yes |
|
|
NDI02HSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
2,975 |
|
Datasheet |
NDI | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 25mA | 0.197" (5.00mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
NDI03HSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
4,226 |
|
Datasheet |
NDI | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 25mA | 0.197" (5.00mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
DMR03TTRDIP SWITCH DM LOW PROFILE APEM Inc. |
4,937 |
|
Datasheet |
DM | Bulk | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.146" (3.70mm) | Surface Mount | -20°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
