DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

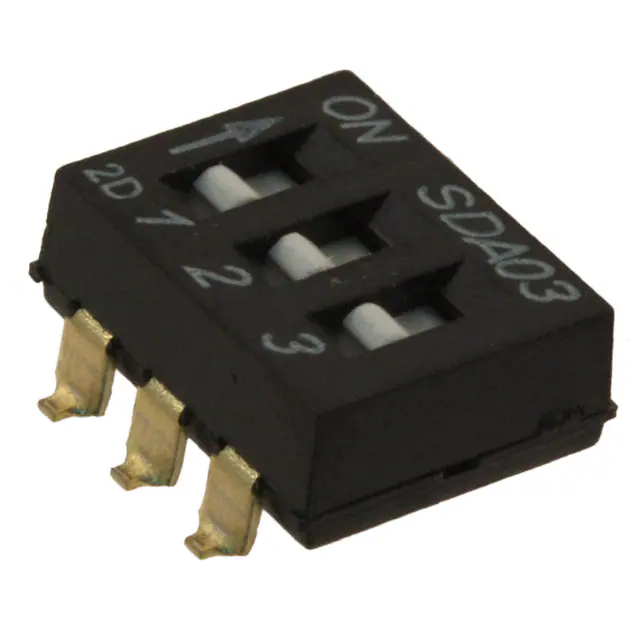

SDA03H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,491 |
|
Datasheet |
SDA | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6FR-0104SWITCH PIANO DIP SPST 0.025A 24V |
400 |
|
Datasheet |
A6FR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

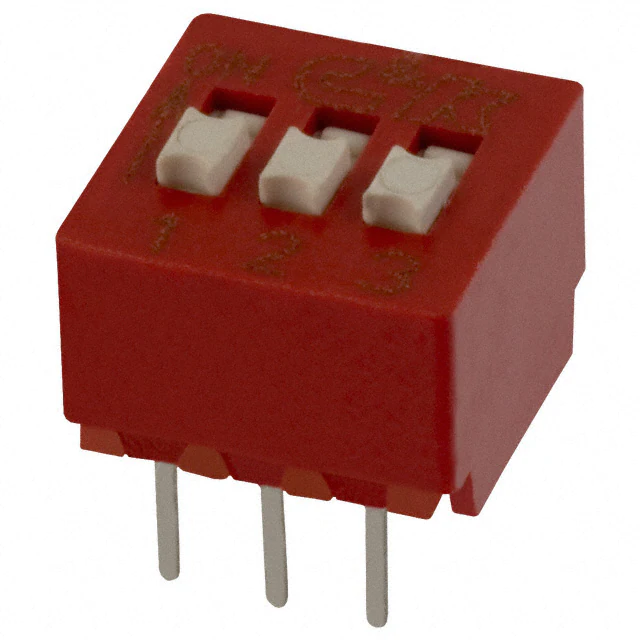

BD03SWITCH SLIDE DIP SPST 0.1A 5V |
8,544 |
|
Datasheet |
BD | Tube | Active | SPST | 3 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

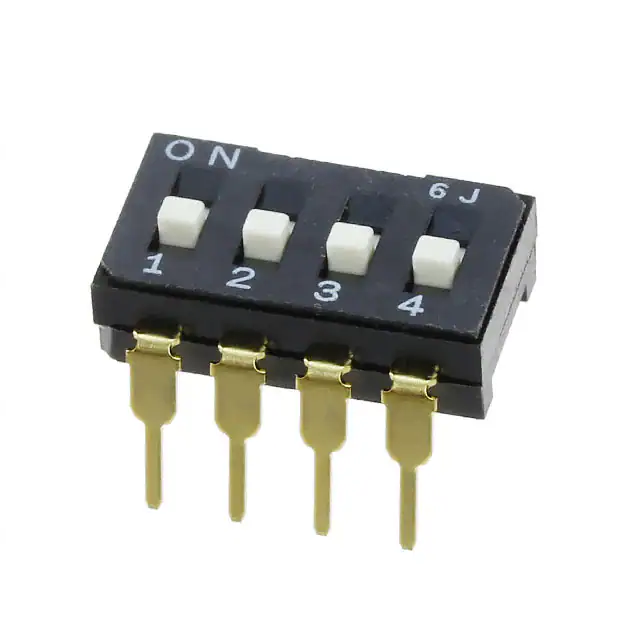

CFS-0402MCSWITCH SLIDE DIP SPST 0.1A 6V |
1,080 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1-1825002-3SWITCH SLIDE DIP SPST 0.025A 24V |
2,252 |
|
Datasheet |
ADF | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

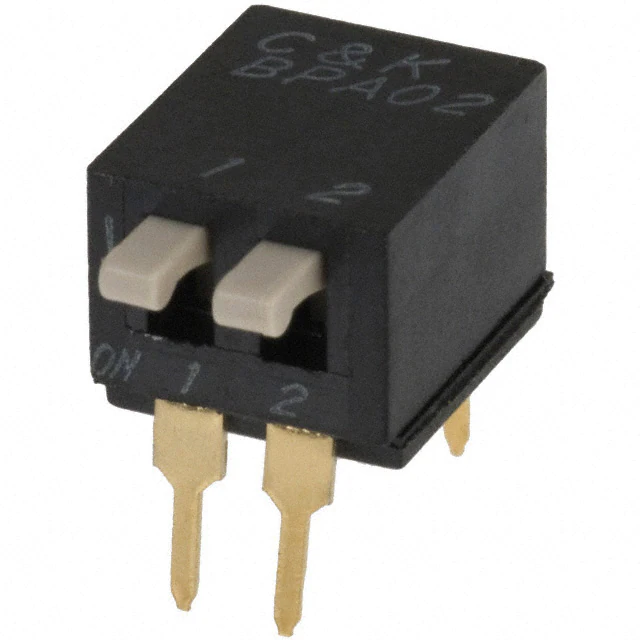

BPA02BSWITCH PIANO DIP SPST 0.1A 5V |
1,990 |
|
Datasheet |
BPA | Tube | Active | SPST | 2 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
2-1825059-9SWITCH SLIDE DIP SPST 0.025A 24V |
5,189 |
|
Datasheet |
ADF | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1571999-6SWITCH PIANO DIP SPST 0.025A 24V |
5,859 |
|
Datasheet |
ADP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

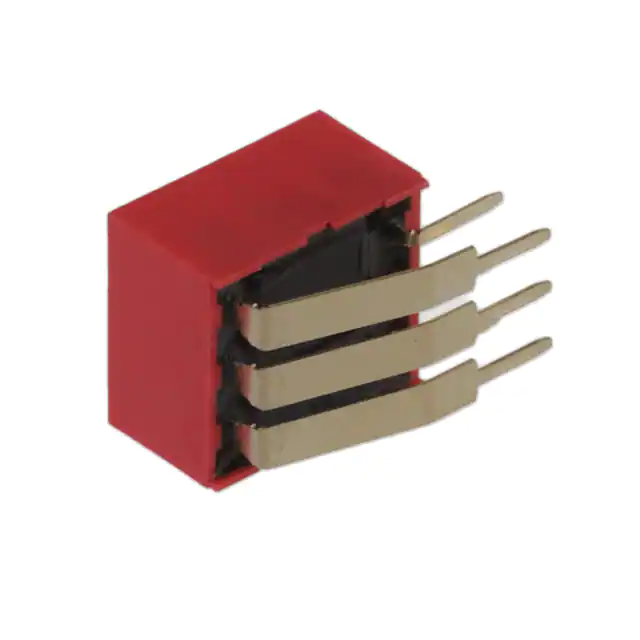

KAS2103ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,499 |
|
Datasheet |
KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

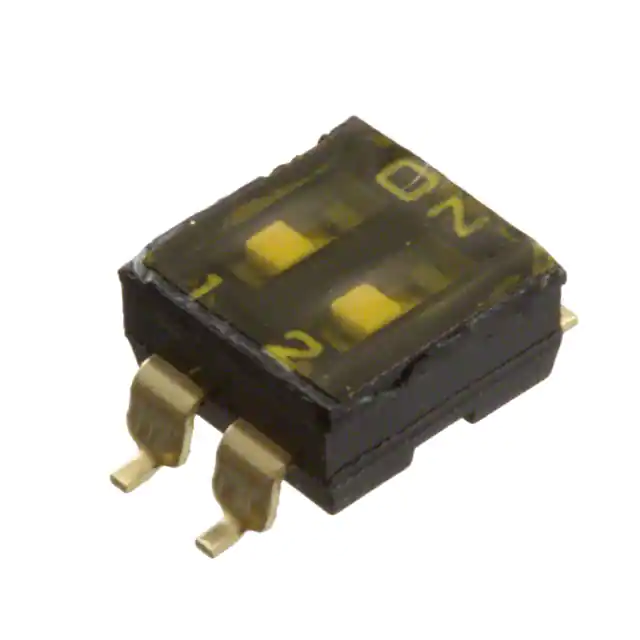

A6S-2102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
3,383 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
418117270908SWITCH SLIDE DIP SPST 0.025A 24V |
2,585 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

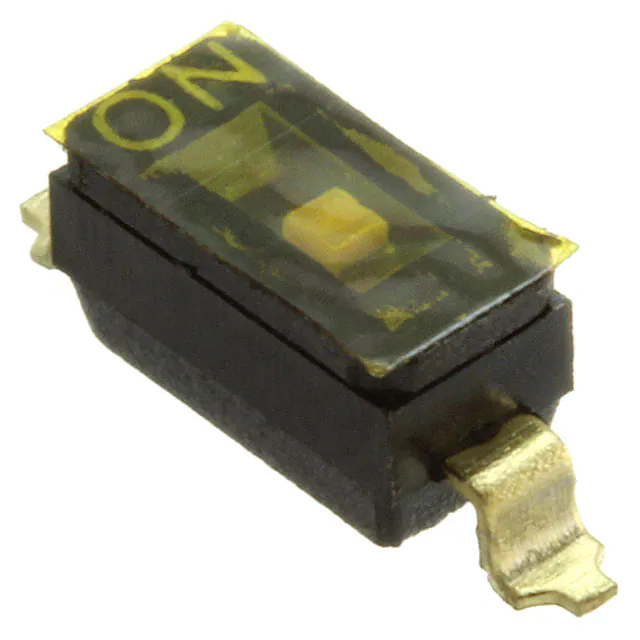

418121160801SWITCH SLIDE DIP SPST 0.025A 24V |
2,282 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1571999-7SWITCH PIANO DIP SPST 0.025A 24V |
3,640 |
|
Datasheet |
ADP | Bulk | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
418121160802SWITCH SLIDE DIP SPST 0.025A 24V |
3,719 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6S-3104-HSWITCH SLIDE DIP SPST 0.025A 24V |
1,860 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-2104SWITCH SLIDE DIP SPST 0.025A 24V |
1,159 |
|
Datasheet |
A6SN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF05STTR04SWITCH STANDARD DIP SPST |
5,964 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 5 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
EDS01SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,423 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

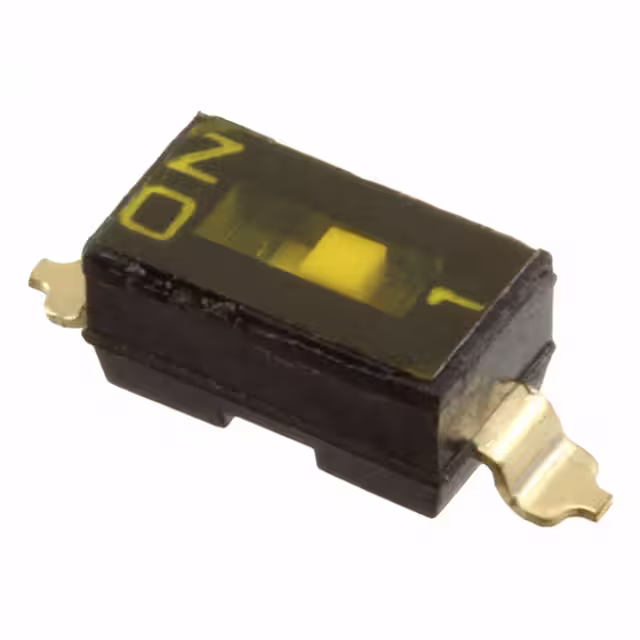

A6S-1101-HSWITCH SLIDE DIP SPST 0.025A 24V |
297 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
1-1571999-6SWITCH PIANO DIP SPST 0.025A 24V |
19,687 |
|
Datasheet |
ADP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
