DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

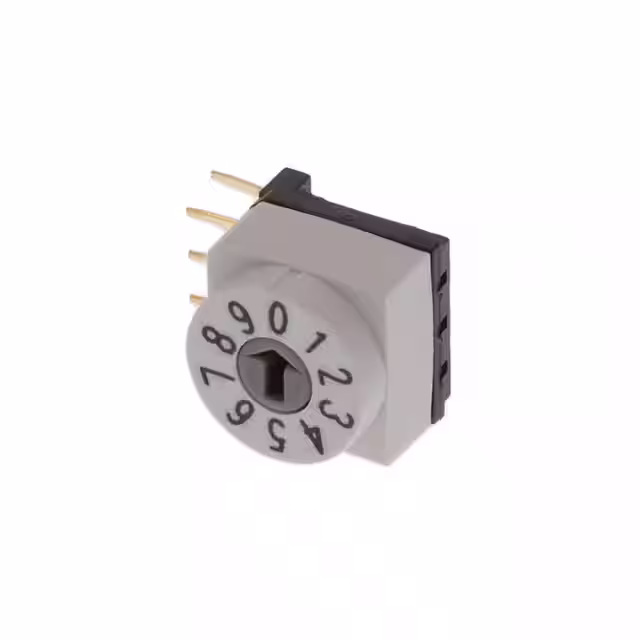

RDTAR10R2TSWITCH ROTARY DIP BCD 0.15A 42V |
3,369 |
|
Datasheet |
RDT | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | IP67 - Dust Tight, Waterproof | 0.100" (2.54mm), Full | Yes |
|
1-1825013-6SW ROTARY DIP HEX COMP 0.4VA 20V |
4,076 |
|
Datasheet |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.122" (3.10mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | Process Sealed | 0.100" (2.54mm), Full | No |
|
|
A6S-4102-PMHSWITCH SLIDE DIP SPST 0.025A 24V |
4 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.146" (3.70mm) | Surface Mount | -20°C ~ 70°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
DM03DIP SWITCH DM LOW PROFILE |
2,274 |
|
Datasheet |
DM | Bulk | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.118" (3.00mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
DMR03DIP SWITCH DM LOW PROFILE |
3,142 |
|
Datasheet |
DM | Bulk | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.146" (3.70mm) | Surface Mount | -20°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
NDIR09HTSWITCH SLIDE DIP SPST 0.025A 24V |
3,887 |
|
Datasheet |
NDI | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.173" (4.40mm) | Through Hole | -20°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
SSH06SWITCH SLIDE DIP SPST 0.4VA 20V |
2,008 |
|
Datasheet |
SSH | Tube | Obsolete | SPST | 6 | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.169" (4.30mm) | Through Hole, Right Angle | -30°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
CFP-0602MBSWITCH PIANO DIP SPST 0.1A 6V |
2,380 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0611MBSWITCH PIANO DIP SPST 0.1A 6V |
3,878 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0612MCSWITCH PIANO DIP SPST 0.1A 6V |
4,247 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0612MBSWITCH PIANO DIP SPST 0.1A 6V |
4,601 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0611MCSWITCH PIANO DIP SPST 0.1A 6V |
2,262 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0601MCSWITCH PIANO DIP SPST 0.1A 6V |
4,513 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0601MBSWITCH PIANO DIP SPST 0.1A 6V |
4,776 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-0602MCSWITCH PIANO DIP SPST 0.1A 6V |
2,338 |
|
- |
CFP | Tube | Active | SPST | 6 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
97CG04SRTSWITCH SLIDE DIP SPST 0.025A 24V |
4,367 |
|
Datasheet |
97 | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.063" (1.60mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.050" (1.27mm), Half | Yes |
|
|
RTF04C3CSW ROTARY DIP BCD COMP 0.1A 5VDC |
3,818 |
|
Datasheet |
RTF | Bulk | Active | BCD Complement | 4 | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 100mA | 0.272" (6.90mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
RTF04R1CSWITCH ROTARY DIP BCD 100MA 5VDC |
3,991 |
|
Datasheet |
RTF | Bulk | Active | BCD | 4 | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 100mA | 0.154" (3.90mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
RTF04C1CSW ROTARY DIP BCD COMP 0.1A 5VDC |
3,500 |
|
Datasheet |
RTF | Bulk | Active | BCD Complement | 4 | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 100mA | 0.154" (3.90mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
RTF04R3CSWITCH ROTARY DIP BCD 100MA 5VDC |
3,527 |
|
Datasheet |
RTF | Bulk | Active | BCD | 4 | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 100mA | 0.272" (6.90mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
