DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

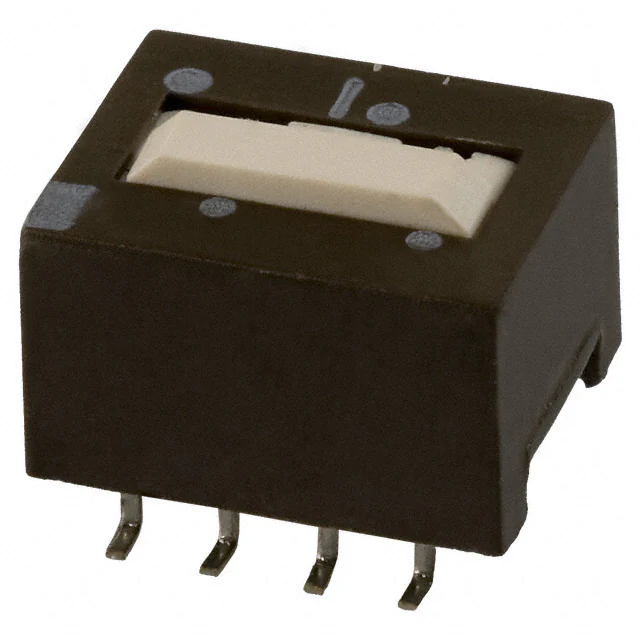

204-221STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

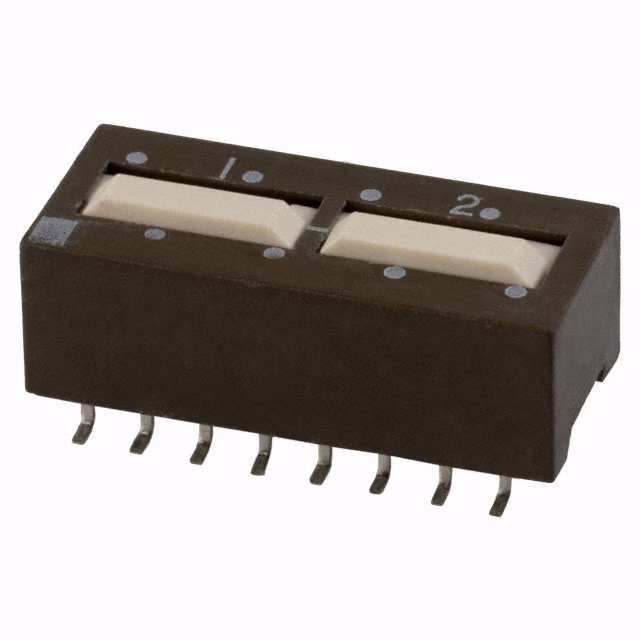

204-222STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

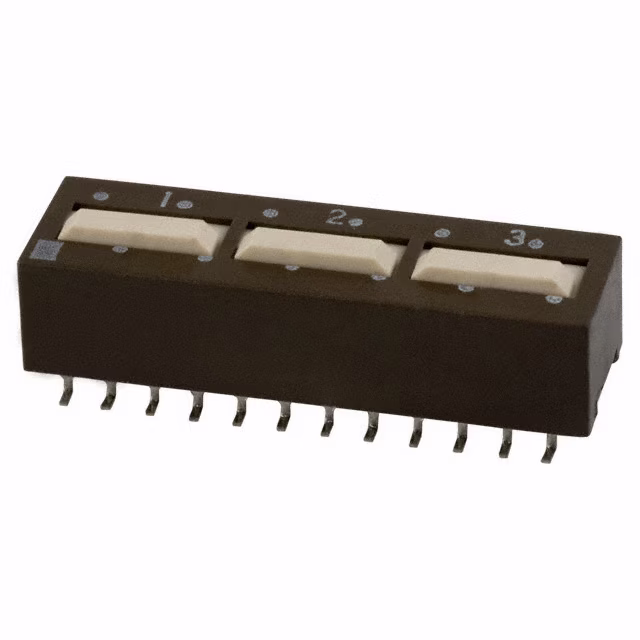

204-223STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

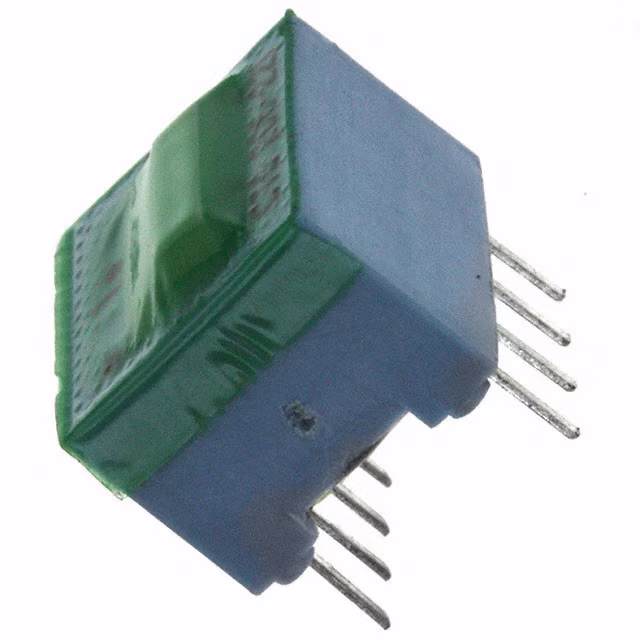

206-221STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
206 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-222STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
206 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
220ADA10SWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
0 |
|
Datasheet |
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

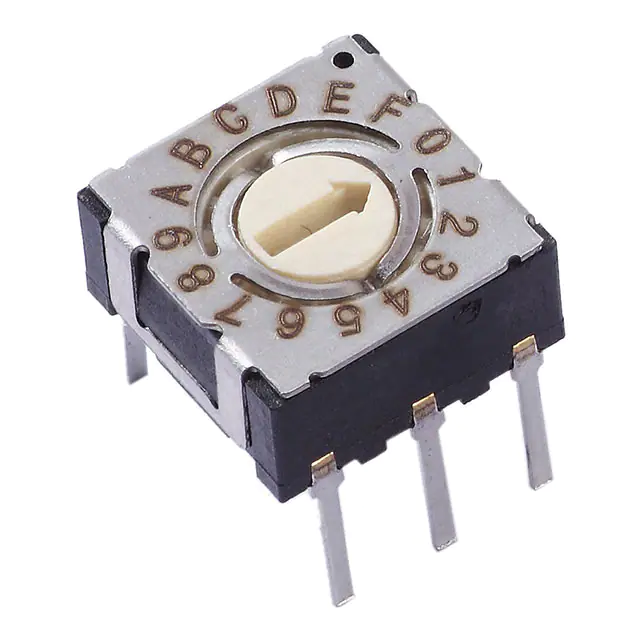

220ADA16SWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
0 |
|
Datasheet |
220 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

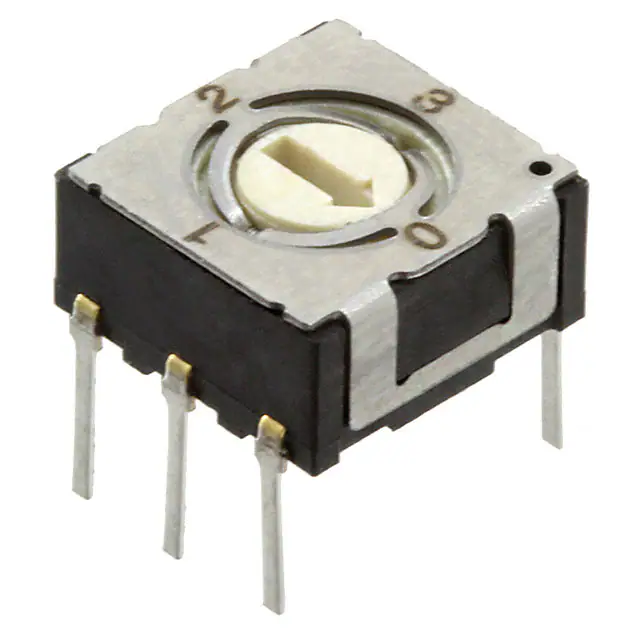

220ADA04SWITCH ROTARY DIP SP4T 0.1A 50V CTS Electrocomponents |
0 |
|
Datasheet |
220 | Tube | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
206-4STPSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
0 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-4LPSTPSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
