DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-6LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,949 |
|
Datasheet |
206 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 50mA | 0.299" (7.60mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|

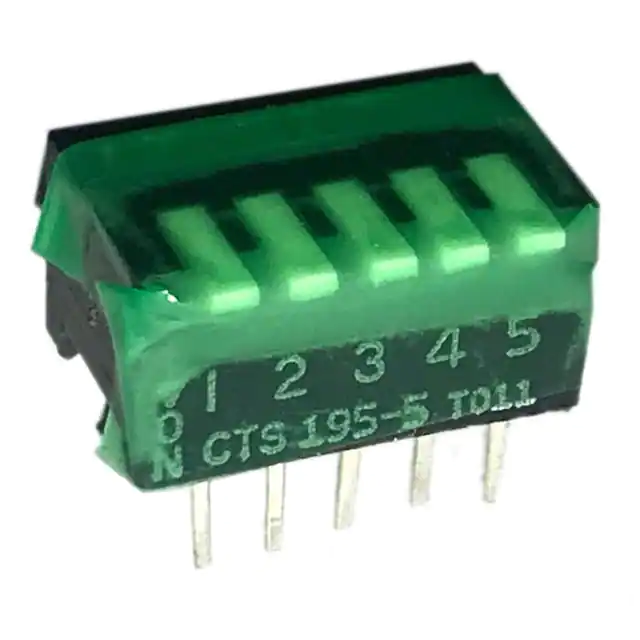

195-5MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,369 |
|
Datasheet |
195 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | - | Tin | 50mA | 0.311" (7.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-7ESRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,882 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.184" (4.67mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
219-7ESRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,413 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.184" (4.67mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

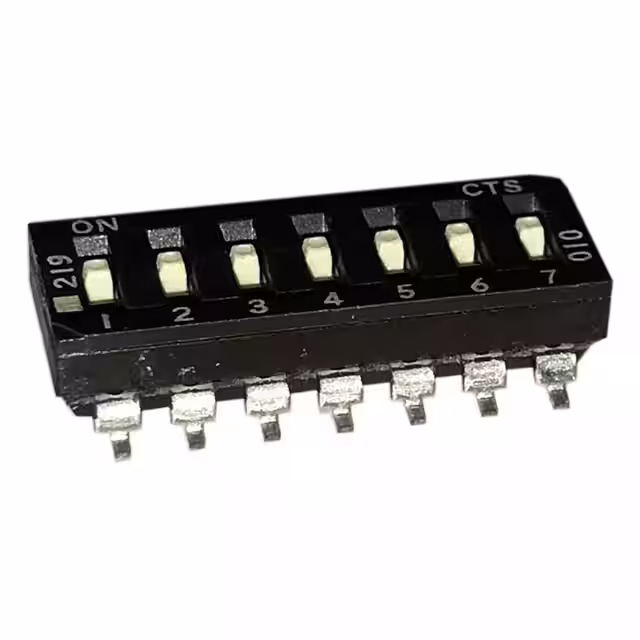

219-7LPSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,421 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

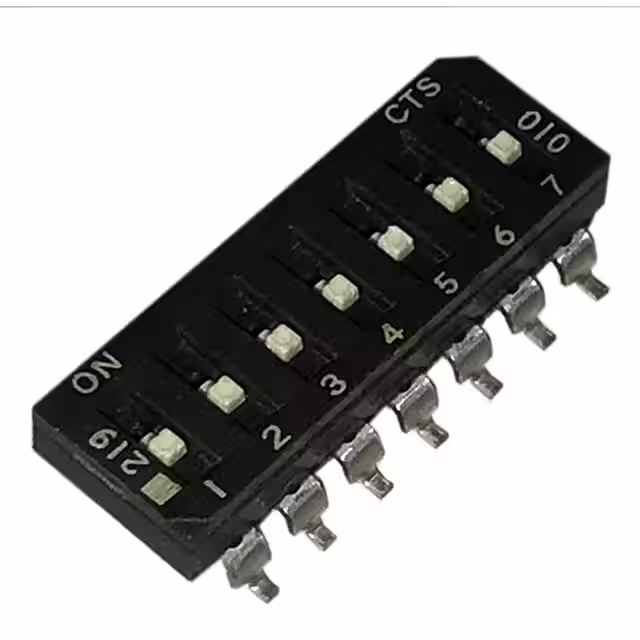

219-7LPSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,867 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

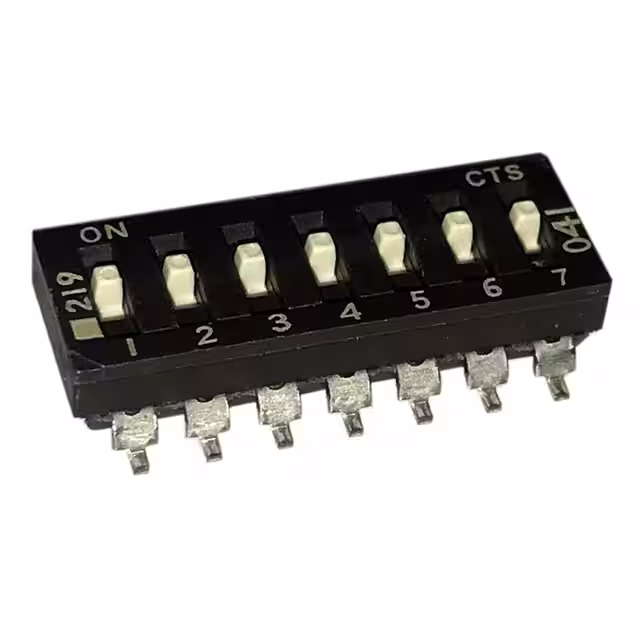

219-7MSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,070 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

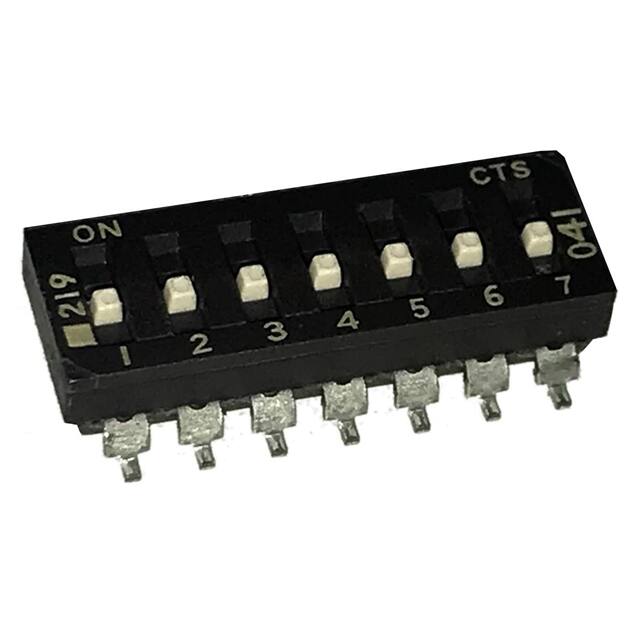

219-7MSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,752 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
.jpg)
|
219-8LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,551 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-8MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,498 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
