DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDSR06TVDIP SWITCH ND STANDARD |
3,942 |
|
Datasheet |
NDS | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.230" (5.85mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
CFP-1011MBSWITCH PIANO DIP SPST 0.1A 6V |
2,633 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1012MBSWITCH PIANO DIP SPST 0.1A 6V |
2,341 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1012MCSWITCH PIANO DIP SPST 0.1A 6V |
4,808 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1002MCSWITCH PIANO DIP SPST 0.1A 6V |
3,012 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1002MBSWITCH PIANO DIP SPST 0.1A 6V |
4,639 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Raised | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1011MCSWITCH PIANO DIP SPST 0.1A 6V |
3,158 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1001MBSWITCH PIANO DIP SPST 0.1A 6V |
2,874 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.264" (6.70mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
CFP-1001MCSWITCH PIANO DIP SPST 0.1A 6V |
2,896 |
|
- |
CFP | Tube | Active | SPST | 10 | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.295" (7.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
SSV10SWITCH SLIDE DIP SPST 0.4VA 20V |
3,858 |
|
Datasheet |
SSV | Tube | Obsolete | SPST | 10 | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.197" (5.00mm) | Through Hole | -30°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
MRD10SSWITCH ROTARY DIP BCD 0.4VA 20V |
2,603 |
|
- |
MRD | Tube | Obsolete | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.130" (3.30mm) | Surface Mount | -10°C ~ 85°C | Gull Wing | Process Sealed | 0.100" (2.54mm), Full | No |
|
|
MRD16SSWITCH ROTARY DIP HEX 0.4VA 20V |
2,441 |
|
- |
MRD | Tube | Obsolete | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.130" (3.30mm) | Surface Mount | -10°C ~ 85°C | Gull Wing | Process Sealed | 0.100" (2.54mm), Full | No |
|
|
SMRR8010C-1SWITCH ROTARY DIP BCD 0.03A 15V |
2,398 |
|
- |
SMR | Tube | Active | BCD | 10 | 15VDC | Rotary with Shaft | Raised | - | Gold | 30mA | 0.319" (8.10mm) | Surface Mount, Right Angle | -25°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | Yes |
|
|
SMRR8016C-1SWITCH ROTARY DIP HEX 0.03A 15V |
2,668 |
|
- |
SMR | Tube | Active | Hexadecimal | 16 | 15VDC | Rotary with Shaft | Raised | - | Gold | 30mA | 0.319" (8.10mm) | Surface Mount, Right Angle | -25°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | Yes |
|
|
SMRR8110C-1SW ROTARY DIP BCD COMP 0.03A 15V |
4,145 |
|
- |
SMR | Tube | Active | BCD Complement | 10 | 15VDC | Rotary with Shaft | Raised | - | Gold | 30mA | 0.319" (8.10mm) | Surface Mount, Right Angle | -25°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | Yes |
|
|
SMRR8116C-1SW ROTARY DIP HEX COMP 0.03A 15V |
4,719 |
|
- |
SMR | Tube | Active | Hexadecimal Complement | 16 | 15VDC | Rotary with Shaft | Raised | - | Gold | 30mA | 0.319" (8.10mm) | Surface Mount, Right Angle | -25°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | Yes |
|
|
IKN0404000SWITCH SLIDE DIP SPST 0.1A 24V |
3,159 |
|
Datasheet |
IKN | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.112" (2.85mm) | Surface Mount | -40°C ~ 100°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
S-2150WSWITCH ROTARY DIP SP4T 0.1A 5V |
2,641 |
|
Datasheet |
S-2050 | Tray | Active | SP4T | 4 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.535" (13.59mm) | Through Hole | -25°C ~ 70°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
S-2151WSWITCH ROTARY DIP SP4T 0.1A 5V |
4,727 |
|
Datasheet |
S-2050 | Tray | Active | SP4T | 4 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.394" (10.00mm) | Through Hole, Right Angle | -25°C ~ 70°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

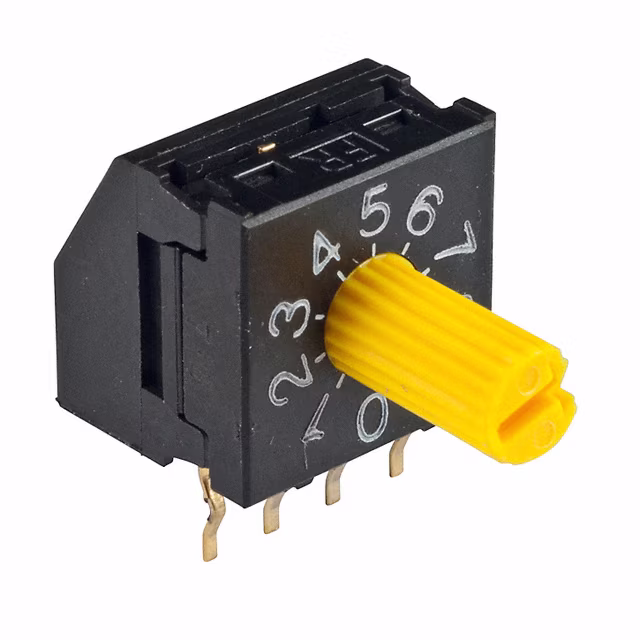

FR01KC10H-06XLSW ROTARY DIP BCD COMP 0.1A 5V |
4,709 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.394" (10.00mm) | Through Hole, Right Angle | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
