DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

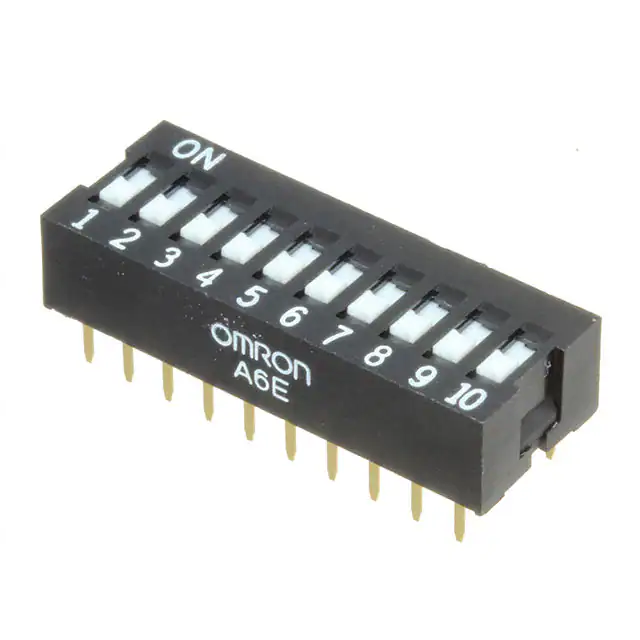

A6E-0101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-0104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-2101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

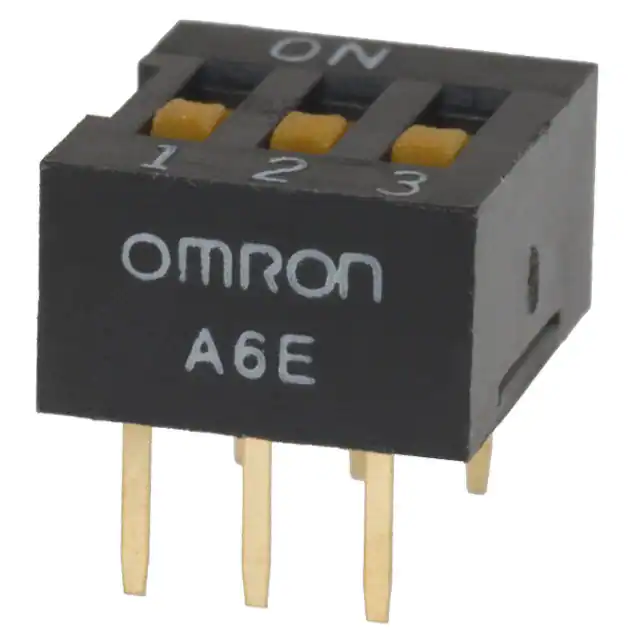

A6E-3101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-3104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

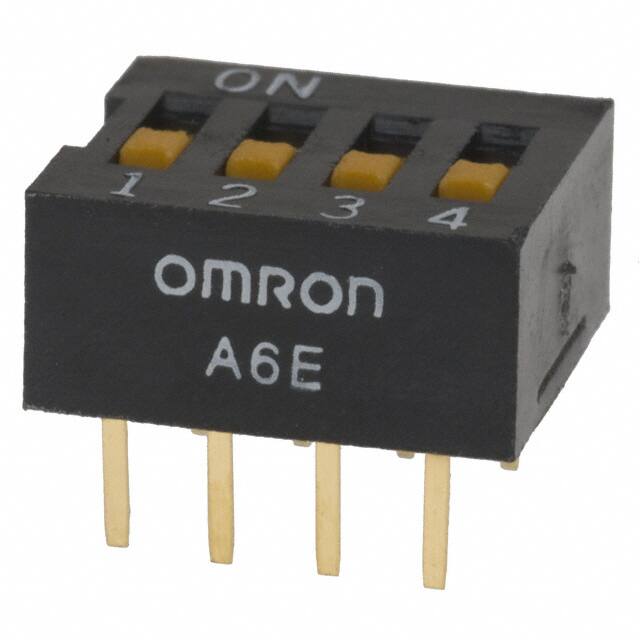

A6E-4101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-4104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

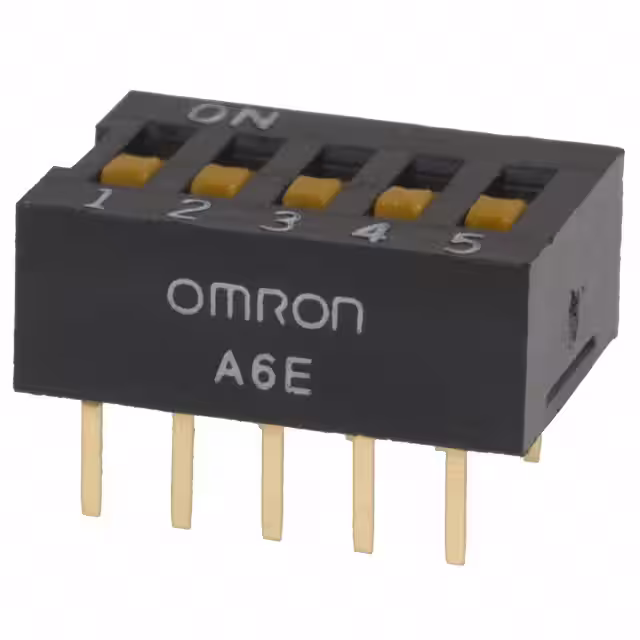

A6E-5101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-5104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-6101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

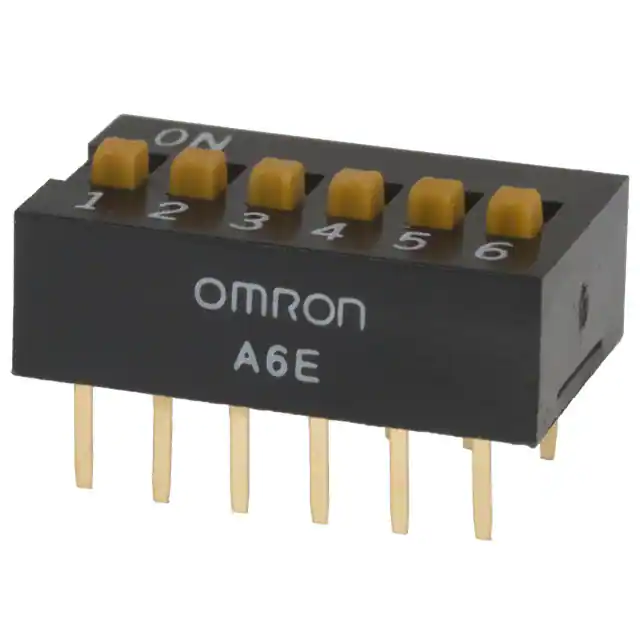

A6E-6104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

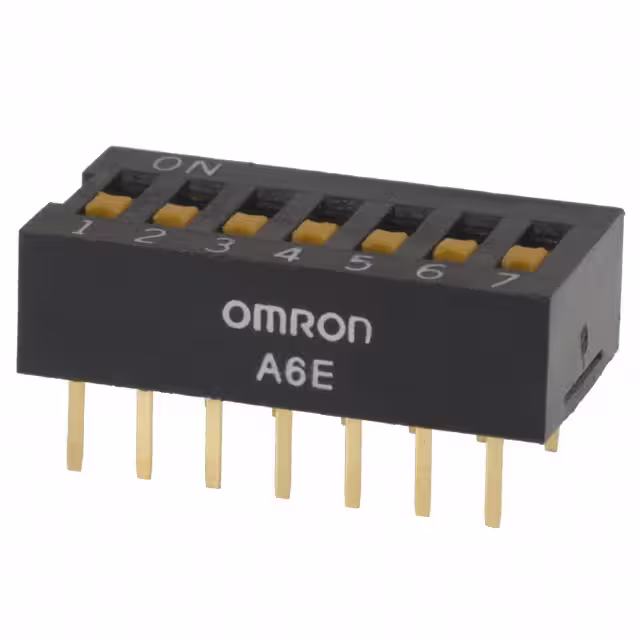

A6E-7101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

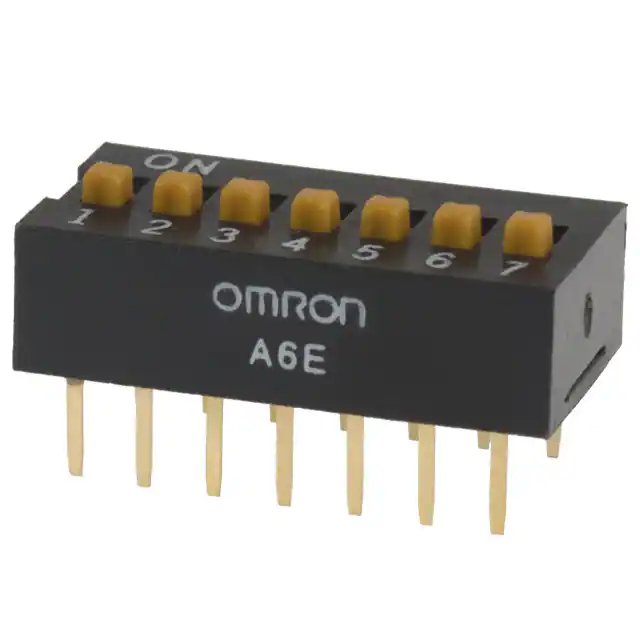

A6E-7104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6E-8101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

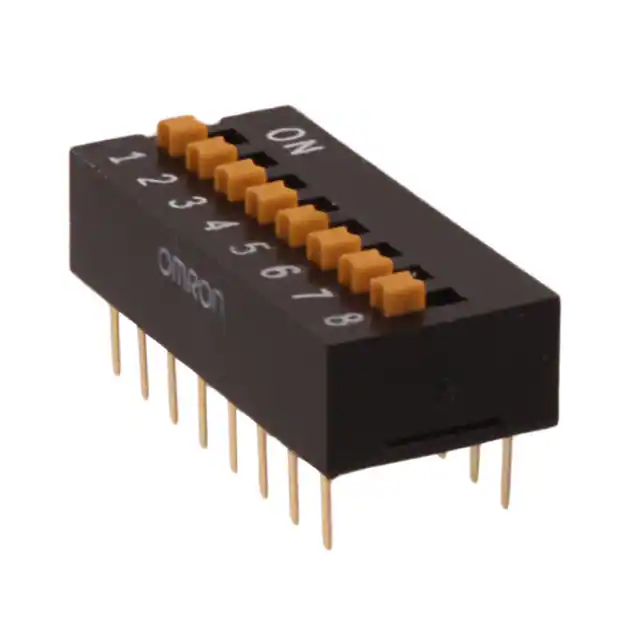

A6E-8104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6E-9101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|

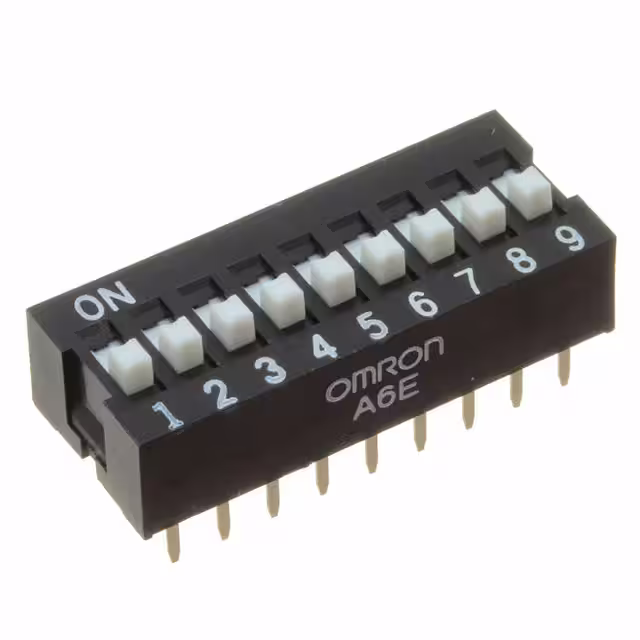

A6E-9104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6E | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-0101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

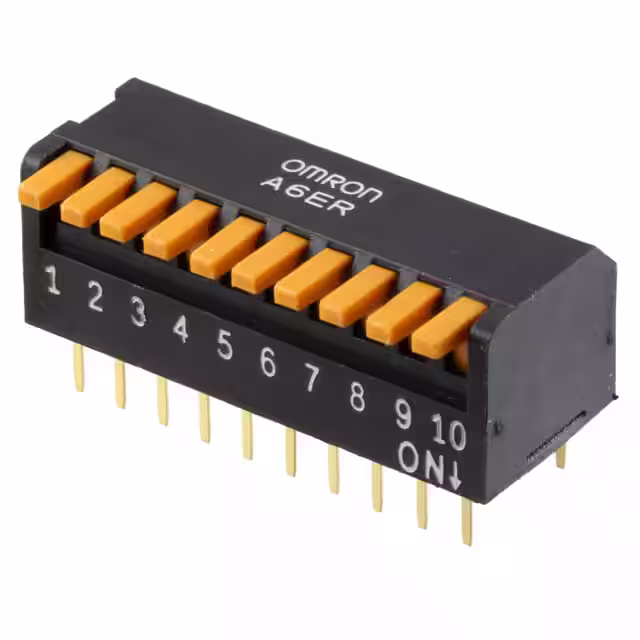

A6ER-0104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6ER | Tray | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|

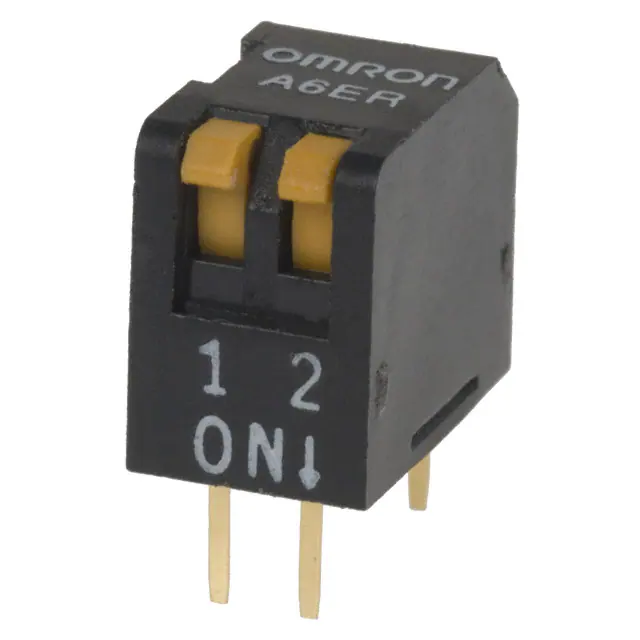

A6ER-2101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6ER | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
