DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

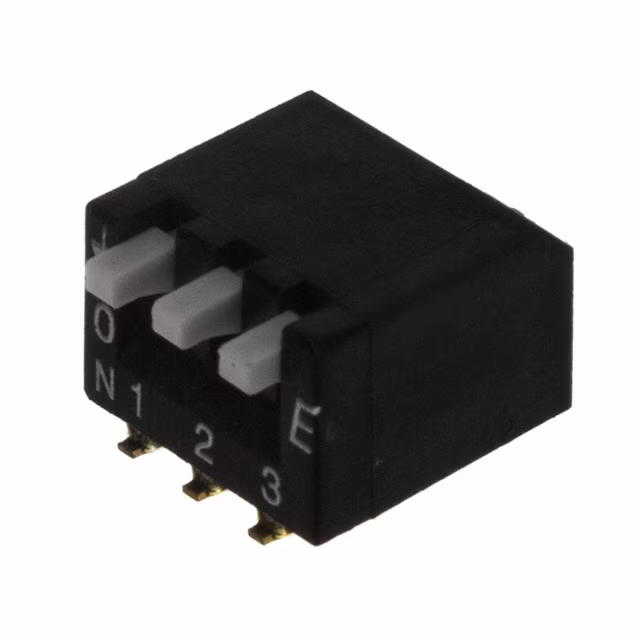

KAR03LGGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

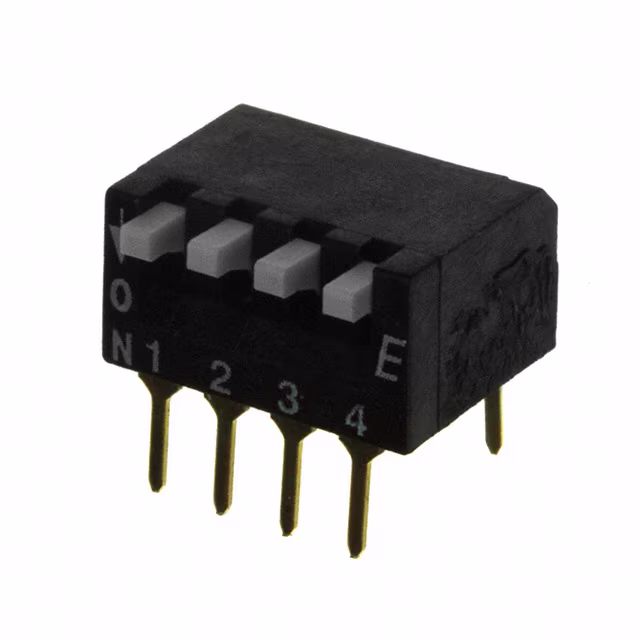

KAR04LAGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

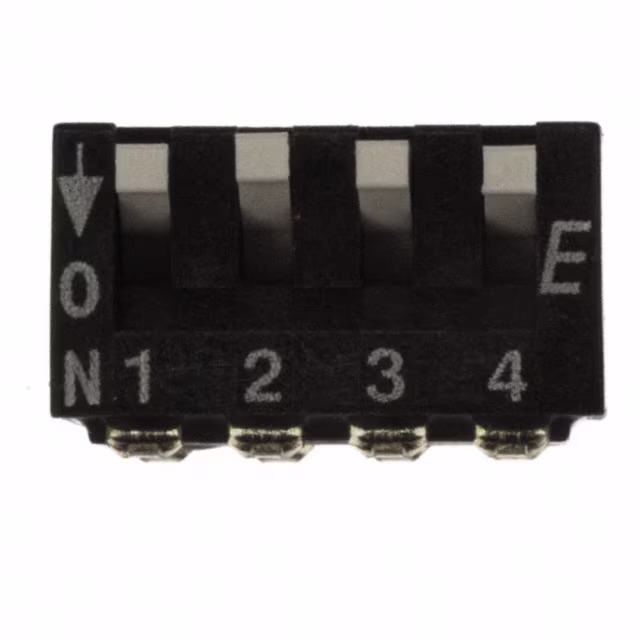

KAR04LGGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

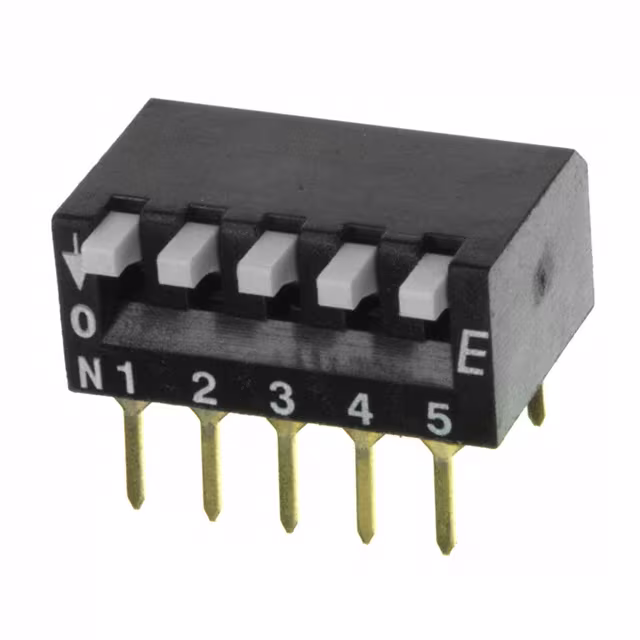

KAR05LAGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

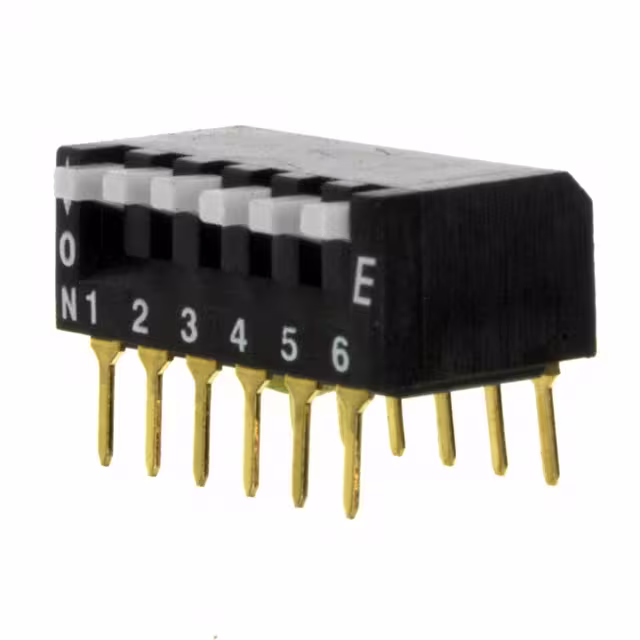

KAR06LAGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

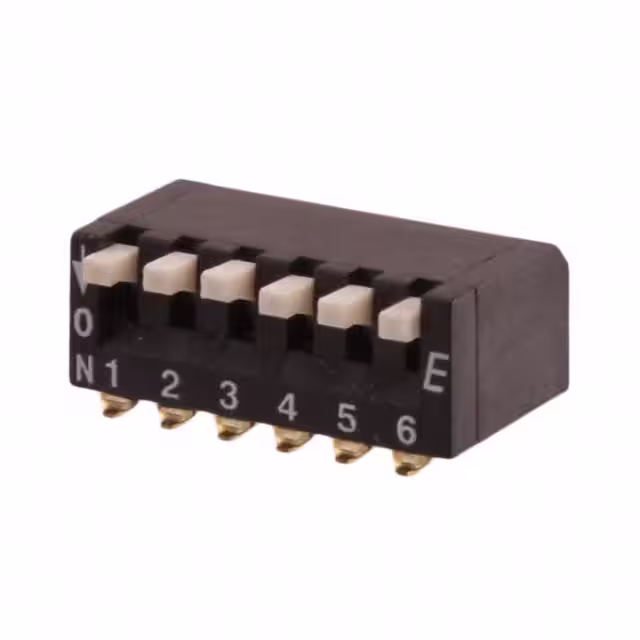

KAR06LGGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

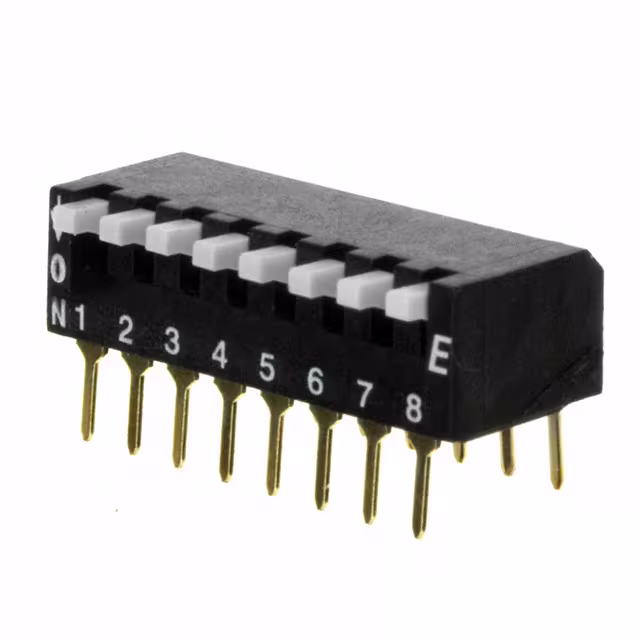

KAR08LAGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

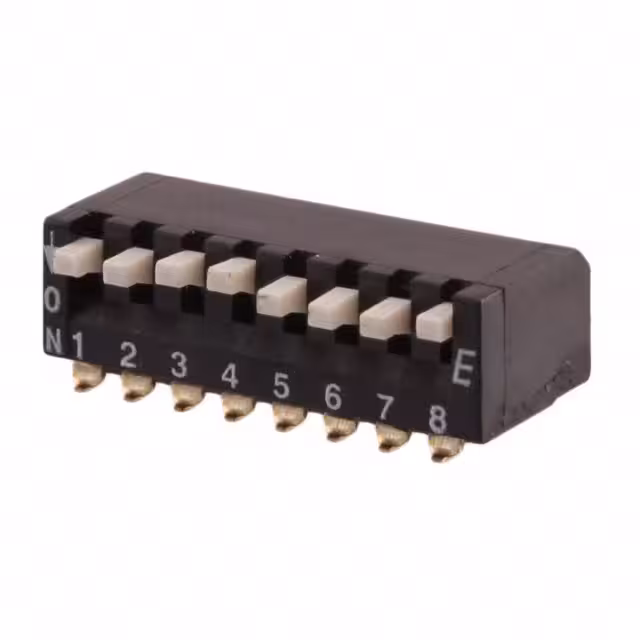

KAR08LGGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

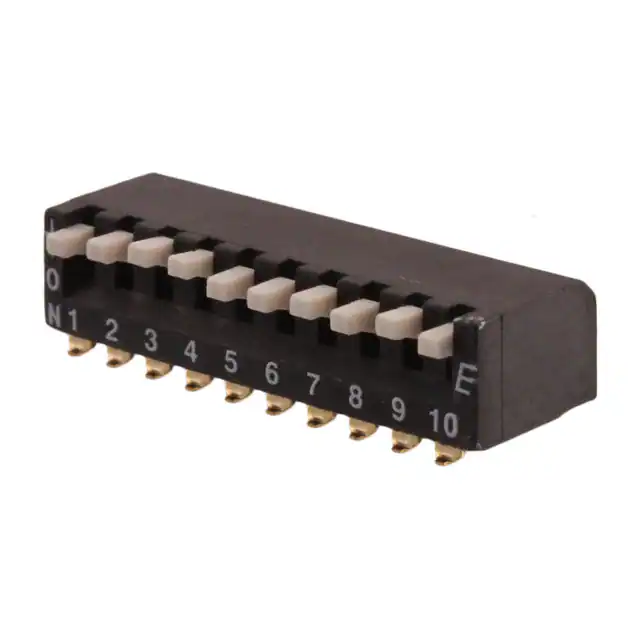

KAR10LGGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

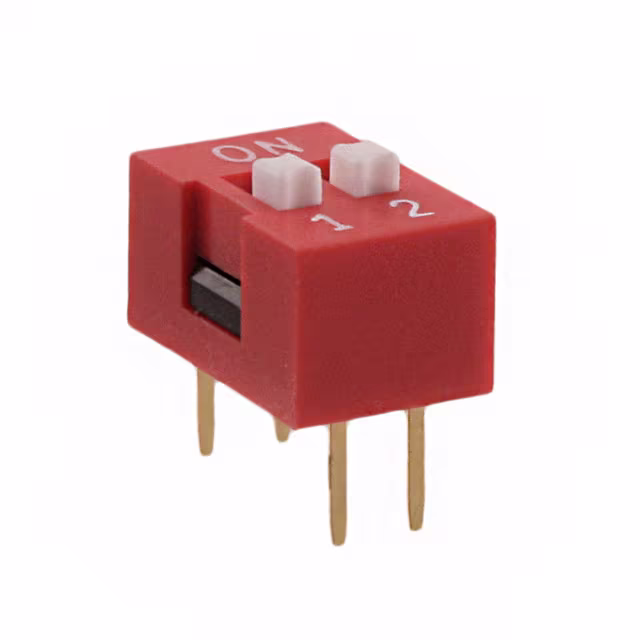

KAS1102ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

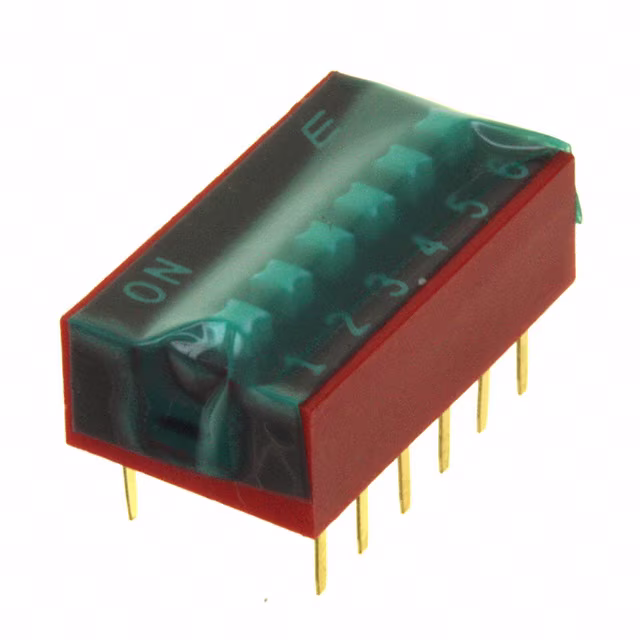

KAS1106ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

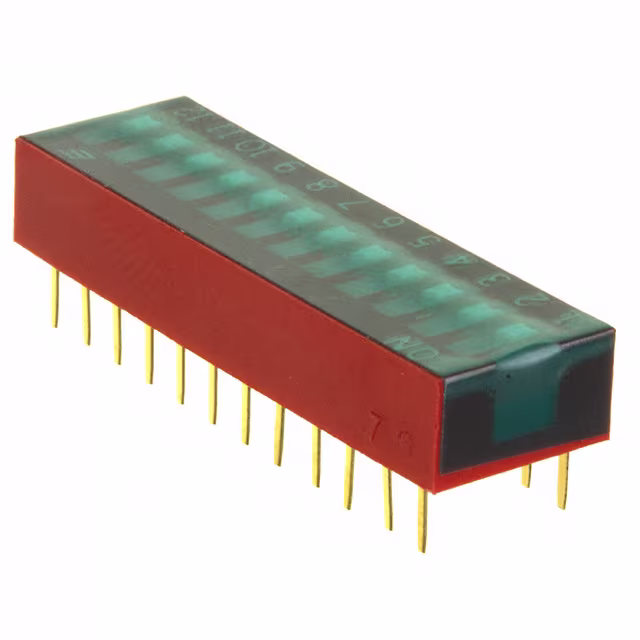

KAS1112RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

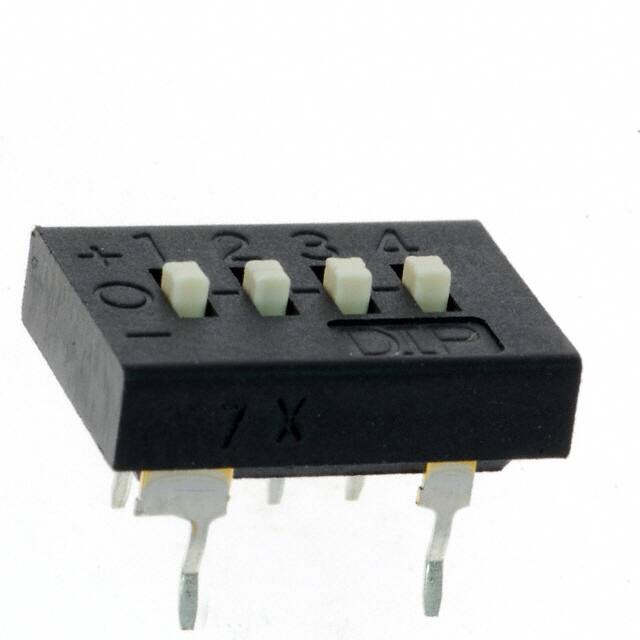

KAT1104ESWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
Datasheet |
KAT | Tube | Obsolete | SPDT | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|

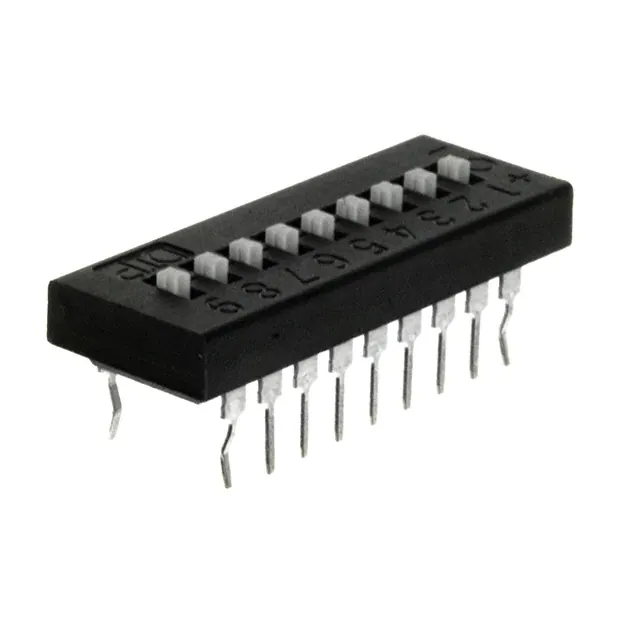

KAT1109ESWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
Datasheet |
KAT | Tube | Obsolete | SPDT | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
1825284-3SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
Datasheet |
ATT | Bulk | Active | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
MDG301STSWITCH SLIDE DIP DPST 25MA 24V |
0 |
|
- |
MDG | Tray | Obsolete | DPST-NO/NC | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.303" (7.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
MDG601STSWITCH SLIDE DIP 4PST 25MA 24V |
0 |
|
Datasheet |
MDG | Tube | Active | 4PST-2NO/2NC | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.303" (7.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
NHDS10TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NHDS | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
NHDS02TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NHDS | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
NHDS08TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NHDS | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
