DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

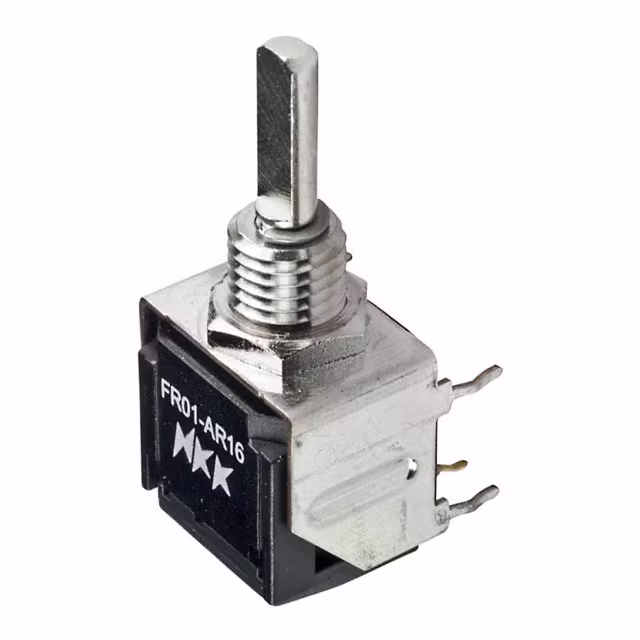

FR01AR16HB-06XLSWITCH ROTARY DIP HEX 0.1A 5V |
4,054 |
|
Datasheet |
FR01 | Bulk | Discontinued at Digi-Key | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.433" (11.00mm) | Panel Mount, Right Angle | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
JS0408FP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
3,731 |
|
Datasheet |
JS | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.087" (2.20mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|

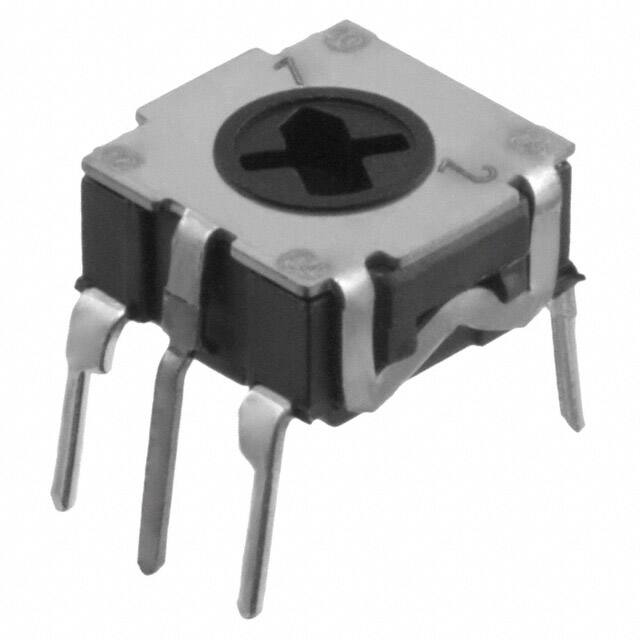

RTE0210N05SWITCH ROTARY DIP SPDT 0.1A 50V |
4,494 |
|
Datasheet |
RTE | Tube | Obsolete | SPDT | 2 | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 100mA | 0.167" (4.25mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

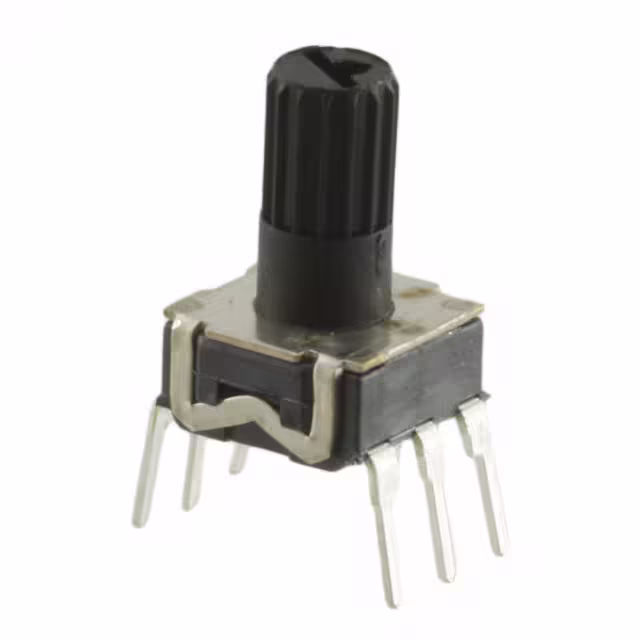

RTE0311N05SWITCH ROTARY DIP SP3T 0.1A 50V |
3,275 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 100mA | 0.463" (11.75mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
RTE1011N14SWITCH ROTARY DIP BCD 0.1A 30V |
3,896 |
|
Datasheet |
RTE | Tube | Obsolete | BCD | 10 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | 0.463" (11.75mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
RTE0312N04SWITCH ROTARY DIP SP3T 0.1A 30V |
4,654 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | 0.321" (8.15mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
RTE1000V24SW ROTARY DIP BCD COMP 0.1A 30V |
3,582 |
|
Datasheet |
RTE | Bulk | Obsolete | BCD Complement | 10 | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 100mA | 0.335" (8.50mm) | Through Hole, Right Angle | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
RTE1011R14SWITCH ROTARY DIP BCD 0.1A 30V |
4,947 |
|
Datasheet |
RTE | Bulk | Obsolete | BCD | 10 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | - | Through Hole, Reverse | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
1825007-3SW ROTARY DIP BCD COMP 0.4VA 20V |
2,986 |
|
Datasheet |
DRD | Tube | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.4VA | 0.291" (7.39mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
1-1825013-7SWITCH ROTARY DIP HEX 0.4VA 20V |
4,091 |
|
Datasheet |
MRD | Tube | Obsolete | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.295" (7.50mm) | Through Hole, Right Angle | -30°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | No |
|
|
5-5435640-3SWITCH ROCKER DIP SPST |
3,496 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 8 | - | Rocker | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
|
90HBJ10RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,206 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.220" (5.59mm) | Surface Mount | -40°C ~ 85°C | J Lead | - | 0.100" (2.54mm), Full | No |
|
|
94HEB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
3,543 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.225" (5.72mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Sealed | 0.100" (2.54mm), Full | Yes |
|
|
76GB08STSWITCH ROCKER DIP SPST 0.15A 30V |
3,098 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 8 | 30VDC | Rocker | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
76GB08TSWITCH ROCKER DIP SPST 0.15A 30V |
2,859 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 8 | 30VDC | Rocker | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
76GB10STSWITCH ROCKER DIP SPST 0.15A 30V |
3,002 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 10 | 30VDC | Rocker | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
76HPSB08TSWITCH PIANO DIP SPST 0.15A 30V |
4,434 |
|
Datasheet |
76HP | Tube | Active | SPST | 8 | 30VDC | Piano | Raised | Copper Alloy | Gold | 150mA | 0.305" (7.75mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
76PGB04TSWITCH PIANO DIP SPST 0.15A 30V |
2,162 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 4 | 30VDC | Piano | Raised | Copper Alloy | Gold | 150mA | 0.301" (7.65mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
76PGB06STSWITCH PIANO DIP SPST 0.15A 30V |
4,513 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 6 | 30VDC | Piano | Raised | Copper Alloy | Gold | 150mA | 0.301" (7.65mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
76PGB06TSWITCH PIANO DIP SPST 0.15A 30V |
2,072 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 6 | 30VDC | Piano | Raised | Copper Alloy | Gold | 150mA | 0.301" (7.65mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
