DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HGBW05PTSWITCH SLIDE DIP SPST 0.01A 30V |
2,630 |
|
- |
90HGB | Tube | Obsolete | SPST | 5 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.190" (4.83mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
90HGBW06PTSWITCH SLIDE DIP SPST 0.01A 30V |
4,475 |
|
- |
90HGB | Tube | Obsolete | SPST | 6 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.190" (4.83mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
90HGBW06TSWITCH SLIDE DIP SPST 0.01A 30V |
3,482 |
|
- |
90HGB | Tube | Obsolete | SPST | 6 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.190" (4.83mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
90HGBW08PTSWITCH SLIDE DIP SPST 0.01A 30V |
4,988 |
|
- |
90HGB | Tube | Obsolete | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.190" (4.83mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
90HGBW10PTSWITCH SLIDE DIP SPST 0.01A 30V |
3,492 |
|
- |
90HGB | Tube | Obsolete | SPST | 10 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.190" (4.83mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
SRK-10SWITCH ROTARY DIP BCD 0.1A 5V |
3,498 |
|
Datasheet |
SRK | Tube | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | Glass Fabric Epoxy Resin | Gold | 100mA | 0.256" (6.50mm) | Through Hole | -10°C ~ 60°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

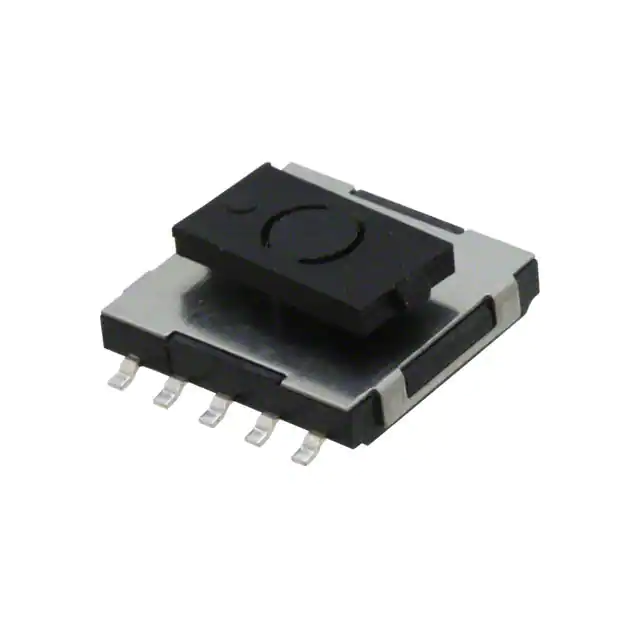

RW-108-NS RTSWITCH ROTARY DIP SP8T 0.1A 16V |
2,012 |
|
Datasheet |
RW, COMAX | Tape & Reel (TR) | Discontinued at Digi-Key | SP8T | 8 | 16VDC | Rotary for Tool | Raised | - | - | 100mA | 0.165" (4.20mm) | Surface Mount | -20°C ~ 70°C | Gull Wing | - | 0.083" (2.10mm) | No |
|
1393546-1SWITCH DIP SPST TH |
3,571 |
|
Datasheet |
DIP-FIX | Bulk | Obsolete | SPST | 1 | - | - | Raised | - | - | - | 0.319" (8.10mm) | Through Hole | - | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
1-1825286-0SW ROCKER DIP SPST 0.025A 24V |
3,815 |
|
Datasheet |
GDR | Tube | Active | SPST | 10 | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.309" (7.85mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|

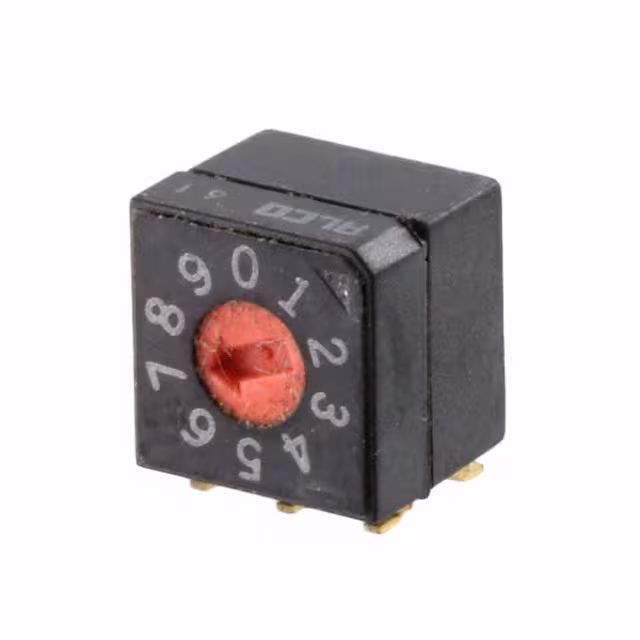

1825013-4SW ROTARY DIP BCD COMP 0.4VA 20V |
3,363 |
|
Datasheet |
MRD | Tube | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.4VA | 0.295" (7.50mm) | Surface Mount, Right Angle | -30°C ~ 85°C | Gull Wing | Process Sealed | 0.100" (2.54mm), Full | No |
|
|
1977103-3SWITCH SLIDE DIP SPST 0.025A 24V |
3,369 |
|
Datasheet |
GDHL | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.059" (1.50mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | Tape Seal | 0.050" (1.27mm), Half | Yes |
|
1977105-3SWITCH SLIDE DIP SPST 0.01A 5V |
4,758 |
|
Datasheet |
STR | Tube | Active | SPST | 6 | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.244" (6.20mm) | Through Hole, Right Angle | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

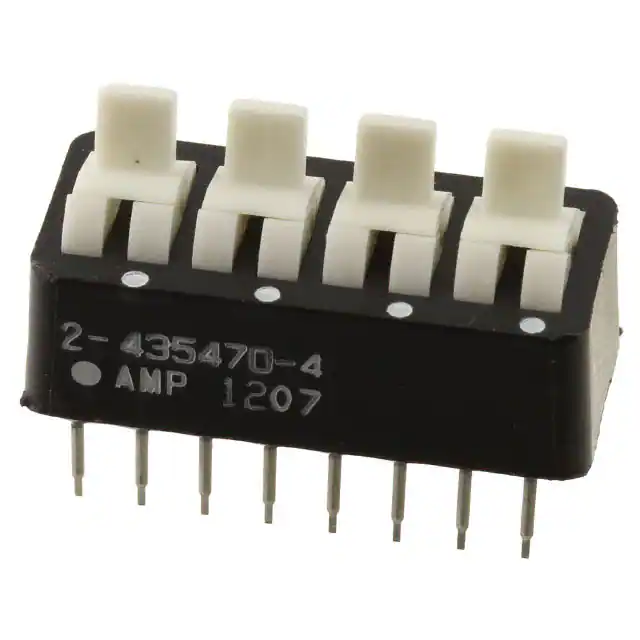

2-435470-4SW TOGGLE DIP SPDT 0.025A 24V |
2,682 |
|
Datasheet |
7000 | Tube | Obsolete | SPDT | 4 | 24VDC | Toggle | Raised | Copper Alloy | Gold | 25mA | 0.460" (11.68mm) | Through Hole | -55°C ~ 105°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

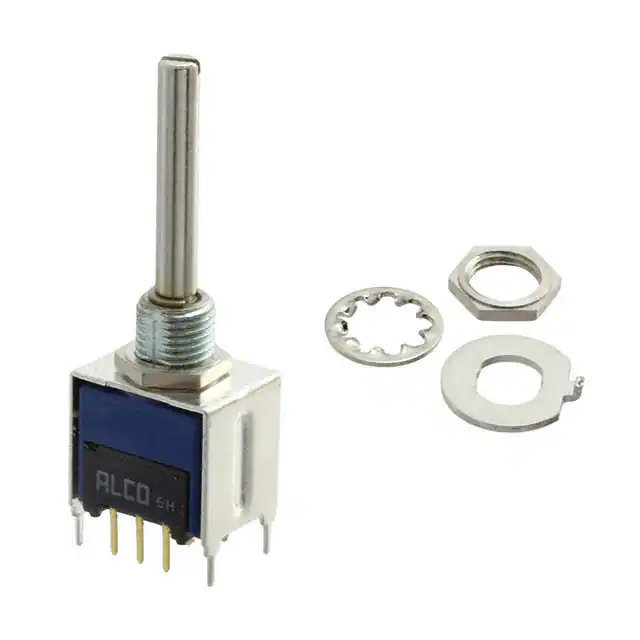

5-1825033-6SW ROTARY DIP HEX COMP 0.4VA 20V |
3,137 |
|
Datasheet |
DR | Bulk | Obsolete | Hexadecimal Complement | 16 | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.4VA | 1.476" (37.50mm) | Through Hole | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
1825059-4SWITCH SLIDE DIP SPST 0.025A 24V |
2,639 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.203" (5.15mm) | Surface Mount | -30°C ~ 85°C | J Lead | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
CRD10CL1CBSW ROTARY DIP BCD COMP 0.4VA 20V |
4,785 |
|
Datasheet |
CRD | Tray | Obsolete | BCD Complement | 10 | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.4VA | 0.543" (13.80mm) | Through Hole | -20°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
CRD10RL1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
2,005 |
|
Datasheet |
CRD | Tray | Obsolete | BCD | 10 | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.4VA | 0.414" (10.51mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|

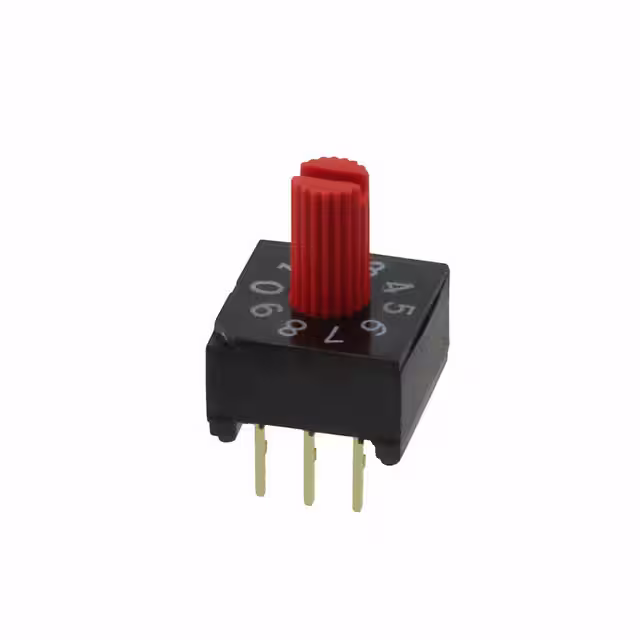

CRD10RL1CBSWITCH ROTARY DIP BCD 0.4VA 20V |
2,672 |
|
Datasheet |
CRD | Tray | Obsolete | BCD | 10 | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.4VA | 0.543" (13.80mm) | Through Hole | -20°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
CRD10RW1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
2,347 |
|
Datasheet |
CRD | Tray | Obsolete | BCD | 10 | 20VAC/DC | Rotary with Knob | Raised | Beryllium Copper | Gold | 0.4VA | 0.414" (10.51mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
RTE0302G04SWITCH ROTARY DIP SP3T 0.1A 30V |
4,720 |
|
Datasheet |
RTE | Bulk | Obsolete | SP3T | 3 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | 0.322" (8.18mm) | Surface Mount | -25°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
