DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD07C16CVATSW ROTARY DIP HEX COMP 0.1A 50V CIT Relay and Switch |
4,229 |
|
Datasheet |
RD07 | Tube | Active | Hexadecimal Complement | 16 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

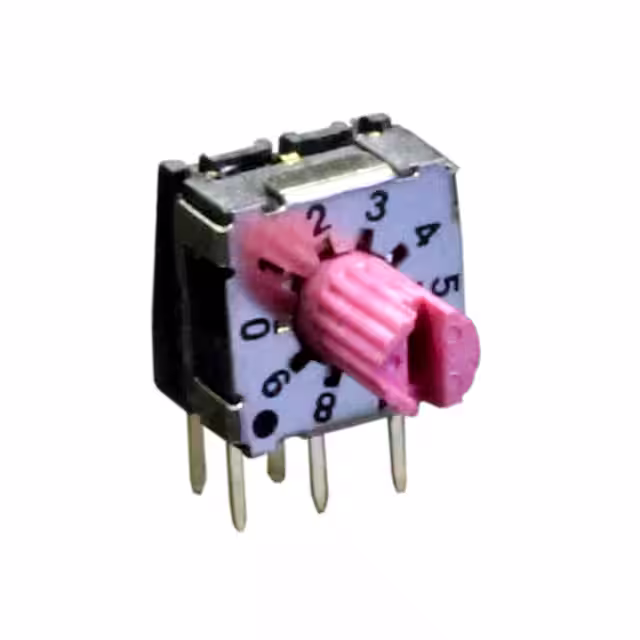

RD07B10CVATSW ROTARY DIP BCD COMP 0.1A 50V CIT Relay and Switch |
2,517 |
|
Datasheet |
RD07 | Tube | Active | BCD Complement | 10 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
RD07B4CVATSW ROTARY DIP BCD COMP 0.1A 50V CIT Relay and Switch |
3,900 |
|
Datasheet |
RD07 | Tube | Active | BCD Complement | 4 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
RD07C10RVBTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
3,946 |
|
Datasheet |
RD07 | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
RD07C4RVBTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
3,032 |
|
Datasheet |
RD07 | Tube | Active | BCD | 4 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
RD07C16RVBTSWITCH ROTARY DIP HEX 0.1A 50V CIT Relay and Switch |
4,323 |
|
Datasheet |
RD07 | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
RD07C10RVATSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
4,519 |
|
Datasheet |
RD07 | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 100mA | 0.291" (7.40mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KR01ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,947 |
|
Datasheet |
KR | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KG01ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,993 |
|
Datasheet |
KG | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.260" (6.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
