DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSS 208 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
987 |
|
Datasheet |
DSS | Tube | Active | SPST | 8 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SMR 8016-1ROTARY CODED SWITCH, SMT, HEXADE |
395 |
|
Datasheet |
SMR | Box | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
DSS 210 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
969 |
|
Datasheet |
DSS | Tube | Active | SPST | 10 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG01ETSWITCH SLIDE DIP SPST 0.025A 24V |
2,221 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

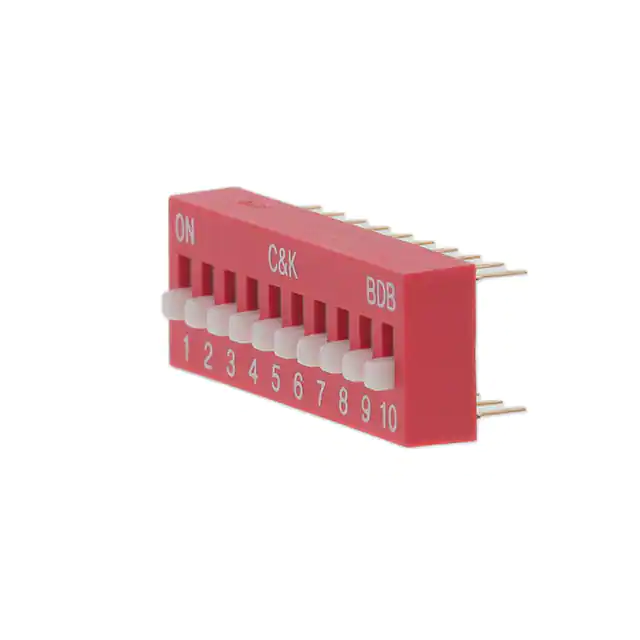

BDB10SWITCH SLIDE DIP SPST 0.025A 25V |
2,135 |
|
- |
BDB | Tube | Obsolete | SPST | 10 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

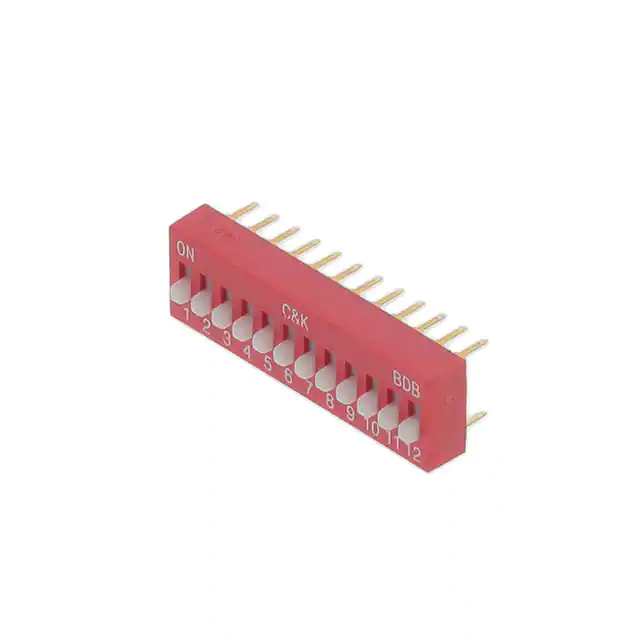

BDB12SWITCH SLIDE DIP SPST 0.025A 25V |
1,854 |
|
- |
BDB | Tube | Obsolete | SPST | 12 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

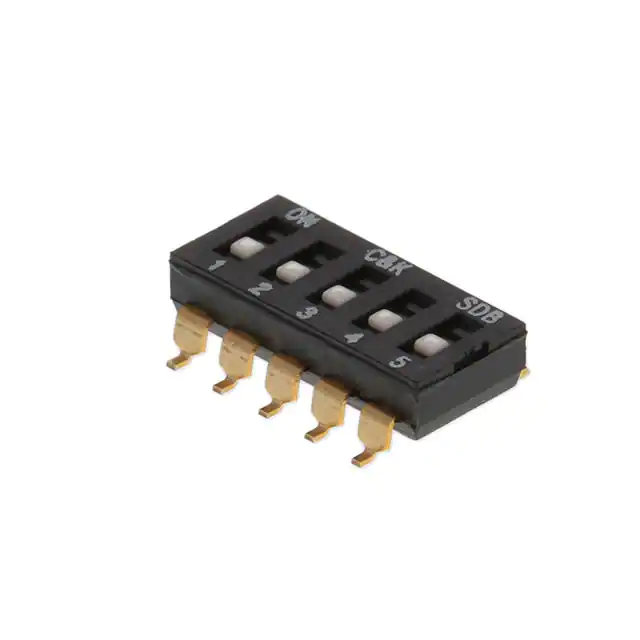

SDB05H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
2,042 |
|
- |
SDB | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
1825059-3SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Bulk | Active | SPST | 2 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
KG04ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,415 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG02ETSWITCH SLIDE DIP SPST 0.025A 24V |
2,410 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
1-1825002-0SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Bulk | Active | SPST | 6 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
1825190-9SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
204-6SRSWITCH SLIDE DIP SPST 0.05A 24V |
1,750 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
3-1825059-1SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 7 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|

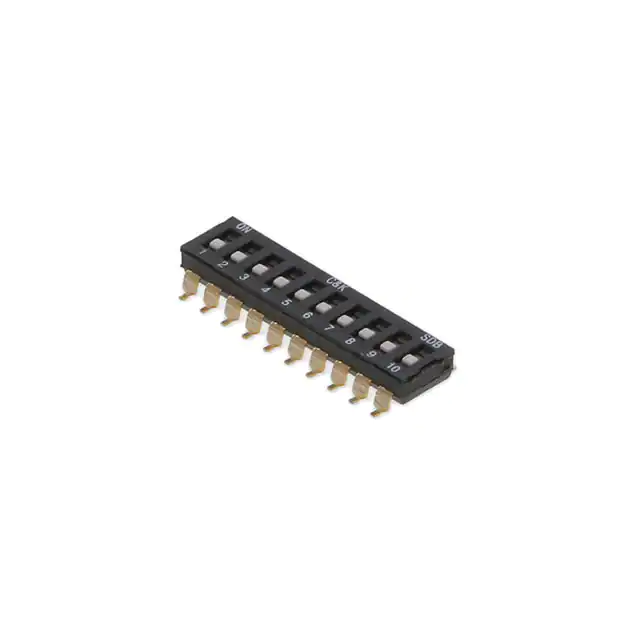

SDB10H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
2,087 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6T 4104RSWITCH SLIDE DIP 0.025A 24V |
2,051 |
|
Datasheet |
A6T | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KR02ETSWITCH SLIDE DIP SPST 0.025A 24V |
320 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
4-1571999-4SWITCH PIANO DIP SPST |
0 |
|
Datasheet |
ADPA | Tube | Active | SPST | 4 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
ADPA0404SWITCH PIANO DIP |
1,424 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KG07ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,386 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
