EMI/RFI Filters (LC, RC Networks)

制造商	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
Abracon LLC Alpha & Omega Semiconductor Inc. Amazing Analog Devices Inc./Maxim Integrated Bourns Inc. California Micro Devices Cirrus Logic Inc. Cornell Dubilier Knowles Electrocube EPCOS - TDK Electronics Fairchild Semiconductor Galco Industrial Electronics ITG Electronics, Inc. KEMET Knowles Syfer KYOCERA AVX Littelfuse Inc. Microchip Technology Murata Electronics Nexperia USA Inc. Nextek NXP Semiconductors onsemi Paktron Phoenix Contact Ranatec Red Lion Controls Semtech Corporation STMicroelectronics Susumu TAIYO YUDEN TDK Corporation TE Connectivity Corcom Filters Texas Instruments Toko America Inc. UNION SEMICONDUCTOR INTERNATIONAL LIMITED Vishay General Semiconductor - Diodes Division Zarlink	* - 4100 4101 4200 4201 4202 4203 4204 4205 4206 4207 4251 4253 4310 4400 4402 4601 4700 5VUS 601 700 ACF ACH AEMIF-0603 AEMIF-0805 AVRF BLF CF ClearONE™ CM1407 CM1410 CM1422 CM1452 CSPEMI608 DSS1 EClamp™ ELKD ELKE ELKEA ELKEV ELKT EMI520xMU EMI7204 EMI7206 EMI7208 EMI720xMU EMI9406 EMI9408 EMIClamp® EMIF EMIFIL®, BNX EMIFIL®, DSS1 EMIFIL®, DSS6 EMIFIL®, DSS9 EMIFIL®, EMIGUARD®, VFR3 EMIFIL®, EMIGUARD®, VFS6 EMIFIL®, EMIGUARD®, VFS9 EMIFIL®, NFA18 EMIFIL®, NFA21 EMIFIL®, NFA31 EMIFIL®, NFE31 EMIFIL®, NFE61 EMIFIL®, NFL15 EMIFIL®, NFL18 EMIFIL®, NFL18ST EMIFIL®, NFL21 EMIFIL®, NFM21H EMIFIL®, NFW31 EMIT EXCCET EXCEMT EZACT EZADLU EZADT EZANT EZAST F2779Y002L F2781Y F2782Y FK FLLDU FN 761X FN 766X FNC GK HPR050 HPR055 HPR100 HPR140 HPR250 HPR400 IPAD™ KNA, Kyocera KNF, Kyocera KNH, Kyocera MEA MEM NUF4401 NUF4402 P409 P410 PCMFXHDMI14S PEMI2STD PEMIxCSP PEMIxQFN PLC PMR205 PMR209 PMR210 Praetorian III® Praetorian® Praetorian™ PSSI Q QAS Quencharc® RCN SBSG SBSM SBSMC SBSP SF200-28 SNUB SP6150 ST1284 STF202-22 TBF TPD USBUF	- 01005 (0402 Metric) 0201 (0603 Metric) 0402 (1005 Metric) 0402 (1005 Metric), 4 PC Pad 0504 (1210 Metric), Array, 6 PC Pad 0504 (1410 Metric), Array, 6 PC Pad 0603 (1608 Metric) 0603 (1608 Metric), 3 PC Pad 0603 (1608 Metric), 4 PC Pad 0603 (1608 Metric), Array, 10 PC Pad 0804 (2010 Metric), Array, 10 PC Pad 0805 (2012 Metric) 0805 (2012 Metric), 3 PC Pad 0805 (2012 Metric), 4 PC Pad 0805 (2012 Metric), 6 PC Pad 0805 (2012 Metric), Array, 10 PC Pad 10-SIP 10-UFBGA, WLCSP 10-WFBGA, CSPBGA 10-WFBGA, FCBGA 10-WFBGA, WLCSP 10-XFBGA, DSBGA 11-SIP 11-UFBGA, FCBGA 11-WFBGA, FCBGA 11-WFBGA, WLCSP 12-DIP Module 12-SIP 12-TDFN Exposed Pad 12-UFBGA, FCBGA 12-UFDFN Exposed Pad 12-VFDFN Exposed Pad 12-WFDFN Exposed Pad 12-XFDFN 12-XFDFN Exposed Pad 1206 (3216 Metric) 1206 (3216 Metric), 3 PC Pad 1206 (3216 Metric), Array, 10 PC Pad 1206 (3216 Metric), Concave, Long Side Terminals 1207 (3218 Metric), 3 PC Pad 1210 (3225 Metric), 3 PC Pad 13-UFDFN Exposed Pad 15-UFBGA, FCBGA 15-UFBGA, WLCSP 15-WFBGA, FCBGA 15-WFBGA, WLCSP 15-WLCSP 15-XFBGA, DSBGA 15-XFBGA, WLCSP 16-SOIC (0.295", 7.50mm Width) 16-UFBGA, CSPBGA 16-UFDFN Exposed Pad 16-UFQFN Exposed Pad 16-VFDFN Exposed Pad 16-VFQFN Exposed Pad 16-WFBGA, FCBGA 16-WFDFN Exposed Pad 16-XFDFN Exposed Pad 1608 (4021 Metric), Concave 17-WFBGA, FCBGA 18-DIP (0.300", 7.62mm) 18-UFBGA 18-UFBGA, WLCSP 18-WFBGA, FCBGA 18-WFBGA, WLCSP 1807 (4518 Metric), 3 PC Pad 1812 (4532 Metric), 3 PC Pad 20-CSP 20-DIP (0.300", 7.62mm) 20-SOIC (0.295", 7.50mm Width) 20-UFBGA, WLCSP 20-WFBGA, FCBGA 20-WFBGA, WLCSP 2220 (5750 Metric), 3 PC Pad 24-UFBGA 24-UFBGA, WLCSP 24-VFQFN Exposed Pad 24-WFBGA, FCBGA 24-WFBGA, WLCSP 25-UFBGA, FCBGA 25-WFBGA, FCBGA 25-WFBGA, WLCSP 2512 (6432 Metric), Concave 27-BGA 2706 (6816 Metric), 3 PC Pad 28-LSSOP (0.154", 3.90mm Width) 3-SIP 3-XFDFN 4-SMD, J-Lead 4-SMD, No Lead 4-UFBGA, FCBGA 4-WFBGA, CSPBGA 4-WFBGA, FCBGA 5-TSSOP, SC-70-5, SOT-353 5-UFBGA, DSBGA 5-UFBGA, WLCSP 5-WFBGA, FCBGA 5-WFBGA, WLCSP 5-XFBGA, WLCSP 5-XFDFN 6-SIP 6-TSSOP, SC-88, SOT-363 6-UFDFN 6-UFDFN Exposed Pad 6-VDFN 6-WDFN Exposed Pad 6-WFBGA, FCBGA 6-WFBGA, WLCSP 6-WFDFN Exposed Pad 6-XFDFN 6-XFDFN Exposed Pad 8-SIP 8-TFDFN Exposed Pad 8-UDFN Exposed Pad 8-UFBGA, CSPBGA 8-UFBGA, FCBGA 8-UFBGA, WLCSP 8-UFDFN 8-UFDFN Exposed Pad 8-VFDFN Exposed Pad 8-WFBGA, FCBGA 8-WFBGA, WLCSP 8-WFDFN Exposed Pad 8-XFDFN 8-XFDFN Exposed Pad 9-CSP 9-SIP 9-UFBGA, FCBGA 9-UFBGA, WLCSP 9-WFBGA, FCBGA Axial - Threaded Terminals Axial, Bushing Axial, Bushing - 1 Turret Lead, 1 Hooked Lead Axial, Bushing - 2 Hooked Leads Axial, Bushing - 2 Notched Leads Axial, Bushing - 2 Solder Eyelets Axial, Bushing, 1 Turret Lead Axial, Eyelet Axial, Eyelet - 1 Turret Lead Axial, Eyelet - Hook Lead Axial, Eyelet - No Lead Axial, Press Fit Block, 4 Lead Cylindrical Module Pill, Round Pill, Square Radial Radial - 3 Leads Radial, Eyelet - PC Pin SC-101, SOT-883 SC-74, SOT-457 SC-75, SOT-416 SOT-23-6 SOT-563, SOT-666 SOT-665 Through Hole - Vertical TO-236-3, SC-59, SOT-23-3	Bag Box Bulk Cut Tape (CT) Retail Package Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Last Time Buy Not For New Designs Obsolete	- Band Pass Band Stop High Pass Low Pass RC Snubber Network	- 1st 2nd 2nd, 3rd 3rd 4th 5th 6th	- LC LC (Pi) LC (Pi), RC (Pi) LC (T-Type) RC RC (Pi) RC (T-Type) RLC Thin Film	- 1 10 11 17 19 2 3 4 5 6 7 8 9	- 1.2MHz (Cutoff) 100MHz (Cutoff) 105MHz (Cutoff) 108MHz (Cutoff) 10MHz (Cutoff) 110MHz (Cutoff) 115MHz (Cutoff) 120MHz (Cutoff) 125MHz (Cutoff) 128MHz (Cutoff) 130MHz (Cutoff) 135MHz (Cutoff) 137MHz (Cutoff) 145MHz (Cutoff) 148MHz 148MHz (Cutoff) 150MHz (Cutoff) 151MHz (Cutoff) 155MHz (Cutoff) 15MHz (Center) 15MHz (Cutoff) 160MHz (Cutoff) 16MHz (Cutoff) 175MHz (Cutoff) 180MHz (Cutoff) 185MHz (Cutoff) 18MHz (Cutoff) 190MHz (Cutoff) 1MHz (Cutoff) 2.45GHz (Center) 20.5MHz (Center) 200kHz (Cutoff) 200MHz (Cutoff) 20MHz (Cutoff) 210MHz (Cutoff) 215MHz (Cutoff) 21MHz (Cutoff) 21MHz, 60MHz (Cutoff) 220MHz (Cutoff) 22MHz (Cutoff) 230MHz (Cutoff) 240MHz (Cutoff) 250MHz (Cutoff) 25MHz (Center) 25MHz (Cutoff) 260MHz (Cutoff) 270MHz (Cutoff) 275MHz (Cutoff) 280MHz (Cutoff) 290MHz (Cutoff) 294MHz, 308MHz (Cutoff) 2MHz (Cutoff) 300MHz (Cutoff) 30MHz (Cutoff) 310MHz (Cutoff) 31MHz (Cutoff) 32.5MHz (Center) 32MHz (Cutoff) 330MHz (Cutoff) 345MHz (Cutoff) 34MHz, 63MHz (Cutoff) 350MHz (Cutoff) 35MHz (Cutoff) 380MHz (Cutoff) 390MHz (Cutoff) 3MHz (Cutoff) 4.43MHz (Center) 400MHz (Cutoff) 40MHz (Cutoff) 410MHz (Cutoff) 420MHz (Cutoff) 430MHz (Cutoff) 450MHz (Cutoff) 480MHz (Cutoff) 500kHz (Cutoff) 500MHz (Cutoff) 50MHz (Cutoff) 53MHz (Cutoff) 550MHz (Cutoff) 55MHz (Cutoff) 58MHz (Cutoff) 5MHz (Cutoff) 60MHz (Cutoff) 60MHz, 70MHz (Cutoff) 64MHz (Cutoff) 65MHz (Cutoff) 6GHz (Cutoff) 70MHz (Cutoff) 75MHz (Cutoff) 77MHz, 85MHz (Cutoff) 7MHz (Cutoff) 800MHz (Cutoff) 80MHz (Cutoff) 86MHz (Cutoff) 8MHz (Cutoff) 900MHz (Cutoff) 90MHz (Cutoff) 95MHz (Cutoff) 98MHz (Cutoff)	- -15dB @ 1.3GHz ~ 2.5GHz -15dB @ 2GHz ~ 6GHz -15dB @ 650MHz ~ 2.5GHz -15dB @ 800MHz ~ 2.2GHz -20dB @ 1GHz ~ 3GHz -20dB @ 200MHz ~ 800MHz -20dB @ 450MHz ~ 1.3GHz -20dB @ 800MHz -20dB @ 800MHz ~ 2.2GHz -20dB @ 800MHz ~ 2.4GHz -20dB @ 800MHz ~ 3GHz -20dB @ 800MHz ~ 5GHz -20dB @ 900MHz ~ 3GHz -22.5dB @ 800MHz ~ 5GHz -23dB @ 800MHz ~ 6GHz -24dB @ 800MHz, -41dB @ 2 ~ 5GHz -25dB @ 100MHz ~ 350MHz -25dB @ 10MHz ~ 300MHz -25dB @ 3.5MHz ~ 200MHz -25dB @ 30MHz ~ 200MHz -25dB @ 55MHz ~ 300MHz -25dB @ 800MHz ~ 2.2GHz -25dB @ 800MHz ~ 3GHz -25dB @ 800MHz ~ 4GHz -25dB @ 800MHz ~ 5GHz -25dB @ 800MHz ~ 6GHz -25dB @ 900MHz -25dB @ 900MHz ~ 3GHz -28dB @ 900MHz -29dB @ 800MHz ~ 1GHz -30dB @ 700MHz ~ 3GHz -30dB @ 800MHz -30dB @ 800MHz ~ 2.4GHz -30dB @ 800MHz ~ 3GHz -30dB @ 800MHz ~ 5GHz -30dB @ 800MHz ~ 6GHz -30dB @ 800MHz ~ 900MHz -30dB @ 900MHz -30dB @ 900MHz ~ 3GHz -31.5dB @ 800MHz, 25dB @ 2 ~ 5GHz -33dB @ 900MHz -34dB @ 900MHz ~ 1.8GHz -35dB @ 1GHz -35dB @ 1GHz ~ 3GHz -35dB @ 800MHz ~ 2.2GHz -35dB @ 800MHz ~ 2.7GHz -35dB @ 800MHz ~ 3GHz -35dB @ 900MHz -35dB @ 900MHz ~ 2.4GHz -35dB @ 900MHz ~ 2GHz -36dB @ 800MHz, -32dB @ 2 ~ 5GHz -3dB @ 21MHz -3dB @ 84MHz -40dB @ 800MHz ~ 2.2GHz -40dB @ 900MHz -7dB @ 5MHz 0.3dB @ 1MHz 100dB @ 100MHz ~ 1GHz 100dB @ 1MHz ~ 10GHz 100dB @ 30MHz ~ 10GHz 10dB @ 100MHz 10dB @ 1GHz 10dB @ 1MHz, 30dB @ 10MHz, 42dB @ 100MHz, 45dB @ 200MHz, 60dB @ 1GHz, 60dB @ 10GHz 10dB @ 500MHz 10dB @ 800MHz ~ 3GHz 11dB @ 800MHz ~ 3GHz 12dB @ 800MHz ~ 3GHz 13dB @ 500MHz 13dB @ 800MHz ~ 3GHz 14dB @ 100MHz 14dB @ 800MHz ~ 3GHz 15dB @ 10MHz, 55dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 15dB @ 150MHz ~ 1GHz 15dB @ 15MHz ~ 1GHz 15dB @ 30kHz, 28dB @ 150kHz, 33dB @ 300kHz, 44dB @ 1MHz, 60dB @ 10MHz, 70dB @ 1GHz 15dB @ 30kHz, 28dB @ 50kHz, 33dB @ 300kHz, 44dB @ 1MHz, 60dB @ 10MHz, 70dB @ 1GHz, 70dB @ 10GHz 15dB @ 40MHz ~ 1GHz 15dB @ 450MHz ~ 1GHz 15dB @ 500MHz 15dB @ 5MHz, 60dB @ 20MHz, 60dB @ 50MHz, 65dB @ 1GHz, 65dB @ 10GHz 15dB @ 60MHz ~ 1GHz 15dB @ 700MHz ~ 1.5GHz 15dB @ 800MHz 15dB @ 800MHz ~ 3GHz 15dB @ 80MHz ~ 1GHz 15dB @ 900MHz 16.9dB @ 800MHz ~ 4GHz 16dB @ 100MHz 16dB @ 1GHz 16dB @ 800MHz ~ 3GHz 17dB @ 800MHz ~ 3GHz 18dB @ 10kHz, 32dB @ 100kHz, 68dB @ 1MHz, 100dB @ 10MHz, 100dB @ 100MHz, 100dB @ 1GHz 18dB @ 800MHz ~ 3GHz 18dB @ 900MHz 19dB @ 800MHz ~ 3GHz 20dB @ 1.1GHz ~ 2GHz 20dB @ 1.5GHz ~ 2GHz 20dB @ 1.5GHz ~ 3GHz 20dB @ 1.71 ~ 1.91GHz, 30dB @ 4.8 ~ 5GHz 20dB @ 100MHz 20dB @ 10MHz, 50dB @ 50MHz, 65dB @ 100MHz, 70dB @ 200MHz, 70dB @ 1GHz, 70dB @ 10GHz 20dB @ 150MHz ~ 1.2GHz 20dB @ 1GHz 20dB @ 1GHz ~ 2GHz 20dB @ 1GHz ~ 3GHz 20dB @ 2.1GHz 20dB @ 2.4GHz 20dB @ 2.7GHz 20dB @ 200MHz ~ 2GHz 20dB @ 200MHz ~ 600MHz 20dB @ 250MHz ~ 2GHz 20dB @ 300MHz ~ 1.7GHz 20dB @ 300MHz ~ 1GHz 20dB @ 300MHz ~ 2GHz 20dB @ 350MHz ~ 2GHz 20dB @ 350MHz ~ 850MHz 20dB @ 400Hz ~ 2GHz 20dB @ 400MHz ~ 1.7GHz 20dB @ 400MHz ~ 2GHz 20dB @ 40MHz ~ 900MHz 20dB @ 450MHz ~ 2GHz 20dB @ 450MHz ~ 950MHz 20dB @ 470MHz ~ 3GHz 20dB @ 500MHz 20dB @ 500MHz ~ 1GHz 20dB @ 500MHz ~ 2GHz 20dB @ 500MHz ~ 600MHz 20dB @ 500MHz ~ 800MHz 20dB @ 550MHz ~ 2GHz 20dB @ 600MHz ~ 1.1GHz 20dB @ 600MHz ~ 2GHz 20dB @ 700MHz 20dB @ 700MHz ~ 1.2GHz 20dB @ 700MHz ~ 2GHz 20dB @ 70MHz ~ 2GHz 20dB @ 800MHz 20dB @ 800MHz ~ 1GHz 20dB @ 800MHz ~ 2.7GHz 20dB @ 800MHz ~ 2GHz 20dB @ 800MHz ~ 3GHz 20dB @ 800MHz ~ 4GHz 20dB @ 800MHz ~ 5GHz 20dB @ 80MHz ~ 1GHz 20dB @ 900MHz 20dB @ 900MHz ~ 2GHz 20dB @ 90MHz ~ 2GHz 21dB @ 800MHz ~ 3GHz 23dB @ 800MHz ~ 3GHz 24dB @ 100MHz 24dB @ 800MHz ~ 3GHz 25dB @ 1.71 ~ 1.91GHz, 30dB @ 880 ~ 960MHz 25dB @ 100MHz 25dB @ 100MHz ~ 200MHz 25dB @ 100MHz ~ 220MHz 25dB @ 115MHz ~ 205MHz 25dB @ 11MHz ~ 55MHz 25dB @ 11MHz ~ 70MHz 25dB @ 120MHz ~ 180MHz 25dB @ 120MHz ~ 300MHz 25dB @ 130MHz ~ 210MHz 25dB @ 150MHz ~ 250MHz 25dB @ 15MHz ~ 120MHz 25dB @ 15MHz ~ 200MHz 25dB @ 15MHz ~ 75MHz 25dB @ 170MHz ~ 250MHz 25dB @ 17MHz ~ 60MHz 25dB @ 190MHz ~ 290MHz 25dB @ 1GHz 25dB @ 200MHz ~ 300MHz 25dB @ 200MHz ~ 350MHz 25dB @ 205MHz ~ 280MHz 25dB @ 20MHz ~ 85MHz 25dB @ 22MHz ~ 75MHz 25dB @ 235MHz ~ 335MHz 25dB @ 25MHz ~ 120MHz 25dB @ 25MHz ~ 90MHz 25dB @ 265MHz ~ 340MHz 25dB @ 290MHz ~ 395MHz 25dB @ 295MHz ~ 395MHz 25dB @ 300MHz ~ 450MHz 25dB @ 30MHz ~ 85MHz 25dB @ 340MHz ~ 420MHz 25dB @ 350MHz ~ 500MHz 25dB @ 35MHz ~ 100MHz 25dB @ 35MHz ~ 180MHz 25dB @ 35MHz ~ 200MHz 25dB @ 360MHz ~ 460MHz 25dB @ 37MHz ~ 90MHz 25dB @ 40MHz ~ 110MHz 25dB @ 420MHz ~ 500MHz 25dB @ 450MHz ~ 550MHz 25dB @ 45MHz ~ 105MHz 25dB @ 45MHz ~ 200MHz 25dB @ 500MHz 25dB @ 500MHz ~ 600MHz 25dB @ 50MHz ~ 130MHz 25dB @ 50MHz ~ 200MHz 25dB @ 50MHz, 45dB @ 100MHz, 60dB @ 1GHz, 60dB @ 10GHz 25dB @ 530MHz ~ 650MHz 25dB @ 550MHz ~ 650MHz 25dB @ 550MHz ~ 700MHz 25dB @ 600MHz ~ 700MHz 25dB @ 60MHz ~ 115MHz 25dB @ 65MHz ~ 150MHz 25dB @ 65MHz ~ 200MHz 25dB @ 6MHz ~ 60MHz 25dB @ 70MHz ~ 200MHz 25dB @ 75MHz ~ 160MHz 25dB @ 7MHz ~ 60MHz 25dB @ 800MHz 25dB @ 800MHz ~ 1GHz 25dB @ 800MHz ~ 3GHz 25dB @ 800MHz ~ 6GHz 25dB @ 80MHz ~ 140MHz 25dB @ 900MHz 25dB @ 95MHz ~ 150MHz 25dB @ 95MHz ~ 180MHz 25dB @ 9MHz ~ 65MHz 26dB @ 900MHz 27dB @ 800MHz ~ 3GHz 28dB @ 800MHz ~ 3GHz 2dB @ 100MHz 30dB @ 1.8GHz 30dB @ 1.8GHz ~ 2.5GHz 30dB @ 100MHz 30dB @ 1GHz 30dB @ 1GHz ~ 2.5GHz 30dB @ 1GHz ~ 3GHz 30dB @ 1GHz ~ 4GHz 30dB @ 200MHz ~ 1GHz 30dB @ 200MHz ~ 2GHz 30dB @ 30MHz ~ 1.5GHz 30dB @ 400MHz ~ 2GHz 30dB @ 470MHz ~ 1GHz 30dB @ 500MHz 30dB @ 500MHz ~ 1GHz 30dB @ 530MHz ~ 2.5GHz 30dB @ 530MHz ~ 2GHz 30dB @ 700MHz ~ 3GHz 30dB @ 70MHz ~ 2GHz 30dB @ 750MHz ~ 850MHz 30dB @ 800MHz ~ 1GHz 30dB @ 800MHz ~ 2.4GHz 30dB @ 800MHz ~ 2.7GHz 30dB @ 800MHz ~ 2GHz 30dB @ 800MHz ~ 3GHz 30dB @ 800MHz ~ 6GHz 30dB @ 900MHz 30dB @ 900MHz ~ 1.8GHz 30dB @ 90MHz ~ 2.5GHz 30dB @ 90MHz ~ 2GHz 32dB @ 50MHz, 45dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 32dB @ 800MHz ~ 3GHz 33dB @ 800MHz ~ 3GHz 34dB @ 100MHz 35dB @ 100kHz ~ 1GHz 35dB @ 100MHz 35dB @ 15kHz ~ 1GHz 35dB @ 1GHz 35dB @ 1MHz ~ 1GHz 35dB @ 30kHz ~ 1GHz 35dB @ 40kHz ~ 1GHz 35dB @ 50kHz ~ 1GHz 35dB @ 800MHz ~ 2.7GHz 35dB @ 800MHz ~ 2.7GHz, 40dB @ 1GHz 35dB @ 800MHz ~ 2GHz 37dB @ 100MHz 38dB @ 100MHz 39dB @ 100MHz 3dB @ 100MHz 3dB @ 150MHz, 16dB @ 1GHz, 35dB @ 5GHz, 42dB @ 10GHz 3dB @ 21MHz 3dB @ 3.73MHz ~ 5.13MHz 3dB @ 4MHz, 5dB @ 10MHz, 20dB @ 100MHz, 40dB @ 500MHz, 50dB @ 18GHz 40dB @ 100kHz ~ 1GHz 40dB @ 100MHz 40dB @ 1GHz 40dB @ 1GHz ~ 3GHz 40dB @ 1MHz ~ 1GHz 40dB @ 5MHz ~ 1GHz 40dB @ 700MHz 40dB @ 800MHz ~ 1.5GHz 40dB @ 800MHz ~ 2.7GHz 40dB @ 800MHz ~ 3GHz 40dB @ 900MHz 41dB @ 100MHz 43dB @ 100MHz 44dB @ 100MHz 45dB @ 100MHz 45dB @ 100MHz, 60dB @ 1GHz, 60dB @ 10GHz 45dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 45dB @ 1GHz ~ 10GHz 45dB @ 800MHz ~ 2.2GHz 45dB @ 800MHz ~ 2GHz 45dB @ 800MHz ~ 3GHz 45dB @ 800MHz ~ 6GHz 45dB @ 900MHz 4dB @ 100MHz 50dB @ 100MHz 50dB @ 100MHz ~ 10GHz 50dB @ 100MHz, 60dB @ 100MHz, 60dB @ 10GHz 50dB @ 200MHz ~ 10GHz 50dB @ 200MHz, 50dB @ 300MHz, 50dB @ 1GHz, 50dB @ 10GHz 50dB @ 50MHz, 65dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 50dB @ 50MHz, 65dB @ 100MHz, 70dB @ 200MHz, 70dB @ 1GHz, 70dB @ 10GHz 50dB @ 800MHz ~ 3GHz 50dB @ 800MHz ~ 6GHz 52dB @ 100MHz 55dB @ 100MHz 55dB @ 100MHz, 70dB @ 1GHz 55dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 57dB @ 100MHz 5dB @ 10MHz, 35dB @ 100MHz, 50dB @ 1GHz, 50dB @ 10GHz 5dB @ 10MHz, 45dB @ 100MHz, 68dB @ 500MHz, 40dB @ 10GHz 5dB @ 500MHz 5dB @ 50MHz, 50dB @ 100MHz, 60dB @ 1GHz, 60dB @ 10GHz 60dB @ 100MHz 60dB @ 1GHz ~ 10GHz 60dB @ 900MHz 63.4dB @ 325kHz 65dB @ 100MHz 65dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz 65dB @ 1GHz ~ 10GHz 68dB @ 100MHz 6dB @ 0MHz ~ 100MHz 6dB @ 0MHz ~ 150MHz 6dB @ 0MHz ~ 200MHz 6dB @ 0MHz ~ 300MHz 6dB @ 0MHz ~ 500MHz 6dB @ 0MHz ~ 50MHz 6dB @ 0MHz ~ 70MHz 6dB @ 100MHz 6dB @ 330MHz 6dB @ 500MHz 70dB @ 100MHz ~ 10GHz 70dB @ 1GHz 70dB @ 1GHz ~ 10GHz 75dB @ 100MHz ~ 10GHz 7dB @ 100MHz 7dB @ 500MHz 7dB @ 5MHz 7dB @ 800MHz ~ 3GHz 80dB @ 100MHz 9dB @ 800MHz ~ 3GHz	- 0.00024 0.00025 0.00028 0.00042 0.00043 0.00047 0.00065 0.0007 0.00092 0.00106 0.0012 0.00152 0.002 0.01 0.02 0.025 0.05 0.06 0.07 0.08 0.1 0.12 0.15 0.2 0.25 0.28 0.35 0.5 0.75 0.8 0.85 0.9 1 1.05k 1.3 1.4 1.5 1.8 10 10, 40, 1.45k 10, 50 10, 68 100 110 12.5 120 125 15 15, 15k 150 170 18 1k 2 2.25k 2.2k 2.4 20 200 22 220 240 25 25, 2.2k 27, 15k 28 3 3.5 3.6 30 33 33, 1.3k 33, 1.3k, 10k 33, 1.3k, 17k, 15k 33, 1.5k 330 39 4.7k 40 40, 25k, 50k 45 47 47, 100 47, 13k, 56k 470 5, 20 50 51, 55 55 6.8 60 64 65 68 70 75 8 82 9 90 95	- 1 A 1.5 A 10 A 10 mA 100 A 100 mA 13 mA 140 A 15 A 15 mA 150 mA 16 A 2 A 2.2 A 2.5 A 20 A 20 mA 200 A 200 mA 25 A 25 mA 250 A 250 mA 3 A 3 mA 30 mA 300 A 300 mA 32 A 33 mA 35 mA 350 mA 4 A 40 A 400 A 5 A 50 A 50 mA 500 mA 55 A 6 A 625 mA 63 A 7 A 7 mA 700 mA 75 A 75 mA 8.5 A 800 mA 90 mA	- C = 0.012µF C = 0.015µF C = 0.01µF C = 0.022µF C = 0.023µF C = 0.025µF C = 0.027µF C = 0.028µF C = 0.033µF C = 0.047µF C = 0.05µF C = 0.068µF C = 0.15µF C = 0.1µF C = 0.22µF C = 0.33µF C = 0.3µF C = 0.47µF C = 0.68µF C = 1.2µF, 2.4µF C = 1.4µF C = 10000pF C = 1000pF C = 100pF C = 100µF C = 1050pF C = 10pF C = 10µF C = 115pF C = 120pF C = 12pF C = 130pF C = 1500pF C = 1500pF, 3000pF C = 150pF C = 15pF C = 160pF C = 16pF C = 1750pF C = 17pF C = 180pF C = 18pF C = 1µF C = 2.2µF C = 2.4µF C = 2000pF C = 22000pF C = 2200pF C = 220pF C = 22pF C = 22µF C = 235pF C = 2500pF C = 250pF C = 250pF (Total) C = 270pF C = 27pF C = 28pF (Total) C = 3000pF C = 30pF C = 3300pF C = 330pF C = 33pF C = 3500pF C = 35pF C = 360pF C = 36pF C = 4.7µF C = 4000pF C = 40pF C = 430pF C = 44pF C = 4500pF C = 4500pF, 9000pF C = 45pF C = 4700pF C = 470nF C = 470pF C = 47pF C = 47µF C = 4pF C = 5000pF C = 5000pF, 10000pF C = 54pF C = 5500pF C = 560pF C = 6.8pF C = 6000pF, 0.011µF C = 60pF C = 65pF C = 6800pF C = 680pF C = 68pF C = 6pF C = 7500pF C = 8.2pF C = 860pF C = 8pF C= 130pF L = 0.1µH, C = 1000pF L = 0.1µH, C = 1000pF, 1500pF L = 0.1µH, C = 100pF L = 0.1µH, C = 2000pF L = 0.1µH, C = 4000pF L = 0.1µH, C = 470pF L = 0.1µH, C = 5000pF L = 0.1µH, C = 6800pF L = 0.1µH, C = 8200pF L = 100nH, C = 34pF L = 105nH, C = 17pF L = 10nH, C = 64pF L = 110nH, C = 22pF L = 110nH, C = 25pF L = 115nH, C = 22pF L = 124nH, C = 0.47µF L = 128nH, C = 28pF L = 12nH, C = 16.5pF L = 12nH, C = 18pF L = 135nH, C = 44pF L = 140nH, C = 32pF L = 140nH, C = 40pF L = 150nH, C = 50pF L = 15nH (Total), C = 25pF (Total) L = 17nH (Total), C = 11.8pF L = 17nH, C = 12pF L = 17nH, C = 14pF L = 17nH, C = 15pF L = 17nH, C = 16pF L = 185nH, C = 76pF L = 186nH, C = 0.015µF L = 186nH, C = 0.47µF L = 186nH, C = 1µF L = 18nH (Total), C = 25pF (Total) L = 19nH, C = 12pF L = 1nH, C = 2.5pF L = 2.3nH, C = 240pF L = 2.9nH, C = 250pF L = 20nH (Total), C = 10pF L = 230nH, C = 70pF L = 26nH (Total), C = 22pF (Total) L = 26nH, C = 22pF (Total) L = 28nH, C = 12pF L = 2nH, C = 100pF L = 2µH, C = 820pF L = 2µH, C = 82pF L = 305nH, C = 84pF L = 31nH, C = 12pF L = 34nH (Total), C = 28.5pF (Total) L = 34nH, C = 16pF L = 350nH, C = 110pF L = 35nH, C = 15pF L = 35nH, C = 24pF L = 38nH, C = 11pF L = 3nH (Total), C = 190pF (Total) L = 3nH, C = 100pF L = 3nH, C = 117pF L = 4.9nH, C = 205pF L = 40nH (Total), C = 42pF (Total) L = 40nH, C = 42pF L = 42nH, C = 10pF L = 43nH, C = 10pF L = 45nH, C = 19pF L = 58nH, C = 10000pF L = 60nH (Total), C = 25pF (Total) L = 60nH, C = 19pF L = 60nH, C = 7pF L = 62nH, C = 18pF L = 680nH, C = 670pF L = 700nH, C = 240pF L = 700µH, C = 4pF ~ 750pF L = 70nH (Total), C = 11.5pF (Total) L = 70nH (Total), C = 12.5pF (Total) L = 70nH, C = 0.022µF L = 70nH, C = 0.047µF L = 70nH, C = 0.1µF L = 70nH, C = 10000pF L = 72nH, C = 22pF L = 74nH, C = 16pF L = 80nH, C = 24pF L = 95nH, C = 12pF R = 0.05Ohms, C = 10000pF R = 0.05Ohms, C = 1000pF R = 0.05Ohms, C = 100pF R = 0.05Ohms, C = 2200pF R = 0.05Ohms, C = 220pF R = 0.05Ohms, C = 22pF R = 0.05Ohms, C = 270pF R = 0.05Ohms, C = 470pF R = 0.05Ohms, C = 47pF R = 0.8Ohms R = 0.9Ohms, C = 290pF R = 1.05kOhms, C = 1000pF R = 1.5Ohms R = 100Ohm, C = 0.1µF R = 100Ohm, C = 10pF R = 100Ohm, C = 17pF R = 100Ohm, C = 30pF (Total) R = 100Ohm, C = 45pF R = 100Ohms, C = 0.022µF R = 100Ohms, C = 0.047µF R = 100Ohms, C = 0.1µF R = 100Ohms, C = 0.22µF R = 100Ohms, C = 0.25µF R = 100Ohms, C = 0.47µF R = 100Ohms, C = 0.5µF R = 100Ohms, C = 1000pF R = 100Ohms, C = 100pF R = 100Ohms, C = 10pF R = 100Ohms, C = 10pF (Total) R = 100Ohms, C = 11pF R = 100Ohms, C = 11pF (Total) R = 100Ohms, C = 12pF R = 100Ohms, C = 12pF (Total) R = 100Ohms, C = 13.5pF (Total) R = 100Ohms, C = 13pF R = 100Ohms, C = 150pF R = 100Ohms, C = 15pF R = 100Ohms, C = 16pF R = 100Ohms, C = 16pF (Total) R = 100Ohms, C = 17pF R = 100Ohms, C = 18.5pF (Total) R = 100Ohms, C = 19pF (Total) R = 100Ohms, C = 200pF R = 100Ohms, C = 20pF R = 100Ohms, C = 21pF (Total) R = 100Ohms, C = 220pF R = 100Ohms, C = 22nF R = 100Ohms, C = 22pF R = 100Ohms, C = 23pF (Total) R = 100Ohms, C = 24pF R = 100Ohms, C = 25pF R = 100Ohms, C = 27pF R = 100Ohms, C = 28pF R = 100Ohms, C = 28pF (Total) R = 100Ohms, C = 30pF R = 100Ohms, C = 30pF (Total) R = 100Ohms, C = 30pF, 80pF, L = 3nH R = 100Ohms, C = 33nF R = 100Ohms, C = 36pF R = 100Ohms, C = 37pF R = 100Ohms, C = 45pF R = 100Ohms, C = 45pF (Total) R = 100Ohms, C = 470pF R = 100Ohms, C = 47nF R = 100Ohms, C = 47pF R = 100Ohms, C = 50pF R = 100Ohms, C = 53pF (Total) R = 100Ohms, C = 54pF R = 100Ohms, C = 5µF R = 100Ohms, C = 60pF R = 100Ohms, C = 60pF (Total) R = 100Ohms, C = 68nF R = 100Ohms, C = 7pF R = 100Ohms, C = 8.5pF R = 100Ohms, C = 8.5pF (Total) R = 100Ohms, C = 8pF R = 100Ohms, C = 90pF R = 100Ohms, C = 9pF R = 100Ohms, C = 9pF (Total) R = 10Ohms, C = 22pF R = 10Ohms, 50Ohms, C = 50pF, 100pF, 1000pF R = 10Ohms, 68Ohms, C = 47pF, 100pF R = 10Ohms, C = 100pF R = 10Ohms, C = 10pF R = 10Ohms, C = 200pF R = 10Ohms, C = 200pF (Total) R = 10Ohms, C = 20pF R = 10Ohms, C = 220pF R = 110Ohms, C = 22pF R = 120Ohms, C = 100pF R = 120Ohms, C = 56pF R = 150Ohm, C = 0.1µF R = 150Ohms, C = 0.1µF R = 150Ohms, C = 0.22µF R = 150Ohms, C = 0.25µF R = 150Ohms, C = 0.47µF R = 150Ohms, C = 0.5µF R = 15Ohms, 15kOhms, C = 47pF R = 15Ohms, C = 3200pF R = 15Ohms, C = 42pF R = 15Ohms, C = 47pF R = 15Ohms, C = 5000pF R = 170Ohms, C = 14pF R = 170Ohms, C = 14pF (Total) R = 1kOhm, C = 12pF R = 1kOhm, C = 24pF R = 1kOhms (Total), C = 50pF (Total) R = 1kOhms, C = 1000pF R = 1kOhms, C = 100pF R = 1kOhms, C = 220pF R = 1kOhms, C = 22pF R = 1kOhms, C = 470pF R = 1kOhms, C = 47pF R = 1Ohm R = 1Ohm, C = 4.5pF R = 2.25kOhms, C = 4000pF R = 2.2kOhms, C = 1700pF R = 200Ohms (Total), C = 50pF (Total) R = 200Ohms, C = 11pF (Total) R = 200Ohms, C = 12pF R = 200Ohms, C = 13.5pF (Total) R = 200Ohms, C = 15pF R = 200Ohms, C = 16pF (Total) R = 200Ohms, C = 18.5pF (Total) R = 200Ohms, C = 21pF (Total) R = 200Ohms, C = 23pF (Total) R = 200Ohms, C = 30pF (Total) R = 200Ohms, C = 45pF R = 200Ohms, C = 45pF (Total) R = 200Ohms, C = 7.5pF R = 200Ohms, C = 8.5pF (Total) R = 20Ohms, C = 11pF (Total) R = 20Ohms, C = 13.5pF (Total) R = 20Ohms, C = 16pF (Total) R = 20Ohms, C = 18.5pF (Total) R = 20Ohms, C = 21pF (Total) R = 20Ohms, C = 23pF (Total) R = 20Ohms, C = 8.5pF (Total) R = 220Ohm, C = 0.1µF R = 220Ohm, C = 0.5µF R = 220Ohm, C = 1µF R = 220Ohms, C = 0.1µF R = 220Ohms, C = 0.22µF R = 220Ohms, C = 0.47µF R = 220Ohms, C = 0.5µF R = 220Ohms, C = 100pF R = 220Ohms, C = 220pF R = 220Ohms, C = 22pF R = 220Ohms, C = 470pF R = 220Ohms, C = 47pF R = 22Ohm, C = 0.5µF R = 22Ohms, C = 0.1µF R = 22Ohms, C = 0.22µF R = 22Ohms, C = 0.25µF R = 22Ohms, C = 0.5µF R = 22Ohms, C = 1.0µF R = 22Ohms, C = 1000pF R = 22Ohms, C = 100pF R = 22Ohms, C = 10pF R = 22Ohms, C = 220pF R = 22Ohms, C = 22pF R = 22Ohms, C = 30pF (Total) R = 22Ohms, C = 42pF (Total) R = 22Ohms, C = 47pF R = 22Ohms, C = 68pF R = 25Ohms, 2.2kOhms, C = 830pF, 1250pF R = 25Ohms, C = 0.5pF R = 25Ohms, C = 100pF R = 25Ohms, C = 11pF R = 25Ohms, C = 180pF R = 25Ohms, C = 1pF R = 25Ohms, C = 200pF R = 25Ohms, C = 2pF R = 25Ohms, C = 3pF R = 25Ohms, C = 4.5pF R = 25Ohms, C = 50pF R = 25Ohms, C = 5pF R = 25Ohms, C = 6.5pF R = 27Ohms, 15kOhms, C = 47pF R = 28Ohms, C = 17pF, L = 1nH R = 2Ohms, C = 117pF R = 3.6Ohms, C = 33pF, L = 22.1nH R = 30Ohms, C = 37pF R = 30Ohms, C = 55pF (Total) R = 330Ohms, C = 0.1µF R = 330Ohms, C = 0.22µF R = 33Ohm, C = 0.5µF R = 33Ohms, 1.3kOhms, 10kOhms, C = 50pF R = 33Ohms, 1.3kOhms, C = 30pF R = 33Ohms, 1.3kOhms, C = 40pF R = 33Ohms, 1.5kOhms, C = 30pF R = 33Ohms, 1.5kOhms, C = 35pF R = 33Ohms, 2.2kOhms, C = 150pF R = 33Ohms, 4.7kOhms, C = 150pF R = 33Ohms, 4.7kOhms, C = 180pF R = 33Ohms, C = 0.1µF R = 33Ohms, C = 0.22µF R = 33Ohms, C = 0.47µF R = 33Ohms, C = 20pF R = 33Ohms, C = 27pF R = 33Ohms, C = 36pF R = 33Ohms, C = 47pF R = 39Ohms, C = 0.1µF R = 39Ohms, C = 120pF R = 3Ohm, C = 0.25pF R = 4.7kOhms, C = 1000pF R = 40Ohms R = 40Ohms, C = 10pF R = 40Ohms, C = 11pF R = 40Ohms, C = 12pF (Total) R = 40Ohms, C = 12pF, L = 20nH R = 40Ohms, C = 15pF R = 40Ohms, C = 17pF (Total) R = 40Ohms, C = 18pF R = 40Ohms, C = 20pF R = 40Ohms, C = 7.5pF R = 40Ohms, C = 7.5pF (Total) R = 40Ohms, C = 7pF (Total) R = 40Ohms, C = 9pF (Total) R = 45Ohms, C = 11pF R = 45Ohms, C = 11pF (Total) R = 45Ohms, C = 12pF R = 45Ohms, C = 13.5pF (Total) R = 45Ohms, C = 15pF R = 45Ohms, C = 16pF (Total) R = 45Ohms, C = 18.5pF (Total) R = 45Ohms, C = 20pF (Total) R = 45Ohms, C = 21pF (Total) R = 45Ohms, C = 23pF (Total) R = 45Ohms, C = 8.5pF (Total) R = 470Ohm, C = 0.25µF R = 470Ohm, C = 0.5µF R = 470Ohms, C = 0.1µF R = 470Ohms, C = 0.22µF R = 470Ohms, C = 1000pF R = 470Ohms, C = 100pF R = 470Ohms, C = 16pF R = 470Ohms, C = 22pF R = 470Ohms, C = 470pF R = 470Ohms, C = 47pF R = 47Ohm, 100Ohm, C = 13pF R = 47Ohm, C = 0.1µF R = 47Ohm, C = 0.25µF R = 47Ohm, C = 0.5µF R = 47Ohm, C = 1µF R = 47Ohms, 100Ohm, C = 6pF R = 47Ohms, 100Ohms, C = 10pF R = 47Ohms, 100Ohms, C = 11pF (Total) R = 47Ohms, 100Ohms, C = 12pF R = 47Ohms, 100Ohms, C = 16.5pF (Total) R = 47Ohms, 100Ohms, C = 16.7pF R = 47Ohms, 100Ohms, C = 17pF R = 47Ohms, 100Ohms, C = 17pF (Total) R = 47Ohms, 100Ohms, C = 20pF R = 47Ohms, 100Ohms, C = 23pF (Total) R = 47Ohms, 100Ohms, C = 35pF R = 47Ohms, 100Ohms, C = 40pF (Total) R = 47Ohms, 100Ohms, C = 6pF (Total) R = 47Ohms, 13kOhms, 56kOhms, C = 20pF R = 47Ohms, C = 0.047µF R = 47Ohms, C = 0.1µF R = 47Ohms, C = 0.22µF R = 47Ohms, C = 0.25µF R = 47Ohms, C = 0.47µF R = 47Ohms, C = 0.5µF R = 47Ohms, C = 1000pF R = 47Ohms, C = 100pF R = 47Ohms, C = 10pF R = 47Ohms, C = 1µF R = 47Ohms, C = 200pF R = 47Ohms, C = 22pF R = 47Ohms, C = 25pF R = 47Ohms, C = 470pF R = 47Ohms, C = 47pF R = 5.225kOhms (Total), C = 2.05nF (Total) R = 50Ohm, C = 0.5µF R = 50Ohms, C = 0.1µF R = 50Ohms, C = 100pF R = 50Ohms, C = 15pF R = 50Ohms, C = 17pF R = 50Ohms, C = 20pF R = 50Ohms, C = 20pF (Total) R = 50Ohms, C = 37pF R = 50Ohms, C = 8.5pF R = 51Ohms, 55Ohms, C = 180pF R = 55Ohms, C = 250pF (Total) R = 57Ohms (Total), C = 20pF R = 5Ohms, 20Ohms, C = 550pF R = 6.8Ohms, C = 100pF R = 6.8Ohms, C = 10pF R = 60Ohms, C = 90pF R = 64Ohms, C = 50pF R = 65Ohms, C = 11pF (Total) R = 65Ohms, C = 13.5pF (Total) R = 65Ohms, C = 16pF (Total) R = 65Ohms, C = 18.5pF (Total) R = 65Ohms, C = 21pF (Total) R = 65Ohms, C = 23pF (Total) R = 65Ohms, C = 8.5pF (Total) R = 680Ohms, C = 0.1µF R = 68Ohms, C = 0.1µF R = 68Ohms, C = 0.22µF R = 68Ohms, C = 0.47µF R = 68Ohms, C = 100pF R = 68Ohms, C = 110pF R = 68Ohms, C = 45pF R = 68Ohms, C = 47pF R = 68Ohms, C = 76pF, 105pF, L = 1.5nH R = 70Ohms, C = 17pF R = 70Ohms, C = 30pF R = 70Ohms, C = 30pF (Total) R = 70Ohms, C = 50pF R = 70Ohms, C = 85pF R = 75Ohms, C = 30pF R = 75Ohms, C = 330pF R = 75Ohms, C = 36pF R = 800mOhms, C = 315pF R = 82Ohms, C = 200pF R = 82Ohms, C = 68pF R = 95Ohms, C = 41.5pF R = 9Ohms, C = 60pF	- No Yes	- -20°C ~ 85°C -25°C ~ 55°C -25°C ~ 85°C -30°C ~ 125°C -30°C ~ 85°C -35°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 80°C -40°C ~ 85°C -40°C ~ 85°C (TA) -45°C ~ 105°C -45°C ~ 85°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 85°C 0°C ~ 70°C 10°C ~ 85°C 150°C	- Audio Bluetooth, GPS, WLAN Bluetooth, WLAN Data Lines for Mobile Devices Datalines, Fire Alarm, LED Lighting EMI, RFI Suppression; High Pulse, DV/DT; Snubber General Purpose GSM, LAN, PCS, WAN LAN, PCS, WAN LAN, WAN Telecommunications USB	- 1000V (1kV) 100V 10V 1200V (1.2kV) 125V 125VAC 12V 130V 150V 1600V (1.6kV) 16V 19V 2000V (2kV) 200V 20V 22V 24V 250V 250VAC 25V 275VAC 27V 3.5V 300V 300VAC 330V 350V 380V 3V 440V 5.5V 5.6V 500V 50V 56.6V 5V 6.3V 600V 60V 6V 70V 7V 80V	- Automotive	- AEC-Q100 AEC-Q101	- Bolt Mount Chassis Mount Chassis, Stud Mount Custom DIN Rail Surface Mount Surface Mount, MLCC Surface Mount, MLCV Surface Mount, Wettable Flank Through Hole Wire Lead	- 0.016" L x 0.008" W (0.40mm x 0.20mm) 0.024" L x 0.012" W (0.60mm x 0.30mm) 0.030" L x 0.030" W (0.76mm x 0.76mm) 0.035" L x 0.035" W (0.89mm x 0.89mm) 0.036" L x 0.052" W (0.91mm x 1.31mm) 0.039" L x 0.020" W (1.00mm x 0.50mm) 0.039" L x 0.024" W (1.00mm x 0.60mm) 0.041" L x 0.029" W (1.03mm x 0.73mm) 0.041" L x 0.093" W (1.05mm x 2.36mm) 0.045" L x 0.045" W (1.14mm x 1.14mm) 0.046" L x 0.030" W (1.16mm x 0.76mm) 0.046" L x 0.030" W (1.17mm x 0.77mm) 0.046" L x 0.031" W (1.16mm x 0.80mm) 0.046" L x 0.046" W (1.16mm x 1.16mm) 0.046" L x 0.046" W (1.17mm x 1.17mm) 0.047" L x 0.031" W (1.20mm x 0.80mm) 0.047" L x 0.039" W (1.20mm x 1.00mm) 0.047" L x 0.047" W (1.20mm x 1.20mm) 0.048" L x 0.048" W (1.22mm x 1.22mm) 0.050" L x 0.035" W (1.26mm x 0.89mm) 0.050" L x 0.038" W (1.28mm x 0.96mm) 0.050" L x 0.078" W (1.27mm x 1.97mm) 0.054" L x 0.039" W (1.37mm x 1.00mm) 0.055" L x 0.055" W (1.39mm x 1.39mm) 0.056" L x 0.036" W (1.42mm x 0.92mm) 0.056" L x 0.037" W (1.41mm x 0.93mm) 0.056" L x 0.037" W (1.41mm x 0.94mm) 0.056" L x 0.037" W (1.41mm x 0.95mm) 0.056" L x 0.056" W (1.42mm x 1.42mm) 0.056" L x 0.056" W (1.43mm x 1.41mm) 0.057" L x 0.039" W (1.45mm x 1.00mm) 0.058" L x 0.042" W (1.47mm x 1.07mm) 0.059" L x 0.045" W (1.51mm x 1.14mm) 0.061" L x 0.040" W (1.56mm x 1.01mm) 0.061" L x 0.041" W (1.56mm x 1.05mm) 0.061" L x 0.045" W (1.54mm x 1.14mm) 0.061" L x 0.061" W (1.54mm x 1.54mm) 0.061" L x 0.061" W (1.55mm x 1.55mm) 0.062" L x 0.046" W (1.57mm x 1.17mm) 0.062" L x 0.062" W (1.57mm x 1.57mm) 0.063" L x 0.031" W (1.60mm x 0.80mm) 0.063" L x 0.032" W (1.60mm x 0.80mm) 0.063" L x 0.039" W (1.60mm x 1.00mm) 0.063" L x 0.045" W (1.60mm x 1.15mm) 0.063" L x 0.047" W (1.60mm x 1.20mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.064" L x 0.042" W (1.56mm x 1.06mm) 0.064" L x 0.064" W (1.62mm x 1.62mm) 0.065" L x 0.065" W (1.66mm x 1.65mm) 0.066" L x 0.041" W (1.67mm x 1.05mm) 0.066" L x 0.044" W (1.67mm x 1.11mm) 0.067" L x 0.047" W (1.70mm x 1.20mm) 0.067" L x 0.048" W (1.72mm x 1.22mm) 0.067" L x 0.051" W (1.70mm x 1.30mm) 0.067" L x 0.053" W (1.70mm x 1.35mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.071" Dia x 0.126" L (1.80mm x 3.20mm) 0.071" L x 0.047" W (1.80mm x 1.20mm) 0.071" L x 0.177" W (1.80mm x 4.50mm) 0.074" L x 0.074" W (1.88mm x 1.88mm) 0.075" L x 0.036" W (1.90mm x 0.91mm) 0.075" L x 0.056" W (1.91mm x 1.41mm) 0.076" L x 0.036" W (1.92mm x 0.92mm) 0.076" L x 0.050" W (1.97mm x 1.27mm) 0.076" L x 0.051" W (1.92mm x 1.29mm) 0.076" L x 0.057" W (1.94mm x 1.44mm) 0.076" L x 0.061" W (1.94mm x 1.54mm) 0.076" L x 0.076" W (1.92mm x 1.92mm) 0.077" L x 0.050" W (1.96mm x 1.28mm) 0.077" L x 0.052" W (1.96mm x 1.33mm) 0.077" L x 0.058" W (1.97mm x 1.47mm) 0.077" L x 0.061" W (1.96mm x 1.56mm) 0.077" L x 0.064" W (1.97mm x 1.62mm) 0.077" L x 0.077" W (1.96mm x 1.96mm) 0.079" L x 0.039" W (2.00mm x 1.00mm) 0.079" L x 0.047" W (2.00mm x 1.20mm) 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.049" W (2.01mm x 1.25mm) 0.079" L x 0.066" W (2.02mm x 1.68mm) 0.079" L x 0.075" W (2.01mm x 1.91mm) 0.079" L x 0.079" W (2.00mm x 2.00mm) 0.080" L x 0.058" W (2.04mm x 1.47mm) 0.081" L x 0.057" W (2.05mm x 1.44mm) 0.081" L x 0.065" W (2.06mm x 1.66mm) 0.083" L x 0.063" W (2.10mm x 1.60mm) 0.083" L x 0.067" W (2.10mm x 1.70mm) 0.083" L x 0.083" W (2.10mm x 2.10mm) 0.083" L x 0.083" W (2.11mm x 2.11mm) 0.085" Dia x 0.315" L (2.16mm x 8.00mm) 0.093" L x 0.041" W (2.36mm x 1.05mm) 0.093" L x 0.046" W (2.37mm x 1.17mm) 0.094" Dia x 0.098" L (2.39mm x 2.49mm) 0.094" L x 0.041" W (2.38mm x 1.05mm) 0.094" L x 0.043" W (2.40mm x 1.10mm) 0.094" L x 0.094" W (2.39mm x 2.39mm) 0.095" L x 0.095" W (2.41mm x 2.41mm) 0.096" L x 0.095" W (2.45mm x 2.41mm) 0.097" L x 0.038" W (2.47mm x 0.97mm) 0.097" L x 0.041" W (2.47mm x 1.05mm) 0.097" L x 0.045" W (2.47mm x 1.14mm) 0.098" L x 0.047" W (2.50mm x 1.20mm) 0.098" L x 0.051" W (2.50mm x 1.30mm) 0.098" L x 0.053" W (2.50mm x 1.35mm) 0.098" L x 0.059" W (2.50mm x 1.50mm) 0.099" L x 0.075" W (2.52mm x 1.91mm) 0.100" L x 0.079" W (2.54mm x 2.00mm) 0.104" L x 0.104" W (2.65mm x 2.65mm) 0.110" Dia x 0.275" L (2.79mm x 6.99mm) 0.114" L x 0.052" W (2.90mm x 1.30mm) 0.115" L x 0.051" W (2.92mm x 1.29mm) 0.115" L x 0.051" W (2.92mm x 1.30mm) 0.115" L x 0.064" W (2.93mm x 1.63mm) 0.117" L x 0.050" W (2.96mm x 1.28mm) 0.117" L x 0.052" W (2.96mm x 1.33mm) 0.118" L x 0.053" W (3.00mm x 1.35mm) 0.118" L x 0.059" W (3.00mm x 1.50mm) 0.118" L x 0.063" W (3.00mm x 1.60mm) 0.118" L x 0.118" W (3.00mm x 3.00mm) 0.119" L x 0.054" W (3.01mm x 1.38mm) 0.124" L x 0.041" W (3.14mm x 1.05mm) 0.124" L x 0.041" W (3.16mm x 1.05mm) 0.124" L x 0.042" W (3.16mm x 1.06mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.065" W (3.20mm x 1.65mm) 0.126" L x 0.071" W (3.20mm x 1.80mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.129" L x 0.041" W (3.27mm x 1.05mm) 0.130" Dia x 0.600" L (3.30mm x 15.24mm) 0.130" L x 0.047" W (3.30mm x 1.20mm) 0.130" L x 0.051" W (3.30mm x 1.30mm) 0.130" L x 0.053" W (3.30mm x 1.35mm) 0.130" L x 0.059" W (3.30mm x 1.50mm) 0.138" Dia x 0.370" L (3.51mm x 9.40mm) 0.138" L x 0.047" W (3.50mm x 1.20mm) 0.140" Dia x 0.275" L (3.55mm x 6.98mm) 0.143" Dia x 0.340" L (3.63mm x 8.64mm) 0.145" Dia x 0.380" L (3.68mm x 9.65mm) 0.154" L x 0.051" W (3.92mm x 1.29mm) 0.156" Dia x 0.340" L (3.96mm x 8.64mm) 0.156" Dia x 0.350" L (3.96mm x 8.89mm) 0.156" Dia x 0.350" L (3.96mm x 8.90mm) 0.156" L x 0.050" W (3.96mm x 1.28mm) 0.156" L x 0.052" W (3.96mm x 1.33mm) 0.156" L x 0.063" W (3.96mm x 1.59mm) 0.157" Dia x 0.340" L (3.98mm x 8.64mm) 0.157" L x 0.057" W (4.00mm x 1.46mm) 0.157" L x 0.063" W (4.00mm x 1.60mm) 0.157" L x 0.083" W (4.00mm x 2.10mm) 0.157" L x 0.157" W (4.00mm x 4.00mm) 0.158" L x 0.054" W (4.01mm x 1.38mm) 0.173" Dia x 0.406" L (4.40mm x 10.32mm) 0.177" L x 0.071" W (4.50mm x 1.80mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.179" L x 0.126" W (4.55mm x 3.20mm) 0.180" Dia x 0.410" L (4.57mm x 10.41mm) 0.187" Dia x 0.200" L (4.75mm x 5.08mm) 0.187" Dia x 0.359" L (4.75mm x 9.12mm) 0.187" Dia x 0.465" L (4.75mm x 11.81mm) 0.187" Dia x 0.469" L (4.75mm x 11.91mm) 0.187" Dia x 0.470" L (4.75mm x 11.94mm) 0.187" Dia x 0.479" L (4.75mm x 12.16mm) 0.187" Dia x 0.485" L (4.75mm x 12.32mm) 0.188" Dia x 0.200" L (4.78mm x 5.08mm) 0.188" Dia x 0.396" L (4.78mm x 10.05mm) 0.190" Dia x 0.230" L (4.83mm x 5.84mm) 0.190" Dia x 0.250" L (4.83mm x 6.35mm) 0.190" Dia x 0.290" L (4.83mm x 7.36mm) 0.190" Dia x 0.400" L (4.83mm x 10.16mm) 0.190" Dia x 0.406" L (4.83mm x 10.31mm) 0.195" Dia x 0.260" L (4.95mm x 6.60mm) 0.195" Dia x 0.267" L (4.95mm x 6.78mm) 0.195" Dia x 0.380" L (4.95mm x 9.65mm) 0.195" Dia x 0.406" L (4.95mm x 10.31mm) 0.197" Dia x 0.406" L (5.00mm x 10.31mm) 0.200" Dia x 0.600" L (5.08mm x 15.24mm) 0.203" Dia x 0.390" L (5.16mm x 9.91mm) 0.205" Dia x 0.624" L (5.21mm x 15.86mm) 0.205" Dia x 0.625" L (5.21mm x 15.88mm) 0.224" L x 0.197" W (5.70mm x 5.00mm) 0.235" Dia x 0.437" L (5.97mm x 11.11mm) 0.235" Dia x 0.468" L (5.97mm x 11.89mm) 0.235" Dia x 0.498" L (5.97mm x 12.65mm) 0.240" Dia x 0.468" L (6.10mm x 11.89mm) 0.240" L x 0.240" W (6.10mm x 6.10mm) 0.250" Dia x 0.289" L (6.35mm x 7.33mm) 0.250" Dia x 0.468" L (6.35mm x 11.88mm) 0.250" Dia x 0.468" L (6.35mm x 11.89mm) 0.250" Dia x 0.469" L (6.35mm x 11.91mm) 0.250" Dia x 0.470" L (6.35mm x 11.95mm) 0.250" Dia x 0.498" L (6.35mm x 12.65mm) 0.250" Dia x 0.517" L (6.35mm x 13.13mm) 0.250" Dia x 0.517" L (6.35mm x 13.14mm) 0.250" Dia x 0.528" L (6.35mm x 13.41mm) 0.250" Dia x 0.588" L (6.35mm x 14.93mm) 0.250" Dia x 0.686" L (6.35mm x 17.43mm) 0.250" Dia x 0.687" L (6.35mm x 17.45mm) 0.250" Dia x 0.696" L (6.35mm x 17.68mm) 0.250" Dia x 0.807" L (6.35mm x 20.49mm) 0.252" L x 0.122" W (6.40mm x 3.10mm) 0.256" L x 0.098" W (6.50mm x 2.50mm) 0.268" L x 0.063" W (6.80mm x 1.60mm) 0.276" L x 0.102" W (7.00mm x 2.60mm) 0.289" Dia x 0.468" L (7.34mm x 11.89mm) 0.312" Dia x 0.625" L (7.92mm x 15.88mm) 0.315" L x 0.085" W (8.00mm x 2.16mm) 0.315" L x 0.090" W (8.00mm x 2.29mm) 0.315" L x 0.091" W (8.00mm x 2.30mm) 0.315" L x 0.100" W (8.00mm x 2.54mm) 0.335" L x 0.138" W (8.50mm x 3.50mm) 0.354" L x 0.126" W (9.00mm x 3.20mm) 0.375" Dia x 0.540" L (9.53mm x 13.72mm) 0.375" Dia x 0.687" L (9.52mm x 17.44mm) 0.375" Dia x 0.687" L (9.53mm x 17.45mm) 0.380" L x 0.143" W (9.64mm x 3.64mm) 0.385" Dia x 0.357" L (9.78mm x 9.07mm) 0.389" L x 0.154" W (9.89mm x 3.90mm) 0.394" L x 0.090" W (10.00mm x 2.29mm) 0.410" L x 0.295" W (10.41mm x 7.50mm) 0.450" L x 0.150" W (11.43mm x 3.81mm) 0.450" L x 0.200" W (11.43mm x 5.08mm) 0.450" L x 0.250" W (11.43mm x 6.35mm) 0.472" Dia x 0.295" L (12.00mm x 7.50mm) 0.472" L x 0.295" W (12.00mm x 7.50mm) 0.472" L x 0.433" W (12.00mm x 11.00mm) 0.476" L x 0.358" W (12.10mm x 9.10mm) 0.500" Dia x 0.500" L (12.70mm x 12.70mm) 0.510" L x 0.295" W (12.95mm x 7.50mm) 0.598" L x 0.150" W (15.19mm x 3.81mm) 0.728" L x 0.287" W (18.50mm x 7.30mm) 0.728" L x 0.335" W (18.50mm x 8.50mm) 0.787" Dia x 2.402" L (20.00mm x 61.00mm) 0.787" Dia x 2.717" L (20.00mm x 69.00mm) 0.787" Dia x 2.874" L (20.00mm x 73.00mm) 0.787" Dia x 3.071" L (20.00mm x 78.00mm) 0.787" Dia x 4.370" L (20.00mm x 111.00mm) 0.798" L x 0.150" W (20.27mm x 3.81mm) 0.878" Dia x 2.067" L (22.30mm x 52.50mm) 0.902" L x 0.150" W (22.91mm x 3.81mm) 0.940" Dia x 2.170" L (23.88mm x 55.12mm) 0.945" L x 0.299" W (24.00mm x 7.60mm) 0.945" L x 0.354" W (24.00mm x 9.00mm) 0.945" L x 0.445" W (24.00mm x 11.30mm) 0.965" L x 0.300" W (24.51mm x 7.62mm) 0.984" Dia x 3.268" L (25.00mm x 83.00mm) 0.984" Dia x 4.252" L (25.00mm x 108.00mm) 0.984" Dia x 4.528" L (25.00mm x 115.00mm) 0.996" Dia x 2.626" L (25.30mm x 66.70mm) 0.998" L x 0.098" W (25.35mm x 2.49mm) 0.998" L x 0.150" W (25.35mm x 3.81mm) 1.000" Dia x 2.560" L (25.40mm x 65.02mm) 1.000" L x 0.380" W (25.40mm x 9.65mm) 1.000" L x 0.500" W (25.40mm x 12.70mm) 1.065" L x 0.264" W (27.05mm x 6.71mm) 1.079" L x 0.370" W (27.40mm x 9.40mm) 1.079" L x 0.390" W (27.40mm x 9.90mm) 1.079" L x 0.440" W (27.40mm x 11.18mm) 1.080" L x 0.370" W (27.50mm x 9.50mm) 1.080" L x 0.390" W (27.50mm x 10.00mm) 1.080" L x 0.460" W (27.50mm x 11.80mm) 1.083" L x 0.300" W (27.50mm x 7.62mm) 1.098" L x 0.150" W (27.89mm x 3.81mm) 1.198" L x 0.150" W (30.43mm x 3.81mm) 1.201" L x 0.417" W (30.50mm x 10.60mm) 1.201" L x 0.476" W (30.50mm x 12.10mm) 1.201" L x 0.602" W (30.50mm x 15.30mm) 1.250" Dia x 4.000" L (31.75mm x 101.60mm) 1.250" L x 0.580" W (31.75mm x 14.73mm) 1.260" Dia x 4.724" L (32.00mm x 120.00mm) 1.260" Dia x 4.764" L (32.00mm x 121.00mm) 1.260" Dia x 5.354" L (32.00mm x 136.00mm 1.311" Dia x 3.661" L (33.30mm x 93.00mm) 1.370" L x 1.280" W (34.80mm x 32.51mm) 1.449" L x 0.390" W (36.80mm x 9.90mm) 1.449" L x 0.417" W (36.80mm x 10.60mm) 1.449" L x 0.591" W (36.80mm x 15.00mm) 1.450" L x 0.390" W (36.80mm x 10.00mm) 1.450" L x 0.420" W (36.80mm x 10.60mm) 1.450" L x 0.590" W (36.80mm x 15.00mm) 1.496" Dia x 5.906" L (38.00mm x 150.00mm) 1.575" Dia (40.00mm) 1.598" L x 0.642" W (40.60mm x 16.30mm) 1.600" L x 0.640" W (40.60mm x 16.30mm) 11.181" L x 3.937" W (284.00mm x 100.00mm) 11.181" L x 6.693" W (284.00mm x 170.00mm) 2.126" Dia x 5.906" L (54.00mm x 150.00mm) 2.126" Dia x 7.047" L (54.00mm x 179.00mm) 2.165" Dia x 4.606" L (55.00mm x 117.00mm) 2.177" L x 0.539" W (55.30mm x 13.70mm) 2.180" L x 0.540" W (55.40mm x 13.70mm) 2.795" L x 1.417" W (71.0mm x 36.0mm) 3.050" L x 2.050" W (77.47mm x 52.07mm)	- 0.009" (0.22mm) 0.011" (0.29mm) 0.012" (0.30mm) 0.013" (0.33mm) 0.014" (0.35mm) 0.016" (0.40mm) 0.016" (0.41mm) 0.017" (0.43mm) 0.020" (0.50mm) 0.020" (0.51mm) 0.022" (0.55mm) 0.022" (0.56mm) 0.024" (0.60mm) 0.024" (0.61mm) 0.025" (0.64mm) 0.026" (0.65mm) 0.026" (0.66mm) 0.027" (0.69mm) 0.028" (0.70mm) 0.028" (0.71mm) 0.028" (0.72mm) 0.029" (0.74mm) 0.030" (0.76mm) 0.031" (0.79mm) 0.031" (0.80mm) 0.032" (0.80mm) 0.032" (0.81mm) 0.033" (0.85mm) 0.035" (0.90mm) 0.037" (0.95mm) 0.039" (1.00mm) 0.041" (1.05mm) 0.043" (1.09mm) 0.046" (1.17mm) 0.047" (1.19mm) 0.047" (1.20mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.069" (1.75mm) 0.071" (1.80mm) 0.072" (1.83mm) 0.075" (1.90mm) 0.079" (2.00mm) 0.087" (2.20mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.091" (2.30mm) 0.095" (2.41mm) 0.104" (2.64mm) 0.104" (2.65mm) 0.108" (2.75mm) 0.114" (2.90mm) 0.115" (2.91mm) 0.118" (3.00mm) 0.130" (3.30mm) 0.133" (3.38mm) 0.138" (3.50mm) 0.146" (3.70mm) 0.185" (4.69mm) 0.197" (5.00mm) 0.217" (5.50mm) 0.276" (7.00mm) 0.295" (7.50mm) 0.315" (8.00mm) 0.331" (8.40mm) 0.335" (8.50mm) 0.375" (9.53mm) 0.394" (10.00mm) 0.413" (10.50mm) 0.492" (12.50mm) 0.500" (12.70mm) 0.512" (13.00mm) 0.531" (13.50mm) 0.551" (14.00mm) 0.563" (14.30mm) 0.591" (15.00mm) 0.634" (16.10mm) 0.642" (16.30mm) 0.650" (16.50mm) 0.657" (16.70mm) 0.660" (16.76mm) 0.670" (17.02mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.780" (19.81mm) 0.800" (20.32mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.907" (23.05mm) 0.920" (23.40mm) 0.921" (23.40mm) 0.998" (25.35mm) 1.000" (25.40mm) 1.039" (26.40mm) 1.040" (26.40mm) 1.169" (29.70mm) 1.575" (40.00mm) 1.969" (50.00mm) 2.047" (52.00mm) 3.000" (76.20mm)

全部重置

应用所有

结果:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
SF200-28-28S-E-H EMI FILTER, 28V INPUT, SINGLE OU Microchip Technology	2,775	-	RFQ	-	SF200-28	Module	Bulk	Active	-	-	-	2	-	63.4dB @ 325kHz	0.025	13 mA	-	-	-55°C ~ 125°C	General Purpose	60V	-	-	Chassis Mount	3.050" L x 2.050" W (77.47mm x 52.07mm)	0.500" (12.70mm)
CM1407-08DE 4- AND 8-CHANNEL EMI FILTER ARRA onsemi	3,406	-	RFQ	-	CM1407	16-WFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	2nd	RC (Pi)	8	210MHz (Cutoff)	25dB @ 800MHz ~ 3GHz	240	1 A	R = 200Ohms, C = 7.5pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.157" L x 0.063" W (4.00mm x 1.60mm)	0.031" (0.80mm)
SZEMI9404MUTAG EMI ARRAY, 4-CHANNEL, WITH ESD P onsemi	3,702	-	RFQ	-	Praetorian III®	8-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	5th	LC (Pi)	4	345MHz (Cutoff)	-35dB @ 800MHz ~ 2.7GHz	45	15 mA	L = 70nH (Total), C = 11.5pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.067" L x 0.053" W (1.70mm x 1.35mm)	0.022" (0.55mm)
CSPEMI608G 8-CHANNEL LCD FILTER ARRAY WITH onsemi	3,295	-	RFQ	-	CSPEMI608	20-UFBGA, WLCSP	Bulk	Discontinued at Digi-Key	Low Pass	1st	RC (Pi)	8	120MHz (Cutoff)	30dB @ 1GHz ~ 3GHz	100	3 mA	R = 100Ohms, C = 15pF	Yes	-40°C ~ 85°C	General Purpose	-	-	-	Surface Mount	0.157" L x 0.057" W (4.00mm x 1.46mm)	0.026" (0.65mm)
SZEMI7208MUTAG EMI FILTER, 8-CHANNEL, WITH INTE onsemi	3,368	-	RFQ	-	EMI7208	16-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	3rd	LC (Pi)	8	250MHz (Cutoff)	-23dB @ 800MHz ~ 6GHz	10	30 mA	L = 17nH, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)
CM1422-03CP-HST EMI FILTER WITH ESD PROTECTION onsemi	4,954	-	RFQ	-	CM1422	20-UFBGA, WLCSP	Bulk	Discontinued at Digi-Key	Low Pass	2nd	RC (Pi)	8	120MHz (Cutoff)	30dB @ 1GHz ~ 3GHz	120	-	R = 100Ohms, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.157" L x 0.057" W (4.00mm x 1.46mm)	0.026" (0.65mm)
SZEMI9406MUTAG EMI FILTER ARRAY, L-C WITH ESD P onsemi	3,664	-	RFQ	-	EMI9406	12-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	5th	LC (Pi)	6	300MHz (Cutoff)	-35dB @ 800MHz ~ 2.7GHz	45	15 mA	L = 70nH (Total), C = 11.5pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.098" L x 0.053" W (2.50mm x 1.35mm)	0.022" (0.55mm)
CM1410-03CP EMI FILTER WITH ESD PROTECTION, onsemi	4,460	-	RFQ	-	CM1410	11-WFBGA, WLCSP	Bulk	Discontinued at Digi-Key	Low Pass	2nd	RC (Pi)	4	53MHz (Cutoff)	30dB @ 1GHz	110	1 A	R = 100Ohms, C = 47pF	Yes	-40°C ~ 85°C	General Purpose	-	-	-	Surface Mount	0.081" L x 0.057" W (2.05mm x 1.44mm)	0.028" (0.72mm)
SZNUF4401MNT1G EMI FILTER, 4-CHANNEL, WITH INTE onsemi	3,306	-	RFQ	-	NUF4401	8-VFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	2nd	RC (Pi)	4	125MHz (Cutoff)	-35dB @ 900MHz ~ 2.4GHz	200	-	R = 200Ohms, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.079" L x 0.079" W (2.00mm x 2.00mm)	0.039" (1.00mm)
SZEMI7204MUTAG EMI FILTER, 4-CHANNEL, WITH INTE onsemi	4,153	-	RFQ	-	EMI7204	8-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	3rd	LC (Pi)	4	250MHz (Cutoff)	-23dB @ 800MHz ~ 6GHz	10	30 mA	L = 17nH, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.067" L x 0.053" W (1.70mm x 1.35mm)	0.022" (0.55mm)
CM1452-06CP L-C LCD AND CAMERA EMI FILTER AR onsemi	2,843	-	RFQ	-	CM1452	15-WFBGA, WLCSP	Bulk	Discontinued at Digi-Key	Low Pass	3rd	LC (Pi)	6	148MHz	6dB @ 330MHz	-	30 mA	L = 17nH, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.097" L x 0.045" W (2.47mm x 1.14mm)	0.027" (0.69mm)
SZEMI7206MUTAG EMI FILTER, 6-CHANNEL, WITH INTE onsemi	2,758	-	RFQ	-	EMI7206	12-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	3rd	LC (Pi)	6	250MHz (Cutoff)	-23dB @ 800MHz ~ 6GHz	10	30 mA	L = 17nH, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.098" L x 0.053" W (2.50mm x 1.35mm)	0.022" (0.55mm)
SZEMI9408MUTAG L-C EMI FILTER ARRAY WITH ESD PR onsemi	3,260	-	RFQ	-	EMI9408	16-UFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	5th	LC (Pi)	6	300MHz (Cutoff)	-35dB @ 800MHz ~ 2.7GHz	45	15 mA	L = 70nH (Total), C = 11.5pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)
SZNUF4402MNT1G EMI FILTER, 4-CHANNEL, WITH INTE onsemi	3,026	-	RFQ	-	NUF4402	8-VFDFN Exposed Pad	Bulk	Discontinued at Digi-Key	Low Pass	2nd	RC (Pi)	4	151MHz (Cutoff)	-25dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.063" L x 0.063" W (1.60mm x 1.60mm)	0.039" (1.00mm)
F2781Y002L-011 1 channel 2.5A Low Voltage Datal ITG Electronics, Inc.	1	-	RFQ	-	F2781Y	-	Bulk	Active	Band Pass	-	LC (Pi), RC (Pi)	1	-	100dB @ 1MHz ~ 10GHz	-	2.5 A	-	-	-25°C ~ 85°C	Datalines, Fire Alarm, LED Lighting	-	-	-	Bolt Mount	-	-

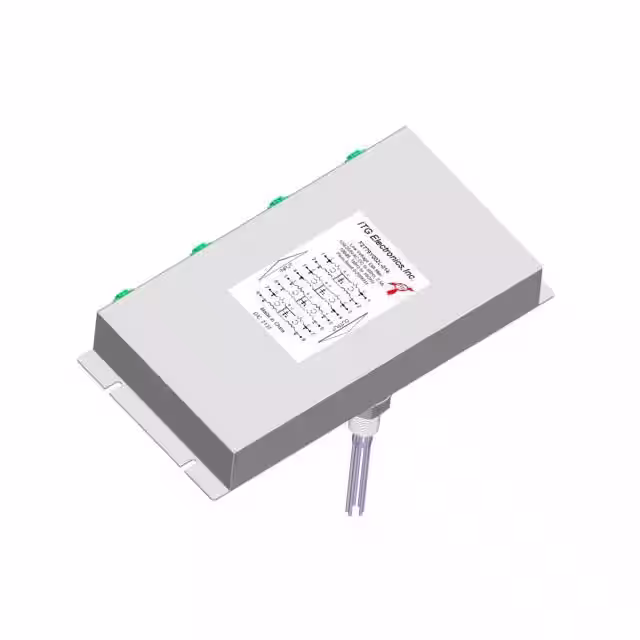

F2779Y002L-014 4 Channel Low Voltage Data Line ITG Electronics, Inc.	1	-	RFQ	-	F2779Y002L	-	Bulk	Active	-	-	-	4	-	100dB @ 1MHz ~ 10GHz	-	2.5 A	-	-	-25°C ~ 85°C	Datalines, Fire Alarm, LED Lighting	250VAC	-	-	-	-	-
F2782Y001L-052 2 Channels 1.5A CAT5 Data line a ITG Electronics, Inc.	1	-	RFQ	-	F2782Y	Module	Bulk	Active	Low Pass	5th	LC (T-Type)	2	-	100dB @ 30MHz ~ 10GHz	-	1.5 A	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	60V	-	-	Chassis Mount	11.181" L x 6.693" W (284.00mm x 170.00mm)	2.047" (52.00mm)

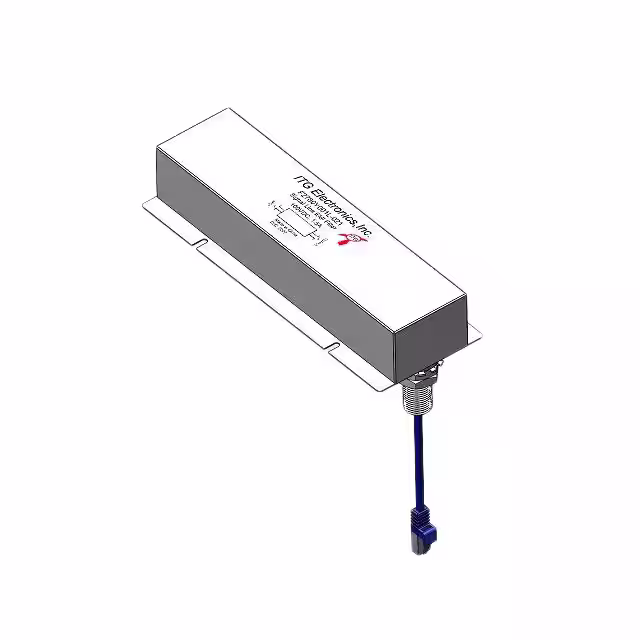

F2780Y001L-022 2 Channels 1.5A CAT6a Data line ITG Electronics, Inc.	1	-	RFQ	-	F2779Y002L	-	Bulk	Active	-	-	-	2	-	100dB @ 30MHz ~ 10GHz	-	1.5 A	-	-	-25°C ~ 85°C	-	100V	-	-	-	-	-
F2781Y005L-014 4 channels 5.0A Low Voltage Data ITG Electronics, Inc.	1	-	RFQ	-	F2781Y	-	Bulk	Active	Band Pass	-	LC (Pi), RC (Pi)	4	-	100dB @ 1MHz ~ 10GHz	-	5 A	-	-	-25°C ~ 85°C	Datalines, Fire Alarm, LED Lighting	-	-	-	Bolt Mount	-	-

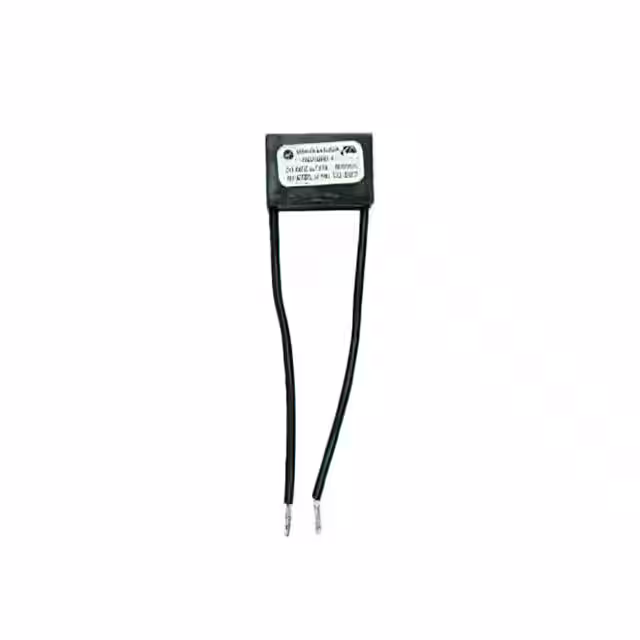

RG1986-8 RC NETWORK, 0.5 MFD, 220 OHM, 25 Electrocube	3,352	-	RFQ	-	-	Radial	Box	Active	Low Pass	1st	RC	1	-	-	-	-	R = 220Ohm, C = 0.5µF	No	-40°C ~ 80°C	General Purpose	600V	-	-	Through Hole	1.250" L x 0.580" W (31.75mm x 14.73mm)	0.870" (22.10mm)

Total 1980 Record«Prev 1... 95 96 97 9899Next»
