FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSZ180P03NS3EGATMA1MOSFET P-CH 30V 9A/39.5A TSDSON |
3,590 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 9A (Ta), 39.5A (Tc) | 6V, 10V | 18mOhm @ 20A, 10V | Surface Mount | 3.1V @ 48µA | 30 nC @ 10 V | 30 V | ±25V | 2220 pF @ 15 V | - | - | PG-TSDSON-8 | - | 2.1W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) |
|
SIRA14DP-T1-GE3MOSFET N-CH 30V 58A PPAK SO-8 |
704 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 58A (Tc) | 4.5V, 10V | 5.1mOhm @ 10A, 10V | Surface Mount | 2.2V @ 250µA | 29 nC @ 10 V | 30 V | +20V, -16V | 1450 pF @ 15 V | - | - | PowerPAK® SO-8 | - | 3.6W (Ta), 31.2W (Tc) | -55°C ~ 150°C (TJ) |
|
AO4419MOSFET P-CH 30V 9.7A 8SOIC |
31,500 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 9.7A (Ta) | 4.5V, 10V | 20mOhm @ 9.7A, 10V | Surface Mount | 2.7V @ 250µA | 32 nC @ 10 V | 30 V | ±20V | 1900 pF @ 15 V | - | - | 8-SOIC | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) |
|
SISA14BDN-T1-GE3N-CHANNEL 30-V (D-S) MOSFET POWE |
13,005 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 21A (Ta), 72A (Tc) | 4.5V, 10V | 5.38mOhm @ 10A, 10V | Surface Mount | 2.2V @ 250µA | 22 nC @ 10 V | 30 V | +20V, -16V | 917 pF @ 15 V | - | - | PowerPAK® 1212-8 | - | 3.8W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) |
|
PSMN9R5-30YLC,115MOSFET N-CH 30V 44A LFPAK56 |
9,306 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 44A (Tc) | 4.5V, 10V | 9.8mOhm @ 15A, 10V | Surface Mount | 1.95V @ 1mA | 10.4 nC @ 10 V | 30 V | ±20V | 681 pF @ 15 V | - | - | LFPAK56, Power-SO8 | - | 34W (Tc) | -55°C ~ 175°C (TJ) |
|
|
BUK9Y21-40E,115MOSFET N-CH 40V 33A LFPAK56 |
6,924 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 33A (Tc) | 5V | 17mOhm @ 10A, 10V | Surface Mount | 2.1V @ 1mA | 7 nC @ 5 V | 40 V | ±10V | 824 pF @ 25 V | AEC-Q101 | - | LFPAK56, Power-SO8 | Automotive | 45W (Tc) | -55°C ~ 175°C (TJ) |
|
RTQ035N03HZGTRMOSFET N-CH 30V 3.5A TSMT6 |
6,000 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 3.5A (Ta) | 2.5V, 4.5V | 54mOhm @ 3.5A, 4.5V | Surface Mount | 1.5V @ 1mA | 6.4 nC @ 4.5 V | 30 V | ±12V | 285 pF @ 10 V | AEC-Q101 | - | TSMT6 (SC-95) | Automotive | 950mW (Ta) | 150°C (TJ) |
|
FDMS7680MOSFET N-CH 30V 14A/28A 8PQFN |
5,073 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 14A (Ta), 28A (Tc) | 4.5V, 10V | 6.9mOhm @ 14A, 10V | Surface Mount | 3V @ 250µA | 28 nC @ 10 V | 30 V | ±20V | 1850 pF @ 15 V | - | - | 8-PQFN (5x6) | - | 2.5W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) |
|
RQ3E180BNTBMOSFET N-CHANNEL 30V 39A 8HSMT |
5,051 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 39A (Tc) | 4.5V, 10V | 3.9mOhm @ 18A, 10V | Surface Mount | 2.5V @ 1mA | 37 nC @ 4.5 V | 30 V | ±20V | 3500 pF @ 15 V | - | - | 8-HSMT (3.2x3) | - | 2W (Ta), 20W (Tc) | -55°C ~ 150°C (TJ) |
|

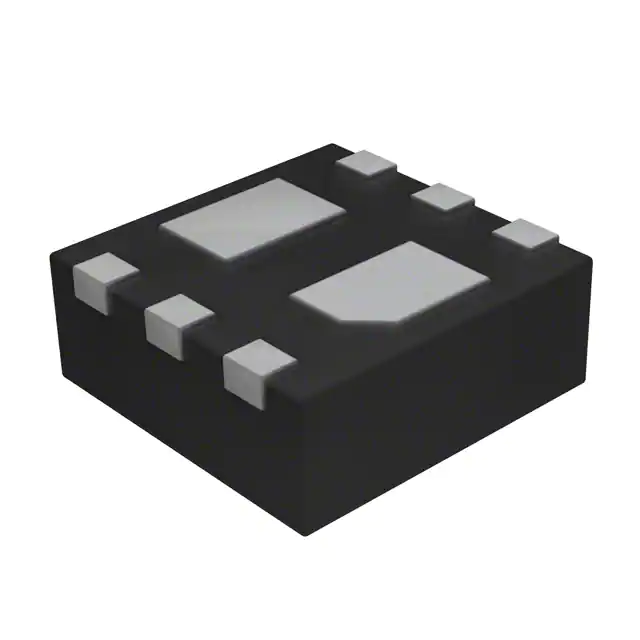

STL6N2VH5MOSFET N-CH 20V POWERFLAT |
2,834 |
|
Datasheet |
STripFET™ V | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 6A (Tj) | 2.5V, 4.5V | 30mOhm @ 3A, 4.5V | Surface Mount | 700mV @ 250µA (Min) | 6 nC @ 4.5 V | 20 V | ±8V | 550 pF @ 16 V | - | - | PowerFlat™ (2x2) | - | 2.4W (Tc) | -55°C ~ 150°C (TJ) |
|
DMPH4029LFGQ-7MOSFET P-CH 40V 8A/22A PWRDI3333 |
741 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 3A, 10V | Surface Mount | 3V @ 250µA | 34 nC @ 10 V | 40 V | ±20V | 1626 pF @ 20 V | AEC-Q101 | - | POWERDI3333-8 | Automotive | 1.2W (Ta) | -55°C ~ 175°C (TJ) |
|
DMT6015LSS-13MOSFET N-CH 60V 9.2A 8SO |
9,716 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 9.2A (Ta) | 4.5V, 10V | 16mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 18.9 nC @ 30 V | 60 V | ±16V | 1103 pF @ 30 V | - | - | 8-SO | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) |
|
|
DMN4034SSS-13MOSFET N-CH 40V 5.4A 8SO |
9,022 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 5.4A (Ta) | 4.5V, 10V | 34mOhm @ 6A, 10V | Surface Mount | 3V @ 250µA | 10 nC @ 10 V | 40 V | ±20V | 453 pF @ 20 V | - | - | 8-SO | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) |
|
SI3473CDV-T1-GE3MOSFET P-CH 12V 8A 6TSOP |
8,476 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 1.8V, 4.5V | 22mOhm @ 8.1A, 4.5V | Surface Mount | 1V @ 250µA | 65 nC @ 8 V | 12 V | ±8V | 2010 pF @ 6 V | - | - | 6-TSOP | - | 2W (Ta), 4.2W (Tc) | -55°C ~ 150°C (TJ) |
|
|
PSMN041-80YLXMOSFET N-CH 80V 25A LFPAK56 |
6,051 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25A (Tc) | 5V, 10V | 41mOhm @ 5A, 10V | Surface Mount | 2.1V @ 1mA | 21.9 nC @ 10 V | 80 V | ±20V | 1108 pF @ 25 V | - | - | LFPAK56, Power-SO8 | - | 64W (Tc) | -55°C ~ 175°C (TJ) |
.jpg)
|

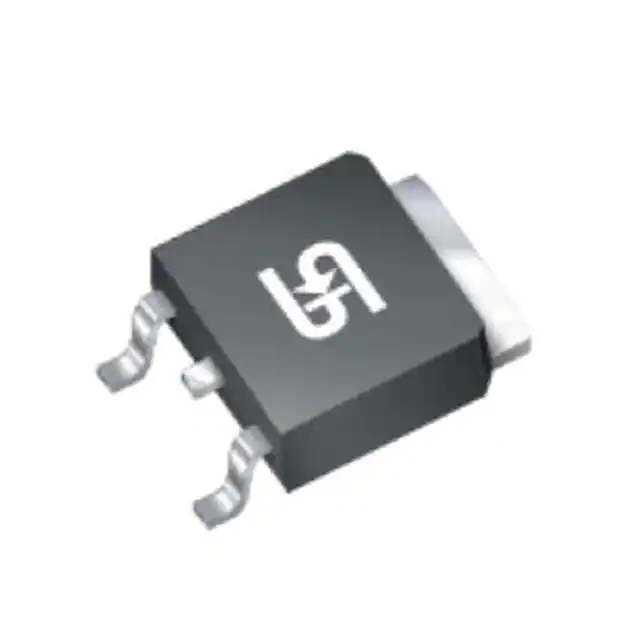

TSM1NB60CP ROGMOSFET N-CHANNEL 600V 1A TO252 |
6,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1A (Tc) | 10V | 10Ohm @ 500mA, 10V | Surface Mount | 4.5V @ 250µA | 6.1 nC @ 10 V | 600 V | ±30V | 138 pF @ 25 V | - | - | TO-252 (DPAK) | - | 39W (Tc) | -55°C ~ 150°C (TJ) |
|
|
RQ3E180GNTBMOSFET N-CH 30V 18A 8HSMT |
4,590 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 18A (Ta), 39A (Tc) | 4.5V, 10V | 4.3mOhm @ 18A, 10V | Surface Mount | 2.5V @ 1mA | 22.4 nC @ 10 V | 30 V | ±20V | 1520 pF @ 15 V | - | - | 8-HSMT (3.2x3) | - | 2W (Ta), 20W (Tc) | 150°C (TJ) |
|

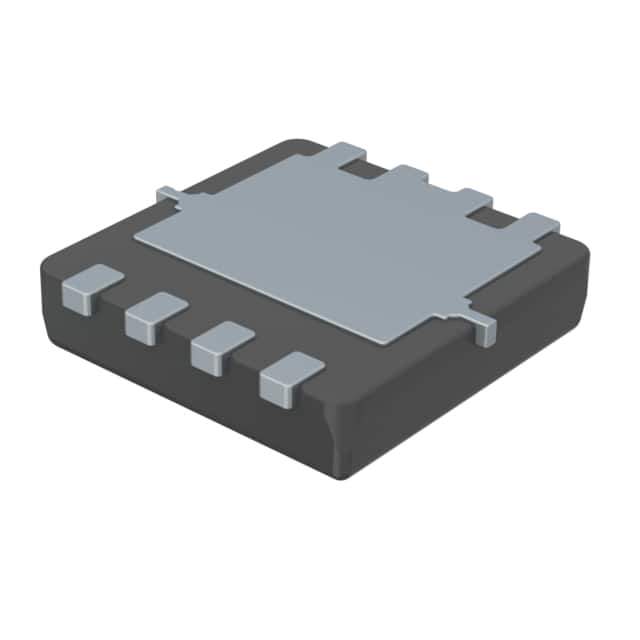

PJQ4441P-AU_R2_000A140V P-CHANNEL ENHANCEMENT MODE M |
4,280 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8.5A (Ta), 44A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 19 nC @ 4.5 V | 40 V | ±20V | 2030 pF @ 25 V | AEC-Q101 | - | DFN3333-8 | Automotive | 2W (Ta), 59.5W (Tc) | -55°C ~ 150°C (TJ) |
|
FDC640PMOSFET P-CH 20V 4.5A SUPERSOT6 |
3,458 |
|
Datasheet |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 4.5A (Ta) | 2.5V, 4.5V | 53mOhm @ 4.5A, 4.5V | Surface Mount | 1.5V @ 250µA | 13 nC @ 4.5 V | 20 V | ±12V | 890 pF @ 10 V | - | - | SuperSOT™-6 | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) |
,TO-226_straightlead.jpg)
|
ZVN2110ASTZMOSFET N-CH 100V 320MA E-LINE |
2,420 |
|
Datasheet |
- | E-Line-3 | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 320mA (Ta) | 10V | 4Ohm @ 1A, 10V | Through Hole | 2.4V @ 1mA | - | 100 V | ±20V | 75 pF @ 25 V | - | - | E-Line (TO-92 compatible) | - | 700mW (Ta) | -55°C ~ 150°C (TJ) |
