FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

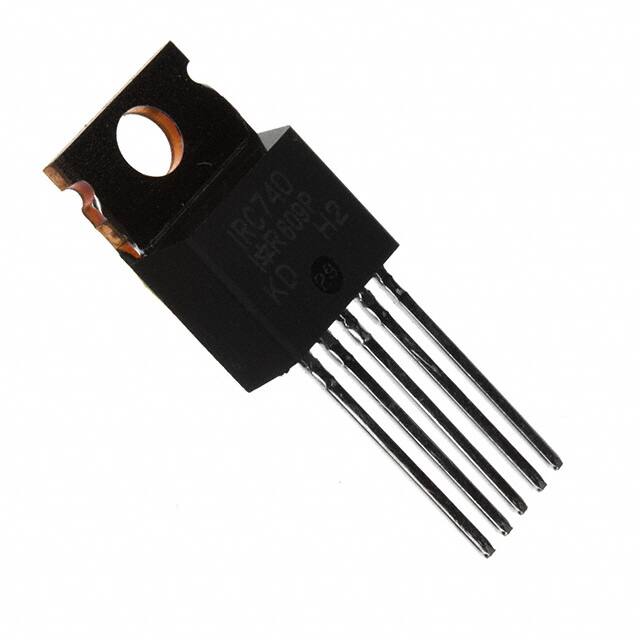

IRC740PBFMOSFET N-CH 400V 10A TO220-5 |
4,925 |
|
Datasheet |
HEXFET® | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | Through Hole | 4V @ 250µA | 66 nC @ 10 V | 400 V | ±20V | 1200 pF @ 25 V | - | Current Sensing | TO-220-5 | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
IRL3714ZLMOSFET N-CH 20V 36A TO262 |
4,374 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 36A (Tc) | 4.5V, 10V | 16mOhm @ 15A, 10V | Through Hole | 2.55V @ 250µA | 7.2 nC @ 4.5 V | 20 V | ±20V | 550 pF @ 10 V | - | - | TO-262 | - | 35W (Tc) | -55°C ~ 175°C (TJ) |
|
FDPF44N25TRDTUMOSFET N-CH 250V 44A TO220F |
2,092 |
|
Datasheet |
UniFET™ | TO-220-3 Full Pack, Formed Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 44A (Tc) | 10V | 69mOhm @ 22A, 10V | Through Hole | 5V @ 250µA | 61 nC @ 10 V | 250 V | ±30V | 2870 pF @ 25 V | - | - | TO-220F (LG-Formed) | - | 38W (Tc) | -55°C ~ 150°C (TJ) |
|
FQPF46N15MOSFET N-CH 150V 25.6A TO220F |
4,343 |
|
Datasheet |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25.6A (Tc) | 10V | 42mOhm @ 12.8A, 10V | Through Hole | 4V @ 250µA | 110 nC @ 10 V | 150 V | ±25V | 3250 pF @ 25 V | - | - | TO-220F-3 | - | 66W (Tc) | -55°C ~ 175°C (TJ) |
|
SPP80N06S2L-06MOSFET N-CH 55V 80A TO220-3 |
4,438 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 4.5V, 10V | 6.3mOhm @ 69A, 10V | Through Hole | 2V @ 180µA | 150 nC @ 10 V | 55 V | ±20V | 5050 pF @ 25 V | - | - | PG-TO220-3-1 | - | 250W (Tc) | -55°C ~ 175°C (TJ) |
|
IRF6668TR1MOSFET N-CH 80V 55A DIRECTFET MZ |
4,159 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MZ | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55A (Tc) | 10V | 15mOhm @ 12A, 10V | Surface Mount | 4.9V @ 100µA | 31 nC @ 10 V | 80 V | ±20V | 1320 pF @ 25 V | - | - | DIRECTFET™ MZ | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) |
|
FQA12N60MOSFET N-CH 600V 12A TO3P |
2,481 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 700mOhm @ 6A, 10V | Through Hole | 5V @ 250µA | 54 nC @ 10 V | 600 V | ±30V | 1900 pF @ 25 V | - | - | TO-3P | - | 240W (Tc) | -55°C ~ 150°C (TJ) |
|
|
HUF76639P3MOSFET N-CH 100V 51A TO220-3 |
3,931 |
|
Datasheet |
UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 51A (Tc) | - | 26mOhm @ 51A, 10V | Through Hole | 3V @ 250µA | 86 nC @ 10 V | 100 V | - | 2400 pF @ 25 V | - | - | TO-220-3 | - | - | - |
|
STB12N60DM2AGDISCRETE |
4,211 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 10A (Tc) | 10V | 430mOhm @ 5A, 10V | Surface Mount | 5V @ 250µA | 14.5 nC @ 10 V | 600 V | ±25V | 614 pF @ 100 V | AEC-Q101 | - | TO-263 (D2PAK) | Automotive | 125W | -55°C ~ 150°C (TJ) |
|
STP8NM60NDMOSFET N-CH 600V 7A TO220-3 |
4,261 |
|
Datasheet |
FDmesh™ II | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7A (Tc) | 10V | 700mOhm @ 3.5A, 10V | Through Hole | 5V @ 250µA | 22 nC @ 10 V | 600 V | ±30V | 560 pF @ 50 V | - | - | TO-220 | - | 70W (Tc) | 150°C (TJ) |
|
IRF9530STRRPBFMOSFET P-CH 100V 12A D2PAK |
3,670 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 300mOhm @ 7.2A, 10V | Surface Mount | 4V @ 250µA | 38 nC @ 10 V | 100 V | ±20V | 860 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 3.7W (Ta), 88W (Tc) | -55°C ~ 175°C (TJ) |
|
STS15N4LLF3MOSFET N-CH 40V 15A 8SO |
3,567 |
|
Datasheet |
STripFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 4.5V, 10V | 5mOhm @ 7.5A, 10V | Surface Mount | 1V @ 250µA | 28 nC @ 4.5 V | 40 V | ±16V | 2530 pF @ 25 V | - | - | 8-SOIC | - | 2.7W (Tc) | -55°C ~ 150°C (TJ) |
|
|
TSM60NB900CH600V, 4A, SINGLE N-CHANNEL POWER |
4,825 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 900mOhm @ 1.2A, 10V | Through Hole | 4V @ 250µA | 9.6 nC @ 10 V | 600 V | ±30V | 315 pF @ 100 V | - | - | TO-251 (IPAK) | - | 36.8W (Tc) | -55°C ~ 150°C (TJ) |
|
|
TSM60NB900CP600V, 4A, SINGLE N-CHANNEL POWER |
2,423 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 900mOhm @ 1.2A, 10V | Surface Mount | 4V @ 250µA | 9.6 nC @ 10 V | 600 V | ±30V | 315 pF @ 100 V | - | - | TO-252 (DPAK) | - | 36.8W (Tc) | -55°C ~ 150°C (TJ) |
|
IRF7807D2TRPBFMOSFET N-CH 30V 8.3A 8SO |
4,645 |
|
Datasheet |
FETKY™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8.3A (Ta) | 4.5V | 25mOhm @ 7A, 4.5V | Surface Mount | 1V @ 250µA | 17 nC @ 5 V | 30 V | ±12V | - | - | Schottky Diode (Isolated) | 8-SO | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) |
|
FDB7030BLMOSFET N-CH 30V 60A TO263AB |
4,952 |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60A (Ta) | 4.5V, 10V | 9mOhm @ 30A, 10V | Surface Mount | 3V @ 250µA | 24 nC @ 5 V | 30 V | ±20V | 1760 pF @ 15 V | - | - | TO-263 (D2PAK) | - | 60W (Tc) | -65°C ~ 175°C (TJ) |
|
PSMN130-200D,118MOSFET N-CH 200V 20A DPAK |
2,823 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 130mOhm @ 25A, 10V | Surface Mount | 4V @ 1mA | 65 nC @ 10 V | 200 V | ±20V | 2470 pF @ 25 V | - | - | DPAK | - | 150W (Tc) | -55°C ~ 175°C (TJ) |
|
SIA443DJ-T1-E3MOSFET P-CH 20V 9A PPAK SC70-6 |
3,263 |
|
- |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 9A (Tc) | 1.8V, 4.5V | 45mOhm @ 4.7A, 4.5V | Surface Mount | 1V @ 250µA | 25 nC @ 8 V | 20 V | ±8V | 750 pF @ 10 V | - | - | PowerPAK® SC-70-6 | - | 3.3W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) |
|
SIA810DJ-T1-E3MOSFET N-CH 20V 4.5A PPAK SC70-6 |
2,844 |
|
Datasheet |
LITTLE FOOT® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4.5A (Tc) | 1.8V, 4.5V | 53mOhm @ 3.7A, 4.5V | Surface Mount | 1V @ 250µA | 11.5 nC @ 8 V | 20 V | ±8V | 400 pF @ 10 V | - | Schottky Diode (Isolated) | PowerPAK® SC-70-6 Dual | - | 1.9W (Ta), 6.5W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IRF7478QTRPBFMOSFET N-CH 60V 7A 8-SOIC |
2,432 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7A (Ta) | - | 26mOhm @ 4.2A, 10V | Surface Mount | 3V @ 250µA | 31 nC @ 4.5 V | 60 V | - | 1740 pF @ 25 V | - | - | 8-SO | - | - | - |
