FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSM6K518NU,LFMOSFET N-CH 20V 6A 6UDFNB |
5,838 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.5V, 4.5V | 33mOhm @ 4A, 4.5V | 1V @ 1mA | 3.6 nC @ 4.5 V | ±8V | 410 pF @ 10 V | - | 1.25W (Ta) | 150°C | - | - | Surface Mount | 6-UDFNB (2x2) |
|
DMN2100UDM-7MOSFET N-CH 20V 3.3A SOT-26 |
4,790 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 1.5V, 4.5V | 55mOhm @ 6A, 4.5V | 1V @ 250µA | - | ±8V | 555 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
,TO-226_straightlead.jpg)
|
VN2222LL-G-P003MOSFET N-CH 60V 230MA TO92-3 |
2,004 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±30V | 60 pF @ 25 V | - | 400mW (Ta), 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
.jpg)
|
SI2377EDS-T1-BE3P-CHANNEL 20-V (D-S) MOSFET |
1,900 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta), 4.4A (Tc) | 1.5V, 4.5V | 61mOhm @ 3.2A, 4.5V | 1V @ 250µA | 21 nC @ 8 V | ±8V | - | - | 1.25W (Ta), 1.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SI1443EDH-T1-BE3MOSFET P-CH 30V 4A/4A SC70-6 |
6,220 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta), 4A (Tc) | - | 54mOhm @ 4.3A, 10V | 1.5V @ 250µA | 28 nC @ 10 V | ±12V | - | - | 1.6W (Ta), 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
PMPB15ENEXSMALL SIGNAL MOSFET FOR MOBILE |
2,920 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 10V | 22mOhm @ 7A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 440 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
|
PMCB60XNEAYLSMALL SIGNAL MOSFET FOR MOBILE |
7,554 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 1.8V, 4.5V | 55mOhm @ 3.5A, 4.5V | 1.1V @ 250µA | 7.5 nC @ 4.5 V | ±12V | 420 pF @ 15 V | - | 480mW (Ta), 7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DSN1006-3 |
|
PMPB50ENEXMOSFET DFN2020MD-6 |
2,500 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.9A (Ta) | 4.5V, 10V | 43mOhm @ 5.1A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 271 pF @ 15 V | - | 1.9W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
|
SI1401EDH-T1-BE3MOSFET P-CH 12V 4A/4A SC70-6 |
2,000 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta), 4A (Tc) | - | 34mOhm @ 5.5A, 4.5V | 1V @ 250µA | 36 nC @ 8 V | ±10V | - | - | 1.6W (Ta), 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
IPP80R900P7XKSA1MOSFET N-CH 800V 6A TO220-3 |
2,600 |
|
Datasheet |
CoolMOS™ P7 | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 2.2A, 10V | 3.5V @ 110µA | 15 nC @ 10 V | ±20V | 350 pF @ 500 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
RTL020P02FRATRMOSFET P-CH 20V 2A TUMT6 |
4,408 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 2.5V, 4.5V | 135mOhm @ 2A, 4.5V | 2V @ 1mA | 4.9 nC @ 4.5 V | ±12V | 430 pF @ 10 V | - | 1W (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | TUMT6 |
|

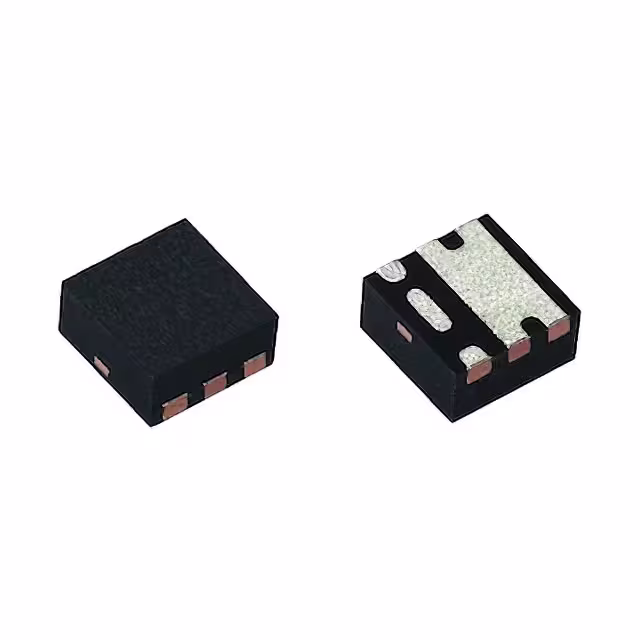

SIB4316EDK-T1-GE3N-CHANNEL 30-V (D-S) MOSFET POWE |
8,850 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-75-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta), 6A (Tc) | 2.5V, 10V | 57mOhm @ 4A, 10V | 1.4V @ 250µA | 12 nC @ 10 V | ±12V | - | - | 1.9W (Ta), 10W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6 |
|

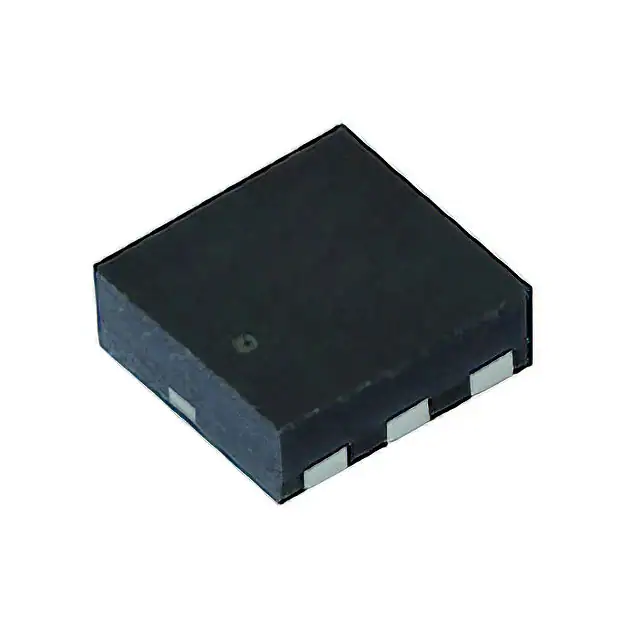

SQA410CEJW-T1_GE3AUTOMOTIVE N-CHANNEL 20 V (D-S) |
8,303 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.8A (Tc) | 1.8V, 4.5V | 28mOhm @ 5A, 4.5V | 1.1V @ 250µA | 8 nC @ 4.5 V | ±8V | 525 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|
TSM240N03CX6 RFGMOSFET N-CHANNEL 30V 6.5A SOT26 |
11,512 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Tc) | 4.5V, 10V | 24mOhm @ 6A, 10V | 2.5V @ 250µA | 4.1 nC @ 4.5 V | ±20V | 345 pF @ 25 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
|
PXP018-30QLJPXP018-30QL/SOT8002/MLPAK33 |
2,963 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta), 19.2A (Tc) | 4.5V, 10V | 18mOhm @ 7.5A, 10V | 2.5V @ 250µA | 10.8 nC @ 10 V | ±20V | 447 pF @ 15 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
;;6.jpg)
|
RF4E070GNTRMOSFET N-CH 30V 7A HUML2020L8 |
2,340 |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 21.4mOhm @ 7A, 10V | 2.5V @ 250µA | 4.8 nC @ 10 V | ±20V | 220 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
AO6409AMOSFET P-CH 20V 5.5A 6TSOP |
5,594 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.5A (Ta) | 1.8V, 4.5V | 41mOhm @ 5.5A, 4.5V | 900mV @ 250µA | 11 nC @ 4.5 V | ±8V | 905 pF @ 10 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
DMN3025LFG-7MOSFET N CH 30V 7.5A POWERDI |
19,904 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4.5V, 10V | 18mOhm @ 7.8A, 10V | 2V @ 250µA | 11.6 nC @ 10 V | ±20V | 605 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
DMT3006LDK-7MOSFET N-CH 30V 17.1A/46.2A 8DFN |
2,409 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 17.1A (Ta), 46.2A (Tc) | 4.5V, 10V | 6.5mOhm @ 12A, 10V | 3V @ 250µA | 22.6 nC @ 10 V | ±20V | 1320 pF @ 15 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN3030-8 |
|
RAQ045P01TCRMOSFET P-CH 12V 4.5A TSMT6 |
7,344 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4.5A (Ta) | 1.5V, 4.5V | 30mOhm @ 4.5A, 4.5V | 1V @ 1mA | 40 nC @ 4.5 V | -8V | 4200 pF @ 6 V | - | 600mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
