FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT5010JLLU3MOSFET N-CH 500V 41A SOT227 |
4,635 |
|
Datasheet |
POWER MOS 7® | SOT-227-4, miniBLOC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 41A (Tc) | 10V | 100mOhm @ 23A, 10V | Chassis Mount | 5V @ 2.5mA | 96 nC @ 10 V | 500 V | ±30V | 4360 pF @ 25 V | - | - | SOT-227 | - | 378W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFN34N100MOSFET N-CH 1000V 34A SOT-227B |
4,289 |
|
- |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 34A (Tc) | 10V | 280mOhm @ 500mA, 10V | Chassis Mount | 5.5V @ 8mA | 380 nC @ 10 V | 1000 V | ±20V | 9200 pF @ 25 V | - | - | SOT-227B | - | 700W (Tc) | -55°C ~ 150°C (TJ) |
|
AIMZHN120R010M1TXKSA1SIC_DISCRETE |
2,538 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 202A (Tc) | 18V, 20V | 11.3mOhm @ 93A, 20V | Through Hole | 5.1V @ 30mA | 178 nC @ 20 V | 1200 V | +23V, -5V | 5703 pF @ 800 V | AEC-Q101 | - | PG-TO247-4-14 | Automotive | 750W (Tc) | -55°C ~ 175°C (TJ) |
|
STE70NM50MOSFET N-CH 500V 70A ISOTOP |
3,826 |
|
Datasheet |
MDmesh™ | ISOTOP | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 70A (Tc) | 10V | 50mOhm @ 30A, 10V | Chassis Mount | 5V @ 250µA | 266 nC @ 10 V | 500 V | ±30V | 7500 pF @ 25 V | - | - | ISOTOP® | - | 600W (Tc) | 150°C (TJ) |
|
|
IXFN24N100MOSFET N-CH 1KV 24A SOT-227B |
3,513 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 390mOhm @ 12A, 10V | Chassis Mount | 5.5V @ 8mA | 267 nC @ 10 V | 1000 V | ±20V | 8700 pF @ 25 V | - | - | SOT-227B | - | 568W (Tc) | -55°C ~ 150°C (TJ) |
|
|
STE26NA90MOSFET N-CH 900V 26A ISOTOP |
4,089 |
|
Datasheet |
- | ISOTOP | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 300mOhm @ 13A, 10V | Chassis Mount | 3.75V @ 1mA | 660 nC @ 10 V | 900 V | ±30V | 1770 pF @ 25 V | - | - | ISOTOP® | - | 450W (Tc) | 150°C (TJ) |
|
|
APT21M100JMOSFET N-CH 1000V 21A ISOTOP |
4,903 |
|
Datasheet |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 21A (Tc) | 10V | 380mOhm @ 16A, 10V | Chassis Mount | 5V @ 2.5mA | 260 nC @ 10 V | 1000 V | ±30V | 8500 pF @ 25 V | - | - | ISOTOP® | - | 462W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT58M50JU2MOSFET N-CH 500V 58A SOT227 |
4,250 |
|
Datasheet |
POWER MOS 8™ | SOT-227-4, miniBLOC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 58A (Tc) | 10V | 65mOhm @ 42A, 10V | Chassis Mount | 5V @ 2.5mA | 340 nC @ 10 V | 500 V | ±30V | 10800 pF @ 25 V | - | - | SOT-227 | - | 543W (Tc) | -40°C ~ 150°C (TJ) |
|
|
APT58M50JU3MOSFET N-CH 500V 58A SOT227 |
4,541 |
|
Datasheet |
POWER MOS 8™ | SOT-227-4, miniBLOC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 58A (Tc) | 10V | 65mOhm @ 42A, 10V | Chassis Mount | 5V @ 2.5mA | 340 nC @ 10 V | 500 V | ±30V | 10800 pF @ 25 V | - | - | SOT-227 | - | 543W (Tc) | -40°C ~ 150°C (TJ) |
|
|
APT19F100JMOSFET N-CH 1000V 20A ISOTOP |
3 |
|
Datasheet |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 440mOhm @ 16A, 10V | Chassis Mount | 5V @ 2.5mA | 260 nC @ 10 V | 1000 V | ±30V | 8500 pF @ 25 V | - | - | ISOTOP® | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|

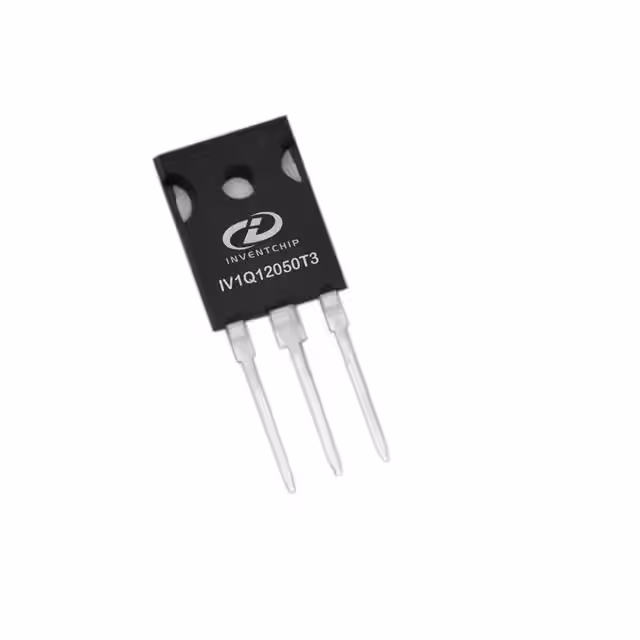

IV1Q12050T3SIC MOSFET, 1200V 50MOHM, TO-247 |
4,956 |
|
Datasheet |
- | TO-247-3 | Active | N-Channel | SiCFET (Silicon Carbide) | 58A (Tc) | 20V | 65mOhm @ 20A, 20V | Through Hole | 3.2V @ 6mA | 120 nC @ 20 V | 1200 V | +20V, -5V | 2770 pF @ 800 V | - | - | TO-247-3 | - | 327W (Tc) | -55°C ~ 175°C (TJ) | |
|
|
UJ4SC075010L8SSB750V/10MO,SICFET,G4,TOLL |
3,153 |
|
Datasheet |
- | 8-PowerSFN | Bulk | Active | N-Channel, Depletion Mode | SiCFET (Silicon Carbide) | 106A (Tc) | 12V | 14.2mOhm @ 60A, 12V | Surface Mount | 5.5V @ 10mA | 75 nC @ 15 V | 750 V | ±20V | 3245 pF @ 400 V | - | - | TOLL | - | 556W (Tc) | -55°C ~ 175°C (TJ) |
|
APT6010B2FLLGMOSFET N-CH 600V 54A T-MAX |
4,900 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 54A (Tc) | - | 100mOhm @ 27A, 10V | Through Hole | 5V @ 2.5mA | 150 nC @ 10 V | 600 V | - | 6710 pF @ 25 V | - | - | T-MAX™ [B2] | - | - | - |
|
APT80SM120SSICFET N-CH 1200V 80A D3PAK |
4,041 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 80A (Tc) | 20V | 55mOhm @ 40A, 20V | Surface Mount | 2.5V @ 1mA | 235 nC @ 20 V | 1200 V | +25V, -10V | - | - | - | D3PAK | - | 625W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFN60N60MOSFET N-CH 600V 60A SOT-227B |
3,503 |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60A (Tc) | 10V | 75mOhm @ 500mA, 10V | Chassis Mount | 4.5V @ 8mA | 380 nC @ 10 V | 600 V | ±20V | 15000 pF @ 25 V | - | - | SOT-227B | - | 700W (Tc) | -55°C ~ 150°C (TJ) |
|
APT8020LLLGMOSFET N-CH 800V 38A TO264 |
3,392 |
|
Datasheet |
POWER MOS 7® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 38A (Tc) | - | 200mOhm @ 19A, 10V | Through Hole | 5V @ 2.5mA | 195 nC @ 10 V | 800 V | - | 5200 pF @ 25 V | - | - | TO-264 [L] | - | - | - |
|
|
IXTT1N250HV-TRLMOSFET N-CH 2500V 1.5A TO268HV |
4,454 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1.5A (Tc) | 10V | 40Ohm @ 750mA, 10V | Surface Mount | 4V @ 250µA | 41 nC @ 10 V | 2500 V | ±20V | 1660 pF @ 25 V | - | - | TO-268HV (IXTT) | - | 250W (Tc) | -55°C ~ 150°C (TJ) |
|

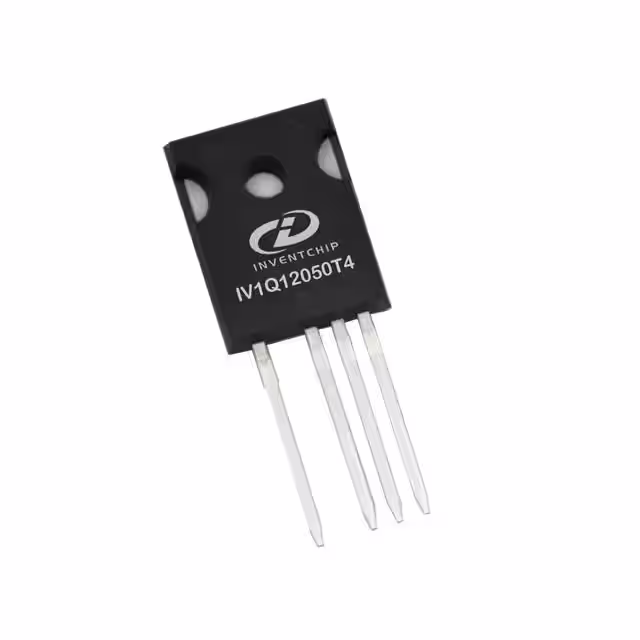

IV1Q12050T4SIC MOSFET, 1200V 50MOHM, TO-247 |
4,089 |
|
Datasheet |
- | TO-247-4 | Active | N-Channel | SiCFET (Silicon Carbide) | 58A (Tc) | 20V | 65mOhm @ 20A, 20V | Through Hole | 3.2V @ 6mA | 120 nC @ 20 V | 1200 V | +20V, -5V | 2750 pF @ 800 V | - | - | TO-247-4 | - | 344W (Tc) | -55°C ~ 175°C (TJ) | |
|
|
APT10045B2LLGMOSFET N-CH 1000V 23A T-MAX |
2,085 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 23A (Tc) | 10V | 450mOhm @ 11.5A, 10V | Through Hole | 5V @ 2.5mA | 154 nC @ 10 V | 1000 V | ±30V | 4350 pF @ 25 V | - | - | T-MAX™ [B2] | - | 565W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT10035LLLGMOSFET N-CH 1000V 28A TO264 |
2,161 |
|
Datasheet |
POWER MOS 7® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 28A (Tc) | 10V | 350mOhm @ 14A, 10V | Through Hole | 5V @ 2.5mA | 186 nC @ 10 V | 1000 V | ±30V | 5185 pF @ 25 V | - | - | TO-264 [L] | - | 690W (Tc) | -55°C ~ 150°C (TJ) |
