FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXTH24N50MOSFET N-CH 500V 24A TO247 |
2,253 |
|
Datasheet |
MegaMOS™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 230mOhm @ 12A, 10V | Through Hole | 4V @ 250µA | 190 nC @ 10 V | 500 V | ±20V | 4200 pF @ 25 V | - | - | TO-247 (IXTH) | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|
STF4NK50ZDMOSFET N-CH 500V 3A TO220FP |
4,884 |
|
Datasheet |
SuperMESH™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3A (Tc) | 10V | 2.7Ohm @ 1.5A, 10V | Through Hole | 4.5V @ 50µA | 12 nC @ 10 V | 500 V | ±30V | 310 pF @ 25 V | - | - | TO-220FP | - | 20W (Tc) | -55°C ~ 150°C (TJ) |
|
|
STF9NK80ZMOSFET N-CH 800V 7.5A TO220FP |
3,658 |
|
- |
SuperMESH™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7.5A (Tc) | 10V | 1.2Ohm @ 3.75A, 10V | Through Hole | 4.5V @ 100µA | 84 nC @ 10 V | 800 V | ±30V | 1900 pF @ 25 V | - | - | TO-220FP | - | 35W (Tc) | -55°C ~ 150°C (TJ) |
|
STW120NF10MOSFET N-CH 100V 110A TO247-3 |
4,637 |
|
Datasheet |
STripFET™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 10.5mOhm @ 60A, 10V | Through Hole | 4V @ 250µA | 233 nC @ 10 V | 100 V | ±20V | 5200 pF @ 25 V | - | - | TO-247-3 | - | 312W (Tc) | -55°C ~ 175°C (TJ) |
|

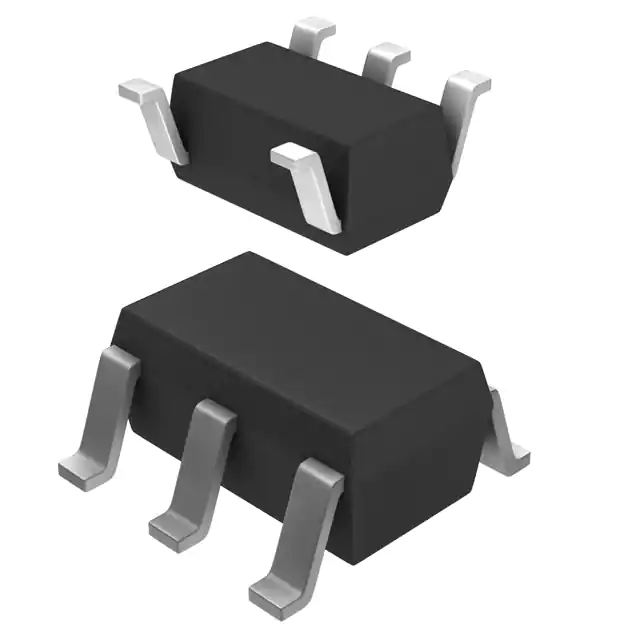

ZXMP2120E5TAMOSFET P-CH 200V 122MA SOT25 |
4,210 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 122mA (Ta) | 10V | 28Ohm @ 150mA, 10V | Surface Mount | 3.5V @ 1mA | - | 200 V | ±20V | 100 pF @ 25 V | - | - | SOT-25 | - | 750mW (Ta) | -55°C ~ 150°C (TJ) |
|
FDD8782MOSFET N-CH 25V 35A TO252AA |
2,139 |
|
Datasheet |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 35A (Tc) | 4.5V, 10V | 11mOhm @ 35A, 10V | Surface Mount | 2.5V @ 250µA | 25 nC @ 10 V | 25 V | ±20V | 1220 pF @ 13 V | - | - | TO-252AA | - | 50W (Tc) | -55°C ~ 175°C (TJ) |
|
FDP65N06MOSFET N-CH 60V 65A TO220-3 |
2,066 |
|
Datasheet |
UniFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 65A (Tc) | 10V | 16mOhm @ 32.5A, 10V | Through Hole | 4V @ 250µA | 43 nC @ 10 V | 60 V | ±20V | 2170 pF @ 25 V | - | - | TO-220-3 | - | 135W (Tc) | -55°C ~ 150°C (TJ) |
|
|
FDP75N08AMOSFET N-CH 75V 75A TO220-3 |
4,916 |
|
Datasheet |
UniFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75A (Tc) | 10V | 11mOhm @ 37.5A, 10V | Through Hole | 4V @ 250µA | 104 nC @ 10 V | 75 V | ±20V | 4468 pF @ 25 V | - | - | TO-220-3 | - | 137W (Tc) | -55°C ~ 150°C (TJ) |
|
FDPF79N15MOSFET N-CH 150V 79A TO220F |
4,377 |
|
Datasheet |
UniFET™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 79A (Tc) | 10V | 30mOhm @ 39.5A, 10V | Through Hole | 5V @ 250µA | 73 nC @ 10 V | 150 V | ±30V | 3410 pF @ 25 V | - | - | TO-220F-3 | - | 38W (Tc) | -55°C ~ 150°C (TJ) |
|
FDZ191PMOSFET P-CH 20V 3A 6WLCSP |
2,138 |
|
Datasheet |
PowerTrench® | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 3A (Ta) | 1.5V, 4.5V | 85mOhm @ 1A, 4.5V | Surface Mount | 1.5V @ 250µA | 13 nC @ 10 V | 20 V | ±8V | 800 pF @ 10 V | - | - | 6-WLCSP (1x1.5) | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) |
,TO-226_straightlead.jpg)
|
BS108,126MOSFET N-CH 200V 300MA TO92-3 |
4,561 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300mA (Ta) | 2.8V | 5Ohm @ 100mA, 2.8V | Through Hole | 1.8V @ 1mA | - | 200 V | ±20V | 120 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
|
BS108/01,126MOSFET N-CH 200V 300MA TO92-3 |
2,389 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300mA (Ta) | 2.8V | 5Ohm @ 100mA, 2.8V | Through Hole | 1.8V @ 1mA | - | 200 V | ±20V | 120 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
BSH111,235MOSFET N-CH 55V 335MA TO236AB |
2,265 |
|
Datasheet |
TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 335mA (Ta) | 1.8V, 4.5V | 4Ohm @ 500mA, 4.5V | Surface Mount | 1.3V @ 1mA | 1 nC @ 8 V | 55 V | ±10V | 40 pF @ 10 V | - | - | TO-236AB | - | 830mW (Tc) | -65°C ~ 150°C (TJ) |
|
BSH207,135MOSFET P-CH 12V 1.52A 6TSOP |
2,157 |
|
- |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 1.52A (Ta) | 1.8V, 4.5V | 120mOhm @ 1A, 4.5V | Surface Mount | 600mV @ 1mA (Typ) | 8.8 nC @ 4.5 V | 12 V | ±8V | 500 pF @ 9.6 V | - | - | 6-TSOP | - | 417mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
BSN254,126MOSFET N-CH 250V 310MA TO92-3 |
4,992 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 310mA (Ta) | 2.4V, 10V | 5Ohm @ 300mA, 10V | Through Hole | 2V @ 1mA | - | 250 V | ±20V | 120 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
|
BSN254A,126MOSFET N-CH 250V 310MA TO92-3 |
4,486 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 310mA (Ta) | 2.4V, 10V | 5Ohm @ 300mA, 10V | Through Hole | 2V @ 1mA | - | 250 V | ±20V | 120 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
|
BSN304,126MOSFET N-CH 300V 300MA TO92-3 |
2,452 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300mA (Ta) | 2.4V, 10V | 6Ohm @ 250mA, 10V | Through Hole | 2V @ 1mA | - | 300 V | ±20V | 120 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
|
BSP254A,126MOSFET P-CH 250V 200MA TO92-3 |
2,804 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200mA (Ta) | 10V | 15Ohm @ 200mA, 10V | Through Hole | 2.8V @ 1mA | - | 250 V | ±20V | 90 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | 150°C (TJ) |
|
|
BSP304A,126MOSFET P-CH 300V 170MA TO92-3 |
4,667 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 170mA (Ta) | 10V | 17Ohm @ 170mA, 10V | Through Hole | 2.55V @ 1mA | - | 300 V | ±20V | 90 pF @ 25 V | - | - | TO-92-3 | - | 1W (Ta) | -65°C ~ 150°C (TJ) |
|
BST72A,112MOSFET N-CH 100V 190MA TO92-3 |
3,921 |
|
Datasheet |
TrenchMOS™ | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 190mA (Ta) | 5V | 10Ohm @ 150mA, 5V | Through Hole | 3.5V @ 1mA | - | 100 V | 20V | 40 pF @ 10 V | - | - | TO-92-3 | - | 830mW (Ta) | 150°C (TJ) |
