FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP75N04YUG-E1-AYMOSFET N-CH 40V 75A 8HSON |
5,000 |
|
Datasheet |
- | 8-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 4.8mOhm @ 37.5A, 10V | 4V @ 250µA | 116 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 1W (Ta), 138W (Tc) | 175°C (TJ) | - | - | Surface Mount | 8-HSON |
|
RRS100P03HZGTBPCH -30V -10A POWER MOSFET. RRS1 |
1,215 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12.6mOhm @ 10A, 10V | 2.5V @ 1mA | 39 nC @ 5 V | ±20V | 3600 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
R8002KNXC7G800V 1.6A, TO-220FM, HIGH-SPEED |
944 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.6A (Ta) | 10V | 4.2Ohm @ 800mA, 10V | 4.5V @ 150µA | 7.5 nC @ 10 V | ±20V | 140 pF @ 100 V | - | 28W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
MCB200N06Y-TPN-CHANNEL MOSFET, D2-PAK |
675 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200A (Tc) | 4.5V, 10V | 2.6mOhm @ 20A, 10V | 2.2V @ 250µA | 93 nC @ 10 V | ±20V | 5950 pF @ 25 V | - | 260W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRFI9630GPBFMOSFET P-CH 200V 4.3A TO220-3 |
2,020 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 4.3A (Tc) | 10V | 800mOhm @ 2.6A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 700 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
PJP60R390E_T0_00001600V N-CHANNEL SUPER JUNCTION MO |
1,995 |
|
Datasheet |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.5A (Ta), 11A (Tc) | 10V | 390mOhm @ 3.8A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±20V | 531 pF @ 25 V | - | 2W (Ta), 124W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
NTMFS1D15N03CGT1GMOSFET N-CH 30V 43A/245A 5DFN |
1,330 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 43A (Ta), 245A (Tc) | 10V | 1.15mOhm @ 20A, 10V | 2.2V @ 160µA | 94 nC @ 10 V | ±20V | 7300 pF @ 15 V | - | 3.8W (Ta), 124W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NVMJS1D3N04CTWGMOSFET N-CH 40V 41A/235A 8LFPAK |
6,000 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 41A (Ta), 235A (Tc) | 10V | 1.3mOhm @ 50A, 10V | 3.5V @ 170µA | 65 nC @ 10 V | ±20V | 4300 pF @ 25 V | - | 3.8W (Ta), 128W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
SQJ461EP-T2_GE3P-CHANNEL 60-V (D-S) 175C MOSFET |
5,870 |
|
Datasheet |
- | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4.5V, 10V | 16mOhm @ 14.4A, 10V | 2.5V @ 250µA | 140 nC @ 10 V | ±20V | 4710 pF @ 30 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IRF9510SPBFMOSFET P-CH 100V 4A D2PAK |
946 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 1.2Ohm @ 2.4A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | - |
|
N0607N-ZK-E1-AYABU / MOSFET |
8,866 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 65A (Ta) | 10V | 8.4mOhm @ 32.5A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 1W (Ta), 87.4W (Tc) | 150°C | - | - | Surface Mount | TO-252 |
|
|
R6007JNXC7GMOSFET N-CH 600V 7A TO220FM |
2,010 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 15V | 780mOhm @ 3.5A, 15V | 7V @ 1mA | 17.5 nC @ 15 V | ±30V | 475 pF @ 100 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
SIR104ADP-T1-RE3MOSFET N-CH 100V 18.8A/81A PPAK |
5,937 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 18.8A (Ta), 81A (Tc) | 7.5V, 10V | 6.1mOhm @ 15A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 3250 pF @ 50 V | - | 5.4W (Ta), 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
.jpg)
|
SIDR638DP-T1-GE3MOSFET N-CH 40V 100A PPAK SO-8DC |
4,599 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 0.88mOhm @ 20A, 10V | 2.3V @ 250µA | 204 nC @ 10 V | +20V, -16V | 10500 pF @ 20 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8DC |
|
TSM4ND65CIMOSFET N-CH 650V 4A ITO220 |
1,845 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 2.6Ohm @ 1.2A, 10V | 3.8V @ 250µA | 16.8 nC @ 10 V | ±30V | 596 pF @ 50 V | - | 41.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
FDP053N08B-F102MOSFET N-CH 80V 75A TO220-3 |
1,520 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 75A (Tc) | 10V | 5.3mOhm @ 75A, 10V | 4.5V @ 250µA | 85 nC @ 10 V | ±20V | 5960 pF @ 40 V | - | 146W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
PJMD900N60EC_L2_00001600V SUPER JUNCTION MOSFET |
5,835 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 900mOhm @ 2.3A, 10V | 4V @ 250µA | 8.8 nC @ 10 V | ±30V | 310 pF @ 400 V | - | 47.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|

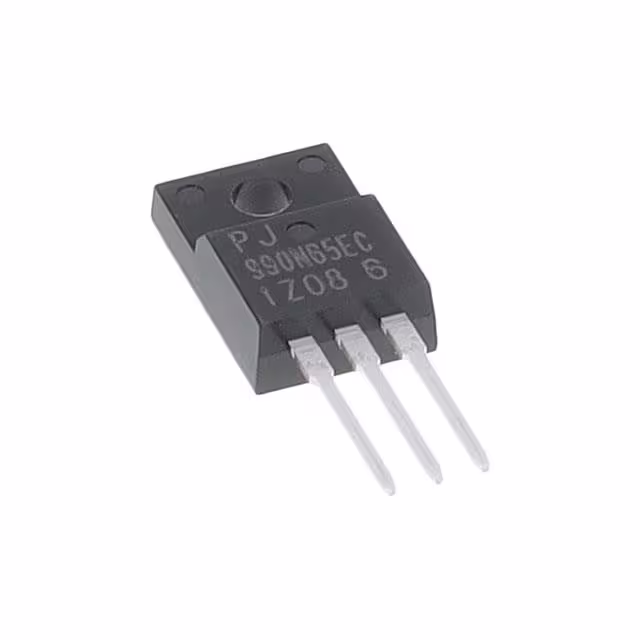

PJMP990N65EC_T0_00001650V SUPER JUNCTION MOSFET |
2,000 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4.7A (Tc) | 10V | 990mOhm @ 2A, 10V | 4V @ 250µA | 9.7 nC @ 10 V | ±30V | 306 pF @ 400 V | - | 47.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB-L |
|
|
NVMFS4C03NT1GMOSFET N-CH 30V 31.4A/143A 5DFN |
1,350 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 31.4A (Ta), 143A (Tc) | 4.5V, 10V | 2.1mOhm @ 30A, 10V | 2.2V @ 250µA | 45.2 nC @ 10 V | ±20V | 3071 pF @ 15 V | - | 3.71W (Ta), 77W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
AOB380A60CLMOSFET N-CH 600V 11A TO263 |
1,309 |
|
Datasheet |
aMOS5™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 3.8V @ 250µA | 20 nC @ 10 V | ±20V | 955 pF @ 100 V | - | 131W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
