FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK7Y15-100EXMOSFET N-CH 100V 68A LFPAK56 |
2,606 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 68A (Tc) | 10V | 15mOhm @ 20A, 10V | Surface Mount | 4V @ 1mA | 54.5 nC @ 10 V | 100 V | ±20V | 3958 pF @ 25 V | AEC-Q101 | - | LFPAK56, Power-SO8 | Automotive | 195W (Tc) | -55°C ~ 175°C (TJ) |
|
|
BUK9Y12-80E,115MOSFET N-CH 80V LFPAK56 PWR-SO8 |
2,105 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | - | - | - | Surface Mount | - | - | 80 V | - | - | - | - | LFPAK56, Power-SO8 | - | - | - |
|
PMF77XN,115MOSFET N-CH 30V 1.5A SOT323-3 |
3,709 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1.5A (Ta) | 2.5V, 4.5V | 97mOhm @ 1.5A, 4.5V | Surface Mount | 1.5V @ 250µA | 2.9 nC @ 4.5 V | 30 V | ±12V | 170 pF @ 15 V | - | - | SC-70 | - | 270mW (Ta), 1.92W (Tc) | -55°C ~ 150°C (TJ) |
|
PMN22XN,115MOSFET N-CH 30V 5.7A 6TSOP |
4,227 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5.7A (Ta) | 2.5V, 4.5V | 27mOhm @ 5.7A, 4.5V | Surface Mount | 1.5V @ 250µA | 10 nC @ 4.5 V | 30 V | ±12V | 585 pF @ 15 V | - | - | SC-74 | - | 545mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|

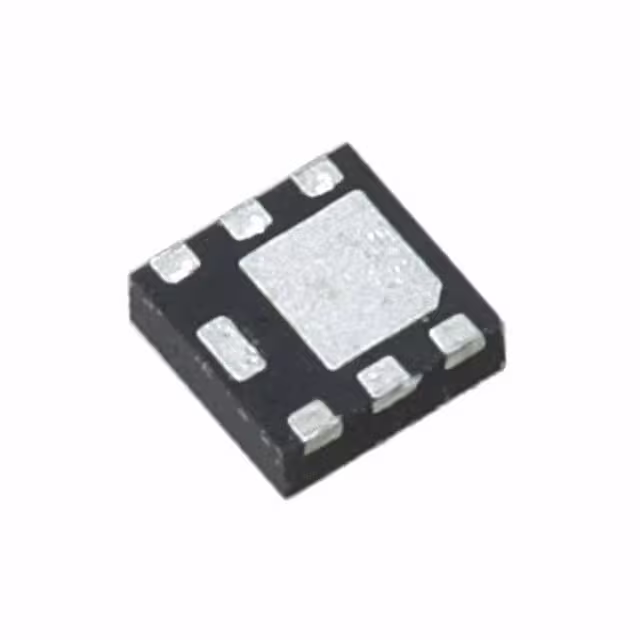

PMPB20UN,115MOSFET N-CH 20V 6.6A 6DFN |
2,006 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 6.6A (Ta) | 1.8V, 4.5V | 25mOhm @ 6.6A, 4.5V | Surface Mount | 1V @ 250µA | 7.1 nC @ 4.5 V | 20 V | ±8V | 460 pF @ 10 V | - | - | 6-DFN2020MD (2x2) | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) |
|
PMZB290UN,315MOSFET N-CH 20V 1A DFN1006B-3 |
4,352 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 1A (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | Surface Mount | 950mV @ 250µA | 0.68 nC @ 4.5 V | 20 V | ±8V | 83 pF @ 10 V | - | - | DFN1006B-3 | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) |
|
2SK1339-EMOSFET N-CH 900V 3A TO3P |
4,740 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 3A (Ta) | 10V | 7Ohm @ 1.5A, 10V | Through Hole | - | - | 900 V | ±30V | 425 pF @ 10 V | - | - | TO-3P | - | 80W (Tc) | 150°C (TJ) |
|
|
2SK1340-EMOSFET N-CH 900V 5A TO3P |
2,644 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 5A (Ta) | 10V | 4Ohm @ 3A, 10V | Through Hole | - | - | 900 V | ±30V | 740 pF @ 10 V | - | - | TO-3P | - | 100W (Tc) | 150°C (TJ) |
|
|
2SK1341-EMOSFET N-CH 900V 6A TO3P |
3,003 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 6A (Ta) | 10V | 3Ohm @ 3A, 10V | Through Hole | - | - | 900 V | ±30V | 980 pF @ 10 V | - | - | TO-3P | - | 100W (Tc) | 150°C (TJ) |
|
|
2SK1342-EMOSFET N-CH 900V 8A TO3P |
2,080 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Ta) | 10V | 1.6Ohm @ 4A, 10V | Through Hole | - | - | 900 V | ±30V | 1730 pF @ 10 V | - | - | TO-3P | - | 100W (Tc) | 150°C (TJ) |
|
|
2SK1775-EMOSFET N-CH 900V 8A TO3P |
2,393 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Ta) | 10V | 1.6Ohm @ 4A, 10V | Through Hole | - | - | 900 V | ±30V | 1730 pF @ 10 V | - | - | TO-3P | - | 60W (Tc) | 150°C (TJ) |
|
|
2SK1859-EMOSFET N-CH 900V 6A TO3P |
3,725 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 6A (Ta) | 10V | 3Ohm @ 3A, 10V | Through Hole | - | - | 900 V | ±30V | 980 pF @ 10 V | - | - | TO-3P | - | 60W (Tc) | 150°C (TJ) |
|
2SK4150TZ-EMOSFET N-CH 250V 400MA TO92 |
3,443 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400mA (Ta) | 2.5V, 4V | 5.7Ohm @ 200mA, 4V | Through Hole | - | 3.7 nC @ 4 V | 250 V | ±10V | 80 pF @ 25 V | - | - | TO-92 | - | 750mW (Ta) | 150°C (TJ) |
|
|
2SK4151TZ-EMOSFET N-CH 150V 1A TO92 |
4,043 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1A (Ta) | 2.5V, 4V | 1.95Ohm @ 500mA, 4V | Through Hole | - | 3.5 nC @ 4 V | 150 V | ±10V | 98 pF @ 10 V | - | - | TO-92 | - | 750mW (Ta) | 150°C (TJ) |
|
H5N2522LSTL-EMOSFET N-CH 250V 20A 4LDPAK |
4,886 |
|
Datasheet |
- | SC-83 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Ta) | 10V | 180mOhm @ 10A, 10V | Surface Mount | - | 47 nC @ 10 V | 250 V | ±30V | 1300 pF @ 25 V | - | - | LDPAK | - | 75W (Tc) | 150°C (TJ) |
|
HS54095TZ-EMOSFET N-CH 600V 200MA TO92-3 |
4,297 |
|
Datasheet |
- | TO-226-3, TO-92-3 Short Body | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200mA (Ta) | 10V | 16.5Ohm @ 100mA, 10V | Through Hole | - | 4.8 nC @ 10 V | 600 V | ±30V | 66 pF @ 25 V | - | - | TO-92-3 | - | 750mW (Ta) | 150°C (TJ) |
|
NP109N04PUG-E1-AYMOSFET N-CH 40V 110A TO263-3 |
4,830 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 2.3mOhm @ 55A, 10V | Surface Mount | 4V @ 250µA | 270 nC @ 10 V | 40 V | ±20V | 15750 pF @ 25 V | - | - | TO-263-3 | - | 1.8W (Ta), 220W (Tc) | 175°C (TJ) |
|
|
NP110N055PUG-E1-AYMOSFET N-CH 55V 110A TO263 |
3,255 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 2.4mOhm @ 55A, 10V | Surface Mount | 4V @ 250µA | 380 nC @ 10 V | 55 V | ±20V | 25700 pF @ 25 V | - | - | TO-263 | - | 1.8W (Ta), 288W (Tc) | 175°C (TJ) |
|
|
NP40N10PDF-E1-AYMOSFET N-CH 100V 40A TO263 |
2,786 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 4.5V, 10V | 27mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 71 nC @ 10 V | 100 V | ±20V | 3150 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 1.8W (Ta), 120W (Tc) | 175°C (TJ) |
|
|
NP40N10YDF-E1-AYMOSFET N-CH 100V 40A 8HSON |
2,167 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 4.5V, 10V | 25mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 71 nC @ 10 V | 100 V | ±20V | 3150 pF @ 25 V | - | - | 8-HSON | - | 1W (Ta), 120W (Tc) | 175°C (TJ) |
