FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPA65R150CFDXKSA1MOSFET N-CH 650V 22.4A TO220 |
0 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22.4A (Tc) | 10V | 150mOhm @ 9.3A, 10V | 4.5V @ 1mA | 86 nC @ 10 V | ±20V | 2340 pF @ 100 V | - | 34.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
IPB65R099C6ATMA1MOSFET N-CH 650V 38A D2PAK |
0 |
|
Datasheet |
CoolMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 99mOhm @ 12.8A, 10V | 3.5V @ 1.2mA | 127 nC @ 10 V | ±20V | 2780 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
IPI65R099C6XKSA1MOSFET N-CH 650V 38A TO262-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 99mOhm @ 12.8A, 10V | 3.5V @ 1.2mA | 127 nC @ 10 V | ±20V | 2780 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO262-3-1 |
|
IPP60R074C6XKSA1MOSFET N-CH 600V 57.7A TO220-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 57.7A (Tc) | 10V | 74mOhm @ 21A, 10V | 3.5V @ 1.4mA | 138 nC @ 10 V | ±20V | 3020 pF @ 100 V | - | 480.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
IPP65R074C6XKSA1MOSFET N-CH 650V 57.7A TO220-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 57.7A (Tc) | 10V | 74mOhm @ 13.9A, 10V | 3.5V @ 1.4mA | 17 nC @ 10 V | ±20V | 3020 pF @ 100 V | - | 480.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
IPP65R099C6XKSA1MOSFET N-CH 650V 38A TO220-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 99mOhm @ 12.8A, 10V | 3.5V @ 1.2mA | 15 nC @ 10 V | ±20V | 2780 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
IPP65R150CFDXKSA1MOSFET N-CH 650V 22.4A TO220-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22.4A (Tc) | 10V | 150mOhm @ 9.3A, 10V | 4.5V @ 900µA | 86 nC @ 10 V | ±20V | 2340 pF @ 100 V | - | 195.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPS65R1K4C6AKMA1MOSFET N-CH 650V 3.2A TO251-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 3.2A (Tc) | 10V | 1.4Ohm @ 1A, 10V | 3.5V @ 100µA | 10.5 nC @ 10 V | ±20V | 225 pF @ 100 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3-11 |
|
IPU50R1K4CEBKMA1MOSFET N-CH 500V 3.1A TO251-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.1A (Tc) | 13V | 1.4Ohm @ 900mA, 13V | 3.5V @ 70µA | 8.2 nC @ 10 V | ±20V | 178 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
|
IPU50R2K0CEBKMA1MOSFET N-CH 500V 2.4A TO251-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.4A (Tc) | 13V | 2Ohm @ 600mA, 13V | 3.5V @ 50µA | 6 nC @ 10 V | ±20V | 124 pF @ 100 V | - | 22W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
|
IPU60R600C6BKMA1MOSFET N-CH 600V 7.3A TO251-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
|
IPU60R950C6BKMA1MOSFET N-CH 600V 4.4A TO251-3 |
0 |
|
Datasheet |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 130µA | 1.5 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
FDM15-06KC5MOSFET N-CH 600V 15A I4PAC |
0 |
|
Datasheet |
CoolMOS™ | ISOPLUSi5-PAK™ | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 790µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
FDM47-06KC5MOSFET N-CH 600V 47A I4PAC |
0 |
|
Datasheet |
CoolMOS™, HiPerDyn™ | ISOPLUSi5-PAK™ | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 45mOhm @ 44A, 10V | 3.5V @ 3mA | 190 nC @ 10 V | ±20V | 6800 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|

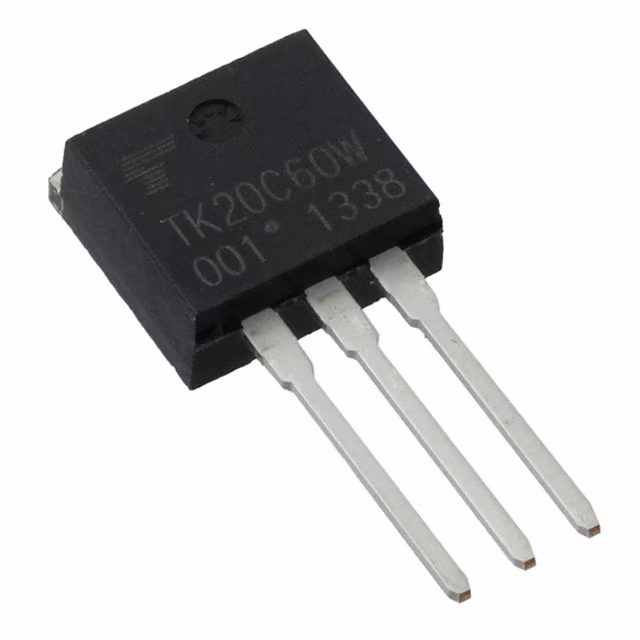

TK20C60W,S1VQMOSFET N-CH 600V 20A I2PAK |
0 |
|
- |
DTMOSIV | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Ta) | 10V | 155mOhm @ 10A, 10V | 3.7V @ 1mA | 48 nC @ 10 V | ±30V | 1680 pF @ 300 V | - | 165W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
|
FM6K62010LMOSFET N-CH 20V 2A WSMINI6 |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 2.5V, 4V | 105mOhm @ 1A, 4V | 1.3V @ 1mA | - | ±10V | 280 pF @ 10 V | Schottky Diode (Isolated) | 700mW (Ta) | 125°C (TJ) | - | - | Surface Mount | WSMini6-F1-B |
|
|
FM6L52020LMOSFET N-CH 20V 2.2A WSSMINI6-F1 |
0 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 2.5V, 4V | 105mOhm @ 1A, 4V | 1.3V @ 1mA | - | ±10V | 280 pF @ 10 V | - | 540mW (Ta) | 125°C (TJ) | - | - | Surface Mount | WSSMini6-F1 |
|
|
MTM131270BBFMOSFET P-CH 20V 2A MINI3-G3-B |
0 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8 V, 4V | 130mOhm @ 1A, 4V | 1.1V @ 1mA | - | ±10V | 300 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | MINI3-G3-B |
|
STULED656MOSFET N-CH 650V 6A IPAK |
0 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 1.3Ohm @ 2.7A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 895 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
2N6764T1MOSFET N-CH 100V 38A TO3 |
0 |
|
Datasheet |
- | TO-204AE | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 38A (Tc) | 10V | 65mOhm @ 38A, 10V | 4V @ 250µA | 125 nC @ 10 V | ±20V | - | - | 4W (Ta), 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3 |
