FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSS090P03FU7TBMOSFET P-CH 30V 9A 8SOP |
4,799 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 9A (Ta) | 4V, 10V | 14mOhm @ 9A, 10V | Surface Mount | 2.5V @ 1mA | 39 nC @ 5 V | 30 V | ±20V | 4000 pF @ 10 V | - | - | 8-SOP | - | 2W (Ta) | 150°C (TJ) |
|
N0300N-T1B-ATMOSFET N-CH 30V 4.5A SC96-3 |
3,347 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4.5A (Ta) | 4.5V, 10V | 50mOhm @ 2A, 10V | Surface Mount | - | - | 30 V | ±20V | 350 pF @ 10 V | - | - | SC-96-3, Thin Mini Mold | - | 1.25W (Ta) | 150°C |
|
IPS040N03LGAKMA1MOSFET N-CH 30V 90A TO251-3 |
3,339 |
|
Datasheet |
OptiMOS™ | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | Through Hole | 2.2V @ 250µA | 38 nC @ 10 V | 30 V | - | 3900 pF @ 15 V | - | - | PG-TO251-3-11 | - | 79W (Tc) | -55°C ~ 175°C (TJ) |
|
|
2SJ668(TE16L1,NQ)MOSFET P-CHANNEL 60V 5A PW-MOLD |
4,654 |
|
Datasheet |
U-MOSIII | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 5A (Ta) | 4V, 10V | 170mOhm @ 2.5A, 10V | Surface Mount | 2V @ 1mA | 15 nC @ 10 V | 60 V | ±20V | 700 pF @ 10 V | - | - | PW-MOLD | - | 20W (Tc) | 150°C |
|
SQD40030E_GE3MOSFET N-CHANNEL 40V TO252AA |
2,250 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 10V | - | Surface Mount | - | 65 nC @ 10 V | 40 V | - | - | AEC-Q101 | - | TO-252AA | Automotive | - | 175°C (TJ) |
|
SQM40010EL_GE3MOSFET N-CH 40V 120A D2PAK |
4,292 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 4.5V, 10V | 1.6mOhm @ 30A, 10V | Surface Mount | 2.5V @ 250µA | 230 nC @ 10 V | 40 V | ±20V | 17100 pF @ 20 V | AEC-Q101 | - | TO-263 (D2PAK) | Automotive | 375W (Tc) | -55°C ~ 175°C (TJ) |
|
STP80NF55-08AGMOSFET N-CHANNEL 55V 80A TO220 |
3,706 |
|
Datasheet |
STripFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | Through Hole | 4V @ 250µA | 112 nC @ 10 V | 55 V | ±20V | 3740 pF @ 15 V | AEC-Q101 | - | TO-220 | Automotive | 300W (Tc) | -55°C ~ 175°C (TJ) |
|

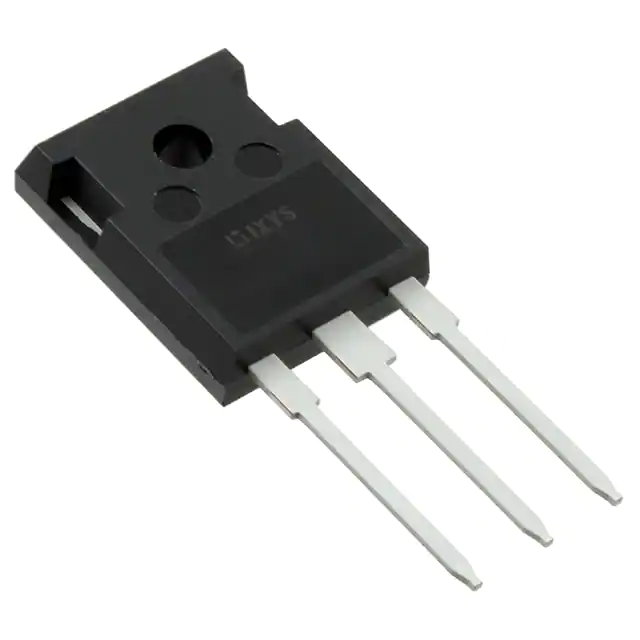

IXFH21N50FMOSFET N-CH 500V 21A TO247 |
3,657 |
|
- |
HiPerRF™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 21A (Tc) | 10V | 250mOhm @ 10.5A, 10V | Through Hole | 5.5V @ 4mA | 77 nC @ 10 V | 500 V | ±20V | 2600 pF @ 25 V | - | - | TO-247 (IXFH) | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFK21N100FMOSFET N-CH 1000V 21A TO264 |
2,167 |
|
- |
HiPerRF™ | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 21A (Tc) | 10V | 500mOhm @ 10.5A, 10V | Through Hole | 5.5V @ 4mA | 160 nC @ 10 V | 1000 V | ±20V | 5500 pF @ 25 V | - | - | TO-264AA | - | 500W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFN55N50FMOSFET N-CH 500V 55A SOT227B |
3,863 |
|
- |
HiPerFET™, F Class | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55A (Tc) | 10V | 85mOhm @ 27.5A, 10V | Chassis Mount | 5.5V @ 8mA | 195 nC @ 10 V | 500 V | ±20V | 6700 pF @ 25 V | - | - | SOT-227B | - | 600W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT1001R1BNMOSFET N-CH 1000V 10.5A TO247AD |
4,816 |
|
Datasheet |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 10.5A (Tc) | 10V | 1.1Ohm @ 5.25A, 10V | Through Hole | 4V @ 1mA | 130 nC @ 10 V | 1000 V | ±30V | 2950 pF @ 25 V | - | - | TO-247AD | - | 310W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT1001RBNMOSFET N-CH 1000V 11A TO247AD |
4,490 |
|
Datasheet |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 1Ohm @ 5.5A, 10V | Through Hole | 4V @ 1mA | 130 nC @ 10 V | 1000 V | ±30V | 2950 pF @ 25 V | - | - | TO-247AD | - | 310W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT1002RBNGMOSFET N-CH 1000V 8A TO247AD |
3,000 |
|
- |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 10V | 1.6Ohm @ 4A, 10V | Through Hole | 4V @ 1mA | 105 nC @ 10 V | 1000 V | ±30V | 1800 pF @ 25 V | - | - | TO-247AD | - | 240W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT4065BNGMOSFET N-CH 400V 11A TO247AD |
2,534 |
|
- |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 650mOhm @ 5.5A, 10V | Through Hole | 4V @ 1mA | 55 nC @ 10 V | 400 V | ±30V | 950 pF @ 25 V | - | - | TO-247AD | - | 180W (Tc) | -55°C ~ 150°C (TJ) |
|
APT40M42JNMOSFET N-CH 400V 86A ISOTOP |
4,669 |
|
Datasheet |
POWER MOS IV® | SOT-227-4, miniBLOC | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 86A (Tc) | 10V | 42mOhm @ 43A, 10V | Chassis Mount | 4V @ 5mA | 760 nC @ 10 V | 400 V | ±30V | 14000 pF @ 25 V | - | - | ISOTOP® | - | 690W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT40M75JNMOSFET N-CH 400V 56A ISOTOP |
4,740 |
|
Datasheet |
POWER MOS IV® | SOT-227-4, miniBLOC | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 56A (Tc) | 10V | 75mOhm @ 28A, 10V | Chassis Mount | 4V @ 2.5mA | 370 nC @ 10 V | 400 V | ±30V | 6800 pF @ 25 V | - | - | ISOTOP® | - | 520W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT5012JNMOSFET N-CH 500V 43A ISOTOP |
4,691 |
|
Datasheet |
POWER MOS IV® | SOT-227-4, miniBLOC | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 43A (Tc) | 10V | 120mOhm @ 21.5A, 10V | Chassis Mount | 4V @ 2.5mA | 370 nC @ 10 V | 500 V | ±30V | 6500 pF @ 25 V | - | - | ISOTOP® | - | 520W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT5020BNMOSFET N-CH 500V 28A TO247AD |
4,237 |
|
Datasheet |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28A (Tc) | 10V | 200mOhm @ 14A, 10V | Through Hole | 4V @ 1mA | 210 nC @ 10 V | 500 V | ±30V | 3500 pF @ 25 V | - | - | TO-247AD | - | 360W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT5020BNFRMOSFET N-CH 500V 28A TO247AD |
2,112 |
|
- |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28A (Tc) | 10V | 200mOhm @ 14A, 10V | Through Hole | 4V @ 1mA | 210 nC @ 10 V | 500 V | ±30V | 3500 pF @ 25 V | - | - | TO-247AD | - | 360W (Tc) | -55°C ~ 150°C (TJ) |
|
|
APT5022BNGMOSFET N-CH 500V 27A TO247AD |
4,851 |
|
Datasheet |
POWER MOS IV® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 27A (Tc) | 10V | 220mOhm @ 13.5A, 10V | Through Hole | 4V @ 1mA | 210 nC @ 10 V | 500 V | ±30V | 3500 pF @ 25 V | - | - | TO-247AD | - | 360W (Tc) | -55°C ~ 150°C (TJ) |
