FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS138-7-F-79DIODE |
0 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 10V | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
BSS138W-7-F-79DIODE |
0 |
|
- |
- | SC-70, SOT-323 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 10V | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
2N7002T-7-F-79DIODE |
0 |
|
- |
- | SOT-523 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 50mA, 5V | 2V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
DMN2025UDIODE |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.6A (Ta) | 1.8V, 4.5V | 27mOhm @ 6.5A, 4.5V | 900mV @ 250µA | 5.9 nC @ 4.5 V | ±12V | 485 pF @ 10 V | - | 800mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
2N7002-13-FDIODE |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 170mA (Ta) | 5V, 10V | 5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.23 nC @ 4.5 V | ±20V | 50 pF @ 25 V | - | 370mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
DMP2004TKDIODE |
0 |
|
Datasheet |
- | SOT-523 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 430mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1V @ 250µA | 0.97 nC @ 8 V | ±8V | 47 pF @ 16 V | - | 230mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
MSC025SMA330B4MOSFET SIC 3300 V 25 MOHM TO-247 |
0 |
|
- |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 3300 V | 104A (Tc) | 20V | 31mOhm @ 40A, 20V | 2.7V @ 7mA | 410 nC @ 20 V | +23V, -10V | 8720 pF @ 2640 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-4 |
|
|
IPB042N10NF2SATMA1TRENCH >=100V |
0 |
|
- |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMS03N06T-HFMOSFET N-CH 60V 3A SOT23-3 |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 4.5V, 10V | 105mOhm @ 3A, 10V | 2V @ 250µA | 14.6 nC @ 10 V | ±20V | 510 pF @ 30 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
CMS09N10D-HFMOSFET N-CH 100V 9.6A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.6A (Tc) | 10V | 140mOhm @ 6A, 10V | 2.5V @ 250µA | 15.5 nC @ 10 V | ±20V | 690 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
CMS12P03Q8-HFMOSFET P-CH 30V 12A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.2V @ 250µA | 44.4 nC @ 10 V | ±20V | 2419 pF @ 15 V | - | 3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
AUIRFU8403-701TRLMOSFET |
0 |
|
- |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 3.1mOhm @ 76A, 10V | 3.9V @ 100µA | 99 nC @ 10 V | ±20V | 3171 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO251-3-21 |
|

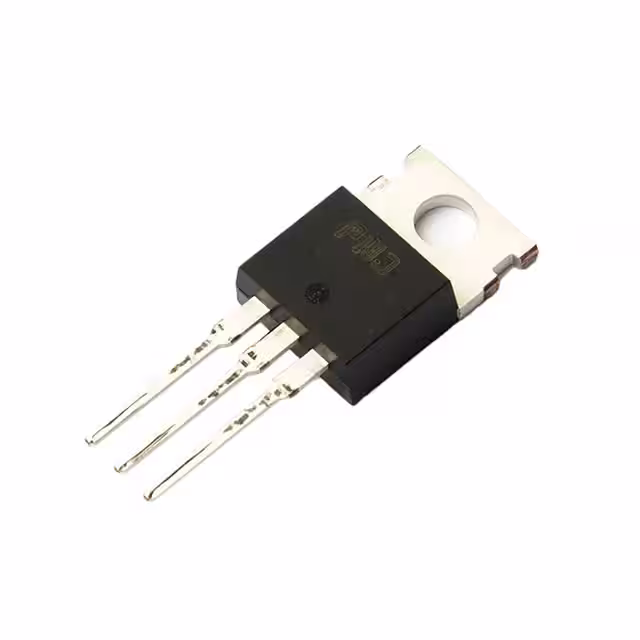

P3M173K0T3SICFET N-CH 1700V 4A TO-220-3 |
0 |
|
Datasheet |
P3M | TO-220-2 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 4A | 15V | 2.6Ohm @ 600mA, 15V | 2.2V @ 600µA (Typ) | - | +19V, -8V | - | - | 75W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-2L |
|

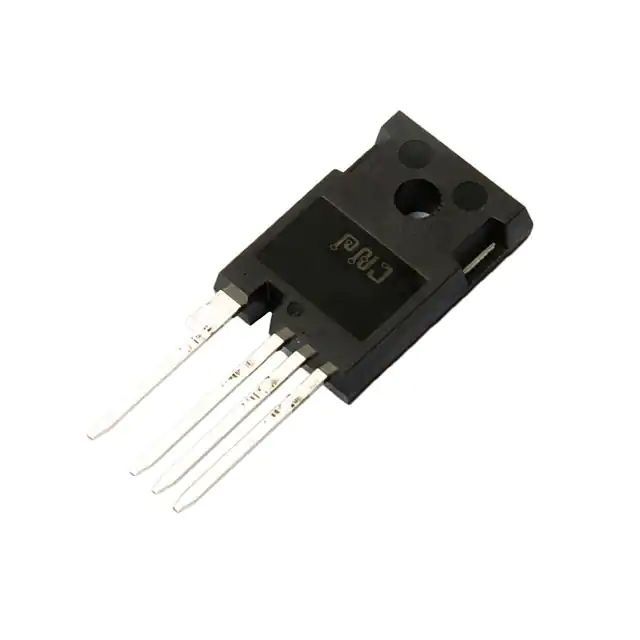

P3M12025K4SICFET N-CH 1200V 112A TO-247-4 |
0 |
|
Datasheet |
P3M | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 112A | 15V | 35mOhm @ 50A, 15V | 2.2V @ 50mA (Typ) | - | +19V, -8V | - | - | 577W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|

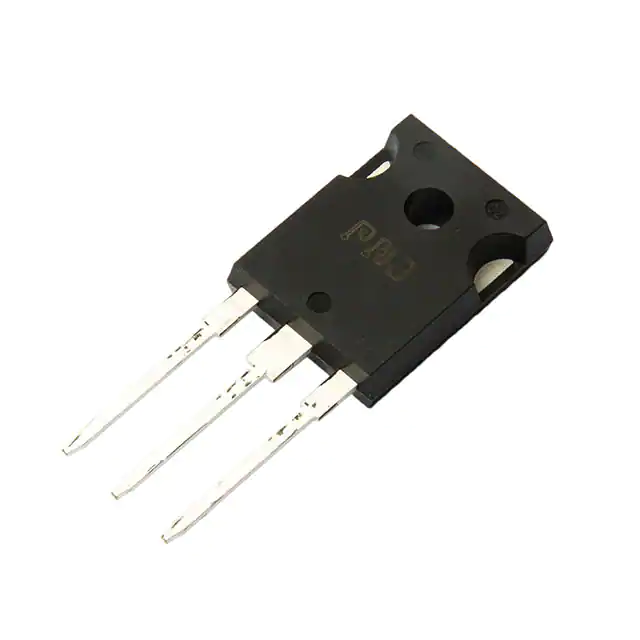

P3M171K0K3SICFET N-CH 1700V 6A TO-247-3 |
0 |
|
Datasheet |
P3M | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 6A | 15V | 1.4Ohm @ 2A, 15V | 2.2V @ 2mA (Typ) | - | +19V, -8V | - | - | 68W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3L |
|

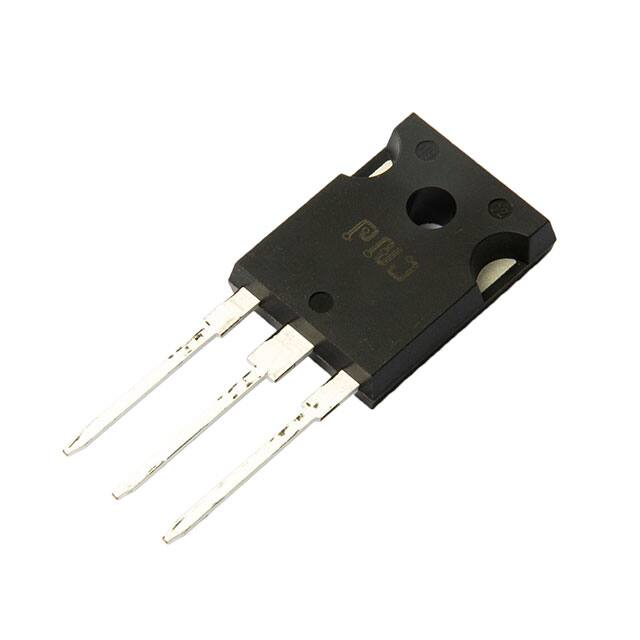

P3M12080K3SICFET N-CH 1200V 47A TO-247-3 |
0 |
|
Datasheet |
P3M | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 47A | 15V | 96mOhm @ 20A, 15V | 2.4V @ 5mA (Typ) | - | +21V, -8V | - | - | 221W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3L |
|

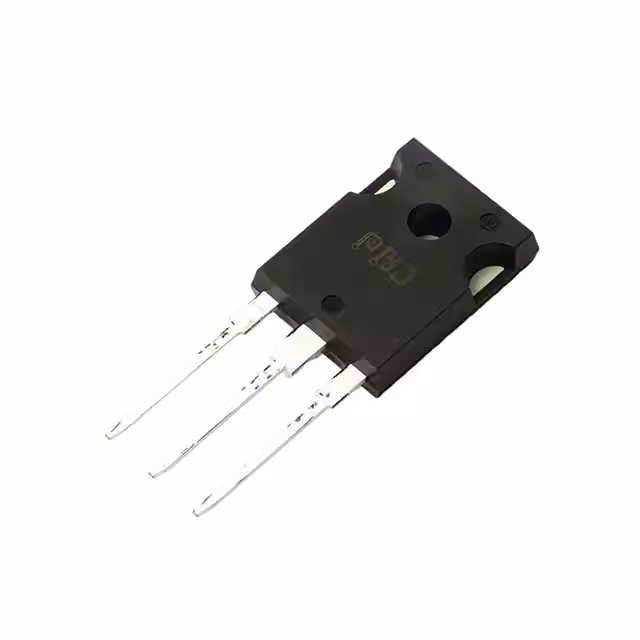

P3M06040K3SICFET N-CH 650V 68A TO247-3 |
0 |
|
Datasheet |
P3M | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 68A | 15V | 50mOhm @ 40A, 15V | 2.4V @ 7.5mA (Typ) | - | +20V, -8V | - | - | 254W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3L |
|

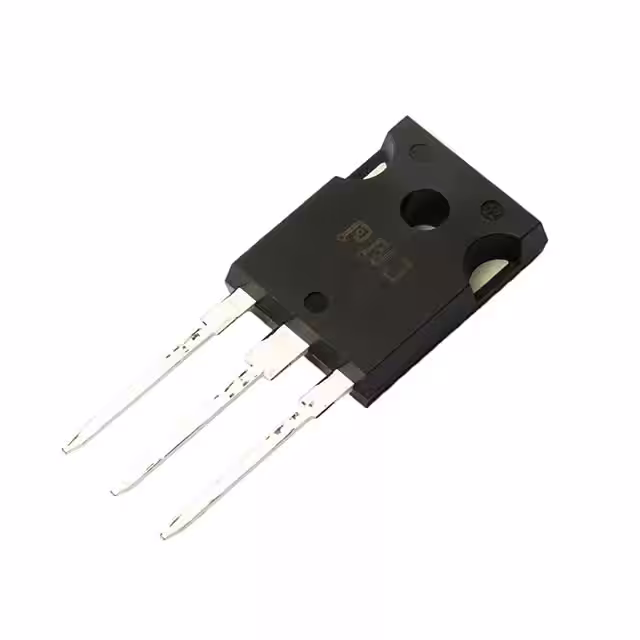

P3M12160K3SICFET N-CH 1200V 19A TO-247-3 |
0 |
|
Datasheet |
P3M | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 19A | 15V | 192mOhm @ 10A, 15V | 2.4V @ 2.5mA (Typ) | - | +21V, -8V | - | - | 110W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3L |
|

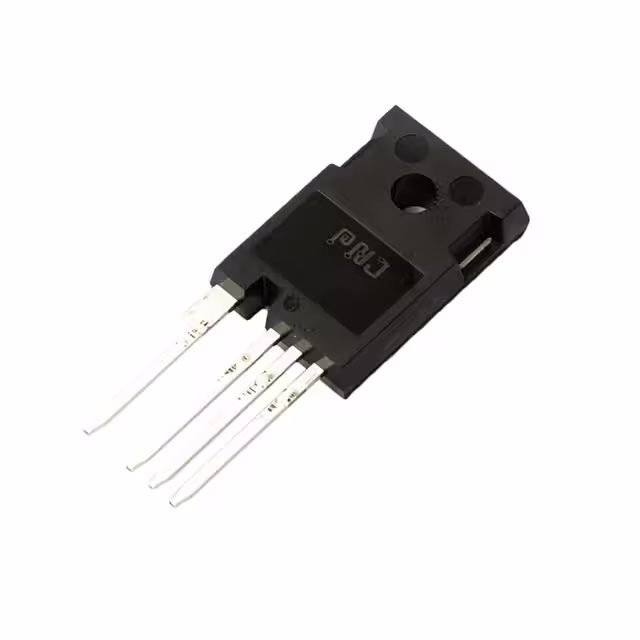

P3M12080K4SICFET N-CH 1200V 47A TO-247-4 |
0 |
|
Datasheet |
P3M | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 47A | 15V | 96mOhm @ 20A, 15V | 2.4V @ 5mA (Typ) | - | +21V, -8V | - | - | 221W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|

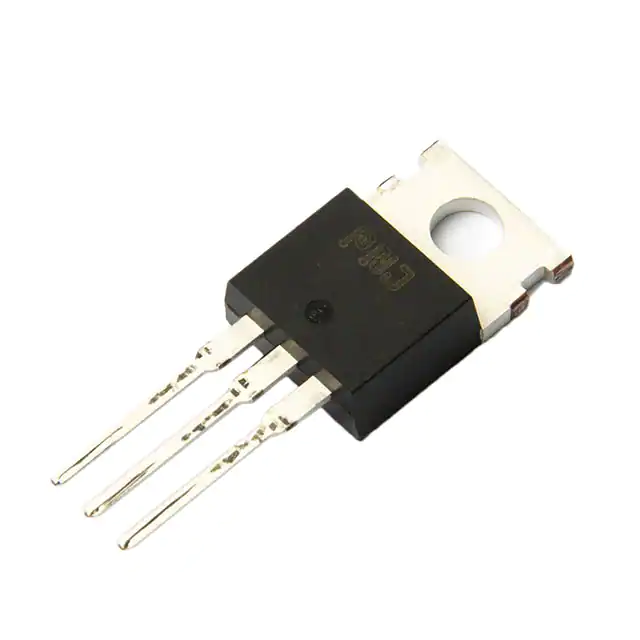

P3M06060T3SICFET N-CH 650V 46A TO220-3 |
0 |
|
Datasheet |
P3M | TO-220-2 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 46A | 15V | 79mOhm @ 20A, 15V | 2.2V @ 20mA (Typ) | - | +20V, -8V | - | - | 170W | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-2L |
