FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

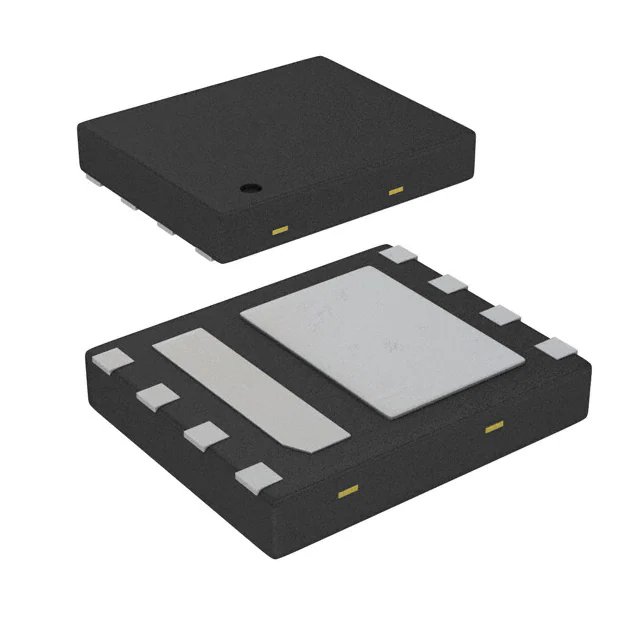

FDMS3672MOSFET N-CH 100V 7.4A/22A 8MLP onsemi |
10,459 | - |
|
Datasheet |
UltraFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7.4A (Ta), 22A (Tc) | 6V, 10V | 23mOhm @ 7.4A, 10V | Surface Mount | 4V @ 250µA | 44 nC @ 10 V | 100 V | ±20V | 2680 pF @ 50 V | - | - | 8-MLP (5x6), Power56 | - | 2.5W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) |
|
FDPF15N65MOSFET N-CH 650V 15A TO220F onsemi |
351 | - |
|
- |
UniFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 440mOhm @ 7.5A, 10V | Through Hole | 5V @ 250µA | 63 nC @ 10 V | 650 V | ±30V | 3095 pF @ 25 V | - | - | TO-220F-3 | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) |
|
NTP7D3N15MCMOSFET N-CH 150V 12.1/101A TO220 onsemi |
354 | - |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 12.1A (Ta), 101A (Tc) | - | 7.3mOhm @ 62A, 10V | Through Hole | 4.5V @ 342µA | 53 nC @ 10 V | 150 V | ±20V | 4250 pF @ 75 V | - | - | TO-220 | - | 2.4W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) |
|
NTD360N80S3ZMOSFET N-CH 800V 13A DPAK onsemi |
4,938 | - |
|
Datasheet |
SuperFET® III | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 13A (Tc) | 10V | 360mOhm @ 6.5A, 10V | Surface Mount | 3.8V @ 300µA | 25.3 nC @ 10 V | 800 V | ±20V | 1143 pF @ 400 V | - | - | TO-252 (DPAK) | - | 96W (Tc) | -55°C ~ 150°C (TJ) |
|
FCI7N60MOSFET N-CH 600V 7A I2PAK onsemi |
2,943 | - |
|
Datasheet |
SuperFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | Through Hole | 5V @ 250µA | 30 nC @ 10 V | 600 V | ±30V | 920 pF @ 25 V | - | - | TO-262 (I2PAK) | - | 83W (Tc) | -55°C ~ 150°C (TJ) |
|
NVMFS5C628NLAFT1GMOSFET N-CH 60V 28A/150A 5DFN onsemi |
1,064 | - |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 28A (Ta), 150A (Tc) | 4.5V, 10V | 2.4mOhm @ 50A, 10V | Surface Mount | 2V @ 135µA | 52 nC @ 10 V | 60 V | ±20V | 3600 pF @ 25 V | AEC-Q101 | - | 5-DFN (5x6) (8-SOFL) | Automotive | 3.7W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) |
|
|
NDP6060MOSFET N-CH 60V 48A TO220-3 onsemi |
647 | - |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 48A (Tc) | 10V | 25mOhm @ 24A, 10V | Through Hole | 4V @ 250µA | 70 nC @ 10 V | 60 V | ±20V | 1800 pF @ 25 V | - | - | TO-220-3 | - | 100W (Tc) | -65°C ~ 175°C (TJ) |
|
|
NTP165N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE onsemi |
644 | - |
|
Datasheet |
SuperFET® III | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 19A (Tc) | 10V | 165mOhm @ 9.5A, 10V | Through Hole | 4V @ 1.6mA | 35 nC @ 10 V | 650 V | ±30V | 1808 pF @ 400 V | - | - | TO-220-3 | - | 142W (Tc) | -55°C ~ 150°C (TJ) |
|
|
FDP032N08B-F102MOSFET N-CH 80V 120A TO220-3 onsemi |
343 | - |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 3.3mOhm @ 100A, 10V | Through Hole | 4.5V @ 250µA | 144 nC @ 10 V | 80 V | ±20V | 10965 pF @ 40 V | - | - | TO-220-3 | - | 263W (Tc) | -55°C ~ 175°C (TJ) |
|
FDMC7570SMOSFET N-CH 25V 27A/40A POWER33 onsemi |
533 | - |
|
Datasheet |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 27A (Ta), 40A (Tc) | 4.5V, 10V | 2mOhm @ 27A, 10V | Surface Mount | 3V @ 1mA | 68 nC @ 10 V | 25 V | ±20V | 4410 pF @ 13 V | - | - | Power33 | - | 2.3W (Ta), 59W (Tc) | -55°C ~ 150°C (TJ) |
